T·PUMP XS USER MANUAL
CORDLESS HIGH-PRESSURE SMART TIRE PUMP

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T-PUMP XS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for coolado T-PUMP XS

Summary of Contents for coolado T-PUMP XS

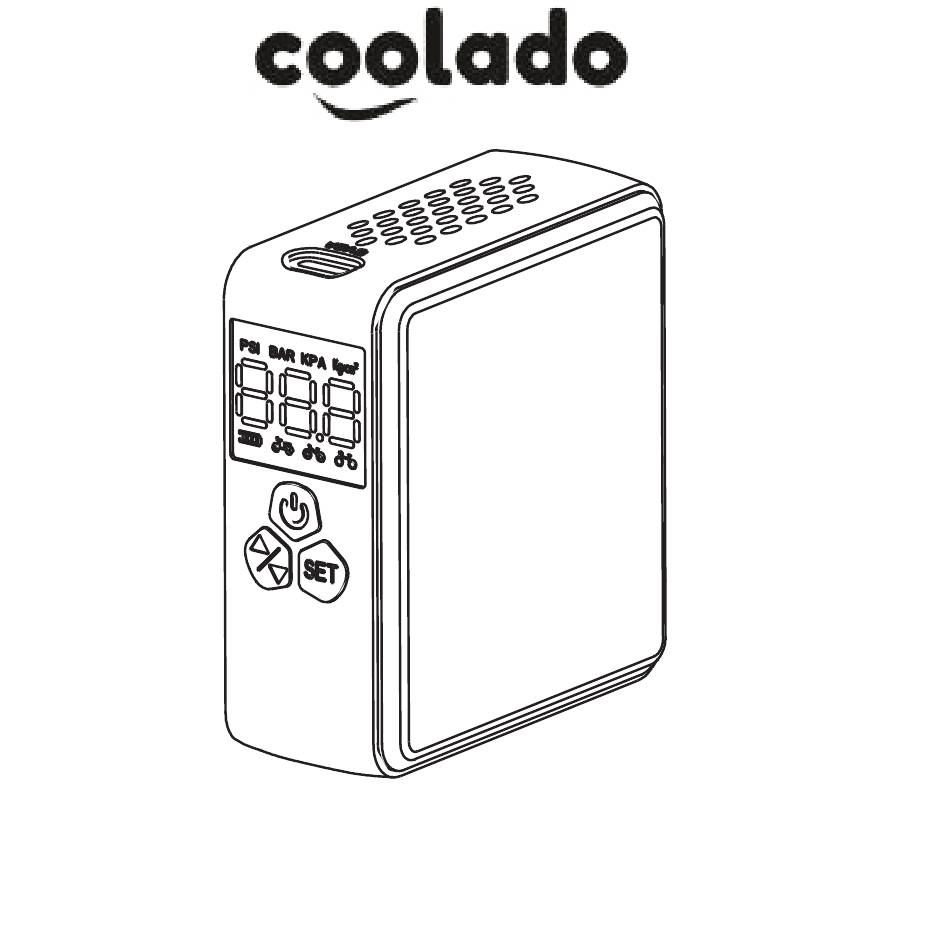

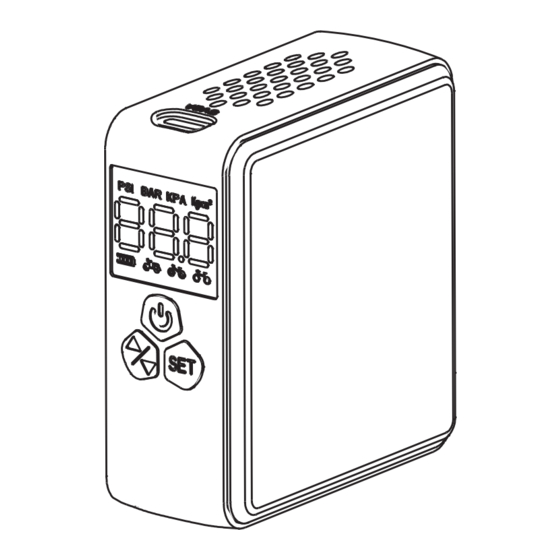

  • Page 1 T·PUMP XS USER MANUAL CORDLESS HIGH-PRESSURE SMART TIRE PUMP...
  • Page 2 Thank you for purchasing the Coolado tPump XS! Discover the endless usages of this little smart device and share your experience on our website: www.coolado.com...
  • Page 3 ATTENTION! PLEASE READ CAREFULLY Please read this instruction manual carefully before using this product for the first time. It will guide you to use it correctly and remind you of the relevant precautions. This pump is a semi-professional tool and not a toy. This product is a portable smart tire pump, suitable for the inflation of camper tires, car tires, motorcycle tires, bicycle tires, balls and other high-pressure inflatables (Air Tent, Kite, Wing Foil)

  • Page 4: Box Contents

    1. BOX CONTENTS tPump XS Air Hose for Schrader / Presta Press- nozzle Schrader / Presta Ball pin needle / Plastic adaptor USB-C recharge cable USB-C...

  • Page 5: Product Description

    2. PRODUCT DESCRIPTION 1: Pressure units 2: Pressure value 3: Inflation modes 4: Power indicator 5: Power button 6: Set button 7: Up/Down button...
  • Page 6 3. INCLUDED ADAPTERS There are two ways to pump. Depending on your needs, you can choose one of the two systems. A: Air Hose To use the tPump XS on a Schrader valve, screw the air hose in this configuration onto the tPump XS. To use the air hose on a Presta or Dunlop valve, unscrew the top of the tube and extend it as shown here.
  • Page 7 B: Use the Press Adapter directly on your tire valves. 1. Screw the Press Adapter directly on the pump, without the air hose. In order to use the Press Adapter on a Schrader valve, you need to first disassemble it by unscrewing the top of the adapter and arranging the inner components, as demonstrated below.
  • Page 8 4. FUNCTIONS Hold POWER-button for three seconds, display will light up. Click SET-button and choose mode Hold SET-button for three seconds and choose pressure unit. Click UP/DOWN to adjust pressure value (*) Click POWER-button to start inflating Stops automatically (*) The pressure value increases automatically when you turn on the power.

  • Page 9: Operation Of The Pump

    5. OPERATION OF THE PUMP INFLATION PROCESSES 1.Inflation Without air pressure setting Connect the pump and tire valve with the air hose or press-nozzle. To turn on the screen, press and hold the POWER-button for at least 3 seconds. Long press the SET-button to choose pressure unit Press the POWER-button to start the inflating Press the POWER-button to stop the inflating 2.
  • Page 10 6. CHOOSE THE AIR PRESSURE In order to ensure safety, before using the product to inflate, please inquire about the air pressure value required by the inflated item by reading the instructions manual from the supplier and avoid accidents caused by low-pressure or over-pressure. Suitable air pressure value for common products.

  • Page 11: Product Parameters

    7. PRODUCT PARAMETERS Model No. Model No. Coolado tPump XS Inflatable pressure range Inflatable pressure range 150 PSI / 10,3 Bar Product size. Product size. 80x78x35mm Weight Weight 290 gr Airflow Airflow 15L/Min Working temperature Working temperature -20〜45°C Tube size...

  • Page 12: Special Notes

    The Coolado ePump is a superb option for these goods. Please double check the air pressure required to prevent injury caused by over-inflation bursting while inflating.

  • Page 13: Troubleshooting

    9. TROUBLESHOOTING MALFUNCTION SOLUTION Slow inflation Check whether the battery is sufficiently charged Check if the air hose is leaking Check if the connection parts on both ends of the air tube are tight Check if the power is sufficient Can’t inflate when turning on Check if the current tire pressure value is...

  • Page 14: Cleaning And Maintenance

    10. CLEANING & MAINTENANCE The Coolado t-Pump needs only to be cleaned on the outside surface with a dry, soft cloth. The product has a built-in non-removable lithium battery. Please do not throw the product into fire or discard it carelessly. The lithium battery may cause fire, spontaneous combustion or explosion due to...

  • Page 15: Warranty

    The warranty is limited to the value of the pump. The liability of Coolado will ALWAYS be limited to the value of the pump. Coolado will not be liable for damages to persons and/or property.
  • Page 16 Make sure you charge the battery before storing it away for extended periods. Charge the pump when not in use otherwise the battery may be discharged or destroyed On our website, you can find this manual in multiple languages. Scan this QR Code or go to our website: https://www.coolado.com/manuals...
