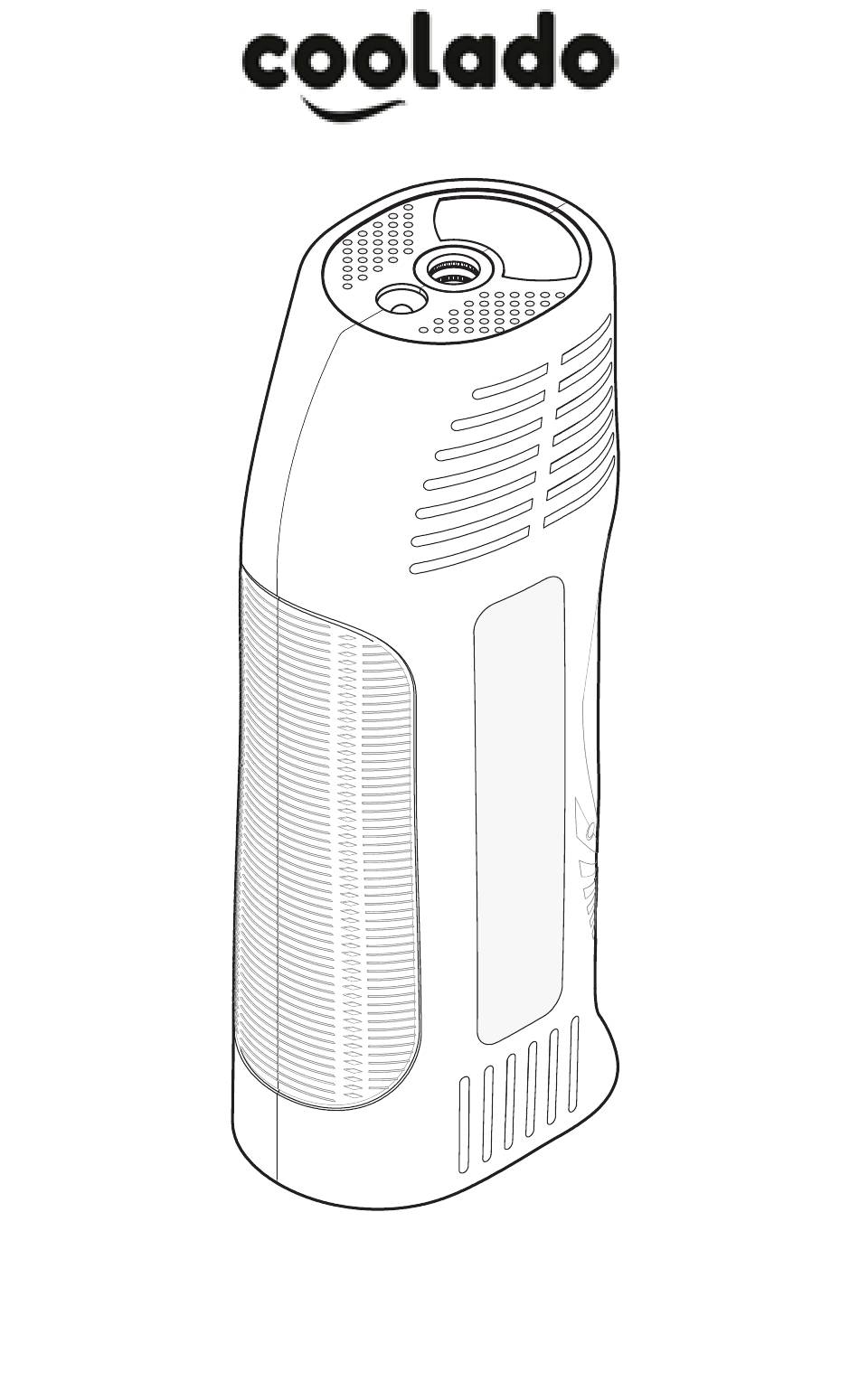

- Page 1 T·PUMP XL USER MANUAL CORDLESS HIGH-PRESSURE DOUBLE CYLINDER SMART TIRE PUMP...
- Page 2 Thank you for purchasing the Coolado tPump XL! Discover the endless usages of this little smart device and share your experience on our website: www.coolado.com ATTENTION! Please read this instruction manual carefully before using this product for the first time. It will guide you to use it correctly and remind you of the relevant precautions. This pump is a semi-professional tool and not a toy.
-
Page 3: Box Contents
1. BOX CONTENTS tPump XL Tube with with Schräder adapter tClamp adapter with air release button Adapter for Presta (or French) and Dunlop (or Dutch) valve Ball pin needle adaptor Inflatables adapter Wall charger 17.5V 1 AC USB-C recharge cable Type-C Protective Case... -
Page 4: Product Description
2. PRODUCT DESCRIPTION 10 11 12 13 14 15 16 LED light LCD display Pump hose screw hole Warning sticker Down Control panel Power/set button USB ports Start-Stop button DC port Air pressure value Desk lamp Pressure unit Lamp switch Battery indicator... - Page 5 3. INCLUDED ADAPTORS Tube with with Schrader adapter tClamp adapter with air release button Adapter for Presta (or French) and Dunlop (or Dutch) valve Ball pin needle adaptor Inflatable adapter 4. FUNCTIONS Automatic inflation Pressure detection Power bank Light, Flash warning and SOS lamp Press Long press Press with display off...
-
Page 6: Operation Of The Pump
5. OPERATION OF THE PUMP Turning on the display Connect the tube to the pump and make sure it’s tight Push the “Power on” button to switch on the display. ln the power-on state after 180 seconds without any operation, the display will automatically turn off. Battery indicator The battery status bar is indicating the remaining power Charging... - Page 7 Inflating process without presetting the air pressure Press the SET button to activate the LCD display, Then press the power switch to START/STOP the pump. Inflating process with pre-setting the pressure value Press the SET switch to activate the LCD screen, press the SET switch again to choose the pressure units between PSI, BAR, KPA or KG/CM2.
- Page 8 6. USE OF THE DIFFERENT ADAPTORS SCHRADER ADAPTER The tube is standard equipped with a Schrader valve suitable for: Mountain bikes E-bikes Motorcycles Cars, caravan and campers just screw the schrader side of the tube directly on the tire valve. TCLAMP WITH PRESSURE RELEASE The tPump XL includes a most clever quick connect valve, named the tClamp with a professional pressure release...
- Page 9 BALL NEEDLE ADAPTER Screw the balloon needle adapter into the schrader side of the pump hose, moisten the needle a little and plug it into the balloon valve. It is suitable for basketball, soccer and other types of balls. INFLATABLES ADAPTER For swimming pool and beach tools, balloons, toy balls…...
-
Page 10: Product Parameters
8. PRODUCT PARAMETERS Inflatable pressure range 100 PSI / 6,9 Bar Product size 60x85x200mm Weight 815 gr Airflow 40 litre per minute Working temperature -10°C ~ 45°C Tube size 175±5mm, including air nozzle Battery capacity 2000mAh x 4 Working noise 1 meter = less than 75dB Working voltage 14,8 V... -
Page 11: Special Notes
The Coolado ePump is a superb option for these goods. Please double check the air pressure required to prevent injury caused by over-inflation bursting while... -
Page 12: Troubleshooting
10. TROUBLESHOOTING MALFUNCTION SOLUTION Check whether the battery is sufficiently charged Slow inflation Check if the air hose is leaking Check if the connection parts on both ends of the air tube are tight. Check if the tube is bent or blocked. Check if the power is sufficient Can’t inflate when turning on... -
Page 13: Cleaning And Maintenance
11. CLEANING & MAINTENANCE The Coolado t-Pump needs only to be cleaned on the outside surface with a dry, soft cloth. The product has a built-in non-removable lithium battery. Please do not throw the product into fire or discard it carelessly. The lithium battery may cause fire, spontaneous combustion or explosion due to overheat- ing, impact and water ingress. -
Page 14: Additional Applications
The warranty is limited to the value of the pump. The liability of Coolado will ALWAYS be limited to the value of the pump. Coolado will not be liable for damages to persons and/or property. 13. ADDITIONAL APPLICATIONS We're currently testing the tPump XL with a number of device makers, including air tents, kites, SUPs, and kayaks.
