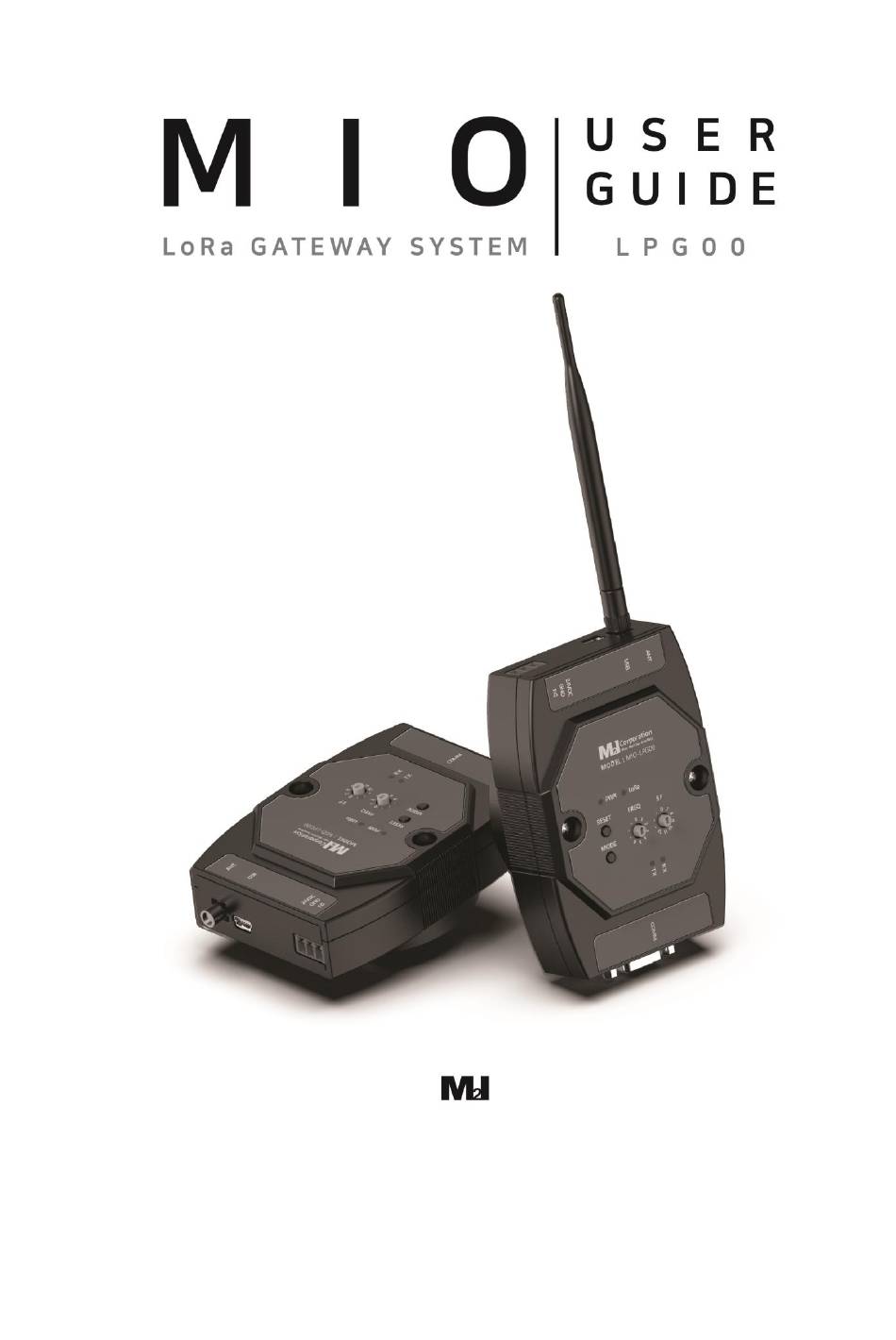

M2I MIO-LPG00 Hardware Manual

Industrial i/o wireless controller
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for M2I MIO-LPG00

Summary of Contents for M2I MIO-LPG00

  • Page 2 M2I Corporation Industrial I/O Wireless Controller MIO-LPG00 Hardware Manual Thank you for using Industrial I/O Wireless Controller of M2I corporation. Please read this manual carefully to know installing, wiring, operating, servicing and inspecting this equipment. M2I Corporation 2 / 16...

  • Page 3: Table Of Contents

    8.1 Case Cleaning .................................. 15 8.2 Periodic Check Points ..............................15 8.3 Problems with the Device ............................15 Chapter 9 Products Label ....................................16 M2I Corporation 3 / 16 11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do 14055, Korea, Tel: +82-70-465-3366, Fax: +82-31-465-3355,...

  • Page 4: Chapter 1 Safety Precautions

    Tighten the terminal screw with the specified torque. If the screws of terminal are loose, it could result in short circuit, fire, malfunctions. FG Terminal must be used a dedicated ground. Not doing so could result in malfunctions. M2I Corporation 4 / 16 11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do 14055, Korea, Tel: +82-70-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr...
  • Page 5 ■ All field-wiring connections to this unit shall be from Limited Voltage / Limited Current, below 24Vdc isolated secondary source with an output fuse, or Class 2. M2I Corporation 5 / 16 11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do 14055, Korea, Tel: +82-70-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr...

  • Page 6: Chapter 2 Overview

    Before using the product, please check that all of the following components are included. Item Figure Quantity Main Body (MIO-LPG00) User Manual Antenna Power Connector 2.3 Explanation of Model name Industrial I/O controlled wireless controller and device product configurations are as follows.

  • Page 7: Chapter 3 General Specification

    Surge Voltage 500V(Line-Line) Ground Connection Class 3(Under 100Ω) Protection Classification IP20 3.5 Structure Specifications Cooling System Natural air circulation Case Material ABS(Flame Retardant) M2I Corporation 7 / 16 11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do 14055, Korea, Tel: +82-70-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr...

  • Page 8: Chapter 4 Part Names And General Specifications

    Chapter 4 Part Names and General Specifications 4.1 Product Size Model W (mm) D (mm) H (mm) MIO-LPG00 44.6 4.2 Part Names and General Specifications M2I Corporation 8 / 16 11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do 14055, Korea, Tel: +82-70-465-3366, Fax: +82-31-465-3355,...

  • Page 9: Chapter 5 Operation And Settings

    The operation status of the status indicator LED is shown below. Status Description Green ON / OFF ON when Main Power is Input LoRa Green Transmit Data LoRa Transmit Data Status M2I Corporation 9 / 16 11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do 14055, Korea, Tel: +82-70-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr...

  • Page 10: Frequency Select And Communication Settings

    You can set SF bitrate (7 ~ 12). The higher number of this, the longer communication range is possible. But the transmit speed will be slow down. Below image is showing the relationship between data speed and communication range. M2I Corporation 10 / 16 11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do 14055, Korea, Tel: +82-70-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr...

  • Page 11: Reset Button And Mode Button

    (1) Push ‘MODE’ button for 3 seconds of MIO-LPG00, MIO-LPE00 (LoRa LED will blink). (2) Push ‘MODE’ button of MIO-LPG00 for 1 second, settings of MIO-LPG00 will send to MIO-LPE00 device, and settings of MIO-LPE00will be changed same as MIO-LPG00 (and then device will reset).

  • Page 12: Chapter 6 Interface

    7, 8 bit Data Bit Parity Bit NONE, ODD, EVEN Parity Data Type 1, 2 bit Stop Bit DSUB 9pin Modular Jack M2I Corporation 12 / 16 11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do 14055, Korea, Tel: +82-70-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr...

  • Page 13: Chapter 7 Installation And Wiring

    (5) An install location should be separated from power line and I/O cables which has a lot of noise. Also make the wiring length short as possible. 7.2 DIN RAIL This product has DIN Rail (width 35mm) Hook for mounting. M2I Corporation 13 / 16 11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do 14055, Korea, Tel: +82-70-465-3366, Fax: +82-31-465-3355,...

  • Page 14: Power, Ground, And Communication Cable Specification

    (2) Grounding should be done with a dedicated ground. It is recommended that the ground is a 3-class ground. (Ground resistance is 100Ω or less) M2I Corporation 14 / 16 11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do 14055, Korea, Tel: +82-70-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr...

  • Page 15: Chapter 8 Maintenance

    (2) Only the authorized worker from M2I Corporation can check and repair problems related to malfunction of the machine. (3) If the problem cannot be solved at the installation site, the equipment can be collected and moved to M2I Corporation.

  • Page 16: Chapter 9 Products Label

    2022.12 www.m2i.co.kr - Please read related contents in this manual when you use M2I product, and operate the product staying safe with appropriate handling. - This manual should be stored in secured and appointed place so that it can be read in any needs.
