AMG AMGFIB-1V-1SD-3CC Series Instruction Manual

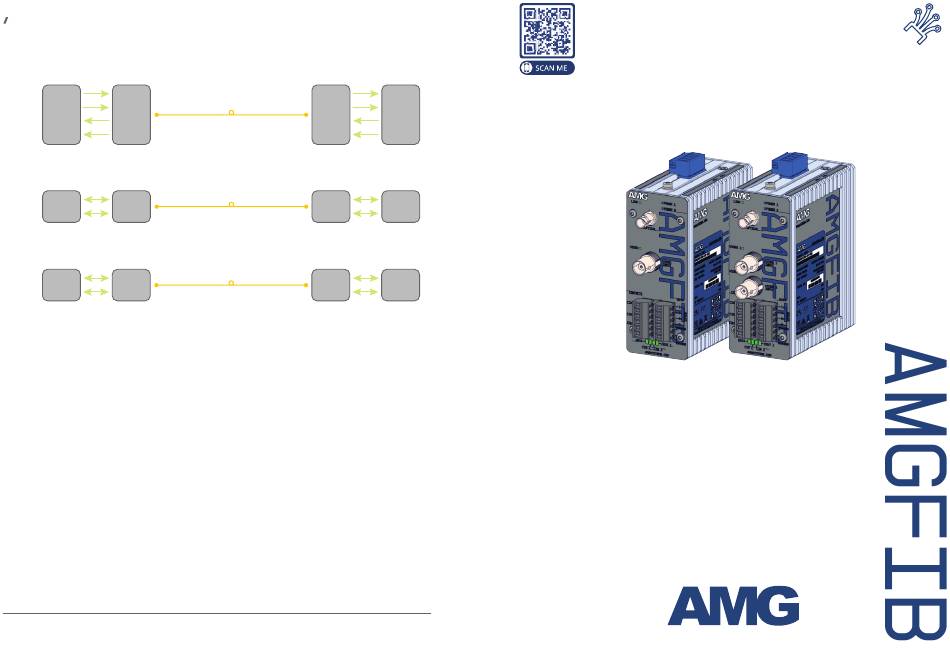

SERIAL DATA CONNECTIONS
Customer
Equipment
X1A Models
Data Out (+) RS422 T+
Data Out (-) RS422 T-
RS422
Data In (+) RS422 R+
Data In (-) RS422 R-
Customer
Equipment X1A Models
Data In (+) RS422 R+
Bi-Phase
Data In (-) RS422 R-
Customer
Equipment X1A Models
Data A (+) RS485A
RS485
Data B (-) RS485B
Serial Data Specifications.
Data Channels 1x RS422 / Bi-Phase
1x RS485
Data Rate: 115kb/s Max
Termination: External Resistor
AMG Systems Ltd. 4 Pioneer Way, Castleford, WF10 5QU, UK T: +44 (0) 1767 600 777 E: technical@amgsystems.com
AMG Systems Inc. 62 Spring Hill Road, Trumbull, CT 06611, USA T: +1-855-AMGPOE1 (855-264-7631)
D31140-00
X1B Models
RS422 R+
RS422 R-
RS422 T+
Multimode or Singlemode Fiber
RS422 T-
X1B Models
RS422 T+
RS422 T-
Multimode or Singlemode Fiber
X1B Models
RS485A
Multimode or Singlemode Fiber RS485B
www.amgsystems.com
Customer
Equipment
Data In (+)
Data In (-)
Data Out (+)
Data Out (-)
Customer
Equipment
Data Out (+)
Data Out (-)
Customer
Equipment
Data A (+)
Data B (-)
AMGFIB-1/2V-1SD-3CC Series AMGFIB-1/2V-1SD-3CC Series
Industrial Video, Data Industrial Video, Data
& Contact Closure & Contact Closure
Installation Manual - Hardware Installation Manual - Hardware
