8 Channel Video Receive Unit with up to 8 Bi-directional
Data and Audio Channels for CWDM
The AMG4788A-CWDMn is a standalone eight channel video receive unit designed to receive 8 video
signals and transmit and receive up to 8 data or audio signals over two singlemode optical fibres.
External CWDM Couplers may also be used to combine the two optical wavelengths onto a single
fibre.
The 8 data/audio channel interfaces, whether RS232, RS422, RS485, 20mA, TTL, Contact Closure,
Lonworks or Audio, are defined at manufacture by the addition of daughter boards fitted onto the Data
Expansion Board A.
The AMG4788A-CWDMn is designed to be powered using an AMG2003 standalone power supply.
The AMG4788A-CWDMn is designed to operate with AMG4787A-CWDMn or rackmount equivalent
AMG4787AR-CWDMn eight channel video transmit unit in a point to point configuration.
AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
AMG4788A-CWDMn
Instruction Manual
Page 1 of 12
AMG4788A-CWDMn Instruction Sheet
D18373-00.doc
Advertisement
Table of Contents
Related Manuals for AMG AMG4788A-CWDMn
Summary of Contents for AMG AMG4788A-CWDMn
- Page 1 8 Channel Video Receive Unit with up to 8 Bi-directional Data and Audio Channels for CWDM The AMG4788A-CWDMn is a standalone eight channel video receive unit designed to receive 8 video signals and transmit and receive up to 8 data or audio signals over two singlemode optical fibres.
-
Page 2: Table Of Contents
Removal / replacement from / to the Case..................9 Safety Maintenance and Repair AMG Systems Ltd. reserves the right to make changes to this Page 2 of 12 AMG4788A-CWDMn Instruction Sheet document without notice. The information herein is believed to D18373-00.doc... -
Page 3: Introduction
For CWDM wavelengths 11-14, ITU-T G652C or D fibre is recommended. Optical Connection The AMG4788A-CWDMn is connected as illustrated below when used with an AMG4787A-CWDMn 8-channel transmit unit acting as a point to point system. Alternatively, the AMG4787A-CWDMn and AMG4788A-CWDMn may be interconnected with additional system units operating at different optical wavelengths on the same fibre using external couplers. -
Page 4: Connections
Wavelength ..........Any 1310nm or 1550nm band Optical Fibre ........Singlemode Optical Overload ........-5dBm NOTE: The optical launch power may overload the input of an AMG receiver if connected directly. A minimum of 5dB loss is required to ensure correct operation. Power Connection Connector Type ........2.1mm screw lock long power jack –... -
Page 5: Data And Audio Channel Configuration
The AMG4788A-CWDMn and rackmount equivalent AMG4788AR-CWDMn sends and receives data in one bank - Bank A. Bank B is not used. The physical interface is determined by the fitting of AMG data or audio daughter boards onto the appropriate data expansion board slots. -
Page 6: Data And Audio Connections
See Data or Audio Daughter Board Instruction Sheet for meaning of Audio/Data IN+, Audio/Data IN- Audio/Data OUT+, and Audio/Data OUT- for each data type. AMG Systems Ltd. reserves the right to make changes to this Page 6 of 12 AMG4788A-CWDMn Instruction Sheet document without notice. -
Page 7: Front Panel Indicators
> 0dBm (overload at +6dBm) audio not present or < -40dBm This represents the data signals being transmitted on the optical fibre AMG Systems Ltd. reserves the right to make changes to this Page 7 of 12 AMG4788A-CWDMn Instruction Sheet document without notice. - Page 8 > 0dBm (overload at +6dBm) audio not present or < -40dBm This represents the audio signals being received from the optical fibre. AMG Systems Ltd. reserves the right to make changes to this Page 8 of 12 AMG4788A-CWDMn Instruction Sheet document without notice.
-
Page 9: Physical Information

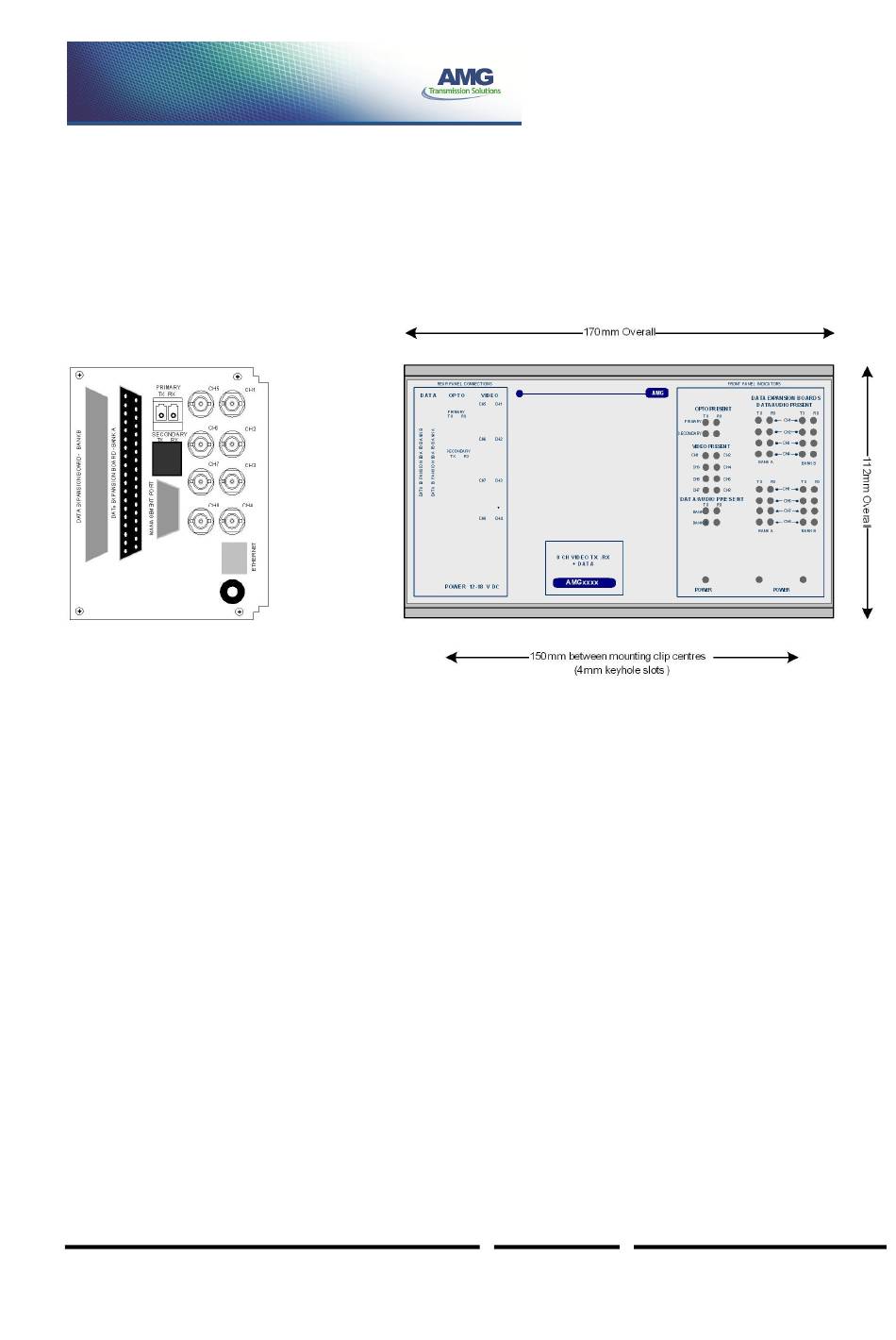

Weight ..........1200grams Mounting Details The AMG unit is supplied with a clip-on mounting bracket which should be attached to a panel or wall using 2 off 4.0mm screws, see diagram on page 1 for dimensions. The unit is clipped into the mounting bracket, and is then held firmly in position. - Page 10 This page is intentionally blank. AMG Systems Ltd. reserves the right to make changes to this Page 10 of 12 AMG4788A-CWDMn Instruction Sheet document without notice. The information herein is believed to D18373-00.doc be accurate. No responsibility is assumed by AMG for its use.
- Page 11 This page is intentionally blank. AMG Systems Ltd. reserves the right to make changes to this Page 11 of 12 AMG4788A-CWDMn Instruction Sheet document without notice. The information herein is believed to D18373-00.doc be accurate. No responsibility is assumed by AMG for its use.
- Page 12 This page is intentionally blank. AMG Systems Ltd. reserves the right to make changes to this Page 12 of 12 AMG4788A-CWDMn Instruction Sheet document without notice. The information herein is believed to D18373-00.doc be accurate. No responsibility is assumed by AMG for its use.
