WWW.DINEMA.IT
SANTONI INSTALLATION MANUAL
MAY 2022 V02/ENG
GRYF - Santoni installation manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GRYF and is the answer not in the manual?

Questions and answers

Related Manuals for dinema GRYF

Summary of Contents for dinema GRYF

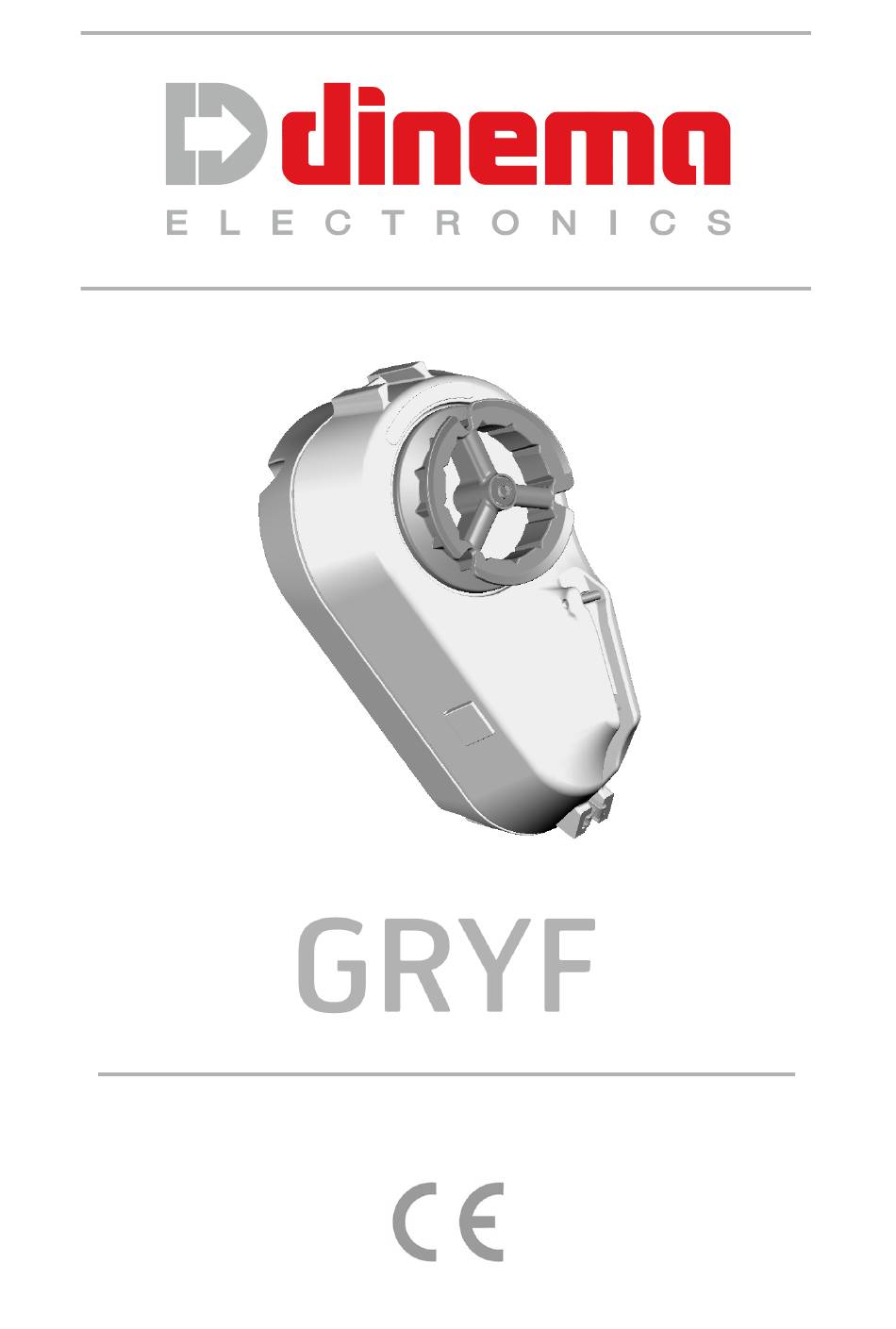

  • Page 1 WWW.DINEMA.IT SANTONI INSTALLATION MANUAL MAY 2022 V02/ENG GRYF - Santoni installation manual...

  • Page 2: Table Of Contents

    Index SM8-TOP2V MACHINE CONNECTIONS ARRANGEMENT…………………………………………………1 LINUX ELECTRONIC (XQ) ........................1 GRYF DEVICE ASSEMBLY ........................5 ACCESSORIES: MODULAR GRYF YARN HOLDER ASSEMBLY……………………………………………...7 ACCESSORIES: YARN COMPENSATOR ASSEMBLY WITH LEVERS……………….…………………………9 SETUP ..............................11 LINUX ELECTRONIC ..........................11 MEANING OF THE LIGHT SIGNALS……………….…………………………………………………………...17 CLEANING AND MAINTENANCE……………………….……………………………………………………. 18 25124 Brescia (Italy) –...

  • Page 3: Sm8-Top2V Machine Connections Arrangement

    Based on the presence or absence of optional (former BTSR control unit), the following images show two possible alternatives for fixing the PULSE power supply and related wiring: FIG.1 FIG.2 25124 Brescia (Itay) – Via San Polo, 183 – Tel. +39 30 2300492 – Fax. +39 30 2300833 GRYF...
  • Page 4 - Remote control group for suction fan; - Power supply unit for LGL The following image (FIG.3) shows the configuration just described in detail: FIG.3 25124 Brescia (Itay) – Via San Polo, 183 – Tel. +39 30 2300492 – Fax. +39 30 2300833 GRYF...
  • Page 5 The following image (FIG.4), shows the configuration just described in detail: FIG.4 For the electrical connection of the wiring and power supply, refer to what is described for FIG. 25124 Brescia (Itay) – Via San Polo, 183 – Tel. +39 30 2300492 – Fax. +39 30 2300833 GRYF...
  • Page 6 CBL5465 (P / N 252465) coming from the PULSE 24 Volt power supply (FIG. 6), paying particular attention to the silk-screened asterisks on the wiring which must be positioned upwards: FIG.5 FIG.6 25124 Brescia (Itay) – Via San Polo, 183 – Tel. +39 30 2300492 – Fax. +39 30 2300833 GRYF...
  • Page 7 PCB 2010 located under the keyboard assembly of the machine. If PCB 2010 connector J25 is busy, use PCB 5734 connector J17. 25124 Brescia (Itay) – Via San Polo, 183 – Tel. +39 30 2300492 – Fax. +39 30 2300833 GRYF...

  • Page 8: Gryf Device Assembly

    GRYF DEVICE ASSEMBLY Once the electrical preparation of the SM8-TOP2V equipment has been completed, it is possible to proceed with the mechanical assembly of the GRYF. The required material is listed below: ASS. GRYF ALL OPT SANTONI P/N 454353 25124 Brescia (Itay) – Via San Polo, 183 – Tel. +39 30 2300492 – Fax. +39 30 2300833...
  • Page 9 1. Power supply block 2. Supply cable + CAN BUS GRYF At this point it is possible to mount the GRYF device to the support assembly as shown in the following figure: FIG.7 25124 Brescia (Itay) – Via San Polo, 183 – Tel. +39 30 2300492 – Fax. +39 30 2300833...

  • Page 10: Accessories: Modular Gryf Yarn Holder Assembly

    The drawing below shows the accessory in question: The main function of this accessory is to supply the yarn to the GRYF with a pre-tension that favors both the correct arrangement of the coils on the wheel (hooked pin inclination adjustable by means of a special screw), and the stability of the yarn itself on it.
  • Page 11 STEP 3: rotate the two ITEMs until the angle between them is 180 ° For disassembly, reverse the listed steps. Perform this procedure whenever you want to assemble or disassemble the accessory in question. 25124 Brescia (Itay) – Via San Polo, 183 – Tel. +39 30 2300492 – Fax. +39 30 2300833 GRYF...

  • Page 12: 2.2 Accessories: Yarn Compensator Assembly With Levers

    STEP 1: position the two ITEMs respectively at 90 ° to each other. It is possible to apply the opposite direction of rotation to that shown in the figure, as long as the angle is respected. 25124 Brescia (Itay) – Via San Polo, 183 – Tel. +39 30 2300492 – Fax. +39 30 2300833 GRYF...
  • Page 13 STEP 3: rotate the two ITEMs until the angle between them is 180 ° For disassembly, reverse the listed steps. Perform this procedure whenever you want to assemble or disassemble the accessory in question. 25124 Brescia (Itay) – Via San Polo, 183 – Tel. +39 30 2300492 – Fax. +39 30 2300833 GRYF...

  • Page 14: Setup

    NOTE: The version required may vary depending on the software version installed on the machine. Proceed by selecting in sequence from the main page shown in the figure above:  4 25124 Brescia (Itay) – Via San Polo, 183 – Tel. +39 30 2300492 – Fax. +39 30 2300833 GRYF...
  • Page 15 The following image shows the message that will appear once the device software has been updated: 25124 Brescia (Itay) – Via San Polo, 183 – Tel. +39 30 2300492 – Fax. +39 30 2300833 GRYF...
  • Page 16  2 1  4  3  4 Press the "NUMBERING" button to start identifying the installed devices. 25124 Brescia (Itay) – Via San Polo, 183 – Tel. +39 30 2300492 – Fax. +39 30 2300833 GRYF...
  • Page 17 Make sure that the GRYF is disabled with the LED off and no wires present on the load cell. Press and hold down the device button until the LED starts flashing green. At this point, release the button and make sure the LED turns off.
  • Page 18 ID consists of 2 numbers separated by a period. The number before the point indicates the drop, the number after the point indicates the ID of the device (EX GRYF 2.1 GRYF number 1 installed on the drop number 2)
  • Page 19 It is always possible to reset the numbering and enabling of the devices using the appropriate menu: 2   2 After resetting the numbering, repeat the steps described above to re-assign IDs to the devices. 25124 Brescia (Itay) – Via San Polo, 183 – Tel. +39 30 2300492 – Fax. +39 30 2300833 GRYF...

  • Page 20: Meaning Of The Light Signals

    MEANING OF THE LIGHT SIGNALS On the front and top of the device, we find the status indicator. When the GRYF is powered, the indicator shows the colors of the Italian flag for a few seconds, and then shows the status of the device.

  • Page 21: Cleaning And Maintenance

    GRYF is an electronic device that must be handled carefully during cleaning and maintenance operations. The loading cell, which is the GRYF main component, is mainly composed of very sensitive ceramic material. A wrong cleaning or removing the yarn residues in a wrong way, specially from the loading cell housing, can seriously compromise the correct functioning of the device and sometimes can cause damages.
  • Page 22 To clean and to remove yarn residues from the wheel and from the drive shaf, unscrew the fixing screw as shown in here below picture and use compressed air to remove any impurity softly. 25124 Brescia (Itay) – Via San Polo, 183 – Tel. +39 30 2300492 – Fax. +39 30 2300833 GRYF...
