Related Manuals for DOG FENCE PRO DFP-TRNREM-KT
Summary of Contents for DOG FENCE PRO DFP-TRNREM-KT

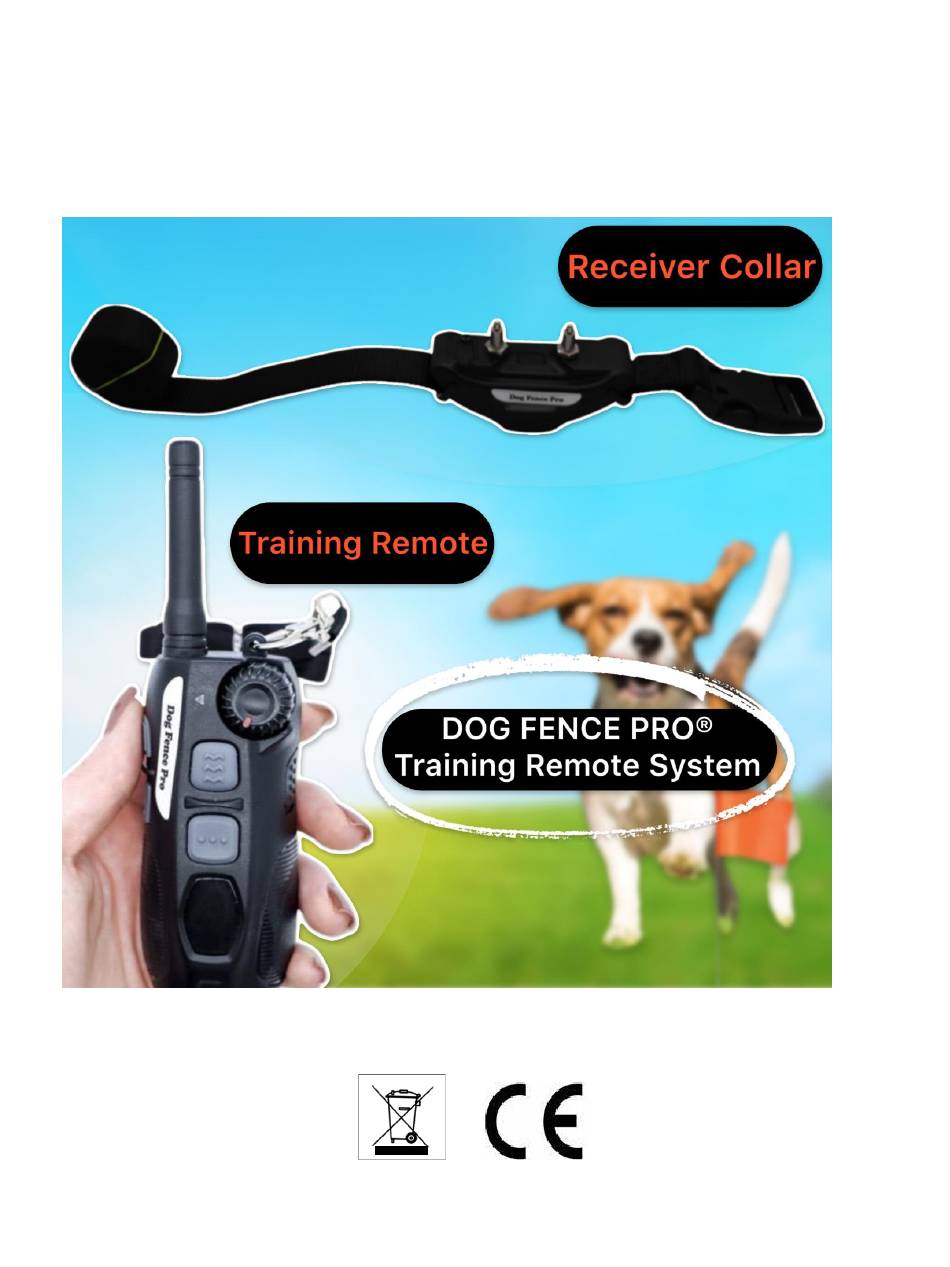

- Page 1 Training Remote System by DOG FENCE PRO® Training Remote System Owner's Manual Model: DFP-TRNREM-KT...
-
Page 2: Table Of Contents
Training Remote System Owner’s Manual - Table of Contents Introduction ..............................3 IMPORTANT SAFETY INFORMATION ....................4 Aggressive Dog Warning .......................... 4 Important Safety Items ..........................4 Components ..............................5 How The Training Remote System Works ....................6 Main Features..............................7 Training Remote ............................ -
Page 3: Introduction
Introduction Thank you for purchasing the Training Remote System (DFP-TRNREM-KT) from DOG FENCE PRO®! We are excited to help you provide more freedom for your dogs while also keeping them safe for years to come. Please read the entire owner’s manual thoroughly before using your new Training Remote System. -
Page 4: Important Safety Information
IMPORTANT SAFETY INFORMATION Aggressive Dog Warning Not for aggressive dogs! Do not use this product if your dog is aggressive, or if your dog is prone to aggressive behavior. Aggressive dogs can cause severe injury or even death to their owners and others. -
Page 5: Components
Components... -
Page 6: How The Training Remote System Works
How The Training Remote System Works Our Training Remote System is an advanced device that enables remote control training of your four-legged companions. Utilizing a signal transmitted to the dog's receiver collar, it generates an auditory tone, gentle vibration, or static stimulation to gain attention and rectify undesirable conduct. -
Page 7: Main Features
Main Features ⚫ Range in open field is up to 1.25 miles. However, the maximum range may fluctuate due to varying terrain conditions. ⚫ The LED flashlight function enables locating a pet from up to 100 yards away at night. ⚫... -
Page 8: Training Remote
• (Optional) Fence Containment: Your Training Remote System can be upgraded to a containment system by adding a DOG FENCE PRO® Transmitter and boundary wire around the desired property. Both the transmitter and boundary wire can be purchased directly on www.DogFencePro.com. First, remove the receiver collar from the dog. Next, refer to the training section above to set your collar static stimulation level. - Page 9 Vibration Button: Triggers a harmless vibration. Pressing & releasing the vibration button once will make the receiver collar vibrate once, while holding in the vibration button will cause continuous vibration. Vibration will end once the vibration button is released, or once the vibration lasts for 8 seconds.
- Page 10 DC Jack (Training Remote): The DC jack is used to charge the training remote. When pressing any command button (example: tone, vibration, static stimulation buttons), a red LED light will indicate that the battery is low. The training remote has a memory function and will save the static stimulation levels for each dog.
- Page 11 LED Light: Indicates low battery and overall working status. Antenna: To reliably transmit a signal directly over to the receiver collars.
-
Page 12: Receiver Collar
Receiver Collar Contact Tips: Choose either the short/long solid tips, medium spring tips, or the large spring tips according to your dog’s coat type. The contact tips gently rest on the dog’s neck. Included is a set of conductive tip covers. Primarily used when the dog has skin irritation(s) or allergies to metal contact tips. - Page 13 DC Jack (Receiver Collar): To charge the receiver collar, open the rubber cover and insert the USB charger cable into the DC jack. On / Off Button and Single / Dual Mode Selector: This button has two functions: powering on / off the receiver collar and switching between single &...
-
Page 14: Ensure Proper Receiver Collar Fitment On Dog(S)
NOTE: We suggest only using dual mode when the receiver collar is actively being used for both dog fence containment and training remote purposes. If only using for dog fence containment (fence function only, training remote will be disabled), we suggest switching to single mode to conserve battery life of the receiver collar. - Page 15 Pairing and Unpairing the Training Remote to the Receiver Collars The Training Remote System supports multi-dog training with the training remote after the purchase of additional receiver collars (clickable link). You may need to unpair newly-purchased receiver collars to enable this feature, as they are initially paired to a different training remote during production.
- Page 16 3. Press and hold the “tone” button ( ) and LED flashlight button ( ) at the same time, while holding the training remote antenna next to the receiver collar, about 1-2 inches away. Wait until the LED display displays a “U” with 5 audible beeps by the receiver collar.
- Page 17 2. On the training remote, press and hold the “power” button ( ) until the LED display appears, then release the button. The training remote is now powered on. If you want to pair the receiver collar as the 1 dog, choose the first dog on the training remote.
-
Page 18: Setting The Static Stimulation Level
Setting the Static Stimulation Level Setting a Suitable Static Stimulation Level for the Training Remote: 1. The training remote offers 99 levels of static stimulation intensity, allowing you to precisely select the best static stimulation level according to your dog’s temperament and training purpose. -
Page 19: Charging
Charging NOTE: Do not charge batteries in areas that are too cold or too hot and keep away from fires. To charge your receiver collar and training remote: 1. Lift the rubber cover of the DC jack. 2. Connect the corresponding USB charger cable to the DC jack. 3. -
Page 20: Troubleshooting Guide
Troubleshooting Guide Problem #1 – The receiver collar is not reacting to the buttons on the training remote. ▪ Verify the switch settings are correct for the dog you are training. There are (2) choices, either Dog #1, or Dog #2. •... - Page 21 Problem #5 – The receiver collar does not appear to be receiving any signal or does not work at all in fence mode + training remote functions. • Verify the receiver collar is powered on. • Verify the training remote battery has sufficient charge. •...
-
Page 22: Terms & Conditions
Terms & Conditions • You, the customer, agree to notify DOG FENCE PRO® of any occurrence of performance of the unit which you believe to be unsatisfactory. • You, the customer, agree to maintain the equipment in proper working order, to use it in the manner prescribed, including but not limited to, (a) maintaining receiver collar probe contact with the pet’s skin, (b) maintaining the handheld remote and receiver collar, (c) -
Page 23: Lifetime Deductible Warranty
▪ Customer mails the defective product back with completed warranty return form and proof of purchase. ▪ DOG FENCE PRO® will refund the customer the cost of the receiver collar minus the deductible (if applicable), within two weeks. • Exclusions: These warranties do not cover floods or misuse. No other warranties expressed or implied shall apply to the DOG FENCE PRO®... -
Page 24: Returns
Training Remote System. Refunds will be made within (2) weeks upon the return of the unused Training Remote System (DFP-TRNREM-KT) at the customer’s expense. A 10% restocking fee will apply to returned, unused electronics after (30) days but within the 1 year of the date of purchase.
