DOG FENCE PRO TRIO EDITION DFP-CTV Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
The "TRIO EDITION" by DOG FENCE PRO®
Containment System Owner's Manual
Model: DFP-CTV

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TRIO EDITION DFP-CTV and is the answer not in the manual?

Questions and answers

Summary of Contents for DOG FENCE PRO TRIO EDITION DFP-CTV

  • Page 1 The "TRIO EDITION" by DOG FENCE PRO® Containment System Owner's Manual Model: DFP-CTV...

  • Page 2: Table Of Contents

    Receiver Collar ............................13 Installing the DFP-CTV System ........................ 16 Examples of Dog Fence Layouts ......................22 Exclusive Gentle LiteTouch Training Program by DOG FENCE PRO® ............25 Optional Training for Triggers and Distractions ..................31 Dog Pass-Through Mode ......................... 31 Pairing and Unpairing the Training Remote to the Receiver Collars ............

  • Page 3: Introduction

    Introduction Thank you for purchasing the "TRIO EDITION" system from DOG FENCE PRO®! We are excited to help you provide more freedom for your dogs while also keeping them safe for years to come. The DFP-CTV containment system allows you to Contain, Train, and Vacation with your dogs, hence the name "TRIO EDITION"! This owner’s manual will explain each of these...

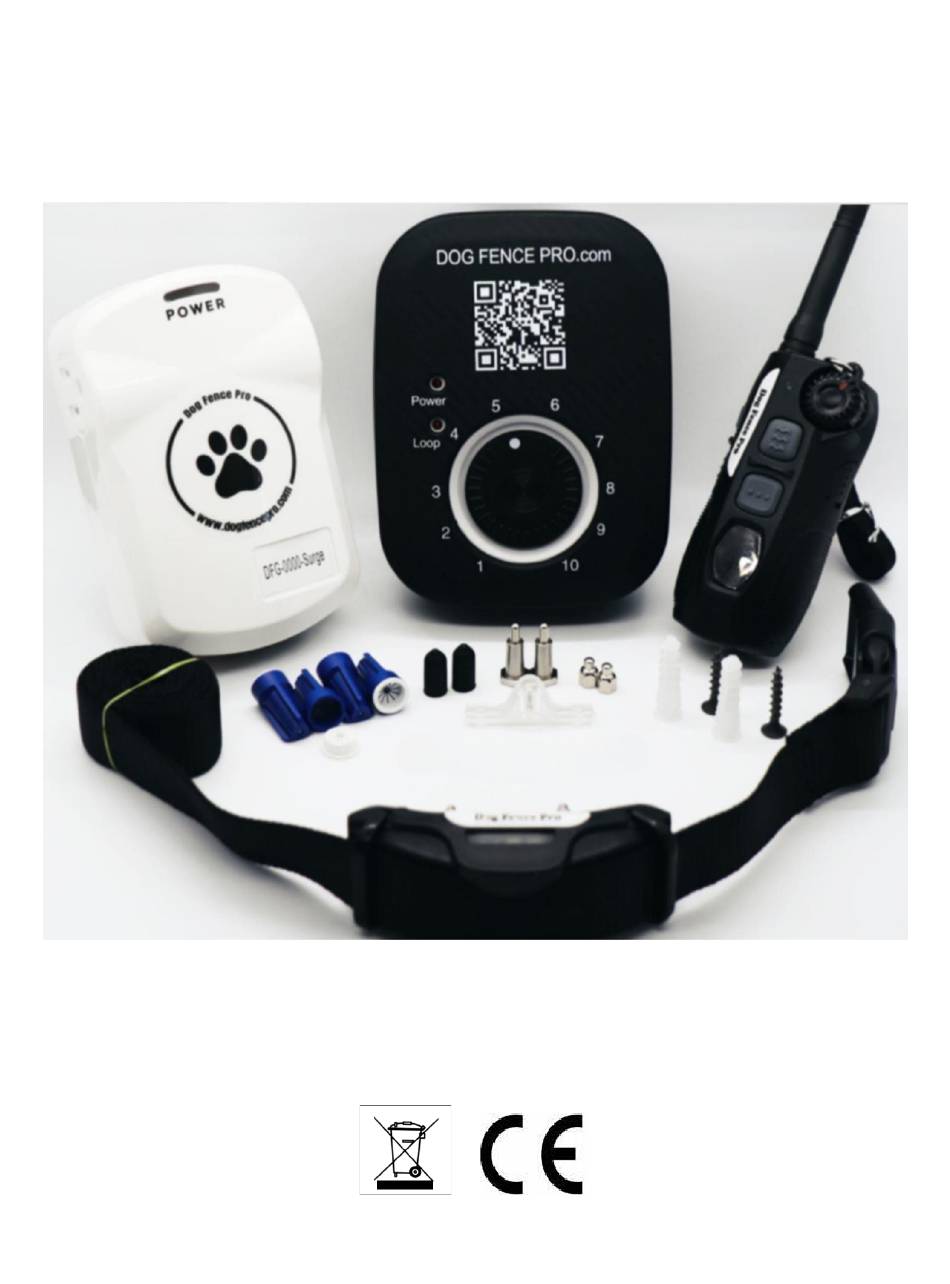

  • Page 4: Dfp-Ctv System Components

    DFP-CTV System Components...

  • Page 5: Main Features

    Main Features 1. The DFP-CTV system is a combination of an in-ground dog fence system and a training remote system, that also allows you to vacation with your dogs. 2. Both the receiver collar and the training remote are equipped with a rechargeable 3.7V Li-Ion battery.

  • Page 6: Feature # 1 - Contain

    Feature # 1 – Contain How the Containment System Works The main feature of the DFP-CTV system is that it is an in-ground dog fence that has proven to be safe and effective for all dogs, but is specifically recommended for dogs 20 pounds or more. There are four working components of your dog fence system: 1.
  • Page 7 3. Receiver Collar(s): the dog's receiver collar will activate a few feet before the boundary wire. The dog is first warned by vibration, and if the dog proceeds to enter the stimulation zone, the dog then receives a gentle static stimulation as a reminder to return to the safe area.

  • Page 8: Transmitter

    Transmitter...
  • Page 9 Boundary Width Control Dial: This dial allows you to adjust the boundary width, which includes both the warning zone and static stimulation zone. Reference (Figure A) above for more details. Boundary Wire Terminals: These two terminals are where the ends of the (stripped) boundary wires connect to the transmitter, ultimately completing the loop.

  • Page 10: Training Remote

    Training Remote Static Stimulation Adjustment Dial & Push Lock: • Training: press the lock switch to unlock the static stimulation level, then rotate the static stimulation adjustment dial between 0 and 99 to fine tune and set a dog’s static stimulation level for training.
  • Page 11 Vibration Button: Triggers a harmless vibration. Pressing & releasing the vibration button once will make the receiver collar vibrate once, while holding in the vibration button will cause continuous vibration. Vibration will end once the vibration button is released, or once the vibration lasts for 8 seconds.
  • Page 12 DC Jack (Training Remote): The DC jack is used to charge the training remote. When pressing any command button (example: tone, vibration, static stimulation buttons), a red LED light will indicate that the battery is low. The training remote has a memory function and will save the static stimulation levels for each dog.

  • Page 13: Receiver Collar

    LED Light: Indicates low battery and overall working status. Antenna: To reliably transmit a signal directly over to the receiver collars. Receiver Collar Contact Tips: Choose either the short solid tips, medium spring tips, or the large spring tips according to your dog’s coat type.
  • Page 14 Spanner Tool: The spanner tool (below) can be used to tighten the solid contact tips only. The spanner tool cannot be used on the spring contact tips. The receiver collar contact tips can be installed flush with the receiver collar, do not overtighten. LED Indicator Light: Indicates low battery, charging, and overall working status of the receiver collar.
  • Page 15 On / Off Button and Single / Dual Mode Selector: This button has two functions: powering on / off the receiver collar and switching between single & dual mode. 1. Powering on / off the receiver collar: a. Press and hold for 4 seconds to turn the receiver collar on. You will hear two beeps once complete.

  • Page 16: Installing The Dfp-Ctv System

    Installing the DFP-CTV System Please follow the steps below to ensure proper installation of your dog fence containment system. Boundary wire and flags can be purchased separately by visiting the DOG FENCE PRO® online store by clicking here (clickable link). PRO TIP: We highly recommend calling your local One Call System to have all public underground utilities marked.
  • Page 17 Below is a table showing the approximate lengths of wire (in lineal feet) needed for various acreages: Acres Sq. Feet Wire (ft) 10,890 14,520 21,780 32,670 43,560 87,120 1,200 130,680 1,500 174,240 1,700 217,800 1,900 261,360 2,100 304,920 2,250 348,480 2,400 392,040 2,550...
  • Page 18 PRO TIP: Try not to install the boundary wire parallel to, or within 4-feet of electrical wires, neighboring containment systems, telephone wires, television or antenna cables, or satellite dishes, as this may cause an inconsistent signal. If you must cross any of these wires or cables, please do so at a 90-degree angle.
  • Page 19 4) Connect the Boundary Wire to the Surge Protector & Transmitter: A surge protector is included with your DFP-CTV system and is specially-designed for pet containment systems. We highly suggest installing the surge protector, as it will help protect your transmitter from lightning surges, keeping your containment system active. Installation only takes a few minutes.
  • Page 20 5) Set the Boundary Width and Test the Receiver Collar: Rotate the boundary width control dial to adjust both the warning vibration zone and static stimulation zone. Turn the dial clockwise to increase the boundary width, or counterclockwise to decrease the boundary width. Repeat this process until the desired boundary width is achieved. We recommend setting this dial such that the vibration is 4 or more feet away from the installed boundary wire.
  • Page 21 6) Place the Boundary Flags: The boundary flags serve as visual reminders for your dog, indicating where the warning / correction zone is located on the property. Before starting, make sure the receiver collar is removed from your dog and ensure the receiver collar is powered on. Next, hold the receiver collar near the same height as your dog’s neck level and then slowly approach the warning zone.

  • Page 22: Examples Of Dog Fence Layouts

    Examples of Dog Fence Layouts 3 of the main dog fence layouts include the following below: 1. Whole Perimeter 2. Two-Zone 3. Backyard-Only With a whole perimeter layout, your dog can roam freely around the entire property. This is typically the most popular layout option.
  • Page 23 Above is another example of a whole perimeter layout, but the sides of the home are “pinched off”. This creates two zones: a front and back zone. This gives you more control of how much freedom your dog receives. The only way for your dog to access either zone is through the home.
  • Page 24 This is another common layout, but probably the least used. The drawback to a backyard-only design is that it does not effectively contain your dog if he or she were to run out of a front door or garage. Also, there is usually just as much wire needed to be installed with this option (if not more) as with any other layout.

  • Page 25: Exclusive Gentle Litetouch Training Program By Dog Fence Pro

    Exclusive Gentle LiteTouch Training Program by DOG FENCE PRO® Training your dog(s) to live within the boundaries is a crucial part of ensuring the success of your new dog fence. Please read this training program thoroughly before training your dogs.
  • Page 26 PRO TIPS: • Implement the “Bad Cop” and “Good Cop” approach for successful dog fence training. Try role-reversals every other training session (if possible) so that your dog recognizes that the training is coming from both participants in this scenario. o One person plays the “Bad Cop”...
  • Page 27 Days 1-3 ON LEASH: Twice a day for 15 minutes, preferably once in the morning and once in the evening, walk your dog around the perimeter. If your dog wants to cross the boundary, simply allow it to happen. When the static stimulation is given, if your dog does not automatically come back into the safe area, lightly pull your dog back towards the safe area, then immediately reinforce by shaking the boundary flag with a verbal command “No, Bad Dog, Leave It, etc.”...
  • Page 28 Days 4-6 OFF LEASH: Twice a day for 15 minutes. Begin with a boundary flag shake, then take the leash off and have fun with your dog and play fun games. Your dog should want to play and have fun, but want to respect the boundary flags. If your dog receives a static stimulation and comes back into the safe zone, give lots of praise and reward.
  • Page 29 • Outside of your twice a day training regime, you may continue or begin to use the OPTIONAL “stake-out method” outlined within this owner’s manual (clickable link) here if you suspect triggers or distractions are still an issue with your dog. FINALLY: After successfully completing your 9-day conditioning program for your dog and you’ve reached your personal comfort level, you may begin letting your dog outside with the training remote, in hand, and at the ready.
  • Page 30 • Begin using your training remote for walk training or use the flashlight on the receiver for nighttime walks. NOTES: • Only use the training remote as a backup for containment in the first 30 days. Using it for other forms of training will confuse the dog of its boundaries. Once the flags are completely removed, you can then start utilizing the training remote for other forms of dog training.

  • Page 31: Optional Training For Triggers And Distractions

    Optional Training for Triggers and Distractions Some dogs tend to benefit from an additional (optional) training method that helps with “triggers” or tempting distractions. Instructions below: 1. Place a tie-out or stake in the yard, about 10-20 feet away from the boundary wire in the area where majority of the distractions or triggers occur.

  • Page 32: Pairing And Unpairing The Training Remote To The Receiver Collars

    Pairing and Unpairing the Training Remote to the Receiver Collars The DFP-CTV system supports multi-dog training with the training remote after the purchase of additional receiver collars (clickable link). You will need to unpair newly-purchased receiver collars to enable this feature, as they are initially paired to a different transmitter during production.
  • Page 33 NOTE: If this was unsuccessful, please repeat steps 3 and 4. Try to hold the training remote closer to the receiver collar and/or at a different angle. Un-paired receiver collars will continuously flash green when turned on. To pair the receiver collar to your training remote: 1.
  • Page 34 4. Hold the training remote next to the receiver collar, about 1-2 inches away. Wait for five “beep” sounds by the receiver collar, and then flashes of the receiver’s green LED light should slow down to once every five seconds. Release the button. 5.

  • Page 35: Setting The Static Stimulation Level

    Setting the Static Stimulation Level Setting a Suitable Static Stimulation Level for the Training Remote: 1. The training remote offers 99 levels of static stimulation intensity, allowing you to precisely select the best static stimulation level according to your dog’s temperament and training purpose.

  • Page 36: Operating The Led Flashlight

    Operating the LED Flashlight The receiver collar has (2) LED flashlight colors – white and red – allowing you to locate your dog(s) about 100 yards away in the dark. Here is how to utilize this feature: 1. Press the LED flashlight button on the training remote once, and the receiver collar will flash once per three seconds continuously.

  • Page 37: Feature #2 - Train

    Feature #2 – Train The training remote allows you to have more control of your dog at longer distances, without a leash! With correct and consistent use, the training remote can assist in correcting many nuisance behaviors – including but not limited to excessive barking, digging in gardens, digging under physical fences, etc.

  • Page 38: Feature #3 - Vacation

    Feature #3 – Vacation The TRIO EDITION makes it easy to vacation with your dog – whether it is at a vacation home, cabin, etc. The theory behind it is simple. Since your dog responds well to your containment system at home, your dog should associate the dog fence flags as a boundary as was originally taught within your dog fence containment training at home.

  • Page 39: Surge Protector - Technical Specifications

    4. If additional assistance is needed and / or you have additional training questions, please contact our USA-based DOG FENCE PRO® Support Team (clickable link) before proceeding with our “Vacation” functionality. Proper dog training is the key to success with all forms of dog fencing and shouldn’t be overlooked.

  • Page 40: Troubleshooting Guide

    Troubleshooting Guide Problem #1 – The receiver collar is not reacting to the buttons on the training remote. ▪ Verify the switch settings are correct for the dog you are training. There are (2) choices, either Dog #1, or Dog #2. •...
  • Page 41 Problem #5 – The receiver collar does not appear to be receiving any signal, or does not work at all in fence mode + training remote functions. • Verify the receiver collar is powered on. • Verify the training remote battery has sufficient charge. •...
  • Page 42 If the lights turn on, you have a break in your boundary wire. If the lights remain off, you may have a defective transmitter. Please contact our USA-based DOG FENCE PRO® Support Team (clickable link) if additional assistance is needed.

  • Page 43: Terms & Conditions

    9 days or 18 sessions. Training can be extended in any phase as needed. • You, the customer, agree to notify DOG FENCE PRO® of any occurrence of performance of the unit which you believe to be unsatisfactory.

  • Page 44: Lifetime Deductible Warranty

    • Warning: Occasionally, an animal cannot be trained to avoid crossing the boundary. Therefore, DOG FENCE PRO® cannot guarantee that the system will, in all cases, keep your pet within the established boundary. Accordingly, if you have reason to believe...

  • Page 45: Returns

    A 10% restocking fee will apply to returned, unused electronics after (30) days but within the 1 year of the date of purchase. Returns with proof of purchase can be mailed to: DOG FENCE PRO Attn: Returns Dept. PO Box 264 Silver Spring, PA 17575...
