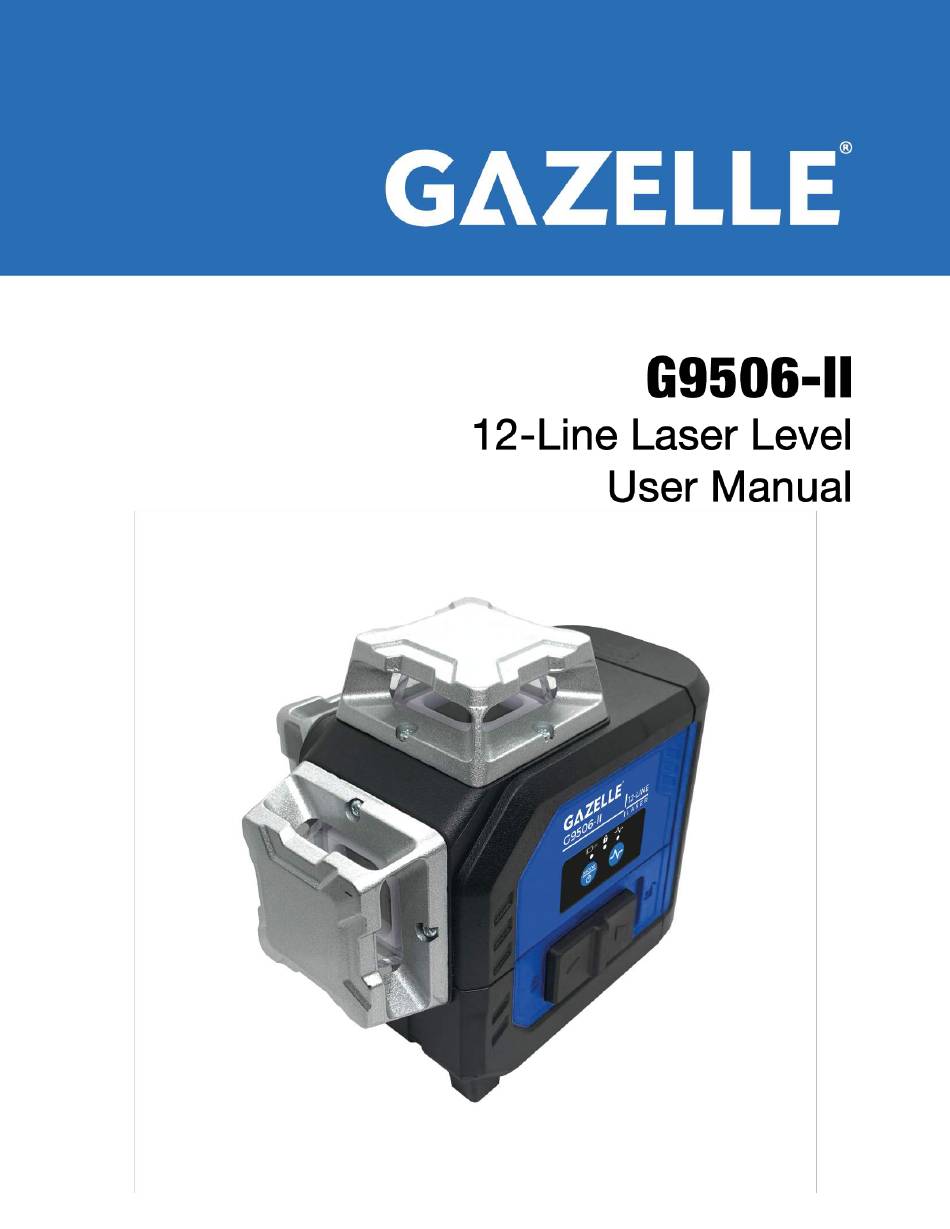

Gazelle G9506-II User Manual

12-line laser level
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G9506-II and is the answer not in the manual?

Questions and answers

Related Manuals for Gazelle G9506-II

Summary of Contents for Gazelle G9506-II

  • Page 5: Safety Notes

    Working safely with the measuring tool is possible when the operating and safety information are read completely and the instructions contained therein are strictly followed. Save these instructions for reference. Safety notes Caution – modifying or adjusting equipment can lead to dangerous radiation exposure. While the product is in operation, be careful not to expose your eyes to the emitting laser beam.

  • Page 6: Operation

    Operation Initial operation Charge the batteries at least 8 hours in the first charge. Always make sure the Lock Switch is on lock position during transport and storage. Protect the measuring tool against moisture and direct sun light. Do not subject the measuring tool to extreme temperatures or variations in temperature.
  • Page 7 Manual Mode In manual mode the measuring tool won’t be self-levelling. It could be held by hand or placed on an inclined surface to project a rigid laser beam in any orientation. To switch on and off the measuring tool, press and hold the mode key for more than 3 seconds.

  • Page 8: Pulse Mode

    Pulse mode In the pulse mode, the laser lines flash at a very high frequency and can therefore be found by the laser receiver (not included) in brighter environments or at greater working distances. Shortly press the pulse key button, the pulse mode is on. The pulse indicator light flashes. Shortly press it again to switch off the pulse mode.

  • Page 9: Specifications

    Specifications Model number G9506-II Laser type Green laser Laser lines 3D 12 lines Laser class Class 2 Laser wavelength 520 nm, <1 mw Leveling accuracy ±0.3 mm/ m Horizontal/Vertical accuracy ±3mm/10m Working range (diameter), to approx. Li-ion battery pack 3 x 18650 With 1 Laser line : 70h (35h x 2) Operating time, approx.

  • Page 10: Working Advice

    Working advice Working with the laser target plate (included): Magnetic laser target with special reflective surface enhances the visibility of green laser line when working over long distance or bright sunlight conditions. Printed scale in in. and cm. Fastening with the universal holder (included): With the universal holder, you can fasten the measuring tool.

  • Page 11: One Year Warranty

    One Year Warranty GAZELLE will repair, without charge, any defects due to faulty materials or workmanship for One year from the date of purchase provided that: l Proof of purchase is produced; l Service/repairs have not been attempted by unauthorized persons;...
