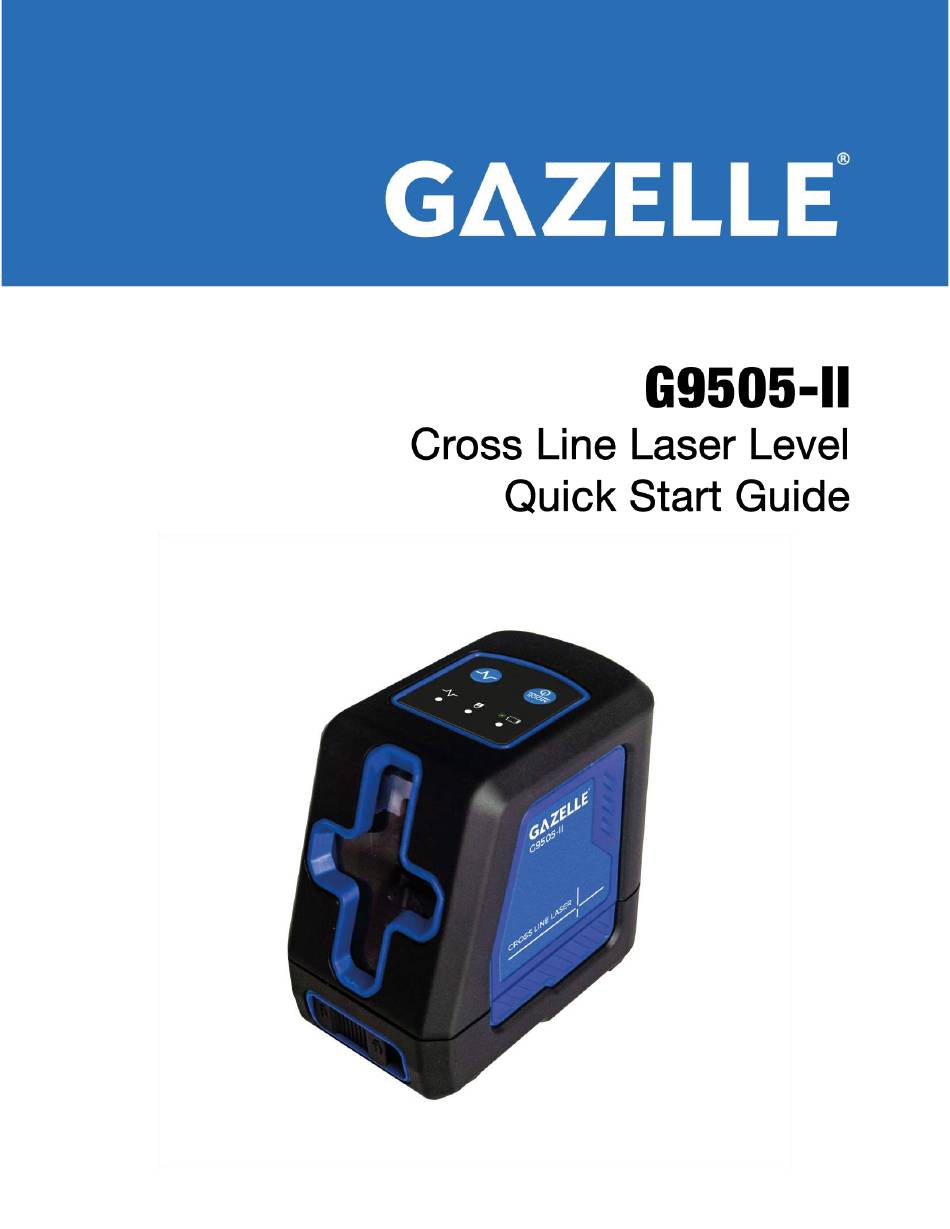

Summary of Contents for Gazelle G9505-II
- Page 2 SAFETY Read the Safety Instructions and Manual thoroughly before using this product. All users must fully understand and adhere to these instructions. ● While the product is in operation, be careful not to expose your eyes to the emitting laser beam.
- Page 3 3. Power mode button 6. Battery compartment Getting Started Use only AA batteries（1.5V）for the G9505-II LASER LEVEL 1. Open the battery compartment cover on the back. 2. Insert the batteries into the instrument observing the correct poles. 3. Close the battery compartment cover.
- Page 4 1.Self-leveling mode Turn Lock Switch at unlock position, vertical and horizontal laser beams will both light up, and the machine will be self- leveling. Power Indication light is green. (If laser lines flash, it indicates the lines is not level, adjust the position of the device until the laser line get steady, the self-leveling range is about 4°) Short press the Mode button, the vertical line is turned off, and the horizontal line works.
- Page 5 MAINTENANCE • The laser tool is sealed and calibrated at the plant to the accuracy specified. • It’s recommended to carry out an accuracy check before its first use and periodic checks during future use especially for precise layouts. • Do not short any battery terminals or charge alkaline batteries or dispose of batteries in a fire.
