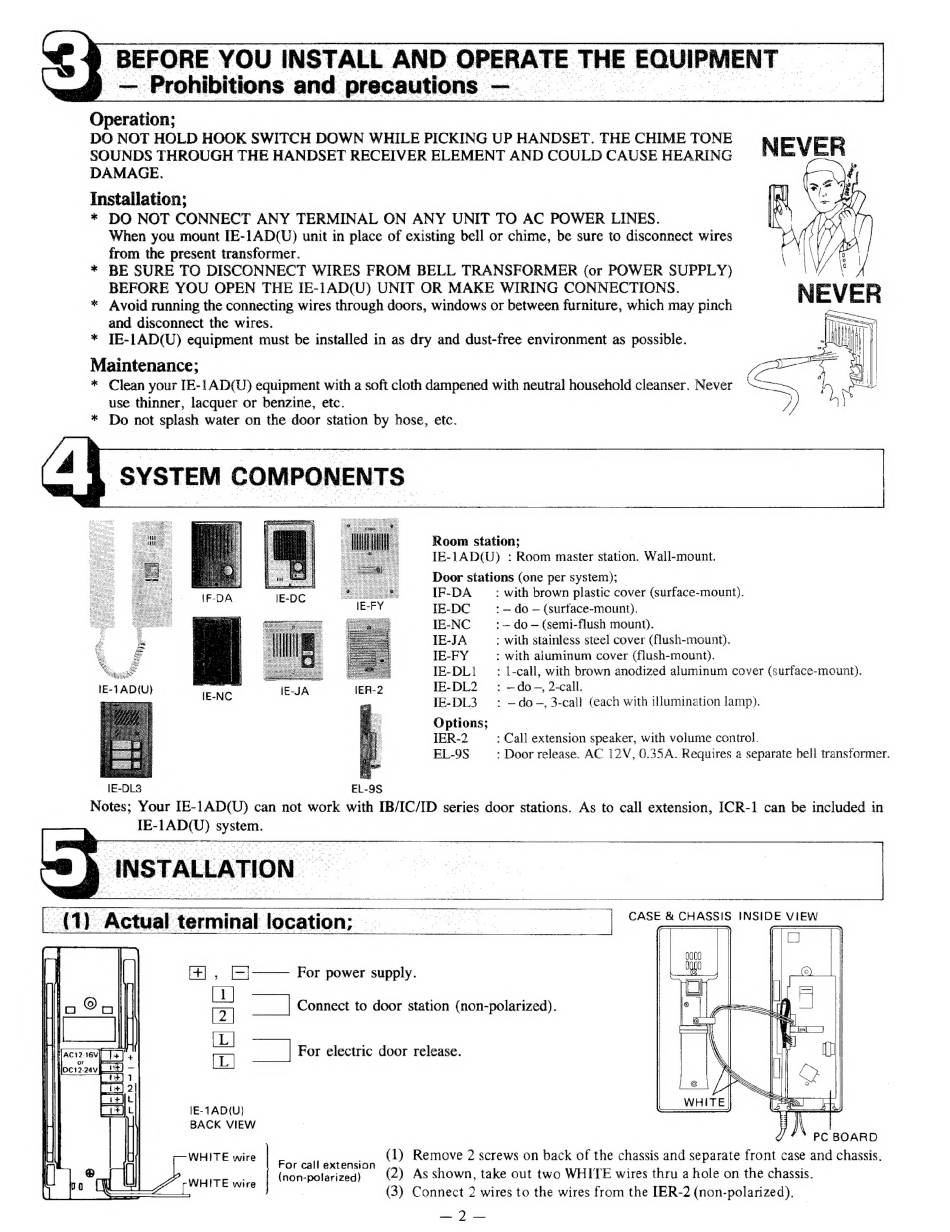

BEFORE ` /OU INSTALL AND € OPERATE THE EQUIPMENT
Operation;
DO NOT HOLD HOOK SWITCH DOWN WHILE PICKING UP HANDSET. THE CHIME TONE
SOUNDS THROUGH THE HANDSET RECEIVER ELEMENT AND COULD CAUSE HEARING
DAMAGE.
Installation;
* DO NOT CONNECT ANY TERMINAL ON ANY UNIT TO AC POWER LINES.
When you mount IE-1AD(U) unit in place of existing bell or chime, be sure to disconnect wires
from the present transformer.
* BE SURE TO DISCONNECT WIRES FROM BELL TRANSFORMER (or POWER SUPPLY)
BEFORE YOU OPEN THE IE-1AD(U) UNIT OR MAKE WIRING CONNECTIONS.
Avoid running the connecting wires through doors, windows or between furniture, which may pinch
and disconnect the wires.
* JE-1AD(U) equipment must be installed in as dry and dust-free environment as possible.
* Clean your IE-1AD(U} equipment with a soft cloth dampened with neutral household cleanser. Never
use thinner, lacquer or benzine, etc. ) 2 i
* Do not splash water on the door station by hose, etc.
Maintenance; ch. 4 |
© ' . Sa ð pu i !
Room station;
IE-LAD(U) : Room master station. Wall-mount,
Door stations (one per system);
IF-DA IE-DC IF-DA :with brown plastic cover (surface-mount).
IE-DC : — do — (surface-mount).
IE-NC :-— do- (semi-flush mount).
; x IE-JA : with stainless steel cover (flush-mount).
o F IE-FY : with aluminum cover (flush-mount).
Saal" L IE-DL1 _ : l-call, with brown anodized aluminum cover (surface-mount).
IE- 1AD(U) iE-JA IER-2 JE-DL2 : —do-, 2-call.
IE-DL3 : —do-, 3-call (each with illumination lamp).
Options;
IER-2 : Call extension speaker, with volume control.
EL-9S : Door release. AC 12V, 0.35A. Requires a separate bell transformer.
IE-DL3 EL-9S
Notes; Your IE-1AD(U) can not work with IB/IC/ID series door stations. As to call extension, ICR-1 can be included in
IE-1AD(U) system.
CASE & CHASSIS INSIDE VIEW
, [-|—— For power supply.
[1]
Connect to door station (non-polarized).
ae Cane rey
| For electric door release.
IE-1AD(U}
BACK VIEW
PC BOARD
PN ANTEE (1) Remove 2 screws on back of the chassis and separate front case and chassis.
(non-polarized) (2) As shown, take out two WHITE wires thru a hole on the chassis.
(3) Connect 2 wires to the wires from the IER-2 (non-polarized).
can, eae
WHITE wire
WHITE wire
