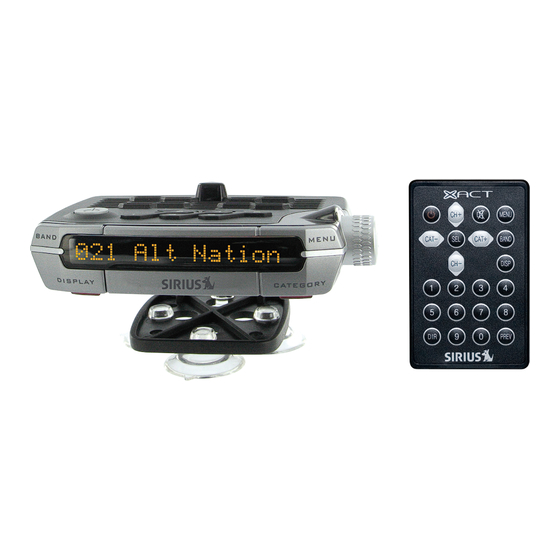

Xact Visor XTR3CK Instruction Manual

Xact visor xtr3ck: instruction manual
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Instruction
Manual
Model
XTR3CK
To activate your XACT Visor Sirius Satellite Radio Receiver or for latest news and questions
regarding Sirius Satellite Radio service visit
www.sirius.com
or call 1-888-539-SIRIUS (7474).
For accessory & product information visit us at www.getxact.com.

Advertisement

Table of Contents
loading

Related Manuals for Xact Visor XTR3CK

Summary of Contents for Xact Visor XTR3CK

  • Page 1 Instruction Manual Model XTR3CK To activate your XACT Visor Sirius Satellite Radio Receiver or for latest news and questions regarding Sirius Satellite Radio service visit www.sirius.com or call 1-888-539-SIRIUS (7474). For accessory & product information visit us at www.getxact.com.
  • Page 2 KEEP MOVING...
  • Page 3 NOTE! Use only the appropriate XACT accessories or input devices with your receiver. Use only the 12v Vehicle Adapter that is provided with the kit. It is important that you do not modify it in any way since this will result in damaging your equipment and void the warranty.
  • Page 4 SAFETY Warning Follow these notifications to avoid any traffic accidents or personal injury: 1. Installation must be performed according to this user guide. 2. Do not install the device where it may obstruct your view through the windshield or of your vehicle’s indicator displays.

  • Page 5: Table Of Contents

    Wireless Remote Control Getting Started Mounting Your XACT Visor Sirius Satellite Radio Receiver at Home Mounting Your XACT Visor Sirius Satellite Radio Receiver in a Vehicle Activating Your Sirius Subscription Make Note of Your Identification Number Using The Vehicle Kit...
  • Page 6 TABLE OF Factory Default Auto Shutoff Parental Block Edit Code Unblock Channel Block Channel FM Transmitter Display Messages Acquiring Signal No Antenna Updating Channels Subscription Updated Mute UnMute Clearing Problem Solving Warranty CONTENTS Page 20 Page 21 Page 23 Page 23 Page 24 Page 25 Page 26...

  • Page 7: Introduction

    INTRODUCTION Product Overview Thank you for purchasing this product! Your new plug and play XACT Visor Sirius Satellite Radio is specifically designed to mount in a vehicle or indoor/outdoor location. Package Contents Carefully unpack your kit and ensure that you have the following items.

  • Page 8: Components Guide

    COMPONENTS XACT Visor Sirius Satellite Radio Receiver Power Button BAND DISPLAY LCD Monitor (Main Display) Numerical Keys IR for Remote Control Channel Up/Down Rotary Dial, Select Button (By pressing dial inward) MENU Options List CATEGORY Button 10. Audio Jack 11. FM Out Jack 12.

  • Page 9: Wireless Remote Control

    COMPONENTS Wireless Remote Control The wireless remote control packed with your plug and play XACT Visor Sirius Satellite Radio mirrors the operations of your plug and play XACT Visor Sirius Satellite Radio Receiver from a remote location. Power Button CH (Channel) (Ascend/Descend Buttons)

  • Page 10: Getting Started

    Mounting Your XACT Visor Sirius Satellite Radio in a Vehicle Find an accessible location in your vehicle to install your plug and play XACT Visor Sirius Satellite Radio Receiver; usually, this is the dashboard. You mat also mount the receiver to the vehicles sun Visor.

  • Page 11: Activating Your Sirius Subscription

    Activating Your Sirius Subscription Before beginning to use your new device, you must first register to the Sirius Satellite Radio service. There are two ways to activate the Sirius Satellite Radio Service: 1. Visit www.sirius.com and click activate, then follow the on-screen instructions.

  • Page 12: Using The Vehicle Kit

    NOTE! Use only the appropriate XACT accessories or input devices with your receiver. Use only the 12v Vehicle Adapter that is provided with the kit. It is important that you do not modify it in any way since this will result in damaging your equipment and void the warranty.

  • Page 13: Mounting To The Windshield

    NOTE! Use only the appropriate XACT accessories or input devices with your receiver. Use only the 12v Vehicle Adapter that is provided with the kit. It is important that you do not modify it in any way since this will result in damaging your equipment and void the warranty.

  • Page 14: Mounting To The Sunvisor

    NOTE! Use only the appropriate XACT accessories or input devices with your receiver. Use only the 12v Vehicle Adapter that is provided with the kit. It is important that you do not modify it in any way since this will result in damaging your equipment and void the warranty.

  • Page 15: If You Have Purchased The Home Kit

    NOTE! Use only the appropriate XACT accessories or input devices with your receiver. Use only the 12v Vehicle Adapter that is provided with the kit. It is important that you do not modify it in any way since this will result in damaging your equipment and void the warranty.

  • Page 16: Basic Operations

    OPERATIONS Turning Power On/Off The XACT Visor Sirius Satellite Radio Receiver can be powered on/off from the power button on the unit or the remote control. Press the Power Button to turn the XACT Visor Sirius Satellite Radio Receiver on. When the XACT Visor Sirius Satellite Radio Receiver powers on, the display will read "SIRIUS"...

  • Page 17: Changing The Way The Display Shows Channel #, Artist Name And Song Title

    Changing the Way the Display shows Channel #, Artist Name and Song Title When powered on for the first time on the XACT Visor Sirius Satellite Radio Receiver, the display will show the Channel #, Artist Name and Song Title.

  • Page 18: Song Title

    16 characters are shown, then scroll the remaining characters. Flip Display Holding the DISPLAY button on the XACT Visor Sirius Satellite Radio Receiver for 2 seconds will flip the display. Tuning to Different Entertainment Categories 1. Press the CATEGORY button to scroll through music and entertainment categories. Each press of the CATEGORY button advances to the next category.

  • Page 19: Direct Tuning (Remote Only)

    Direct Tuning (Remote Only) Your XACT Visor Sirius Satellite Radio enables you to tune to a selected channel directly. This feature is only available through the Remote Control. 1. Press the DIR button on the Remote Control to activate the Direct Tuning mode.

  • Page 20: Selecting One Of The Preset Channels

    Using the Rotary Channel Dial, you will now scroll only through channels that have been preset using the 1-6 preset buttons in Bands A-F. Pressing the BAND button again for 2 seconds returns the XACT Visor Sirius Satellite Radio Receiver to normal tuning mode.

  • Page 21: Menu Options Settings

    MENU OPTIONS The following options are included on the Menu Options list: • Sirius ID • Display • Factory Default • Auto Shutoff • Parental Block • FM Transmitter BASIC SETTING 1. Press the MENU button. 2. Rotate the Channel Up/Down Rotary Dial to select a desired menu option. 3.

  • Page 22: Display Settings

    2. Rotate the Channel Up/Down Rotary Dial until Sirius ID is displayed and press the Select button inward to enter the sub menu. Your own device’s 12-digit Sirius ID Number (ESN) will be displayed on the screen. Display Settings 1. Press the MENU button to enter the Menu Options settings. 2.

  • Page 23: Flip Display

    2. Press the Select button to flip the screen upside down so that you may mount the unit on your vehicle’s visor. Note: You may also flip the display by pressing and holding the DISPLAY button on the XACT Visor Sirius Satellite Radio Receiver or the Remote Control for 2 seconds.

  • Page 24: Factory Default

    Press the Select button to confirm the setting. Factory Default The XACT Visor Sirius Satellite Radio Receiver can be reset. 1. Press the MENU button to enter the Menu Options settings. 2. Rotate the Channel Up/Down Rotary Dial until Factory Default is displayed and press the Select button inward to enter the sub menu.

  • Page 25: Auto Shutoff

    Your XACT Visor Sirius Satellite Radio Receiver will automatically turn off after an hour of inactivity. This feature is used when the vehicles cigarette lighter remains powered with the key off. Your XACT Visor Sirius Satellite Radio Receiver will power off even if you leave it powered on, conserving your vehicles battery.
  • Page 26 3. Rotate the Channel Up/Down Rotary Dial until “Y” is selected press the Select button to confirm. 4. Rotate the Channel Up/Down Rotary Dial until “N” is selected press the Select button to confirm. One minute prior to the Auto Shutoff feature, the display will flash the message Shut Off? Pressing any button or turning the Channel Up/Down Rotary Dial will defeat the Auto Shutoff feature.

  • Page 27: Parental Block

    Parental Block Access to particular channels can be set with a 3 digit code. When you attempt to tune to these particular channels, your receiver will require you to enter the access passcode. 1. Press the MENU button to enter the Menu Options settings. 2.

  • Page 28: Unblock Channel

    Press the Select button inward to enter the number and move to the next digit. Note: The XACT Visor Sirius Satellite Radio Receiver will revert to the default screen if a digit is not selected within 10 seconds.

  • Page 29: Block Channel

    4. Press the Select button to unblock the channel. Note: The XACT Visor Sirius Satellite Radio Receiver will revert to the default screen if a digit is not selected within 10 seconds. Block Channel 1. Rotate the Channel Up/Down Rotary Dial to scroll to Block and press the Select button inward to enter channel Block.

  • Page 30: Fm Transmitter

    FM Transmitter The FM Transmitter allows your XACT Visor Sirius Satellite Radio Receiver to transmit music to your car or home FM radio. 1. Press the MENU button to enter the Menu Options settings. 2. Rotate the Channel Up/Down Rotary Dial until FM Transmitter is displayed and press the Select button inward to enter the sub menu.

  • Page 31: Display Messages

    DISPLAY MESSAGES Acquiring Signal When the audio signal is lost, the flashing message “Acquiring Signal” is displayed until the signal is recovered. No Antenna When no antenna is detected and the signal is lost, the flashing message “No Antenna” is displayed until an antenna is detected and the signal is acquired.

  • Page 32: Mute

    Mute A single press of the “Mute” button on the Remote Control (see diagram on page 5 for the location of the button) will disable all audio from your device. The Message Muted will flash on the display until the audio is restored.

  • Page 33: Problem Solving

    For your assistance, we have listed a few common problems below. The XACT Visor Sirius Satellite Radio Receiver does not work. Please check the Power Cables. Make sure you have contacted Sirius to activate your Sirius Satellite Radio subscription 1-888-539-SIRIUS (7474).

  • Page 34: Warranty

    XACT Communication with the equipment, and/or loss of parts. This warranty is voided in the event any unauthorized person opens, alters, or repairs the product.
  • Page 35 C.O.D., freight collect. NOTE: A product received which was not made by XACT Communication or which is not defective as determined by our test procedures will not be repaired and will be returned to you C.O.D., freight collect.
  • Page 36 To activate your XACT Visor Sirius Satellite Radio Receiver or for latest news and questions regarding Sirius Satellite Radio service visit www.sirius.com or call 1-888-539-SIRIUS (7474). Call Toll Free 1-866-466-XACT (9228) or Visit our Website: www.getxact.com...
