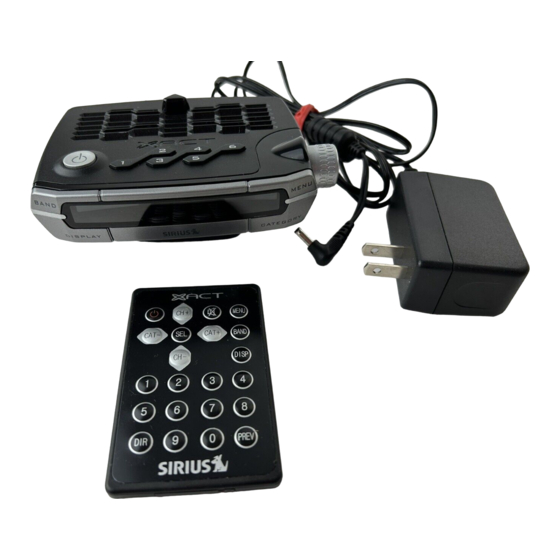

Xact XTR3 Manual
  1. Manuals
  2. Brands
  3. Xact Manuals
  4. Receiver
  5. XTR3
  6. Manual

Xact XTR3 Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

XTR3
Manual
June. 08, 2005

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XTR3 and is the answer not in the manual?

Questions and answers

Related Manuals for Xact XTR3

Summary of Contents for Xact XTR3

  • Page 1 XTR3 Manual June. 08, 2005...
  • Page 2 FCC Warning THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID USER'S AUTHORITY TO OPERATE THE EQUIPMENT. Note This equipment has been tested and found to comply with Part 15 of the FCC Rules. These rules are designed to provide reasonable protection against harmful interference.
  • Page 3 Default LCD Display 3-DIGIT STREAM NUMBER STREAM NAME AUTO SIZING/SCROLLING SONG TITLE AUTO SIZING/SCROLLING ARTIST NAME 8-CHARACTER BAND/PRESET BANK CATEGORY NAME NUMBER SIGNAL STRENGTH CLOCK INDICATOR Front Button description Channel up/down Encoder Knob and Select Button: The Channel up/down encoder knob is the primary control for navigating through the various lists and option menus available on the unit.
  • Page 4 (Stream Name & Number/ Artist & Song title). You can store up to 20 Artist/Song Title combinations. The Shuttle also has the capability to search the current incoming Sirius signal, and thereby alert you if it matches the Artist/Song title stored in Shuttle memory. Display (DISP) Button: This button allows the user to choose one of several ways of presenting the Stream Name, Artist and Song title information on the LCD screen.

  • Page 5: Basic Operation

    Basic Operation Display Button After you have successfully activated your SIRIUS Pressing the DISP button from the Default display subscription, the Normal Operation (Default ) screen toggles between the artist name/song title and large will appear ( Below ): Use the Rotary Knob to select character displayed text.

  • Page 6: Search Modes (Category, Channel, Artist, Song Title)

    Search Modes (Category, Channel, Artist, Song Title) The Sirius Sportster Receiver has four ways to search for and select music: by category, by channel, by artist, and by song title. Searching Categories If you want to listen to a different entertainment Searching Channels (Channel List Mode) category, push the CATEGORY buttons to activate the Category Select screen ( top right ):...

  • Page 7: Direct Tuning

    3. Press and release the Rotary Knob to select the Note: If you are in Channel List Mode and viewing channel. To exit this mode without changing to a a sports category channel list (NFL Zone, NHL new channel, press and hold the DISP button for Zone), pressing the DISP button will toggle 1 second.

  • Page 8: Setting Channel Presets

    Setting Channel Presets Jump Preset Button You can store up to 30 of your favorite channels as The Sirius Sportster Receiver includes a special presets, for quick access. Presets are stored in 3 preset button labeled Jump. It can be used for banks, A, B &...
  • Page 9 Searching for a Channel Preset (P.TUNE Mode) • If your Jump Setting is set to traffic, pressing the It is possible to quickly search through all of your Jump button will immediately begin searching presets using the Rotary Knob. for your desired city’s traffic report. The band 1.

  • Page 10: Preset Tune List Mode

    Preset Tune List Mode In Preset Tuning Mode you can view your list of presets showing Channel Name, Artist Name, or Song Title just like in the Channel List Mode: 1. Press and hold the BAND button to enter the Preset Tune Mode (P.TUNE).

  • Page 11: Memory (Memo) And Song Seek (S-Seek) Functions

    Memory (MEMO) and Song Seek (S-Seek) Functions P.TUNE This feature allows the user to capture and store Channel Name information about the programming (Artist/Song, List Display sports team, or traffic city) on the currently tuned channel, up to a total of 20 listings. The receiver also has the capability to continuously search all incoming SIRIUS channels and alert the user when P.TUNE Artist...
  • Page 12 memory, and Y being the total number of memory listings still available for storage. Initial Game Alert Score Updates “Initial Game Alert” will sound an alert when the team you have chosen is playing a game. “All Score Updates” will sound an alert when the team 2.
  • Page 13 with the updated information. The display will show A screen displaying the Replace-Cancel options the “Stored” screen . will follow. Cancel: The Replace-Cancel prompt screen will This prompt allows you to make the following disappear and revert to the original screen. Replace-Cancel choices: Nothing will be stored.
  • Page 14 Viewing Program Information stored in Memory 2. Turn the Rotary Knob to highlight the “Delete” 1. Press and hold the MEMO button for 3 seconds to option. enter S-Seek Mode. The program information 3. Press the Rotary Knob and a Delete confirmation stored in memory will be displayed one-at-a-time screen will appear.
  • Page 15 Activating the Song (S-Seek) Alert heard indicating that a match has been found. The 1. Press and hold the MEMO button for 3 seconds to display then reverts to the S-Seek Alert screen which enter the S-Seek Mode. displays the current matches. You can now select the 2.

  • Page 16: Menu Display Options

    Game Alert Menu Display Options The Sirius Sportster Receiver can automatically To enter the Menu Options page, press and release identify when your favorite team is playing. When a the MENU Button. The “Menu Options” list will game is found, the Game Alert screen is displayed, appear on the display (below) .
  • Page 17 Sirius ID Game Alert Displays your 12 digit Sirius ID (SID) number. The Game Alert allows you to store your favorite sports SID is unique to every Sirius Sportster Receiver and teams in memory. The Sportster Receiver will is required to activate your service. It is constantly scan the SIRIUS channels and will sound recommended that you write this number in the an alert when a team you stored in memory is...
  • Page 18 Alert Type Game Alert Initial Game Alert All Score Updates 3. Turn the Rotary Knob to highlight the league team When the SIRIUS receiver is powered on, and name or college team name you wish to add, and while it is playing, “Initial Game Alert’ will sound press the Rotary Knob to select.
  • Page 19 Jump Settings 1. Traffic You can access the Jump Settings menu by a. Use the Rotary Knob to highlight the “Traffic” pressing and holding the Jump button for 2 option. Press the Rotary Knob to select. seconds or by pressing Menu to enter the Menu b.

  • Page 20: Display Settings

    Display Settings 1. JumpSet The following adjustments are possible: Select JumpSet if you would like to use the Jump Contrast Control button for any channel other than a traffic channel. Dimming Control a. Use the Rotary Knob to highlight the “JumpSet” Manual option.

  • Page 21: Confirm Tone Options

    FM Transmitter Options If you would like to use the built-in FM Transmitter, you must turn ON the function and select an FM frequency: 1. Use the Rotary Knob to highlight the “FM Transmitter Options”. Press the Rotary Knob To exit the Display settings, simply push the to select.

  • Page 22: Lock Options

    Lock Options Channel Add or Skip The Sirius Sportster Receiver has the ability to The Sirius Sportster Receiver will allow you to skip lockout the use of any channel, or channels you do selected channels when changing channels via not want others to access without your permission. the Rotary Knob.

  • Page 23: Audio Level

    Audio Level Changing the Lock/Unlock Code The first time the Lock/Unlock function is accessed, The audio output of the Sirius Sportster Receiver the user must enter the default lock code. The can be adjusted to fine-tune the audio signal level default lock code is “0000”.

  • Page 24: Antenna Aiming

    Antenna Aiming Memory Options When using the optional Home Docking Station or In this mode, the user can turn the Memory the Boombox indoors, it is important to locate the Search Function (S-Seek) ON or OFF. In addition, antenna in an acceptable location (See the all 30 Preset Memory Locations can be cleared.

  • Page 25: Time-Based Features

    Time-Based Features • Time Zone: Since the Clock adjusts the time This Menu Option allows for adjustments of the automatically, it is important to specify your proper following items: time zone. Use the Rotary Knob to select the Clock Auto Shutdown proper time zone.
  • Page 26 • Set Alarm: Use the Rotary Knob to select “Set Knob. If Day is selected, the screen displays a Alarm” From the Alarm Clock Menu. Select default day of Monday, with selectable choices of either “Alarm Off” (Default) or “Alarm On” from Monday, Tuesday, Wednesday, Thursday, the Menu and press the Rotary Knob to set.

  • Page 27: Factory Default

    Factory Default to enter the menu. Once in the Auto Shutdown This Menu option will restore all original factory Menu, use the Rotary knob to select either settings. To activate this feature, perform the “Enable” or “Disable” the feature. following procedure while in the “Menu Options” •...
  • Page 28 If “Yes” is chosen, the unit reverts to the original factory settings for the following parameters: • All Presets revert to empty • All Game Alerts Cleared • Auto Dimming On • Display Contrast to 50% • Display Mode to Auto •...
