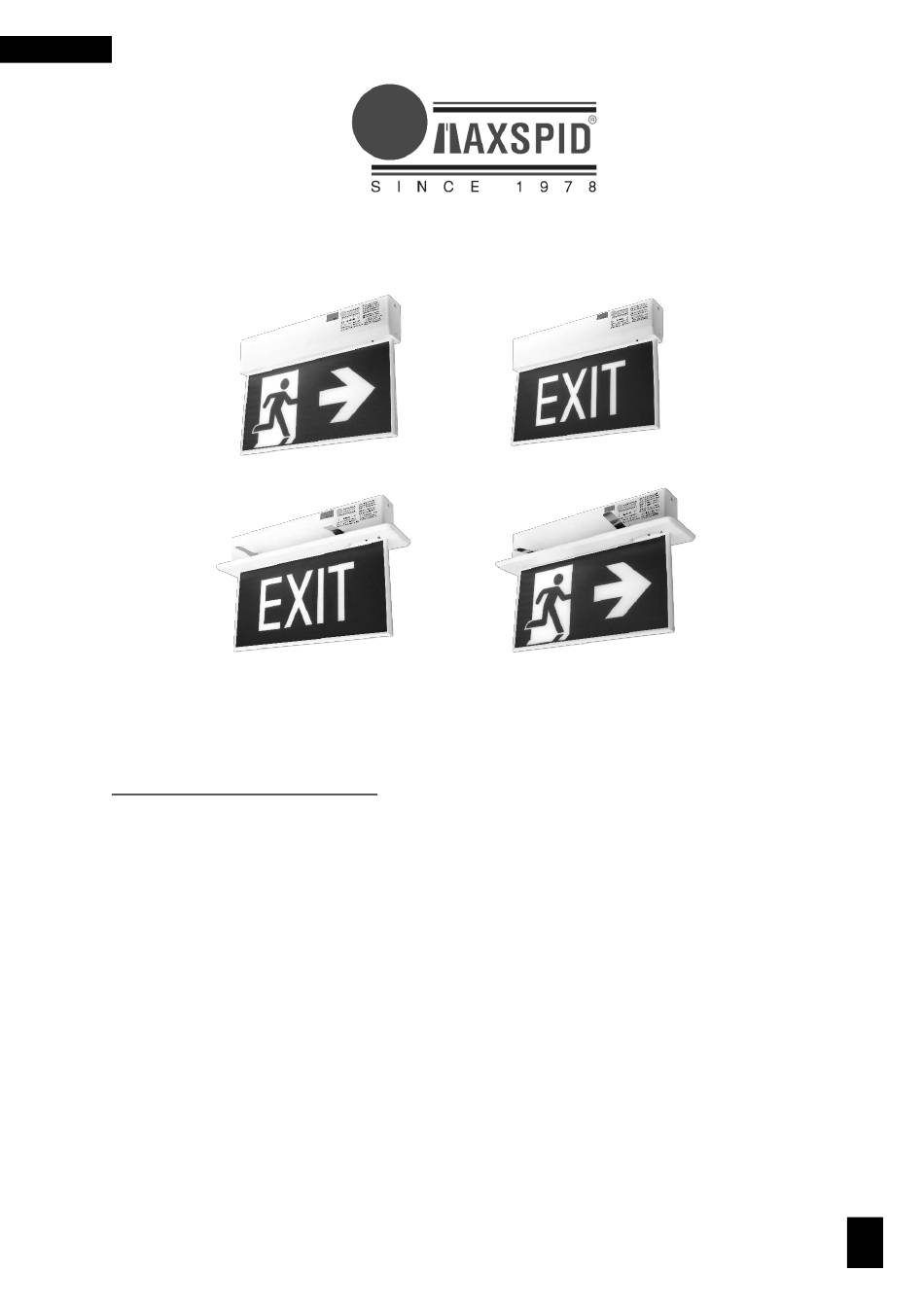

INSTALLATION MANUAL
SLS.M.SRE.NC180.WLF
SLS.M.SE.NC180.WLF
(With Recess Panel)
SAFETY INFORMATION
• Please read and follow this product guide.
• Servicing and installation of this product must only be done by
qualified electrical personnel.
• Do not expose this product to dripping or splashing. Liquids may
cause failure and/or fire hazard.
• Replace with Maxspid-approved correct type of battery only.
Incorrectly replaced battery may cause failure and/or fire.
• Match the polarities of the mains supply with the terminal block
and ensure it is firmly secured. Mismatch may cause electric
shock. [Refer to Fig C]
SLIMLINE
LED EMERGENCY EXIT LIGHT
SLS.M.SRE.NC180.WLF
Ver. 2111NOV25
SLS.M.SE.NC180.WLF
(With Recess Panel)
1
Advertisement
Table of Contents
Related Manuals for MAXSPID SLS.M.SRE.NC180.WLF
Summary of Contents for MAXSPID SLS.M.SRE.NC180.WLF
- Page 1 • Do not expose this product to dripping or splashing. Liquids may cause failure and/or fire hazard. • Replace with Maxspid-approved correct type of battery only. Incorrectly replaced battery may cause failure and/or fire. • Match the polarities of the mains supply with the terminal block and ensure it is firmly secured.
- Page 2 INSTALLATION GUIDE SLS Unit Description [Fig A] Mounting Base Charging Indicator & Housing Test Switch Light Guide & Legend...
- Page 3 SLS Surface Mounting Guide [Fig B] *Please uninstall the socket of L & N cable before mounting. *Push the *Pull the socket socket (i) WALL MOUNT (ii) CEILING MOUNT (iii) SUSPENSION ROD MOUNT *For recessed mounting, please refer to Fig D & E *Please install back the socket of L &...
- Page 4 Mains Supply Connection [Fig C] (Unswitched, 230V 50/60Hz) Cable Clip *Secure incoming cable using cable clip & screws. Recessed Mounting Guide [Fig D] Steel Wire Ceiling Board 350 x 80mm (Cut Out Hole)
- Page 5 Recess Panel Installation Guide [Fig E] *Make sure 2 snap-fit clips on recess panel secured with main housing *Insert 4 metal springs before installing luminaire (Make sure the position of metal springs is correct as shown in the figure)
- Page 6 Lexan Film Changing Guide [Fig F] *Gently remove the Lexan film from surface frame *Avoid dirt & scratches on Lexan film or light guide *Make sure the Lexan film is properly installed...
- Page 7 Note: • LED charge indicator (green) will be lit if installation is done correctly. Blinking green indicates charging; solid green indicates fully charged. • Do not connect/disconnect battery with AC supply connected. • For first-time usage, ensure mains supply to the unit is turned on for 24 hours to fully charge the battery.
- Page 8 TROUBLESHOOTING GUIDE Problem Possible Cause and Solution Green indicator off No incoming mains supply Battery is not connected Unable to light up in Battery is flat; Ensure the mains supply emergency mode is turned on to allow the battery to fully charge Battery is not properly charged;...
