  • Page 1 9.3 Inch Portable Car Stereo T86DVR 9.3 Instruction Manual The instruction manual must be placed in the box in such a way that it can be easily accessed and referred to. The instruction manual must always be kept with the product, even for secondary sales.
  • Page 2: Inch Portable Car Stereo

    Applicable to This instruction manual has been prepared for the following users. -Installation -Operation -Maintenance -Maintenance Requirements for the user All users must read and fully understand the contents of the manual. Products ChangNing JuManTianXiang Technology's products will not be copied, recreated or transmitted by the buyer and/or the (end) user;...
  • Page 3: Table Of Contents

    目录 9.3 Inch Portable Car Stereo ..............1 Instruction Manual ................1 1. Product Overview ................3 2. Product List 4. TF card specifications ..............8 5. Wiring Instructions ................. 9 6. Camera Installation ............... 10 7. Interface Specification ..............11 Apple CarPlay ................12 8.Troubleshooting ................34 9.
  • Page 4: Product Overview

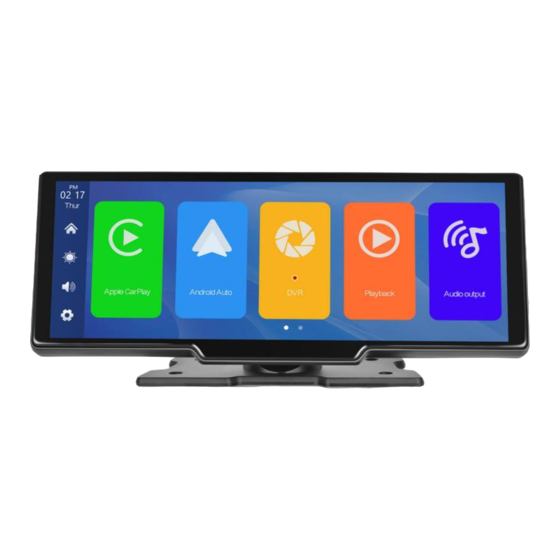

    1. Product Overview The T86DVR 9.3 uses two wide-angle cameras installed inside and outside the vehicle to capture images of the surrounding area and transmit them to the integrated device in real time. With the help of this system, the driver can see the obstacles and pedestrians around the vehicle intuitively,and effectively reduce the occurrence of scraping, collision, collapse and other accidents.
  • Page 6: Product List

    2. Product List Name Graphic Instructions Number 9.3 -inch FHD display (1600*600)/ 2 -channel camera interface/touch control /Bluetooth/Wi-Fi/FM Transmit / TF card recording /Type The host C interface power supply Type C power cord/6V~36V/3A current / integrated cable / cigar The power cord lighter to take power Optional...
  • Page 7 models Supports Apple CarPlay and Android Auto Wi-FI Smart+ connected Support Bluetooth music playback Bluetooth...
  • Page 8 FM Transmit support, connected to the car radio The video store TF card CLASS10 U1:32GB minimum and 128GB maximum Support microphone recording, you can turn it off in The microphone the menu Audio part Support voice control, you can tum it off in the menu Voice control The voltage drop line supports 7V-32V wide voltage and has power protection circuits such as surge,...
  • Page 9: Tf Card Specifications

    4. TF card specifications The quality of TF card has a great impact on the stability of video recording. To record video safely, use TF cards from major brands such as SanDisk, Kingston, Toshiba, and Samsung. Speed certification must be at least Class10.
  • Page 10: Wiring Instructions

    5. Wiring Instructions The details are as follows: Port Instructions Type C interface Monitor power supply interface Cigarette charger The cigarette lighter takes power directly...
  • Page 11: Camera Installation

    6. Camera Installation Locate the drilling hole, find the appropriate installation position in the license plate attachment, mark it with a pen and then drill the appropriate size of the screw hole. Fix the camera to the rear of the car with screws, the reversing trigger wire (red thin wire) needs to be connected to the positive pole of the reversing light, and finally use the camera extension cable to connect to the monitor.
  • Page 12: Interface Specification

    7. Interface Specification Time and Date: Displays the current time and date Home button: Click to return to home page Brightness button: Click to adjust screen brightness Volume button: Click to adjust the volume...
  • Page 13: Apple Carplay

    Settings button: Click to jump to the settings interface Apple CarPlay: Special connection for iPhone Android Auto: Special connection for Android mobile phone DVR: Click to enter the video recording interface Video Playback: Tap to view a video on the video screen Audio Ourput: When turned on, the device will transmit the sound to the car audio Airplay: Screen cast for iPhone...
  • Page 14 Manage] option of the interface, connect Bluetooth with the phone, you can open the application. When the machine is powered on, it will try to automatically connect to the last connected phone. (Turn off your phone's Wi-Fi to disconnect, Apple CarPlay option only supports iPhone phones, Android phone please select [Android auto] option) Wireless Carplay Connection Steps:...
  • Page 15 Android Auto Android ALto...
  • Page 16 As shown in the figure, click the [Android Auto] button to enter the Android auto. Turn on the Wi-Fi and Bluetooth of the mobile phone first, then as shown in the figure below, select the [Android auto] option, click the [BT Manage] option of the interface, connect Bluetooth with the phone, you can open the application.
  • Page 17 As shown in the picture above, the main page will not display the camera image, you need to click the DVR button to view the camera image. When a card is inserted, the system automatically enters the video mode, and when recorded, the small red dots in the [Driving Monitoring] button will flash.
  • Page 18 Click to view the playback video ⑥ Click to turn on or off the recording sound Click to switch the camera distribution screen...
  • Page 19 As shown in the figure above, click the Bluetooth button [ to switch on the device after entering the Bluetooth interface. The page will display the device name, such as: T86-1BCC9D, and click the Modify button [ ] to modify the Bluetooth name of the device. Select the device name with Bluetooth, and the remote device name of the phone will appear after successfully connecting.
  • Page 20 As shown in the figure above, swipe the home page to view the next page options and click the [ Playback] button on the second page to enter the video playback interface. Click any video on the right to view video playback or parking surveillance video. The buttons in the lower left corner correspond to: 'Play/Pause' and "Next' Click the [ つ] button in the lower left corner to return to the main Interface...
  • Page 21 As shown in the figure, click the [FM Transmit] button to enter the FM Transmit function: it can emit the sound of the equipment, receive it with the original car radio, and play it through the original car horn, enjoying the original car level.
  • Page 22 ] button. ① Click the Open device [ ②Selects the frequency band to be emitted, for example, the FM 106.0 MHZ. ③Car radio also adjusts the acceptance band to FM 106.0 MHZ. ④ Car radio can connect to the FM Transmit signal of the upper system. After the FM launch connection is successful, all sounds will be sent to the original car speaker for play.
  • Page 23 Airplay...
  • Page 24 WiFi Video...
  • Page 25 Settings As shown in the figure, click the [ ], l button in the lower left corner to enter the setting interface.
  • Page 27 specification Icon Click to enter the Record resolution settings Resolution selection: 1080P/720P Record resolution Click [Split time] to enter the setting of the video segmentation time: Video segmentation time is optional: 2 minutes /3 minutes /5 minutes. Split time The system defaults to 3 minutes. Click [Microphone] to enter the settings: You can choose to turn on or turn off.
  • Page 28 See the instructions below. Parking monitor (not required) Click on [Time config] to enter the settings: Set up separately: year / month / day / time / Time config minute / second See the instructions below. Reversing control Click [Screen saver] to enter the settings: Screen savers can be set to: Turn off/1 min/5 min When set for 1 or 5 minutes, the system operates for no corresponding time,and the screen will...
  • Page 29 Click [Storage Information] to enter the menu: You can view the information of the TF card. The former item indicates the remaining available Storage Information capacity, and the former item indicates the total capacity. Click [Format] to enter the settings: This option formats all data information inserted.
  • Page 30 Voice control: There is no need to touch the screen by hand, and the corresponding operation can be realized only by voice command. Opening method: setting - voice control - clicking anywhere - turn on voice control - speaking command language can realize corresponding operations. The following commands are supported: Show front camera / Show rear camera /Turn on display / Turn off display / Show all cameras Reversing Control:...
  • Page 31 Reverse assist line is optional: single screen display / multi-screen display Click [Calibration] to enter the settings: —24—...
  • Page 32 Park the car in the middle of the parking space. Manually drag the left, adjust the position of the reversing assist line up, left and right, so that the reverse assist line is horizontal to the parking line on the left of the ground.
  • Page 33 Parking monitor: In the settings, the "Parking monitor" option, if you choose 'Turn On"; After the car is turned off (ACC is disconnected), the system will immediately prompt whether to enter the parking monitoring function: 18:06 Faranygmrty artar tapirahg rentsnsp ulanolsay 风ww Qufim...
  • Page 34 After prompting "close the screen soon", the machine screen will automatically turn off to reduce power consumption; at this time, the system cannot perform any operations, unless the car is re-ignited (ACC is powered on) and the screen is manually touched to light up the screen display., the system will prompt "Parking monitoring, shutdown later' In the settings, the "Parking monitor' option, if you choose "Turn off";...
  • Page 35: Troubleshooting

    Troubleshooting Item Problem Solution ① Check whether the DC head of the Unable to start cigarette lighter power cord is (T86DVR supports damaged ar aging. 7V-32V car use high voltage ② Check whether the fuse of the power cannot be used) plug is disconnected or burned.
  • Page 36 ①Buy the manufacturer's matching rear view camera befare it can be The rear view used camera has no ②Whether the AVIN interface is image inserted to the bottom. ③Check if the camera format matches Avaid direcl sunlight or exposure lo sunlight during use.
  • Page 37 ①Only Andrcid phones are supported. ②Update Auto and related applications on mobile phones to the latest version. Do not enable VPN on the mobile phone. Android Auto ④ Check that the WiFi and Bluetaoth cannot connect functions of the mobile phone are normal Restart the Android phone and connect it again...
  • Page 38: Product Parameters

    9. Product Parameters T86DVR 9.3 Model High perfonriance SOC Master control Wireless Aople CarHlay Wireless Android Auto Wireless function 9.3 inches IPS material,1600*600 resolution Screen Storage 32GBsClass 10 TF cards128GB WiF,Bluetooth, FM launch module Wireless module Cemera Rear camere 2 W speaker...
