Red Arrow SHC-WIR-HE Installation Instructions

Thank you for purchasing
the SHC-WIR-HE heat
alarm. Please take a few
minutes to thoroughly
read the user guide
and familiarize yourself
and your family with its
operation and save for
future reference.

Specification

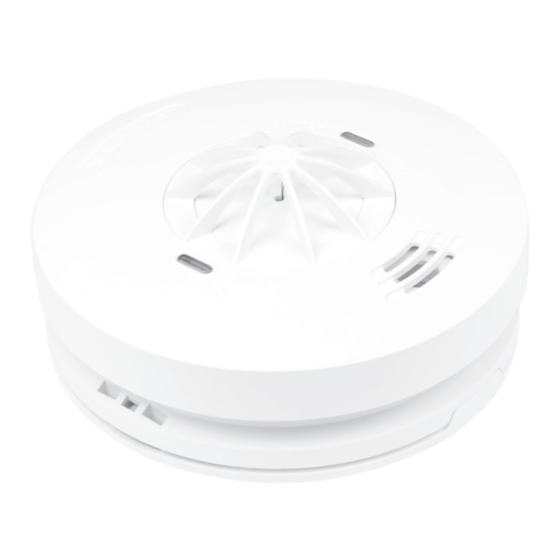

DESCRIPTION:
Thermistor heat alarm 220-240V AC with 9V DC battery backup, Designed with quick fit base and
rapidly detecting NTC Thermistor for detecting temperature increases keeping your household and
loved ones safe with wired or built in RF Interlinking function for pairing with Red Arrow mains /
battery operated smoke alarms.
Box Contents -
1 x SHC-WIR-HE Wired/Wireless Heat Alarm
Dimensions:
L: 140mm x W: 140mm x D: 58.8mm
Power:
220 - 240V@ 50Hz with 9V battery backup
Product Life: 10 Years after initial activation
Alarm Volume:
>85dB(A) at 3 meters
Alarm Sensitivity:
54°C to 65°C
ISO8201 (BI 0.5s - pause 0.5s - BI 0.5s - pause 0.5s - BI 0.5s - pause 1.5s,
Sound Pattern:
with the RED LED flash, repeat this alarm pattern)
Wireless Alarm
BI - BI - pause 1.2s, with the red LED flash, repeat this alarm pattern.
Sound Pattern:

Recommended Installation Locations

The following suggestions are intended to help you to position
and install your alarm.
1. For best protection heat alarms should be installed as part of
TWO Storey Dwelling
a complete fire protection system that also includes smoke
alarms. Heat alarms are best suited to areas such as boiler
rooms, kitchens, laundry rooms and garages where dust,
fumes and moisture can cause nuisance alarms in smoke
detectors. Heat alarms should not be installed in escape
routes instead of smoke alarms. They should only be used
in the above applications and where possible be interlinked
to smoke alarms. (Smoke alarms should be installed in
circulation areas forming part of escape routes and in every
room in the home). The advice here follows the guidance
in British Standard BS 5839 part 6 in general (for further
information see the BS standard itself ).
TWO Storey Dwelling
BEDROOM HALL BEDROOM
2. When heat alarms are installed in a room, they should be
placed on the ceiling, ideally in the centre of the room.
They should be at a distance no greater than 5.3m from the
farthest wall no greater than 5.3m from a door to any room
in which a fire might start and no greater than 5.3m from
LIVING ROOM HALL KITCHEN
the next heat alarm NOTE: Heat alarms should not be wall
mounted.
3. Closed doors and other obstructions will interfere with
the path of heat to an alarm and may prevent occupants
from hearing an alarm on the other side of a closed door.
Install sufficient alarms to compensate for closed doors and
BEDROOM HALL BEDROOM
obstacles.
4. For further help and information on types and location of
fire defection alarms refer to BS5839 pt 6 and the Fire Safety
guidance given by the Department of Transport, Local
LIVING ROOM HALL
Government and the Regions (DTLR).
CAUTION: Research indicates that substantial increases in
warning time can be obtained with each properly installed
additional alarm, It is strongly recommended that the advice in
1 above be followed to ensure maximum protection.
Installation INSTRUCTIONS
Mains/Battery Operated Heat Alarm
Product Codes: SHC-WIR-HE
TWO Storey Dwelling
Single storey, one sleeping
DINING ROOM
BEDROOM
LIVING ROOM
Single storey, one sleeping
GARAGE
KITCHEN GARAGE
TWO Storey Dwelling
KITCHEN BEDROOM BEDROOM
HALL BEDROOM
BEDROOM HALL BEDROOM
LIVING ROOM
BEDROOM
HALL KITCHEN GARAGE
LIVING ROOM HALL KITCHEN
KITCHEN BEDROOM
DINING ROOM
Smoke alarms for
limited protection
LIVING ROOM
BEDROOM
Additional smoke alarms
for better coverage
Heat alarms
WARNING:
That if there is any question as to the cause of an alarm it should be
Smoke alarms for
assumed that the alarm is due to an actual fire and the dwelling should
limited protection
be evacuated immediately.
Additional smoke alarms
for better coverage
Safety Warning
•
The installation should be carried out
by a competent person.
•
Follow the provided installation
instructions, using the fixings supplied
or recommended.
•
Keep out of reach of children.
Ver: 1.0
140mm
5
YRS
Easy
Guarantee
Install
Single storey, one sleeping
Single storey, one sleeping
DINING ROOM
Single storey, two sleeping
DINING ROOM
TV ROOM DINING ROOM
LIVING ROOM
Single storey, two sleeping
GARAGE
BEDROOM
BEDROOM TV ROOM DINING ROOM
BEDROOM
KM 715769
58.8mm
RF & WIRED
INTERCONNECT
KITCHEN BEDROOM BEDROOM
KITCHEN BEDROOM BEDROOM
KITCHEN BEDROOM
BEDROOM
LIVING ROOM
BEDROOM
LIVING ROOM
BEDROOM
Smoke alarms for
Smoke alarms for
KITCHEN BEDROOM
limited protection
limited protection
Additional smoke alarms
Additional smoke alarms
for better coverage
for better coverage
LIVING ROOM
BEDROOM
Heat alarms
Heat alarms
S
