Red Arrow SHC-BAT-CA Installation Instructions

Thank you for purchasing
the SHC-BAT-CA carbon
monoxide alarm. Please take
a few minutes to thoroughly
read the user guide and
familiarize yourself and your
family with its operation and
save for future reference.

Specification

Box Contents -

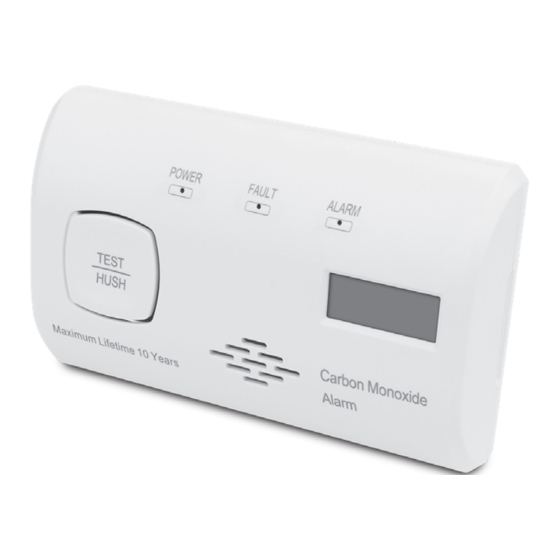

1 x SHC-BAT-CA Carbon Monoxide Alarm
Dimensions: L: 110mm x W: 68.6mm x D: 30.7mm
Power:
DC 3V Lithium battery operated (battery not replaceable)
Product Life:
10 Years after initial activation
Sensor: Electrochemical
Operating Temp: 10~40°C, 15~93%R.H.
NOTE: This carbon monoxide alarm is designed to detect carbon monoxide gas
from any source of combustion. It is not sesigned to detect any other gases.
5
YRS
Easy
Guarantee
Install

Recommended Installation Locations

The following suggestions are intended to help you to
position and install your alarm.
1. Place out of the reach of children. Under no circumstances
should children be allowed to handle the alarm.
2. Install in a bedroom or hallway located close to the sleeping area.
Take special care to verify the alarm can be heard in sleeping areas.
3. It is recommended that an alarm be installed on each level
of a multilevel home.
4. Locate at least 5 feet away from all fuel burning appliances.
5. Placing at eye level allows for optimum monitoring of the
red, green and yellow indicator lights.
6. Do not install in dead air spaces such as peaks of vaulted
ceilings or gabled roofs (where fumes do not collect).
Installation Instructions
Caution: The alarm should be installed by a competent person.
Installation Location
When choosing your installation locations, make sure you can hear
the alarm from all sleeping areas. If you install only one carbon monoxide
alarm in your home, install the alarm near bedrooms, not in the basement.
This alarm must be mounted on a ceiling or wall.
Mounting Step
Please refer to sketch map: Diagram 1.
1. Drill a hole in the wall of 5mm circumference and insert the plastic plug.
2. Screw in the screw leaving 5mm protruding from the wall.
3. Place the unit over the screw.
4. Test the alarm by using the test button.
5. Fit the alarm on the bracket and turn the alarm body clockwise,
until it clicks into position firmly on the bracket.
Attention! Pull tab to remove metal clip and enable product before testing.
INSTALLATION INSTRUCTIONS
Standalone Carbon Monoxide Alarm
Product Codes: SHC-BAT-CA
Safety Warning
110mm
7. Do not install in turbulent air from ceiling fans.
8. Do not place near fresh air vents or close to doors and windows that
open to the outside.
9. Keep the alarm away from excessively dusty, dirty or greasy areas
such as kitchens, garages and furnace rooms. Dust, grease and
household chemicals can affect the sensor.
10. Keep out of damp and humid areas such as the bathroom.
Avoid spraying aerosols near the alarm.
11. Do not install in areas where the temperature is below
0°C or higher than 40°C .
12. Do not place behind curtains or furniture. Carbon monoxide
must be able to reach the sensor for the unit to accurately detect
carbon monoxide.
Pull tab to remove
metal clip
•
The installation should be carried
out by a competent person.
•
Follow the provided installation
instructions, using the fixings
supplied or recommended.
•
Keep out of reach of children.
KM 707132
EN50291-1:2018
30.7mm
Diagram 1
