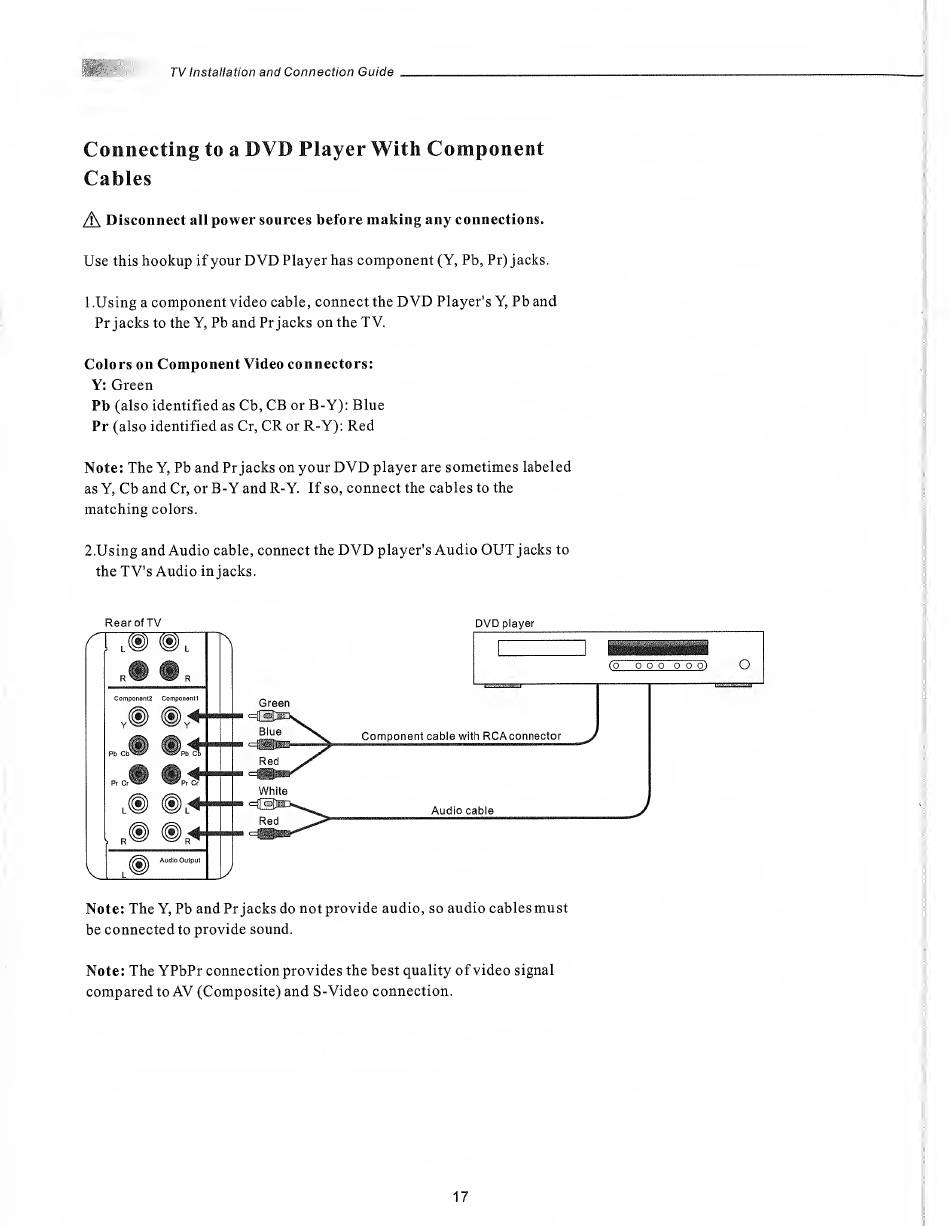

Syntax OLEVIA LT32HV Series User Manual page 20

TV
Installation
and Connection Guide
Connecting
to
a
DVD
Player
With Component
Cables
A
Disconnect
all
power
sources before
making
any
connections.
Use
this
hookup
if
your
DVD
Player has
component
(Y, Pb, Pr) jacks.
1
.Using
a
component
video cable,
connect
the
DVD
Player's Y,
Pb and
Pr jacks
to
the Y,
Pb and
Pr jacks
on
the
TV.
Colors on
Component
Video connectors:
Y:
Green
Pb
(also identified as
Cb,
CB
or
B-Y): Blue
Pr
(also identified
as Cr,
CR
or
R-Y):
Red
Note:
The
Y,
Pb and
Pr jacks
on your
DVD
player
are
sometimes labeled
as Y,
Cb
and
Cr,
or
B-Y
and
R-Y. If
so,
connect
the
cables
to the
matching
colors.
2.Using
and Audio
cable, connect the
DVD
player's
Audio
OUT
jacks
to
the
TV's Audio
in jacks.
Rear
of
TV DVD
player
(o
o o o o o o
)
o
Component
cable
with
RCA
connector
Audio
cable
Note:
The
Y,
Pb and Pr jacks do not provide
audio, so
audio
cables
must
be
connected
to
provide
sound.
Note:
The
YPbPr
connection provides
the best quality
of video
signal
compared
to
AV
(Composite) and S-Video connection.
