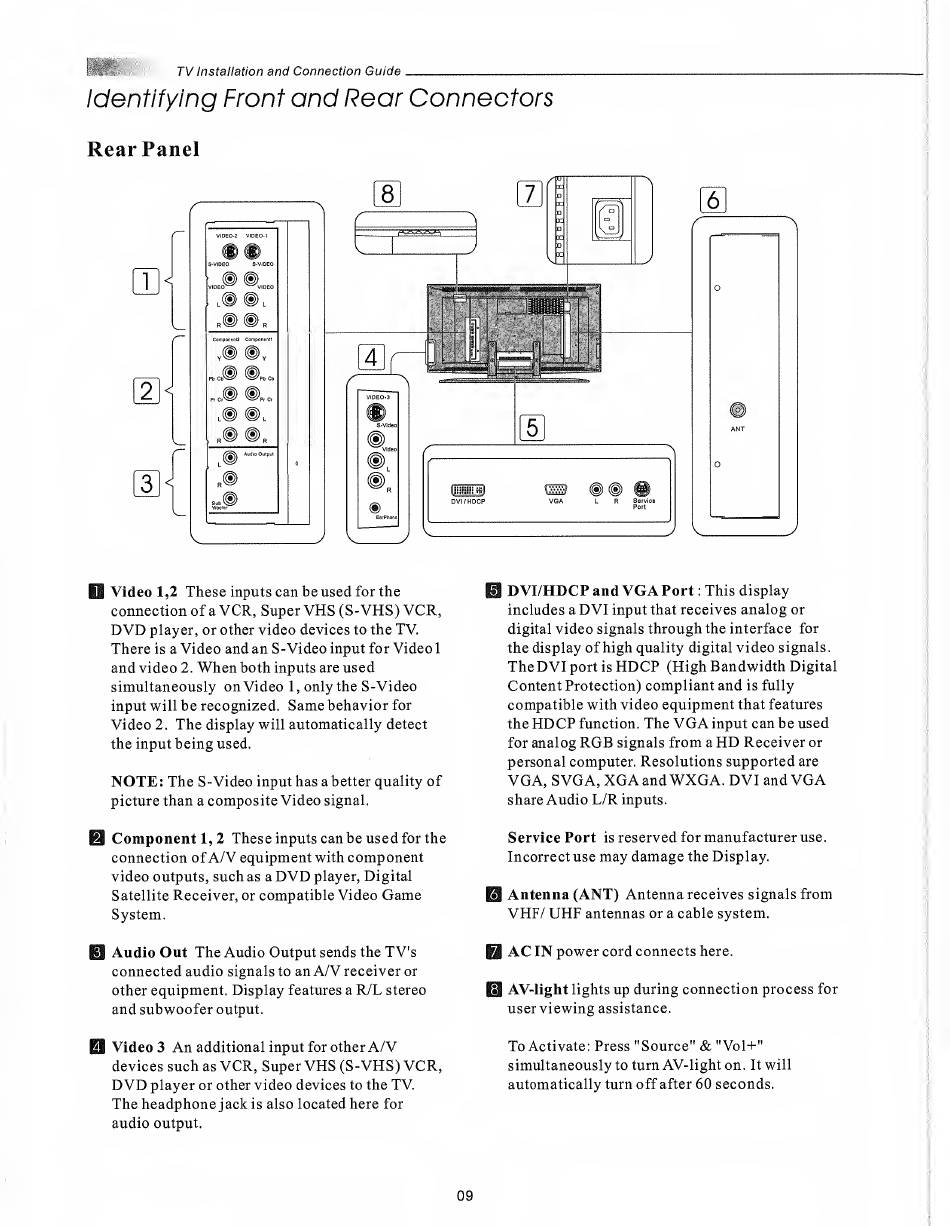

Rear Panel - Syntax OLEVIA LT32HV Series User Manual

TV
Installation
and Connection Guide
Identifying Front
and
Rear Connectors
Rear
Panel
8
7
VIDEO-2 VIDE<
J
Video
1,2
These
inputs
can be used
for
the
connection of
a
VCR,
Super
VHS
(S-VHS)
VCR,
DVD
player, or other
video
devices
to
the TV.
There
is
a
Video and an S-Video input for
Video
1
and video
2.
When
both
inputs are
used
simultaneously on Video
1,
only
the
S-Video
input will
be recognized.
Same
behavior
for
Video
2.
The
display will
automatically detect
the input
being
used.
NOTE:
The
S-Video input has abetter quality
of
than
a
composite Video
signal.
B
DVI/HDCP
and
VGA
Port
:
This display
includes
a
DVI
input that receives
analog
or
digital
video signals
through
the interface for
the display
of high
quality digital
video
signals.
The
DVI
port
is
HDCP
(High
Bandwidth
Digital
Content
Protection)
compliant and
is
fully
compatible with video
equipment
that features
the
HDCP
function.
The
VGA
input can
be used
for
analog
RGB
signals
from
a
HD
Receiver
or
personal computer. Resolutions supported
are
VGA, SVGA,
XGA
and
WXGA.
DVI
and
VGA
share
Audio L/R
inputs.
B
Component
1,
2
These
inputs can
be used
for
the
connection of
A/V
equipment
with
component
video outputs, such
as a
DVD
player, Digital
Satellite
Receiver,
or
compatible Video
Game
System.
H
Audio Out The
Audio Output sends
the
TV's
connected audio
signals
to
an
A/V
receiver or
other
equipment. Display
features a
R/L
stereo
and subwoofer
output.
Q
Video
3
An
additional input
for other
A/V
devices such
as
VCR,
Super
VHS
(S-VHS)
VCR,
DVD
player
or other
video devices
to
the TV.
The headphone
jack
is
also located here
for
audio output.
Service Port
is
reserved for
manufacturer
use.
Incorrect
use
may damage
the Display.
Q
Antenna (ANT) Antenna
receives signals
from
VHF/
UHF
antennas or a
cable system.
Q
AC
IN power
cord connects
here.
10
AV-light
lights
up during connection process
for
user
viewing
assistance.
To
Activate: Press
"Source"
&
"Vol+"
simultaneously
to
turn
AV-light
on.
It
will
automatically
turn
off
after
60 seconds.
09
