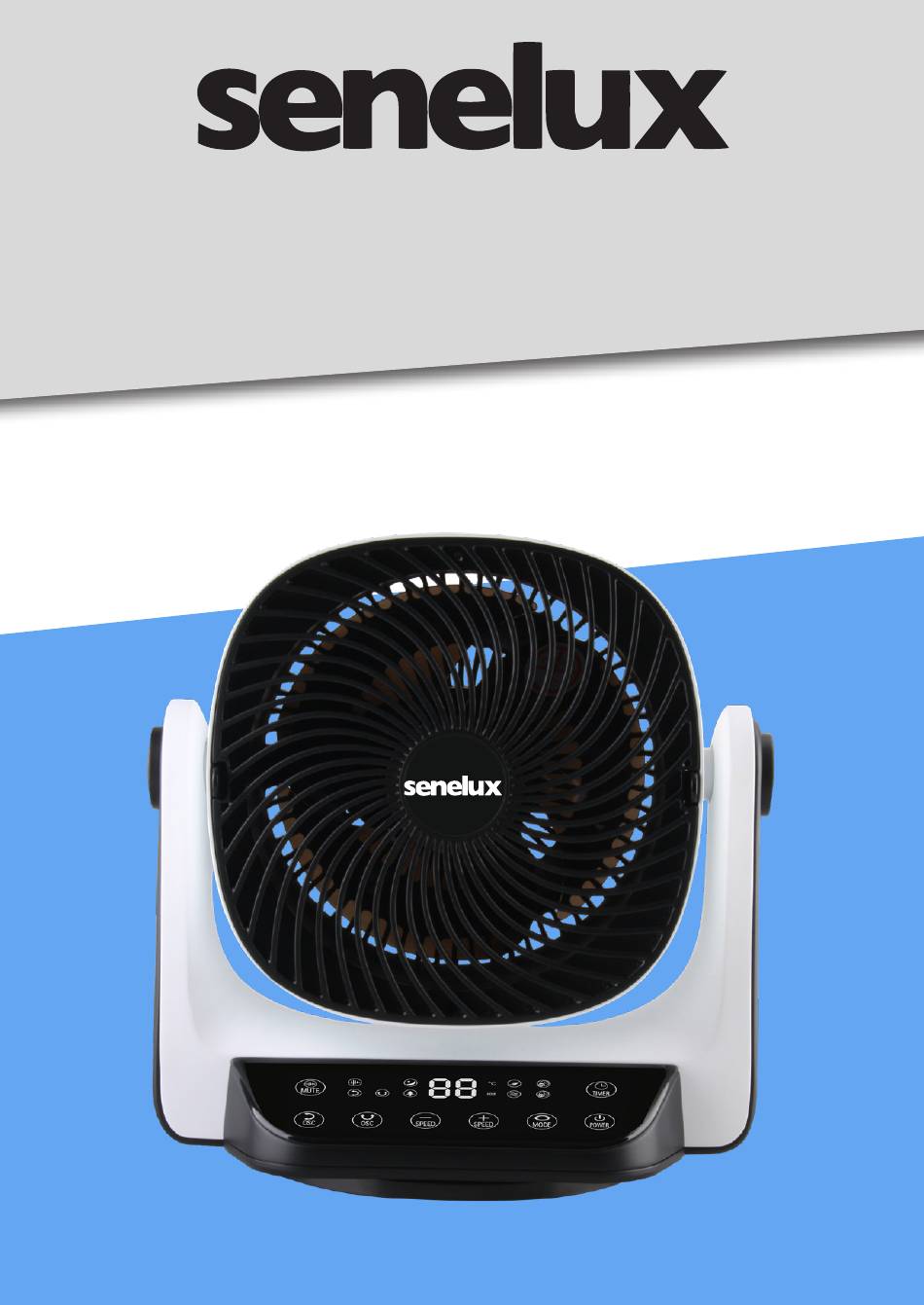

- Page 1 INSTRUCTION MANUAL Air Circulator Desk Fan Model: F120A ENGLISH...
-
Page 2: Table Of Contents
TABLE OF CONTENTS (i) Product Description (ii) Safety Rules (iii) Diagram Of The Structure (iv) Display Diagram (v) Product User Manual (vi) Remote Control Instructions (vii) Technical specifications (viii) Usage Precautions (ix) Product Components Disassembly (x) Cleaning and Maintenance Tips (xi) Warning Guidelines (xii) Easy Troubleshooting (xiii) Warranty... -
Page 3: (I) Product Description
1. PRODUCT DESCRIPTION The HTS-F120A is a 9-inch desktop direct current (DC) fan with an automatic horizontal & vertical oscillation mode, mute mode, timing function, and adjustable fan speed. The fan’s operation is controlled via touch buttons, while a remote control with a separate light control function is provided. -
Page 4: (Ii) Safety Rules
2. SAFETY RULES Thank you for choosing our Senelux Air Circulator. Please read this instruction manual carefully before using the product! Operation and Maintenance Non-specialist or unauthorised personnel are prohibited from independently repairing or modifying this machine. Any unauthorised repair of this product not by the manufacturer or approved agent will invalidate warranties. -
Page 5: (Iii) Diagram Of The Structure
Avoid direct sunlight and remove your fan from heat sources such as stoves. Do not use it in damp or humid environments, high-temperature locations such as direct sunlight, smoke-filled cars, heated rooms, The product is designed for indoor use only. 3. -
Page 6: (Iv) Display Diagram
4. DIGITAL PANEL DISPLAY DIAGRAM 5. PRODUCT USER MANUAL Please ensure the product is only plugged into a suitable UK household plug outlet (220V). Or the nec-essary compatible adapter is used for your area. 1. Fan Speed Button • When the fan is stationary, lightly press the “+” button once to start the fan at a low speed. - Page 7 • During operation, lightly press the up and down oscillation buttons to activate the fan’s up and down oscillation functions. Press again to turn off the process. • When the oscillation function is on, the text “Oscillation” and the corresponding symbol will be displayed on the screen. The corresponding character will turn off when the oscil-lation stops.
-
Page 8: (Vi) Remote Control Instructions
<20 20<X≤22 22<X≤24 24<X≤26 26<X≤28 28<X≤30 30<X≤32 >32 Tempera- ture (°C) Speed level • When the fan is operating in natural mode, sleep mode, or ECO mode, the fan speed button is not adjustable. You must switch back to the standard mode to adjust the fan speed. Normal wind Natural wind Sleeping wind... -
Page 9: (Vii) Technical Specifications
7. TECHNICAL SPECIFICATIONS F120A Product model 220V~240V, 50Hz Rated voltage/frequency Rated power 333x220x347mm Product dimensions 1.6M Power cord length 8. USAGE PRECAUTIONS 1. Before Use • Before use, please carefully read the instructions in this manual; • Check that the voltage used is the same as the voltage indicated on the machine. -
Page 10: (Ix) Product Components Disassembly
Do not place the fan in an unstable position during operation. Pay special attention to children, and do not let them play with the fan or insert fingers or objects into the front grille. When unplugging the power cord, hold the plug and pull it out gently;... -
Page 11: (X) Cleaning And Maintenance Tips
• [Removing screws]: Use a crosshead screwdriver to loosen and re- move the screws that fix the front grill. • [Remove the front grill]: After removing the screws, hold the front grill with your hand and ro-tate it counter clockwise to remove it from its snap-fit. - Page 12 Note: The motor’s rotating shaft in this product does not require additional oil maintenance. Do not spray maintenance oil (such as rust removal, rust-proof, sewing machine, etc.) by yourself. Prohibited Prohibited Prohibited...
-
Page 13: (Xi) Warning Guidelines
11. WARNING GUIDELINES Do not forcefully straighten with your hands. When the electric fan rotates naturally to a certain angle, do not forcefully straighten it with your hands. Forcibly straightening the fan may damage the internal structure. If you need to adjust the angle, please use the “oscillation” function key. Prohibited Prohibited Prohibited... -
Page 14: (Xii) Easy Troubleshooting
Whether the front net is appropriately assembled. Is there a foreign object trapped in the fan? Emergency Troubleshooting If smoking or burning occurs during use, please immediately unplug the power cable and contact the Senelux customer service team or your local service agent. -
Page 15: (Xiii) Warranty
13. WARRANTY All Senelux products are covered from the original purchase date by a standard 2-year warranty. To register your warranty, please visit www. senelux.co.uk. If, in the unlikely event that your product has any manufacturing de- fect, please get in touch with our customer service team at support@ senelux.co.uk. - Page 16 Senelux Ltd Unit 5-6 105 Boundary Street Liverpool L5 9YJ United Kingdom Email – info@senelux.co.uk Website – www.senelux.co.uk Be sure to tag us in your photos on social media using #seneluxathome to be featured @Senelux Thank you very much for using our products.
