REALSEE G1 Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
REALSEE G1
Guide
realsee.ai

Advertisement

loading
Need help?

Need help?

Do you have a question about the G1 and is the answer not in the manual?

Questions and answers

Related Manuals for REALSEE G1

Summary of Contents for REALSEE G1

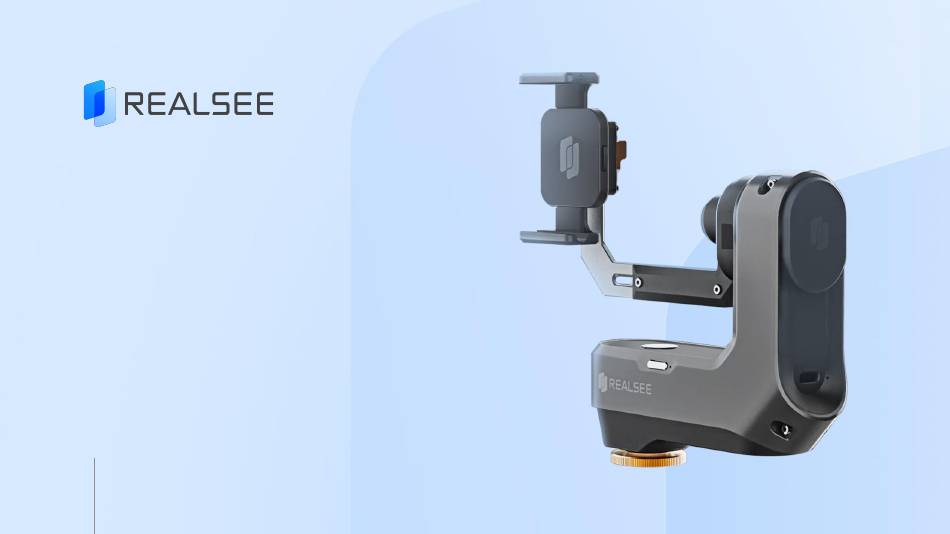

  • Page 1 REALSEE G1 Guide realsee.ai...
  • Page 2 Products Realsee’s next generation Gimbal puts the power of AI and VR in the hands of everyday brokers. No professional equipment or training required – simply plug and play. • Mobile integrated VR solution • No barrier to entry, lock in and capture •...
  • Page 3 Products Enhanced VR Products VR Property Tour VR Property Walkthrough VR Property Inspection • View listings anywhere, anytime • Pre-recorded listing overview • Be in the virtual room with client • Lifelike 1:1 3D reconstruction • Explore and listen at the same time •...
  • Page 4 Instructions Using the Device Setting Up Capturing a Space Editing Prepare the Device Add new Publish Prepare the Room Capture Enrich Set up the device Upload Share SMARTPHONE GIMBAL...
  • Page 5 • Prepare the Equipment 01.Setting Up • Prepare the room for shooting • Setting up the device SMARTPHONE GIMBAL...
  • Page 6 Setting Up Prepare the Equipment Realsee Gimbal Mobile phone Tripod 1.3 meters high Realsee VR APP SMARTPHONE GIMBAL...
  • Page 7 Setting Up Prepare the Equipment Clean up the room Turn on all lights Open all doors Open all the curtains Tips：Pay attention to the storage of private items. SMARTPHONE GIMBAL...
  • Page 8 Preparations Prepare the space Plan the scanning path • A common first scan location is the foyer. Or simply start from a relatively empty area. • Move the whole set of device to the next scan point and scan in proper order.
  • Page 9 Setting Up Setting up the device When clipping in your phone to the frame, the main camera should line up with the small red dots visible on the device The tripod should be set at meters Affix the frame to tripod using the frame’s gold colored base and rotating in a clockwise direction until frame is firmly in place SMARTPHONE GIMBAL...
  • Page 10 Setting Up Setting up the device(cont.) A switch for loading and unloading Adjust the camera up and down Mobile phone holder Phone lens alignment logo Please turn slowly(fragile) Touch and hold the switch button for for Power On Attach firmly to accompanying tripod •...
  • Page 11 • Add new 02.Scan the Space • Capture • Upload SMARTPHONE GIMBAL...
  • Page 12 Scan the Space Login • Register your Realsee account with an email address. (Sign up) • Log in. (Sign in) • Switch identity. Choose the organization you are working for or keep as individual use. SMARTPHONE GIMBAL...
  • Page 13 Scan the Space Connection • Connect your mobile phone with Realsee Gimbal • Press the power button of Gimbal for 3 seconds. Make sure your phone’s Bluetooth is enabled. • • Connect your phone to the Gimbal by tapping its serial number.
  • Page 14 Scan the space Capture 4、Alignment · Align Each scan · Align Whole floor 1、Select floor 3、Capture 2、Settings 5、Upload 360°CAMERA...
  • Page 15 Scan the Space Scan settings • Select the floor level If necessary, change settings by tapping the ‘setting’ • button in the bottom right corner. • You can set the countdown timer and scanning . • The standard scan (default setting) is three-rings around. “Complete Scan"...
  • Page 16 Scan the Space Start capturing and Preview • Tap the blue button to start capturing. • Continue capturing the space according to the scanning path you planned. 1.5-2m SMARTPHONE GIMBAL...
  • Page 17 Scan the Space Name your project and Generate VR After capturing all the points that you need, tap the ‘Finish’ • button. Name your project and “Generate VR”. • SMARTPHONE GIMBAL...
  • Page 18 Scan the Space Upload and Process • You can view the project through both your mobile and PC devices after it is uploaded and processed. SMARTPHONE GIMBAL...
  • Page 19 • Publish 03.Workshop • Enrich Your VR tour • Share SMARTPHONE GIMBAL...
  • Page 20 Workshop Mobile-end Editing • You can edit your project through your REALSEE VR APP. • After choosing the project you are going to edit, you will enter the Mobile Workshop. SMARTPHONE GIMBAL...
  • Page 21 Workshop Preview Click the ‘preview’ button, you can preview the • panorama of your project. Also, click the ‘3D model’ on the top right corner • to view your 3D model. SMARTPHONE GIMBAL...
  • Page 22 Workshop Info & Contact details • Add more detailed information for your project by tapping ‘Info’ or ‘Contact’ button. Remember that don’t forget to save your settings. SMARTPHONE GIMBAL...
  • Page 23 Workshop Publish Click the blue ‘publish’ button to publish and share your • completed project.
  • Page 24 Workshop Enrich Your VR tour To manage all your tours in front of PC, you can access to: https://new-workshop.realsee.jp/ In the PC version workshop, you can: • 1. Apply filters to your whole tour • 2. Hide unwanted scan points •...
  • Page 25 Workshop Share the tour You can get the URL of your virtual tour from app or workshop and share it to social media or embed it on any website or app. 360°CAMERA...

  • Page 26: Additional Tips

    • Capture multi-floors • Scan misaligned 04.Additional Tips • Fix the model • Plan the scanning path--A more complex scenario SMARTPHONE GIMBAL...
  • Page 27 Tips Capture multi-floors • There is no need to shoot staircases between levels for multilevel properties • Use the button on the left of the App screen to simply move between levels. SMARTPHONE GIMBAL...
  • Page 28 Tips Scan misaligned • You only need to use this function if scan points appear to be misaligned – one scan point does not match with another like pieces in a jigsaw. When a scan is offset, you need to: Select the misaligned scan point —Manual •...
  • Page 29 Tips Fix the model For unpublished tours When the scan points on the phone are perfectly located but the tour generated has errors, such as two rooms are stitched into one room, then “Model Fixing” is a smart button to rerun the project and fix the error. Example: two similar rooms are stitched into one 360°CAMERA...
  • Page 30 Additional Tips Plan the scanning path--A more complex scenario • Make sure that all the space to be scanned is accessible • For narrow and long aisles, you can shorter the distance between scan points. See Point 19,20,21,27,28; and Point 43,44,45,46,47 •...
  • Page 31 Thanks...
