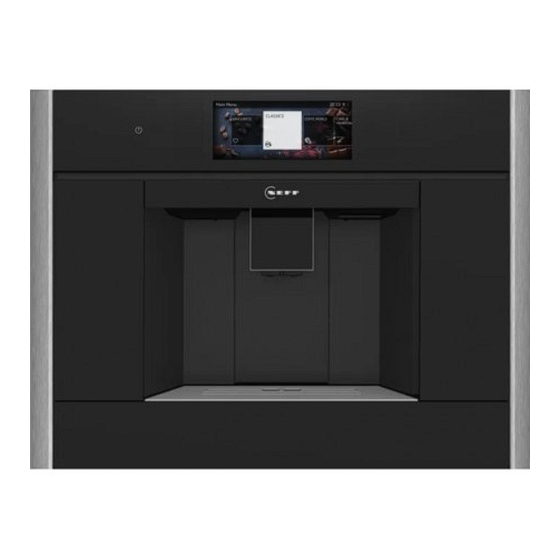

Fully automatic espresso machine
Hide thumbs Also See for CL4TT11 0 Series:
Table of Contents

Advertisement

Quick Links

Fully automatic espresso machine
[en]
Information for Use
CL4TT11.0, CL9TX11Y0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CL4TT11 0 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for NEFF CL4TT11 0 Series

  • Page 1 Fully automatic espresso machine [en] Information for Use CL4TT11.0, CL9TX11Y0...
  • Page 7: Table Of Contents

    Further information and explanations are available online: Table of contents 1 Safety ...........  9 8 Basic operation ......  18 1.1 General information.... 9 8.1 Switching the appliance on or off ........ 18 1.2 Intended use...... 9 8.2 Dispensing beverages ....  18 1.3 Restriction on user group.. 9 8.3 Double Shot and Triple Shot ...
  • Page 8 19 Customer Service....  35 19.1 Product number (E-Nr.), production number (FD) and consecutive numbering (Z-Nr.) ........ 35 20 Technical specifications..  35 20.1 Information regarding Free and Open Source Software...  36 21 Declaration of Conformity ..  36 Only possible for the NEFF Collection appliance series...
  • Page 9: Safety

    Safety en 1 Safety Observe the following safety instructions. 1.1 General information ¡ Read this instruction manual carefully. ¡ Keep the instruction manual and the product information safe for future reference or for the next owner. ¡ Do not connect the appliance if it has been damaged in transit. 1.2 Intended use Only use this appliance: ¡...
  • Page 10: Safe Use

    en Safety ▶ Connect the appliance to a power supply with alternating cur- rent only via a properly installed socket with earthing. ▶ The protective conductor system of the domestic electrical in- stallation must be properly installed. If the appliance or the power cord is damaged, this is dangerous. ▶...
  • Page 11 Safety en ▶ Never expose the appliance to intense heat or humidity. ▶ Do not use steam- or high-pressure cleaners to clean the appli- ance. WARNING ‒ Risk of fire! The appliance will become hot. ▶ Ventilate the appliance adequately. ▶ Never operate the appliance with the cupboard door closed. It is dangerous to use an extended power cord and non-approved adapters.
  • Page 12 en Safety Trapped fingers when closing the appliance door. ▶ Be careful of your fingers when closing the appliance door. The grinder rotates. ▶ Never reach into the grinder. WARNING ‒ Danger: Magnetism! Caution: Magnetism! Warning for wearers of pacemakers The appliance contains permanent magnets. They may affect elec- tronic implants, e.g.
  • Page 13: Preventing Material Damage

    Preventing en Set the interval for automatic switch- 2 Preventing material Pr e v e nt i n g off to the smallest value. damage a If the appliance is not being used, it will switch itself off earlier. Pr e v e nt i n g → "Basic settings", Page 24 ATTENTION! Risk of damage to the appliance.
  • Page 14: Installing And Connecting The Appliance

    en Familiarising yourself with your appliance 4.2 Installing and connecting Beverage outlet, height-ad- justable the appliance Cup lighting The installation instructions describe various models that differ with regard Appliance door to scope of supply and installation. Beverage dispenser Note: Observe the information on safety → Page 9 and preventing ma- Beverage outlet cover terial damage → Page 13.
  • Page 15: Control Panel

    Accessories en 5.2 Control panel Check the milk con- tainer. You can use the control panel to con- Add beans. figure all functions of your appliance and to obtain information about the Fill with water. operating status. Beverage settings Switch the appliance on or off.
  • Page 16: Accessories

    en first time Accessories Retail Customer service Cleaning tablets 00311969 Descaling tablets 00311974 Water filter 17000705 Water filter pack of 3 17000706 Microfibre cloth 00312289 Milk container, glass 12043068 Limit stop for 92° opening angle 10020041 Power cord extension Europe, 5 m 12022522 Tip: To keep the coffee beans at 7 Before using for the...
  • Page 17: Water Filter

    first time en Press "Replace" or "Remove" and Level German Total hard- follow the instructions on the dis- degrees in ness in mmol/ play. °dH 22-30 > 3.8 Tips ¡ You should also change your wa- Factory setting ter filter for reasons of hygiene. Note: If a water softening system is ¡...
  • Page 18: General Information

    en operation Notes 8 Basic operation ope r a t i o n ¡ If you want to set up Home Con- nect now, follow the instructions in ope r a t i o n the Home Connect app. 8.1 Switching the appliance → "Setting up Home Connect", on or off Page 23 ¡...
  • Page 19: Double Shot And Triple Shot

    operation en ▶ ¡ If you are dispensing a beverage Allow the hot milk system to cool with milk, always connect a con- down before touching it. tainer filled with milk to the milk Requirements hose and suction pipe. ¡ The milk container is inserted. ¡...
  • Page 20: Dispensing Two Cups At Once

    en Grinder Tip: If the coffee is only dispensed 8.5 Dispensing two cups at drop by drop, set a coarser grinding once level. If the coffee is too thin with too little Depending on your beverage, you crema, set a finer grinding level. can make 2 cups at the same time.
  • Page 21: Childproof Lock

    Childproof lock en 12.2 Create favourites from 11 Childproof lock Classics or Coffee World You can lock the appliance, to pro- Select a beverage from "Classics" tect children against scalding and or "Coffee World". burns. Set the beverage parameters. Press ⁠ . 11.1 Activating the child- Enter the name.
  • Page 22: Twistpad With Twist Knob

    Connecting your appliance to a mo- bile device lets you control its func- tions via the Home Connect app, ad- just its basic settings and monitor its operating status. Only possible for the NEFF Collection appliance series Wi-Fi is a registered trademark of the Wi-Fi Alliance.
  • Page 23: Home Connect

    Home Connect en You can find the Home Connect set- 14.1 Setting up the tings in the basic settings for your ap- Home Connect app pliance. Which settings the display shows will depend on whether Install the Home Connect app on Home Connect has been set up and your mobile device.
  • Page 24: Data Protection

    en Basic settings Overview of the Home Connect settings You can find an overview of the Home Connect settings and network settings here. Basic setting Selection Description Home Connect Start Add mobile device. assistant Disconnect Disconnect appliance from network. WiFi Switch off the wireless module during long absences or to save energy.
  • Page 25: Overview Of Settings

    Basic settings en 15.2 Overview of settings You can find an overview of the basic settings here. Language Set language. → "Setting up Home Connect", Home Connect Home Connect assist- Page 23 Time Set the current time or auto- matically display via Home Connect. Date Set current date or display automatically via Home Con- nect.
  • Page 26: Cleaning And Servicing

    en Cleaning and servicing Milk container Set milk carton or individual milk container. Note: If you use the standard milk container, the appliance automatically detects it. Customisation Start category Set the menu display after switching on, e.g. "Classics". Factory settings Factory settings Reset appliance to factory set- tings.
  • Page 27: Cleaning Agent

    Cleaning and servicing en ¡ Shelf for milk container ¡ Accessory drawer ¡ Beverage dispenser ¡ Bean container ¡ Milk system ¡ Bean container lid ¡ Always remove any residues of 16.2 Cleaning agent limescale, coffee, milk and clean- Only use suitable cleaning agents. ing/descaling solutions immedi- ately to prevent corrosion.
  • Page 28: Cleaning The Drip Tray And Coffee Dregs Container

    en Cleaning and servicing Note: The appliance will rinse itself oughly. Your appliance will tell you automatically if you switch it on when when you need to perform a service it is cold or switch it off after it has programme, e.g. cleaning. dispensed coffee.
  • Page 29 Cleaning and servicing en Calc'n Clean Combine cleaning and descaling. Re- move residues of limescale and cof- fee from the pipes. Cleaning Remove residues of coffee from the pipes. Descale Remove residues of limescale from the pipes. Frost protection Drain the pipes to protect the appli- ance during transport or storage.
  • Page 30: Troubleshooting

    en Troubleshooting 17 Troubleshooting You can rectify minor faults on your appliance yourself. Read the troubleshoot- ing information before contacting after-sales service. This will avoid unneces- sary costs. WARNING Risk of electric shock! Improper repairs are dangerous. ▶ Repairs to the appliance should only be carried out by trained specialist staff.
  • Page 31 Troubleshooting en Fault Cause and troubleshooting Appliance is not dis- ▶ Descale the appliance. pensing milk froth. No milk intake by the The milk system is assembled incorrectly. milk system. ▶ Assemble the milk system correctly. Milk tube not immersed in milk. ▶...
  • Page 32 en Troubleshooting Fault Cause and troubleshooting Coffee or milk froth Build-up of limescale in the appliance. quality varies widely. ▶ Descale the appliance. Milk froth quality var- Milk froth quality depends on the type of milk or plant- ies widely. based alternative used. ▶...
  • Page 33 Troubleshooting en Fault Cause and troubleshooting Coffee tastes burnt. ▶ Set the coffee temperature lower. Coffee grounds are The grinding level is not set optimally. not compact and are ▶ Adjust the grinder to a coarser or finer setting. too wet. Coffee beans are too oily.
  • Page 34 en Troubleshooting Fault Cause and troubleshooting Display shows "Re- Appliance has a fault. start appliance". Set the mains switch to and wait 60 seconds. Set the mains switch to ⁠ . Display shows Decalcified water still contains small amounts of lime. calc'nClean very fre- Insert a new water filter.
  • Page 35: Transportation, Storage And Disposal

    Transportation, storage and disposal en The guideline determ- 18 Transportation, stor- ines the framework for age and disposal the return and recycling of used appliances as applicable throughout 18.1 Activating frost protec- the EU. tion Protect your appliance from frost dur- 19 Customer Service ing transport and storage.
  • Page 36: Information Regarding Free And Open Source Software

    A detailed RED Declaration of Con- copyright holders as free or open formity can be found online at source software. www.neff-international.com among The applicable licence information is the additional documents on the stored on your home appliance. You product page for your appliance.
  • Page 37: Declaration Of Conformity

    Declaration of Conformity en UK (NI) 5 GHz WLAN (Wi-Fi): For indoor use only. 5 GHz WLAN (Wi-Fi): For indoor use only.
  • Page 40 BSH Hausgeräte GmbH Carl-Wery-Straße 34 81739 München, GERMANY *8001292281* Register your product online neff -home.com 8001292281 030607...
