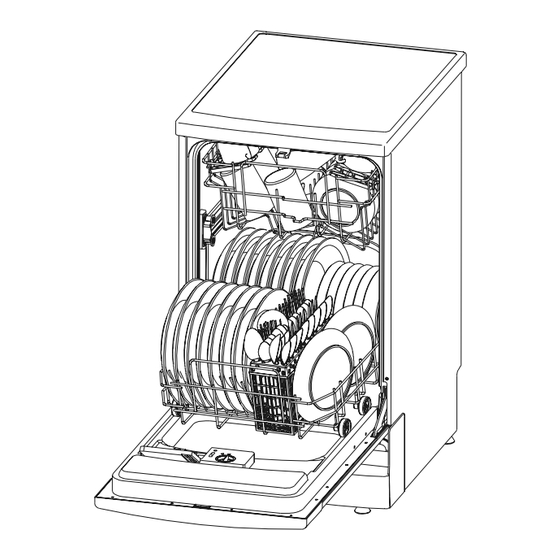

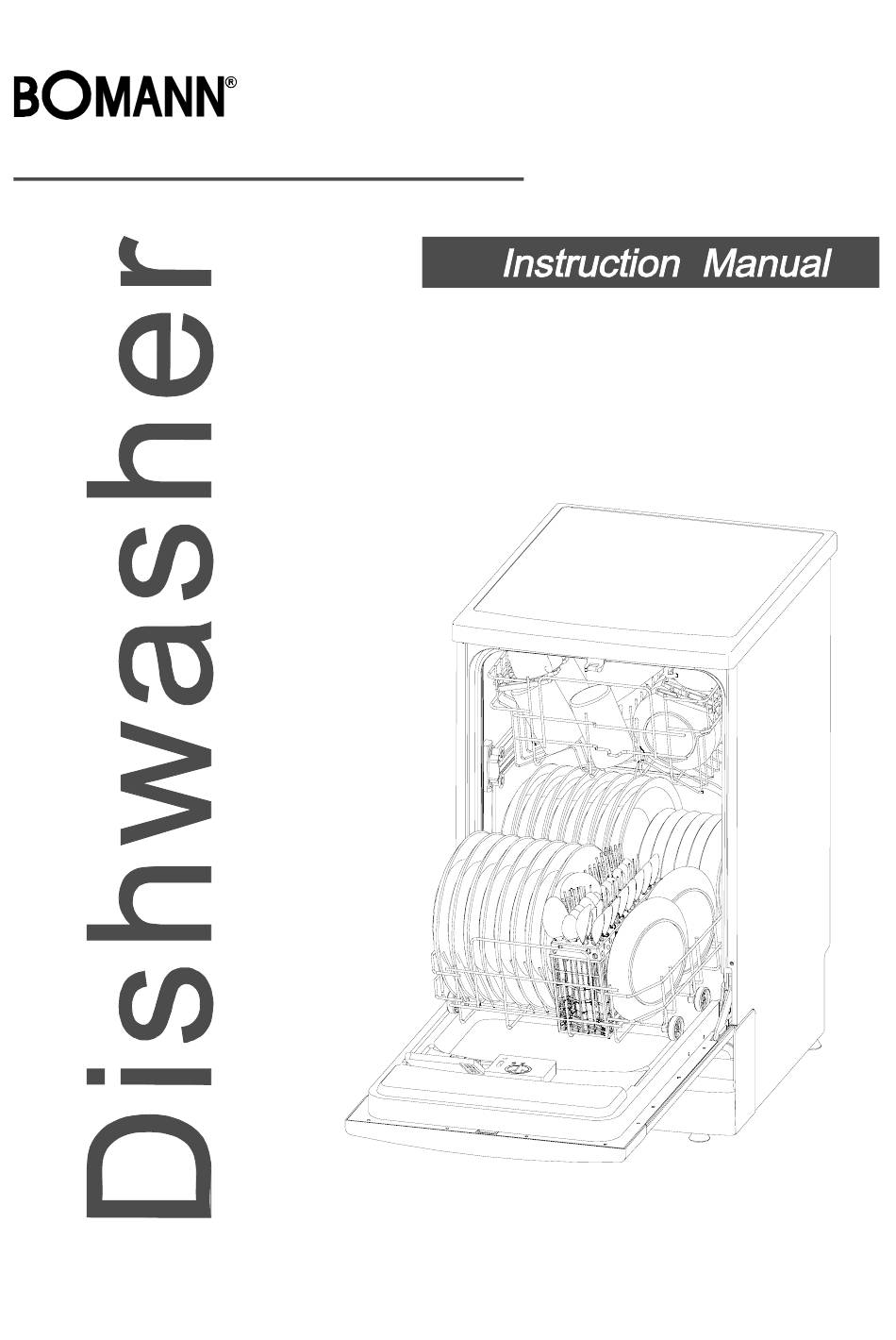

- Page 1 GSP 776.1...
- Page 2 Dear Customer, Control Panel...........3 Please carefully read this manual bef ore using the Dishwasher Features........3 dishwasher, it will help you to use and maintain the dishwasher properly. Keep it to refer to it at a later date. 、 Pass it on to any subsequent owner of the appliance. A Water Softener.....
- Page 3 When using your dishwasher, follow the precautions listed below: This appliance is intended to be used in household and similar applications such as: -staff kitchen areas in shops, offices and other working environments; -farm houses; -by clients in hotels, motels and other residential type environments; -bed and breakfast type environments.
- Page 4 Do not abuse, sit on, or stand on the door or dish rack of the dishwasher. Do not operate your dishwasher unless all enclosure panels are properly in place. Open the door very carefully if the dishwasher is operating, there is a risk of water squirting out.
- Page 5 Dispose of the dishwasher packaging material correctly. All packaging materials can be recycled. Plastic parts are marked with the standard international abbreviations: for polyethylene, e.g. sheet wrapping material for polystyrene, e.g. padding material polyoxymethylene, e.g. plastic clips polypropylene, e.g. Salt filler Acrylonitrile Butadiene Styrene, e.g.
- Page 6 For detailed operating method read the corresponding content on the instruction manual. Switch on the appliance Press the On/Off button to switch on the appliance, Open the door. With each wash cycle. Compartment Fill the detergent dispenser For programmes with pre-wash only. (Follow the user instructions!) Check the rinse aid level Electric indicator on control panel (if provided).
- Page 7 To get the best performance from your dishwasher, read all operating instructions before using it for the first time. Multi TAB Intensiv N or mal EC O Express Vorwahl P rog. S tart / Pause E in A us Schnell Program indicator ligh ts: To show the washing Power in dica tor light: To show the power supply.
- Page 8 Before using your dishwasher for the first time: Set the water softener Add 1.5Kg dishwasher salt and then full fill the salt container with water Fill the rinse aid dispenser Fill in detergent The water softener must be set manually, using the water hardness dial. The water softener is designed to remove minerals and salts from the water, which would have a detrimental or adverse effect on the operation of the appliance.
- Page 9 Always use the salt intended for use with dishwasher. The salt contain er is located beneath the lower basket and should be fill ed as explained in t he foll owing: Attention! Only use salt spe cif ically desi gne d for t he use i n dishwashers! Every other type of salt not speci fically de sig ned fo r the u se in a d ishwasher, espe cially table salt, will damage the w ater sof tener.
- Page 10 When to Refill the Rinse Aid Dispenser If there is no rinse-aid warning light in the control panel, you can estimate the amount from the colour " " of the optical level indicator C located next to the cap. When th e rinse-aid c ontainer is full, the whole indicator will be dark .As the rinse -aid diminishes, the size of the dark dot decreases.
- Page 11 Normally new pulverised detergent is with out phosphate. Thus the water softener function of phosphate is not given. In this case we recommend to fill salt in the salt con taine r even when ° the hardness of water is only 6 dH. If dete rgents witho ut phosphate are used in the case of hard water often white spots appear on d ishes and glasses.
- Page 12 Fill in Detergent Fill the detergent dispenser with detergent. The marking indicate s the dosing levels , as illustrate d on the righ t: The place of main wash cycle deterg ent placed. The place of pre-wash cycle deterge nt placed. Plea se o bserve the manufacturers dosing and storage Recommendations as stated on the detergent pac kaging.
- Page 13 Consider buying utensils which are identified as dishwasher-proof. Use a mild detergent that is described as 'kind to dishes'. If necessary, seek further information from the detergent manufacturers. For particular items, select a program with as low a temperature as possible. To prevent damage, do not take gla ss a nd c utlery out of the dishwasher immediately after the programme h as ended.
- Page 14 The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups and sau cers, as well as plates, small bowls and shallow pans (as long as th ey a re not too dirty). Position the dishes and cookware so that they will not get moved by the spray o f water.
- Page 15 ： Special dishware e.g. big pans or plates are to be placed in the lower rack. The recommended loading can be see below:...
- Page 16 Adjusting the Upper Basket The height of the upper basket can be adjusted in order to create more space for large utensils both for the upper/lower basket. The height of the upper basket can be adjusted by placing the wheels on different h eight of the rails. Long items, serving cutlery, salad servers and knives should be placed on the shelf so that they do not obstruct the rotation of the spray arms.
- Page 17 Means: need to fill rinse into the Rinse-Aid Dispenser. （ ℃ ） Pre-wash （ ℃） Wash 55 For normally soiled loads, Rinse 1.08 13.5 use multifunctional detergent Multi TAB （ ℃ ） Rinse 65 Multi TAB Drying ℃ Pre-wash(50 ) ℃...
- Page 18 When you press the Start/Reset button to pause during washing, the program light will stop blinking and the dishwasher will mooing every minute unless you press the Start/Reset button to start. Premise: A cycle that is underway can on ly be modified if it has only been running for a short time. Otherwise, the detergent may have already be en released, a nd the appliance may have already drained the wash water.
- Page 19 The filter prevents larger remnants of food or other objects from getting inside the pum. The residues may block the filter, in this case they must be removed. The filter system consists of a coarse filter,a flat (Main filter) And a microfilter(Fine filter). Main filter Fo od and soil particles trap ped in this filter are pulverized by a specia l jet on the lower spray arm and washed down to drain.
- Page 20 Remarks: - Inspect the filters for blo cking a fter e very time the dishwa sher has been used. - By unscrewing the coarse filter, you can remove the filter system. Re move any foo d remna nts and clean the filters under running water. The entire filter assembly should be cleaned once a week.
- Page 21 After Every Wash When not in Use for a LongTime It is recommend that you run a was h cy cle with the After every wash, turn off the water supply to the dishwasher empty an d the n remove the plug from the appliance and leave the door slightly open so that socket, turn off the wa ter supply and leave the door of moisture and odours are not trapped inside.
- Page 22 Connect the cold water supply hose to a threaded 3/4(inch) conn ector and make sure that it is fastened tightly in place. If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear.
- Page 23 Water Outlet Connect the wate r drain h ose. The drain hose must be correctly fitted to avoid water leaks. Ensure that th e water inlet hose is not kinked or squash ed. Extension Hose If you need a drain hose extension, make sure to use a similar drain hose. It must be no longer than 4 metres;...
- Page 24 Fuse blown, or the Replace fuse or reset circuit breaker. Remove any other circuit breaker acted appliances sharing the same circuit with the dishwasher Make sure the dishwasher is turned on and the door is Power supply is not turned on closed securely.
- Page 25 The dishes were not See notes in " Loading the Dishwasher Baskets ". loaded correctly. The programme was Select a more intensive programme. not powerful enough. See" Wash Cycle Table . " Not enough detergent Use more detergent, or change your detergent. was dispensed.
- Page 26 Height : 850mm Width : 445mm Depth : 580mm Voltage connected Load : see rating label Water pressure: 0.04-1.0MPa Power supply: see rating label Capacity: 9 Place settings...
- Page 27 Technical Data Sheet Sheet of hous ehold dishwasher according to EU Directive 1059/2010: Manufacturer BOMANN Type / Description GSP 776.1 Standard place settings En ergy efficiency class An nual energy consump tion 222 kWh En ergy consumption of the standard cle aning cycle 0.77kWh...
- Page 28 C. Bomann GmbH Heinrich-Horten-Str.17 47906 Kempen Germany...
