quiko QK-M04 User Manual

ENGLISH
QK-M04
REMOTE CONTROL FOR GATE AND DOOR
OPERATORS WITH COPY FUNCTION
PLEASE NOTE!
NEW REMOTE HAS
USER MANUAL
GREEN LED.

How to copy code from an existing working remote:

1- Place existing remote next to the new learning remote as shown in the image below.

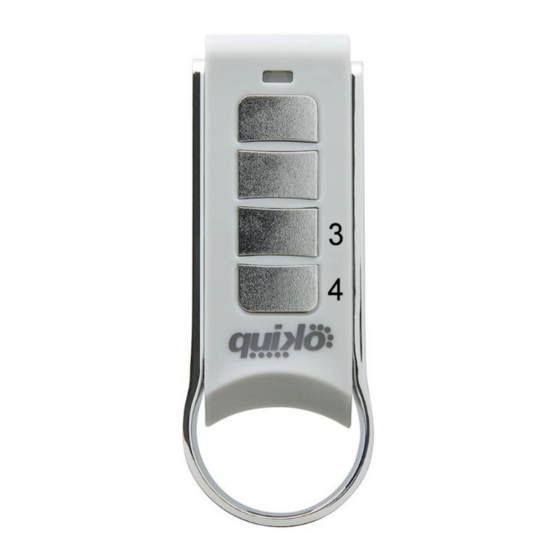

2- On the new learning remote, hold buttons 3 and 4 pressed down together until the LED
flashes.
3- Release buttons 3 and 4;
4- LED continues flashing;
5- On existing remote, press and hold down button to be copied until LED of copy remote
stays steady.
6- On learning remote, press the button that you want the existing remote button signal to be
copied to.
7- LED of learning remote flashes quickly then light goes off to confirm end of copy procedure.
If, during step No 5, the copy process fails, the LED on the learning remote will not be on. Try
copying another remote as maybe the previous remote cannot be copied.

Resetting codes on the learning remote:

1- On the learning remote, hold buttons 1 and 2 pressed down together until LED flashes and
then goes off. Hold buttons pressed.
2- Within 3 seconds and while continuing to hold button 1 down, release and press again
button 2 three times until led flashes.
3- Release all buttons to finish the reset.
The Manufacturer: QUIKO ITALY SRL
Address: VIA SECCALEGNO, 19 – 36040 SOSSANO (VI) – ITALY
Declares under its own responsibility that the following product: QK-M04 433,92MHz Remote Control for gate
openers complies with the essential requirements of the following directives:
2014/53/EU – RADIO EQUIPMENT
Sossano, the 31st of October 2019
www.quikoitaly.com
For the instruction on how to program the remote on the QUIKO
AUTOMATION you are using, please refer to the user manual of the
control board receiver you are using. Following instruction has to be
intended as a guide on how to copy remotes only.

DECLARATION OF CONFORMITY

QK-M04_ENG_V01

Technical details

Frequency: 433,92MHz
Battery type: 27A/12V
Channels: 4
