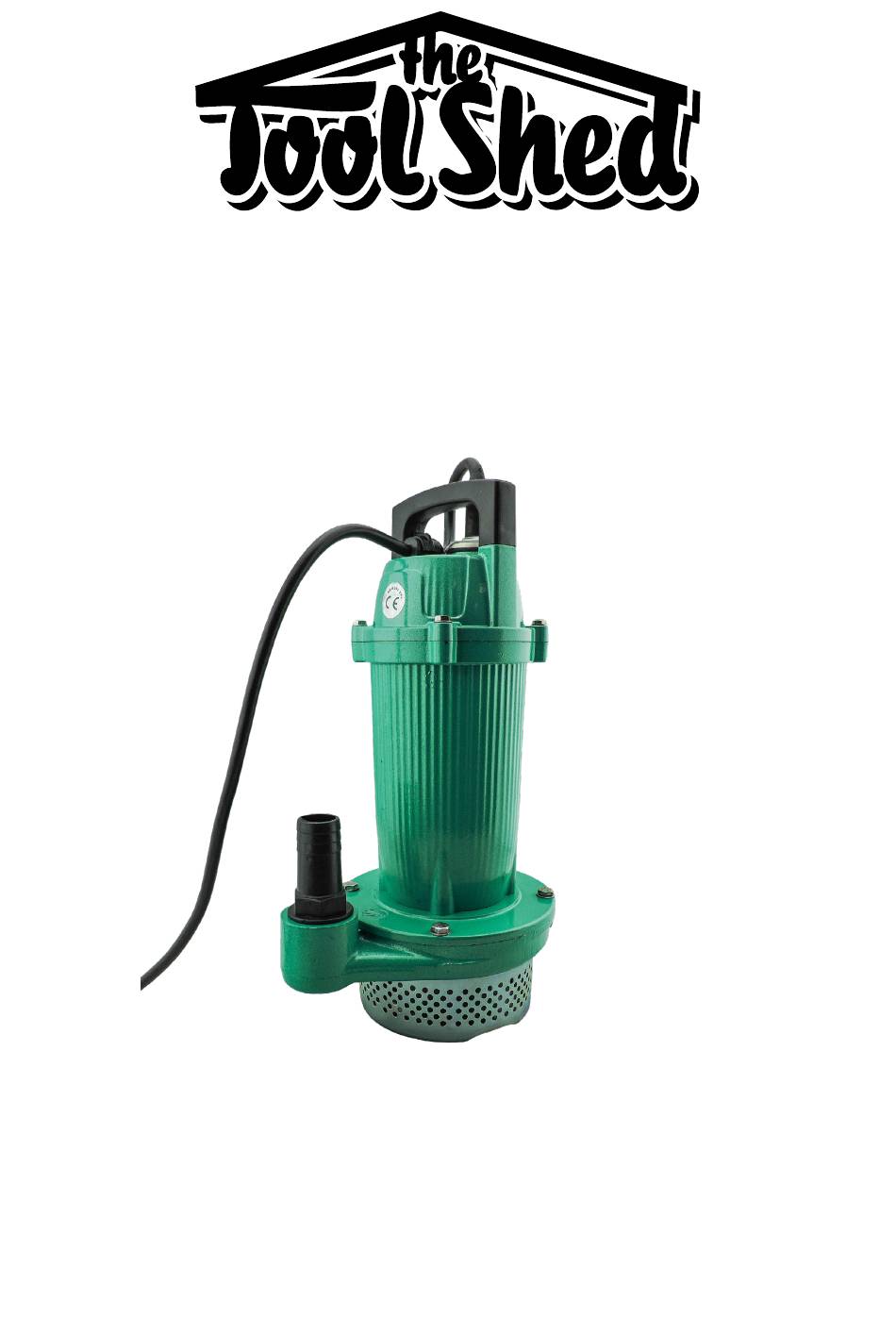

- Page 1 H/D SUBMERSIBLE PUMP TSP03 www.thetoolshed.co.nz...
- Page 2 TABLE OF CONTENTS PRODUCT DETAILS Product Details Product Model ToolShed H/D Submersible Pump Specifications Product Identification Product Code TSP03 Safety Guidelines Operation Operation Maintenance DISTRIBUTED BY: Thank You Note: For the purchase of this ToolShed product. We try our hardest to supply customers like you This manual is for your reference only.
- Page 3 OPERATION MANUAL OPERATION MANUAL SPECIFICATIONS PRODUCT IDENTIFICATION Output Power 370 Watts Input Voltage 230 V | 50 Hz Pump Speed 2900 RPM Maximum Flow Rate 5.5 m h | 92LPM from 0–8m Head Height Maximum Head Height 17 metres Outlet Port Size 25.4mm (1”) IP Rating Net Weight...
- Page 4 OPERATION MANUAL OPERATION MANUAL SAFETY GUIDELINES SAFETY GUIDELINES Electrical Safety Power Tool & Machinery Use & from moving parts in the machine, or they WARNING could become caught therein. Care • The electrical connection must always be • Always remain alert and DO NOT operate made in a dry area.
- Page 5 OPERATION MANUAL OPERATION MANUAL SAFETY GUIDELINES OPERATION Service Submersible Pump Specific Application Safety • Have your tools and machinery serviced This pump can work continuously under the at The ToolShed with ToolShed replace- following operating conditions: • DO NOT run the pump dry. Running the •...
- Page 6 OPERATION MANUAL OPERATION MANUAL OPERATION MAINTENANCE • • • Installation If the pump is being used more than 9 Before cleaning or performing any mainte- It is necessary to test the air pressure after metres away from the power supply, ensure nance, you must ensure the pump is switched disassembling, repairing or replacing the •...
- Page 7 OPERATION MANUAL TROUBLESHOOTING FAULT POSSIBLE CAUSE SUGGESTED SOLUTION Adjust the voltage to +/– 10% of the rated The voltage is too low value. Phase loose Check switch outlets, cables, and plugs. Hard Starting Impeller was jammed Fix stuck parts. Excessive voltage drop in the cable Choose the correct cable.
