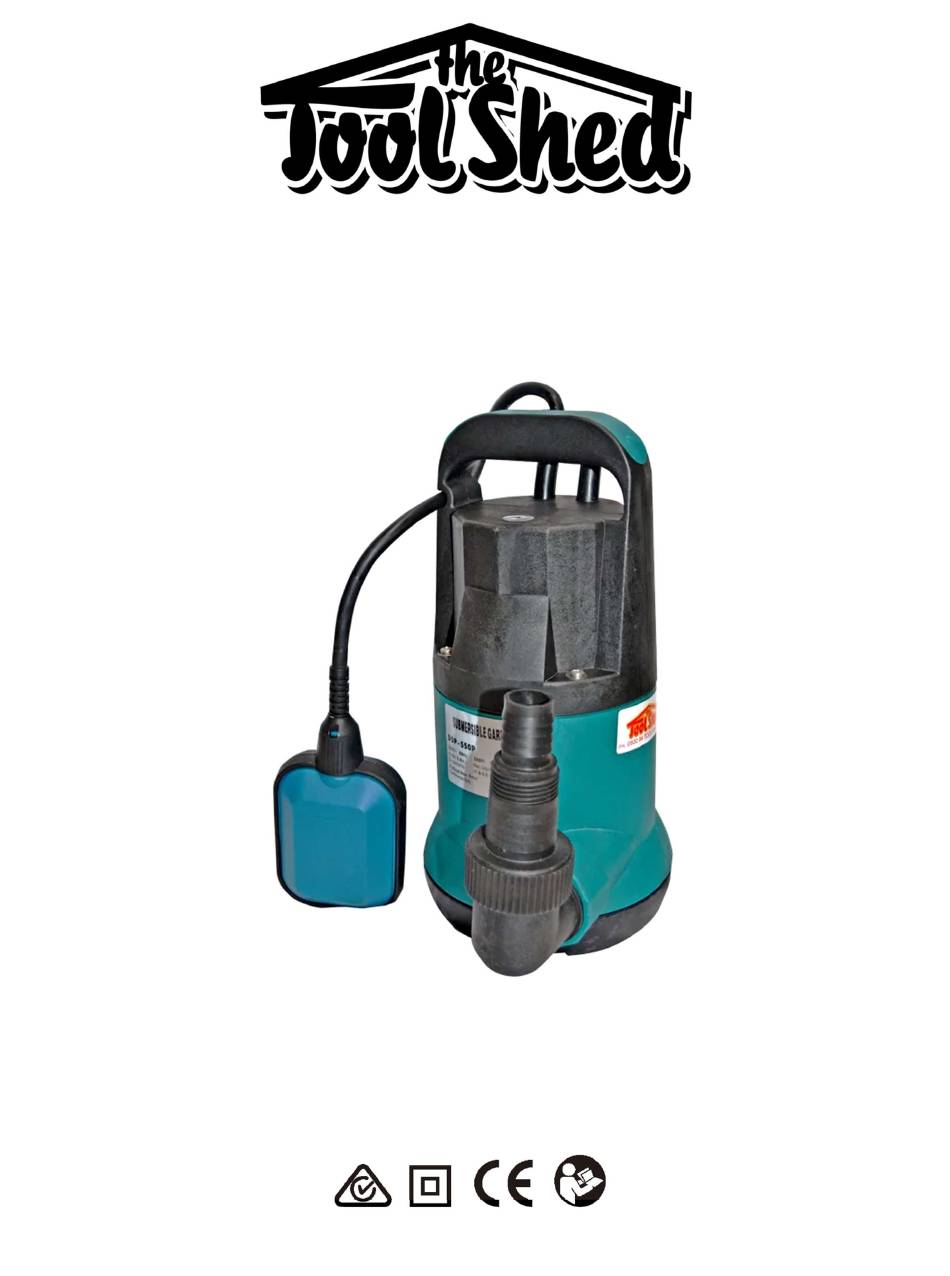

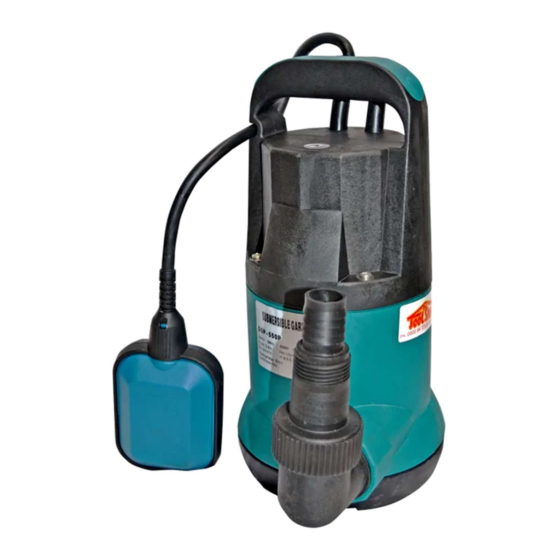

- Page 1 SUBMERSIBLE PUMP – FLOAT SWITCH TSP55 www.thetoolshed.co.nz...
- Page 2 PRODUCT DETAILS PRODUCT Submersible Pump – Float Switch MODEL NO. TSP55 ISTRIBUTED BY NOTE: This manual is only for your reference. Due to the continuous improvement of the ToolShed products, changes may be made at any time without obligation or notice.
- Page 3 OPERATION MANUAL C O N T E N T S: Product Details ............................2 Specifications ............................4 Identification ............................4 Safety Warnings ............................. 5 Service ..............................5 Operation / Installations ........................6 Cleaning / Maintenance ......................... 7 www.thetoolshed.co.nz...
- Page 4 OPERATION MANUAL SPECIFICATIONS Motor Size 500w / 240v Max Flow Rate 6 cubic meters per hour Max Head Height IP Rating Weight 5.8kg Outlet 11/4” or 1” Power Cord Length IDENTIFICATION 1. Carrying handle 2. Float switch height adjustment 3. Hose adapter for pressure connection 4.
- Page 5 OPERATION MANUAL WARNING READ ALL SAFETY WARNINGS AND ALL INSTRUCTIONS. Failure to follow instructions and warnings could lead to serious injury, electric shock or fire. Save ALL warnings and instructions for future reference. ELECTRICAL SAFETY Do NOT use the power tool in raining conditions or wet areas where the power tool could get wet.
- Page 6 OPERATION MANUAL OPERATION Attach a sufficiently long and strong rope to the handle before first use. The pump is submerged into the liquid on this holding rope and can also be carried with it as well as with the handle. NOTE: In the case of continuous use of the pump with the rope, the condition of the rope must be checked regularly as it can decay and break over time.
- Page 7 OPERATION MANUAL CLEANING AND MAINTENANCE Check casing and cables for damage before every use. Visually inspect. Check float switch for damage before every use. Lift and shake the switch to check the free movement of the contained metal balls. Cleaning the appliance externally Rinse with clean water.
