INTRODUCTION
Model
CH-200
12C fiber panel with Power terminal block
PACKAGE CONTENTS
* 1x Quick Installation Guide
IMPORTANT:
1. Use Power cables and Fiber cables.
2. Please avoid using low quality cables, which will seriously limit the cabling distance and power delivery.
RACKMOUNT INSTALLATION
1. General product information
This document provides the installation procedure for the Powered Fiber Cable Transition Box. The CH-200 is
designed to facilitate the transition from indoor rated Powered Fiber Cable to outdoor rated Powered Fiber Cable in a
neat and orderly fashion that maintains physical separation of the different media types.
2. Tools and additional items required
• Round Cable Stripper
• Electrical Wire Stripper
• Large Flat Screwdriver
• Small Flat Screwdriver
• Power Drill/Driver (as needed)
• Fiber optic termination and cleaning supplies
• 6 Port Fiber Adaptor in appropriate fiber mode
• Furcation Tubing as required

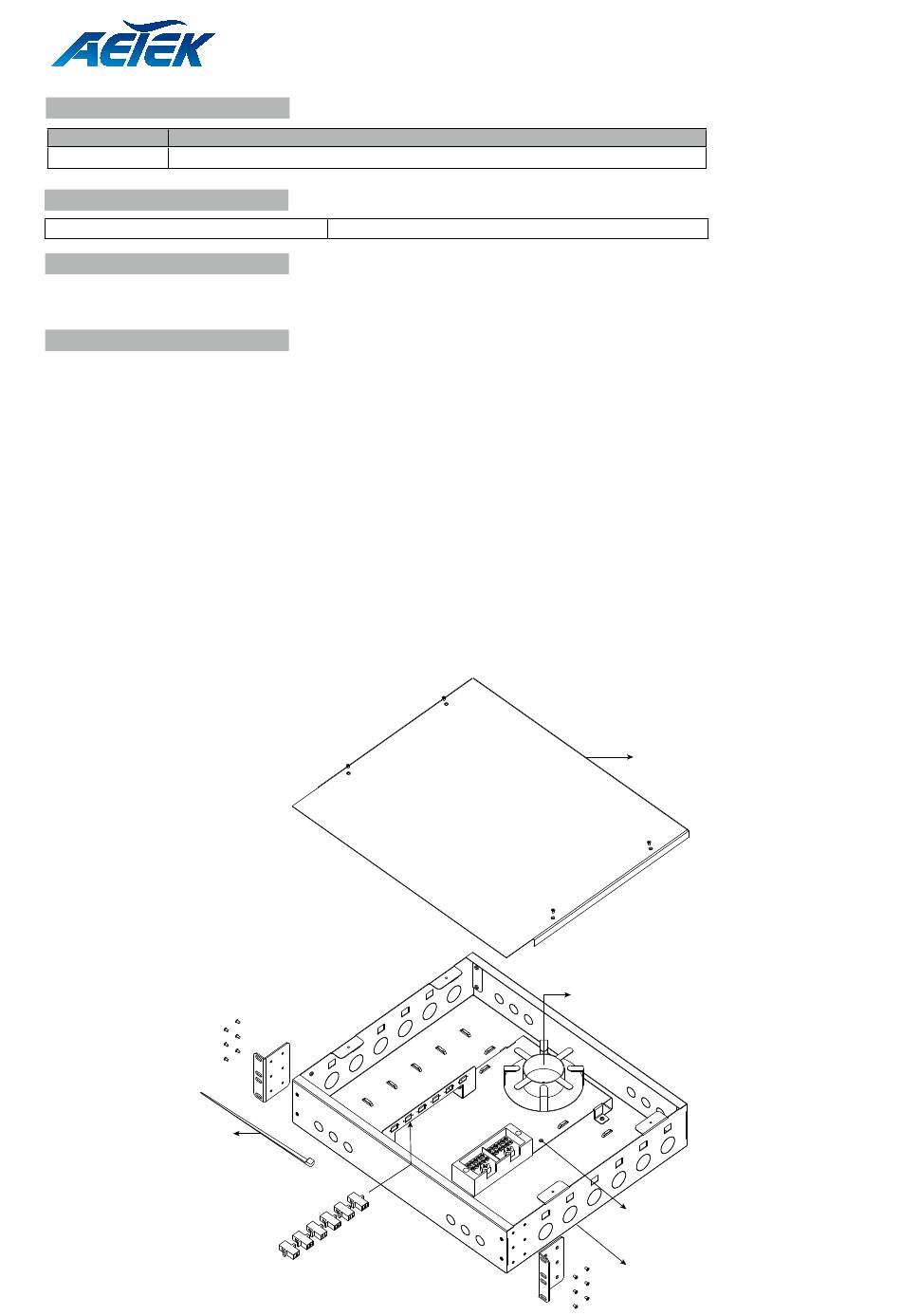

3. Components
Cable Ties
CH-200 Powered Fiber Cable Transition Box
Quick Installation Guide
* 1x Screw parts
Fiber Adapter
P/N: 5019945200
Version : V1.0
Cover
Fiber Spool
Ground Screw
CH-200
Advertisement
Table of Contents
Related Manuals for AETEK CH-200
Summary of Contents for AETEK CH-200
- Page 1 RACKMOUNT INSTALLATION 1. General product information This document provides the installation procedure for the Powered Fiber Cable Transition Box. The CH-200 is designed to facilitate the transition from indoor rated Powered Fiber Cable to outdoor rated Powered Fiber Cable in a neat and orderly fashion that maintains physical separation of the different media types.
- Page 2 Step 1 – Route and terminate incoming/indoor Powered Fiber Cable 1. Route the incoming Powered Fiber Cable into the CH-200 and secure to the cable clamp with a supplied cable tie, as shown in Figure 2. Ensure adequate length for fiber slack (1-1.5 meters).
- Page 3 Step 2 – Route and terminate outgoing/outdoor Powered Fiber Cable 1. Route the outgoing Powered Fiber Cable into the CH-200 and secure to the cable clamp with a supplied cable tie, as shown in Figure 6. Ensure adequate length for fiber slack (1-1.5 meters).
- Page 4 2.Install to 19" rack mount , as shown in Figure 8. Figure 7 Figure 8 All specifications are subject to change without noice. Copyright © 2023 AETEK INC. All rights reserved. AETEK INC. 6F, No.192-1, Lien-Cheng Rd., Chung-Ho, New Taipei City, 235, Taiwan, R.O.C. |T: +886-2-82452822| W: www.aetektec.com| E: sales@aetektec.com...
