AETEK SD-101 Quick Installation Manual

INTRODUCTION
Model
SD-101
SD-102
SD-201
SD-202
SD-404
SD-424
SD-401-M
SD-424-C
SD-504
SD-524
SD-501-M
SD-524-C
PACKAGE CONTENTS
* 1x surge protector
IMPORTANT:
1. Use CAT5e or CAT6 UTP/STP cables.
2. The cabling distance between the surge protector and the protected device should be less than 1 meter.

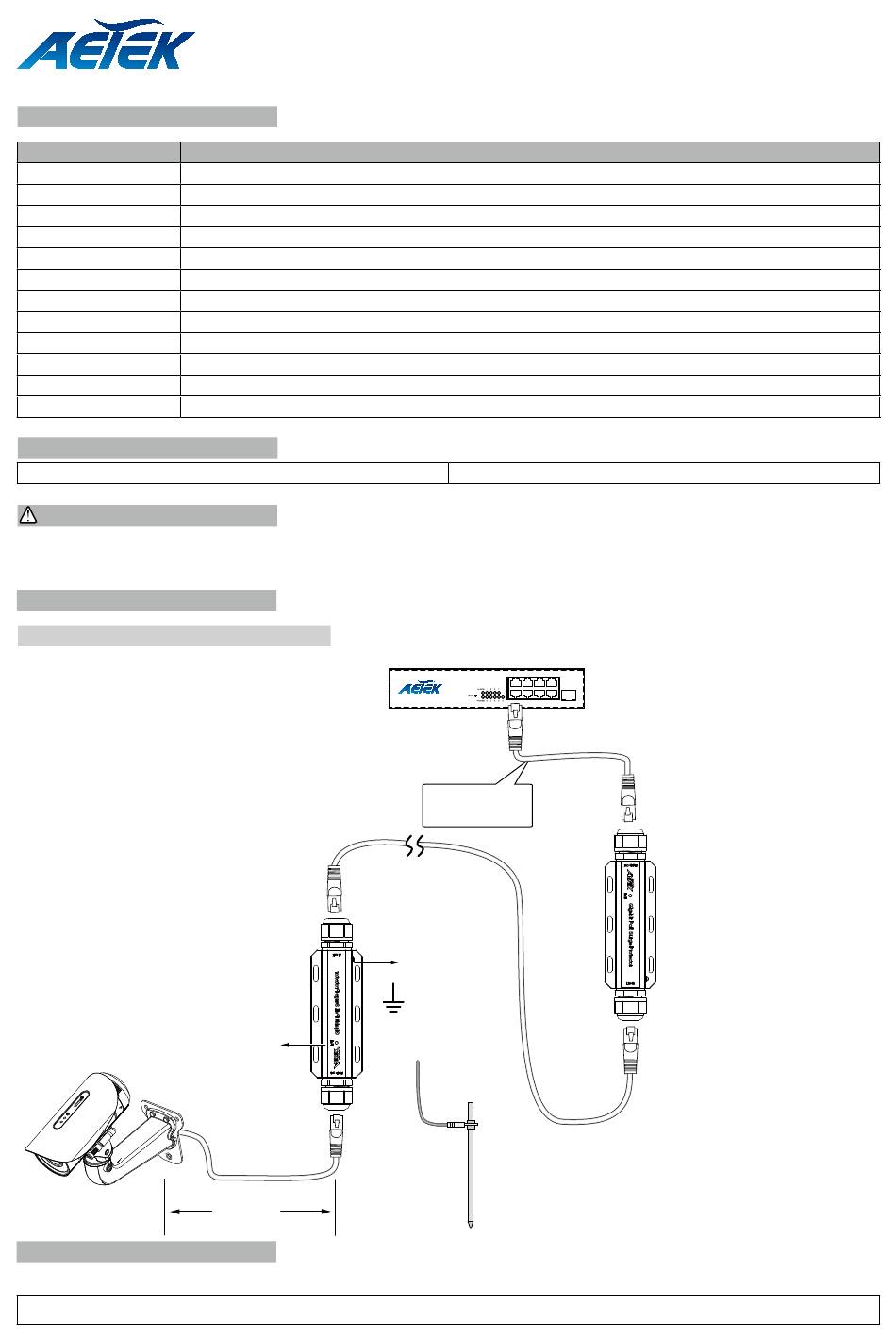

CONNECTION

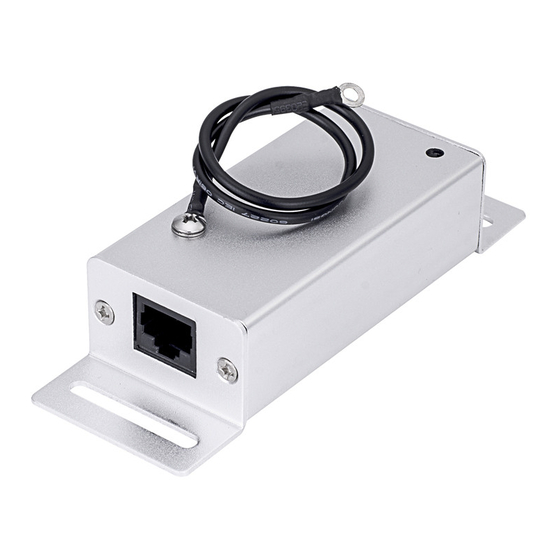

SD-101 / SD-102 / SD-201 / SD-202
LEDs
LED definitions:
OFF when operating normally, ON when out of service life.
PoE Surge Protector
Quick Installation Guide
Description
Indoor 10M/100M/1G/2.5G bps surge protector against lightning or transcient voltage
Indoor 10M/100M/1G/2.5G/10G bps surge protector against lightning or transcient voltage
Outdoor 10M/100M/1G/2.5G bps surge protector against lightning or transcient voltage
Outdoor 10M/100M/1G/2.5G/10G bps surge protector against lightning or transcient voltage
4-ch Modular 1G/2.5G PoE surge protector
24-ch Modular 1G/2.5G PoE surge protector
1-ch PoE surge Modular for replacement
19",1U 24-ch chassis
4-ch Modular 1G/2.5G Smart IP PoE surge protector
24-ch Modular 1G/2.5G Smart IP PoE surge protector
1-ch Smart IP PoE surge Modular for replacement
Smart IP 19",1U 24-ch chassis
Line In
#1
LED
Equip Out
PoE Out
< 1 meter
* 1x Quick Installation Guide
PoE Switch
< 1 meter
Equip Out
Ground screw
* Make sure the grouning
resistance is lower than
0.5Ω.
#2
Line In
P/N: A625010301G
