LogiCO2 0486 User Manual

User Manual
0486 Power Monitor
ENGLISH
Power Monitor for LogiCO2 Safety System.
Important!
Retain this instruction manual for future
reference: Please read these instructions
carefully prior to start-up and use. Failure to
follow any of these instructions could void
product warranties. LogiCO2 assumes no
responsibility for claims arising out of improper
or careless use or handling of it's products.
Technical specifications
Power supply
- Safety System:
- Batteries:
Internal battery check:
Low power trig point:
No power trig point:
Wiring connections:
Acoustic signal-strength:
Operating temperature range: 0 to +45°C (32 to
Overvoltage:
Pollution degree:
Dimensions (LxWxD):
Ingress protection:
*NOTE! Do not use Lithium batteries or rechargeable
batteries.
24V DC
2 x AAA Alkaline
1,5V batteries*
Once per hour
18V
Approx 3V
RJ 45
~80 dBa (1m)
+113°F). Only for
indoor use.
Category II
II
90 x 161 x 38 mm /
3.5" x 6.3" x 1.5"
IP54

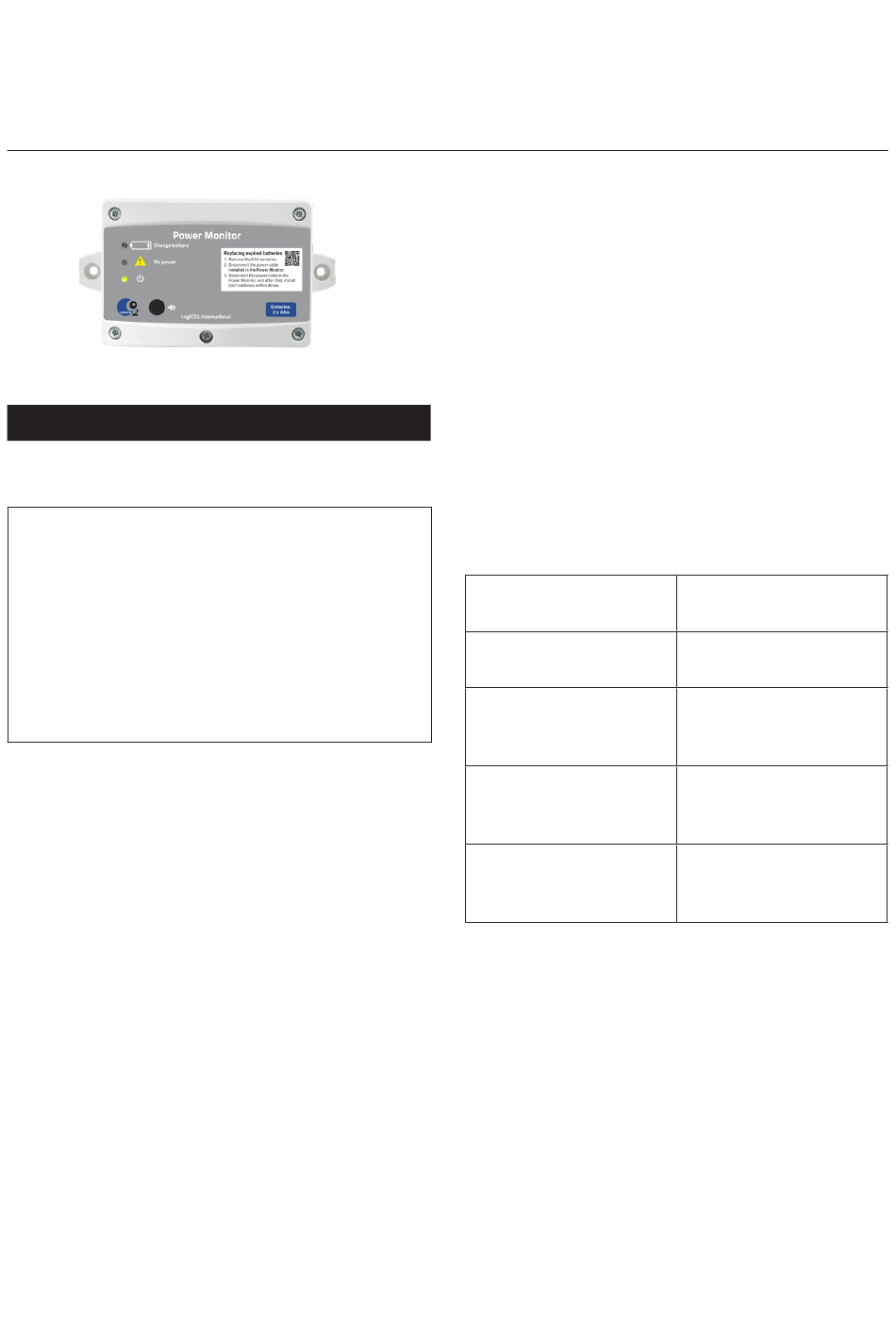

Function

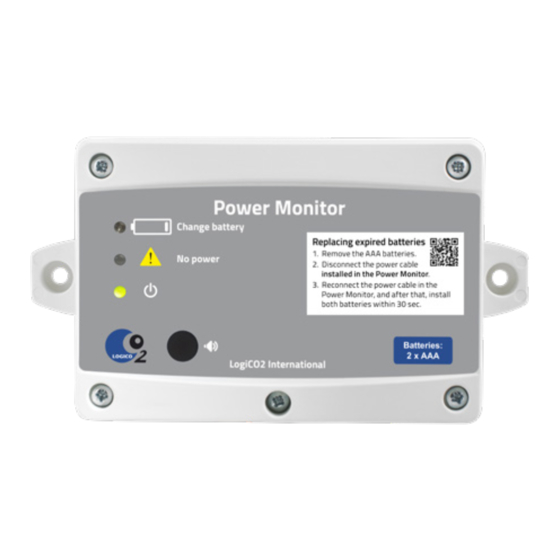

The Power Monitor is a surveillance unit which ensures
that the personnel are alerted in case there is a power
failure that puts the LogiCO2 Safety System out of
function. It has a built-in buzzer and place for two AAA
alkaline batteries (batteries included).
If there is a power failure the Power Monitor makes an
alarm. The Power Monitor will sound the buzzer for at
least 12 hours.
If the LogiCO2 Safety System is powered via a UPS
power back-up, it is recommended to install a Power
Monitor that monitors the UPS-function. In case the
UPS's batteries run out, the Power Monitor will give
an alarm informing that the LogiCO2 Safety System is
out of function.
The three LEDs show the current status:
LED and sound
indication
Green LED
Continuous LED-light
Red LED
Continuous beep and
LED-light
Red LED
Double beep and LED-
flash every other second
Yellow LED
Beep and LED-flash
every five seconds
Yearly function control
Please observe!
Since this is a safety product, we recommend that a
function control should be conducted at least once
a year. Disconnect the power to the Safety System
and check that the Power Monitor activates the "No
power" alarm buzzer and red LED. Reconnect the
power to the Safety System.
Information
The Safety System has
power
No power to the Safety
System
Power below 18V to the
Safety System
Low batteries in the
Power Monitor. Replace
the batteries.
