Welcome to Ultra!

All users of this product must carefully read the manual and take

necessary safety precautions.

Safety instructions

If the product is not used as intended its protection and safety functions may

not work.

The unit is to be mounted on a DIN rail in a locked cabinet. Installation is

carried out by a qualified electrician. Cables must be fastened and secured so

that no risk for injury or fire exists. Ventilation openings in the devise housing

may not be covered.

A circuit breaker shall be installed close to the unit and its power supply.

Function and position shall be clearly labelled. External voltage source

connected to DIGITAL OUT must be limited to a maximum of 0.5 A.

The equipment must be unplugged from the mains and other possibly

dangerous voltage sources during installation and service.

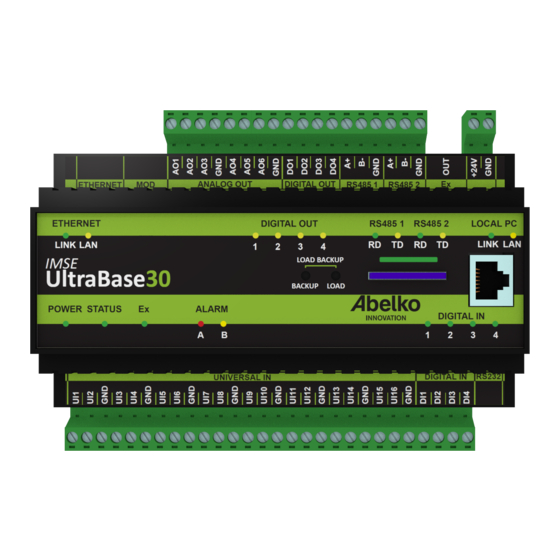

IMSE

UltraBase30

Quick start guide

www.abelko.se

Table of Contents

Do you have a question about the IMSE UltraBase30 and is the answer not in the manual?

Page 1 Function and position shall be clearly labelled. External voltage source connected to DIGITAL OUT must be limited to a maximum of 0.5 A. The equipment must be unplugged from the mains and other possibly dangerous voltage sources during installation and service. www.abelko.se...
Page 2 User name and password the first time you log in: User name: config Password: ef56 2. Go to the menu Communication and Network, and set the IP address and netmask, in order to configure the settings for the port marked Ethernet. www.abelko.se...
Page 3 Graphical programming Graphical programming is available as an installable program. Download it at www.abelko.se. There is also a link to the program in your units user interface under Configuration and Graphical programming.
Page 4 The housing is cleaned from dust and dirt using a dry cloth. Do not use chemicals. Recycling UltraBase30 should be recycled as electronics. Repair and service Reparation and service shall always be performed by Abelko Innovation. Contact your distributor first if the need arises. Manuals, updates and other information are available at www.abelko.se. www.abelko.se...
