AJAZZ AK692 - RGB Tree-mode Mechanical Keyboard Manual

Introduction

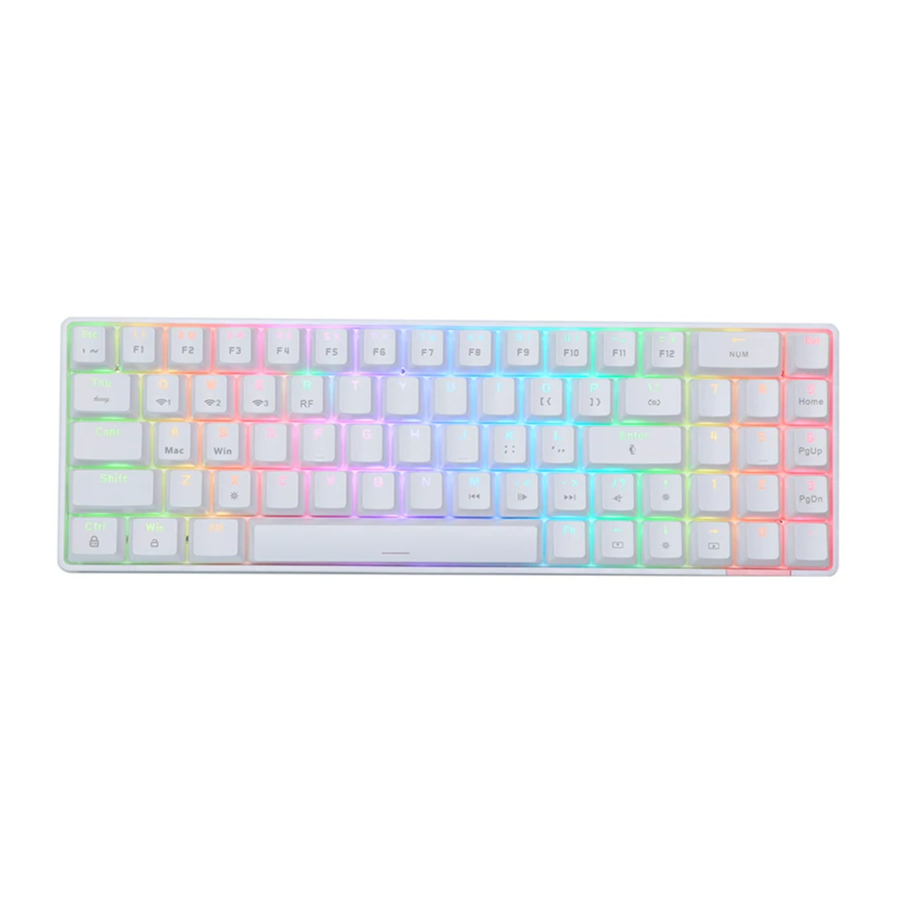

AJAZZ AK692 is a three-mode mechanical keyboard (Bluetooth + Wired + 2.4G), with various cool functions and RGB lighting effects. To get more custom settings and functions, please download and install the driver software from the official website: http://www.a-jazz.com/

Basic Parameters

Brand: AJAZZ

Model: AK692

Transmission Method: Bluetooth+2.4G+wired

Interface type: Type-C

Product Size: 291x 102x 39mm

Product Weight: 625g

Shell Material: upper cover iron plate, decorative plate ABS plastic, lower cover ABS plastic

Keycap Material: ABS two-color light transmission

Lighting effects: 18 RGB lighting effects and 17 monochrome lighting effects

Key Layout: Compact 68-key layout

Support System: Win8/Win10/android/lOS/MAC and other operating systems, support multiple language versions

Function Switching (see the description of the button function diagram)

• FN+Spacebarfor 3 seconds, the keyboard light flashes 3 times, restore factory settings

Status Indicator Description

• The keyboard is normally connected to the device, the upper and lower case indicator lights are indicated on the CAPS button, the indicator light is white when the upper case function is turned on, and the indicator light returns to normal mode when the upper case function is turned off.
• Lock WIN Key Indicator: FN+WIN lock/unlock WIN, the indicator is on the WIN key, the function open indicator lights up in white, the function off indicator returns to normal mode
• FN Key Indicator: The low-voltage FN key keeps flashing, the FN key is always on when charging, and goes out when fully charged, following the system light effect

Sleep Mechanism and Bluetooth Name Description

• Deep Sleep: Deep standby after 30 minutes of no key operation on the keyboard, Bluetooth disconnects and sleeps, press any key to wake up the keyboard backlight and connect back to Bluetooth;
• Power Saving sleep: the backlight will be turned off after 5 minutes of no key operation on the keyboard, press any key to wake up the keyboard backlight and connect back to Bluetooth;
• Bluetooth name: AK692 BT3.0/AK692 BT5.0

Keyboard Connection

1. Mode switching and wireless connection mode
   • Press FN+Q/W/E to select the device location, the Q/W/E key indicator light flashes slowly, press FN+QWE for 3s to enter the pairing mode, the indicator light flashes quickly, the pairing is successful Return to normal lighting mode, short press FN+Q /W/E to reconnect to the connected device, the Q/W/E indicator light flashes once after reconnection is successful and then goes out
   • Press FN+R to enter 2.4G mode, the R indicator light flashes slowly, press FN+R for 3s to enter 2.4G pairing, the R key light flashes, the pairing is successful, the R key light returns to normal (the factory has already paired 2.4G, the keyboard wireless mode directly Press FN+R to enter the 2.4G back connection to use)
   • Note: FN + TAB key, the TAB indicator flashes slowly, and the USB is successfully exited and flashes
2. Two-Stage Power Saving in Wireless Mode
   • If the keyboard is not used for 1 minute, the keyboard light will turn off and enter the first-order power saving mode
   • After 30 minutes of not using the keyboard, the keyboard enters sleep mode

Restore Factory Settings

• FN+Spacebar for 3 seconds, the keyboard light flashes 3 times, restore factory settings

Lighting Effect Control

1. See the button function description diagram
   • FN+\I: Lighting effect switching, 18 RGB lighting effects are cycled in turn/17 single light effects are cycled in turn
2. Light brightness adjustment
   • FN+↑: increase and adjust the brightness of the light, adjust the 5-level adjustment (including the current mode) to the maximum, the Caps button indicator and the WIN button indicator flashing prompt
   • FN+↓: Light brightness reduction adjustment 5-level adjustment (including the current mode), adjust to the minimum, the Caps button indicator and the WIN button indicator flashing prompt
3. Light speed adjustment
   • FN+←: 5-level adjustment (including the current mode) to slow down the light speed, adjust to the minimum, the Caps button indicator and the WIN button indicator flashing prompt
   • FN+→: Lighting speed is accelerated, 5-level adjustment (including the current mode), adjust to the minimum, the Caps button indicator and the WIN button indicator flashing prompt
4. FN+X to turn off/on the keyboard light In Bluetooth mode, the light is turned off by default, press FN+X to turn on the light
5. FN+win locks the WIN key
6. FN+The composite key with black font on the left CRT L function map will come out by pressing the key alone, the left Ctrl key light will light up in white, then press the FN+ left CRT L key to return to normal state, and the left Ctrl key light will return to normal
