This product has various cool functions and lighting effects. I hope it can bring you a new operating experience.

Product Specifications

Brand: AJAZZ
Model: AK966
Transmission method: wired USB+wireless 2.4G+wireless bluetooth
Interface type: key line separated Type-C interface
Product size: 387.5x136.8x41.5mm
Product weight: 1027g
Shell material: ABS
Keycap material: PBT sublimation
Wire length: 1.8M
Lighting effects: RGB, 18 kinds of lighting effects
Key layout: 96 keys + knob layout
Support system: WindowsXP/Vista/Windows7/8/10/11

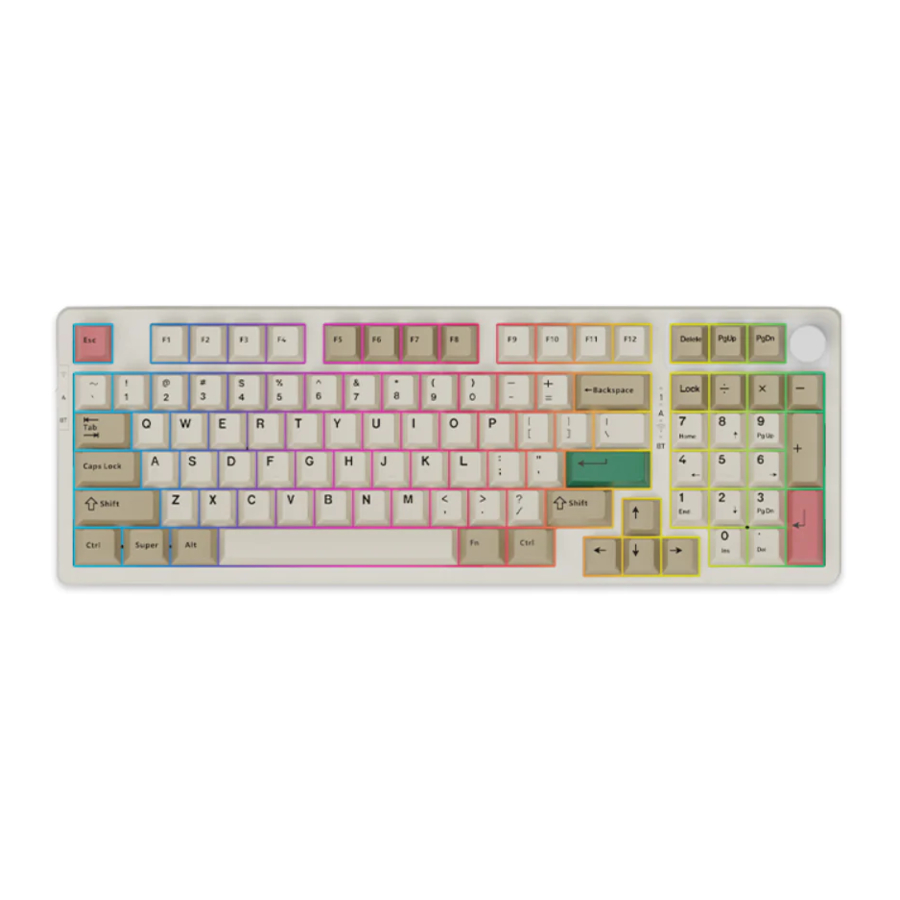

Device Appearance

Description of Switch Indicator Light

Power Switch:
Three-gear toggle switch: 2.4G/USB/BT mode, default USB mode. (Location: Top left side)

Indicator Light Description:

Indicator light indication: NUM / CAPS/ 2.4G / BT, light white;
FN indicates the power level, the charging red light FN is always on red, and the LED is off when fully charged; (connect the USB cable in any wireless mode to charge the device)
When the power of the keyboard is low, the FN key backlight flashes red continuously, dicating that it needs to be charged.

Deep Sleep Mode:
After 30 minutes of no key operation on the keyboard, deep standby, Bluetooth disconnection and sleep, press any key to wake up the keyboard backlight and connect back to Bluetooth.

Power Saving Sleep Mode:
The backlight will be turned off after 5 minutes of no key operation on the keyboard. Press any key to wake up the keyboard and connect back to Bluetooth.

Bluetooth Connection Instructions

FN+Q/W/E:
FN+Q/W/E Bluetooth channel switching, press once to switch channels, press and hold FN, the current channel indicator LED turns on white, release FN, the white light goes out, presss FN+Q/W/E for 3s to enter pairing, the BT indicator flashes quickly. When disconnecting the bluetooth and connecting to the BT, the indicator light flashes slowly and enters the connection back state.

FN+Space:
Press and hold for 3 seconds, the keyboard backlight will flash 3 times of white light, restore the factory settings.
Bluetooth name: AK966 BT5.0

Operating Instructions for Lighting Mode

FN+I\ Light effect switching, 18 kinds of light effects cycle in turn
FN+1! /2@/3# = Three groups of game lighting effects can be customized (all white lights are preset);
FN+1! = Default FPS Mode — W/A/S/D/ / / / ;
FN+2@ = defauIt LOL mode —Q/W/E/R/D/G/F/B/V/L-Ctrl/L-Alt/Tab/Space/1-6/Esc;
FN+3# = Default 37-key office mode: A-Z 26 English letters / [/] /; / ' /. /, / / / / / / ;
FN+~= Record/save lighting mode for the above three game mode lighting effects, press one button for one color during recording, a total of 8 colors;
FN+ = light brightness + (five gears) adjusted to the highest backlight indicator flashes 3 times to indicate;
FN+ = light brightness - (five gears) to the lowest backlight indicator flashes 3 times to indicate;
FN+ = dynamic light direction switch;
FN+ = switch backlight color;
FN+ "-_" = light speed - (five gears) to the lowest backlight indicator flashes 3 times to indicate;
FN+"=+" = light speed + (five gears) to the highest backlight indicator flashes 3 times.

Key Combination Function Descriptio

FN+F1 = Media Player
FN+F2 = Volume-
FN+F3 = Volume +
FN+F4 = Mute
FN+F5 = Stop
FN+F6 = Previous track
FN+F7 = Play/ Pause
FN+F8 = Next track
FN+F9= Mail
FN+F10 = Browser
FN+F11 = My Computer
FN+F12 = Calculator
FN+S = WINDOWS system usage mode (factory mode)
FN+A = MAC system usage mode
FN+X = turn off the all backlight (including the charging indicator)
