PORTMAN EVO ELEMENT User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

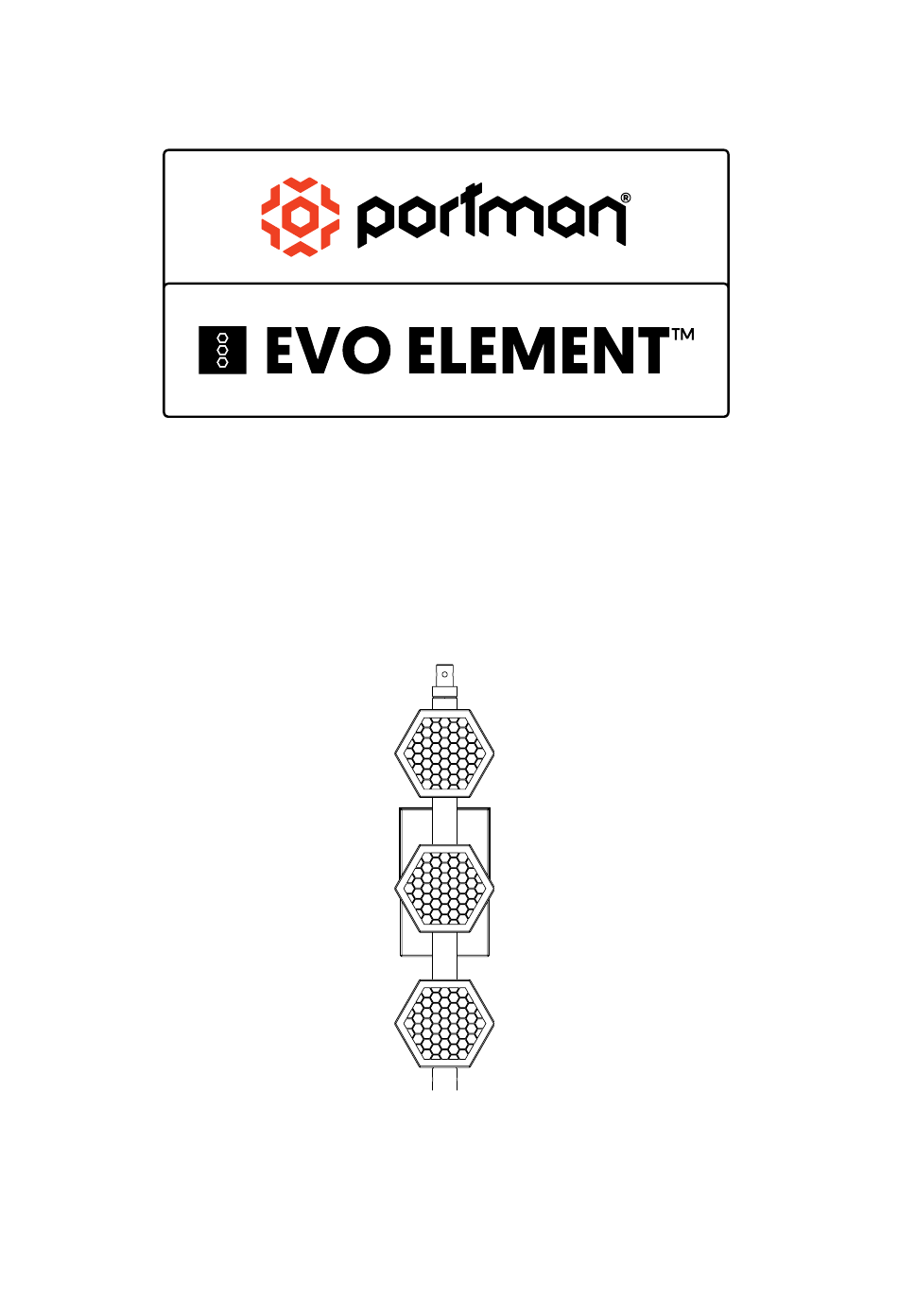

USER MANUAL
version: 1.0 – NOV 2023
language: English
PLEASE READ THIS USER MANUAL CAREFULLY
BEFORE YOUR INITIAL START-UP!
© Portman Lights sp. z o. o.
Designed and made in Poland, EU

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EVO ELEMENT and is the answer not in the manual?

Questions and answers

Related Manuals for PORTMAN EVO ELEMENT

Summary of Contents for PORTMAN EVO ELEMENT

  • Page 1 USER MANUAL version: 1.0 – NOV 2023 language: English PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! © Portman Lights sp. z o. o. Designed and made in Poland, EU...

  • Page 2: Table Of Contents

    © 2016-2023 Portman Lights Sp. z o. o. All rights reserved. The information and specifications are subject to change without notice. Portman Lights Sp. z o. o. disclaims liability for...

  • Page 3: Safety Information

    USER MANUAL SAFETY INFORMATION ◼ SAFETY INFORMATION WARNING! This product is for professional use only! It is not for household use. This product presents a risk of lethal or severe injury due to heat, electric shock, fire or falls. Intense and flashing light could trigger epileptic seizures.
  • Page 4 SAFETY INFORMATION EVO ELEMENT™ • Use only a source of AC power that complies with local building and electrical codes and has both overload and ground-fault protection. • Do not expose the fixture to rain or moisture. Protection against burns and fire •...

  • Page 5: Technical Specification

    DMX modes 2 x 5-PIN DMX connectors 1 x AC powerCON TRUE1 (inlet and outlet) 1 x SMA (WDMX antenna) *optional built-in drivers Portman Colour Feedback System other features built-in macros WDMX module optional Class I Appliance class IP rating...

  • Page 6: Product Overview

    PRODUCT OVERVIEW EVO ELEMENT™ ◼ PRODUCT OVERVIEW Dimensions Pixel order Back view 6 / 20...

  • Page 7: Preparation For Use

    • P2 EVO™ base • W-DMX module • P2 EVO™ height adapter • flight case EVO ELEMENT™ is fully compatible with the P2 EVO™ fixture and its accessories (base, height adaptor, spigot and cotter). ◼ PREPARATION FOR USE AC power connection Luminaire must be powered with 100-240V and 50/60Hz.
  • Page 8 Information. EVO ELEMENT™ may be hung using 2 brackets on the back of the fixture with rigging clamps or hung using the hanging adapter (included). The fixture may be also installed on the the tripod or on a P2 EVO floor base (sold separately).
  • Page 9 USER MANUAL PREPARATION FOR USE CAUTION! Incorrect installation may result in the device falling and may damage it or cause damage to other objects! CAUTION! Always use only original spigots and cotters to install or hang the fixture. Never use other brands’ spigots. REMEMBER! Never use more than two units on base or on the hanging clamp without additional safety support.
  • Page 10 PREPARATION FOR USE EVO ELEMENT™ To remember the manual settings you have to use MASTER mode. You can set any lighting scene using the manual control section in the fixture’s menu or play build-in macros. The fixture always switches to DMX when a DMX wire is connected.

  • Page 11: Menu

    Navigation buttons are located under the LCD on the back panel. To enter the menu press the “Enter” button. To navigate the menu use the “+” and “-“ buttons. To exit the menu from any level press “ESC”. For confirming simply push the enter button. Portman Colour Feedback System (CFS) 11 / 20...
  • Page 12 Luminaire is equipped with Portman Colour Feedback System. The navigation buttons under the OLED screen are highlighted with RGB LEDs. The Portman CFS allows you to check the fixture status without even touching the display or buttons. There are few possibilities:...
  • Page 13 USER MANUAL MENU MODE 2 (5.1kHz) MODE 3 (12kHz) Sets up the pixel order relation. Auto mode discovers the REGULAR orientation of the fixture automatically and sets the first ORIENTATION pixel of the fixture on the top. Please refer to Orientation UPSIDE DOWN chapter for more info DP BRIGHTNESS...

  • Page 14: Dmx Modes

    DMX MODES EVO ELEMENT™ ◼ DMX MODES ▪ MODE SUPER SIMPLE ▪ MODE STANDARD Parameter Description Parameter Description Intensity Main Pixel 1 HaloLED 8 bit dimmer Intensity Main Pixel 1 HaloLED 8 bit dimmer Source Ch.1 0 – 100% Source Ch.1 0 –...

  • Page 15: Mode Standard Fine

    USER MANUAL ▪ MODE STANDARD FINE Ch. 3 Glow White White 16 bit on glow pixel 3 0 – fine 100% Strobe Main Source HaloLED strobe channel Strobe Glow Glow strobe channel Parameter Description Colour wheel All Glow virtual colour wheel on all Intensity Main Pixel 1 HaloLED 8 bit dimmer 0 –...

  • Page 16: Mode Pixel Fine

    EVO ELEMENT™ ▪ MODE PIXEL FINE Ch. 3 Glow Blue Blue 16 bit on glow pixel 3 0 – fine 100% Ch. 3 Glow White White 8 bit on glow pixel 3 0 – 100% Parameter Description Ch. 3 Glow White White 16 bit on glow pixel 3 0 –...

  • Page 17: Photometrics

    USER MANUAL PHOTOMETRICS ◼ PHOTOMETRICS 17 / 20...
  • Page 18 PHOTOMETRICS EVO ELEMENT™ 18 / 20...
  • Page 19 USER MANUAL 19 / 20...
  • Page 20 Chwaszczyńska 190D case. 81-571 Gdynia, POLAN Help preserve the environment! Ensure that this product is recycled at the end of its life. Your supplier can give details of local arrangements for the disposal of Portman products.
