Compact weatherproof dome housing for ptz cameras (8 pages)
Summary of Contents for Marshall Amplification CV6-DH Series
Page 1

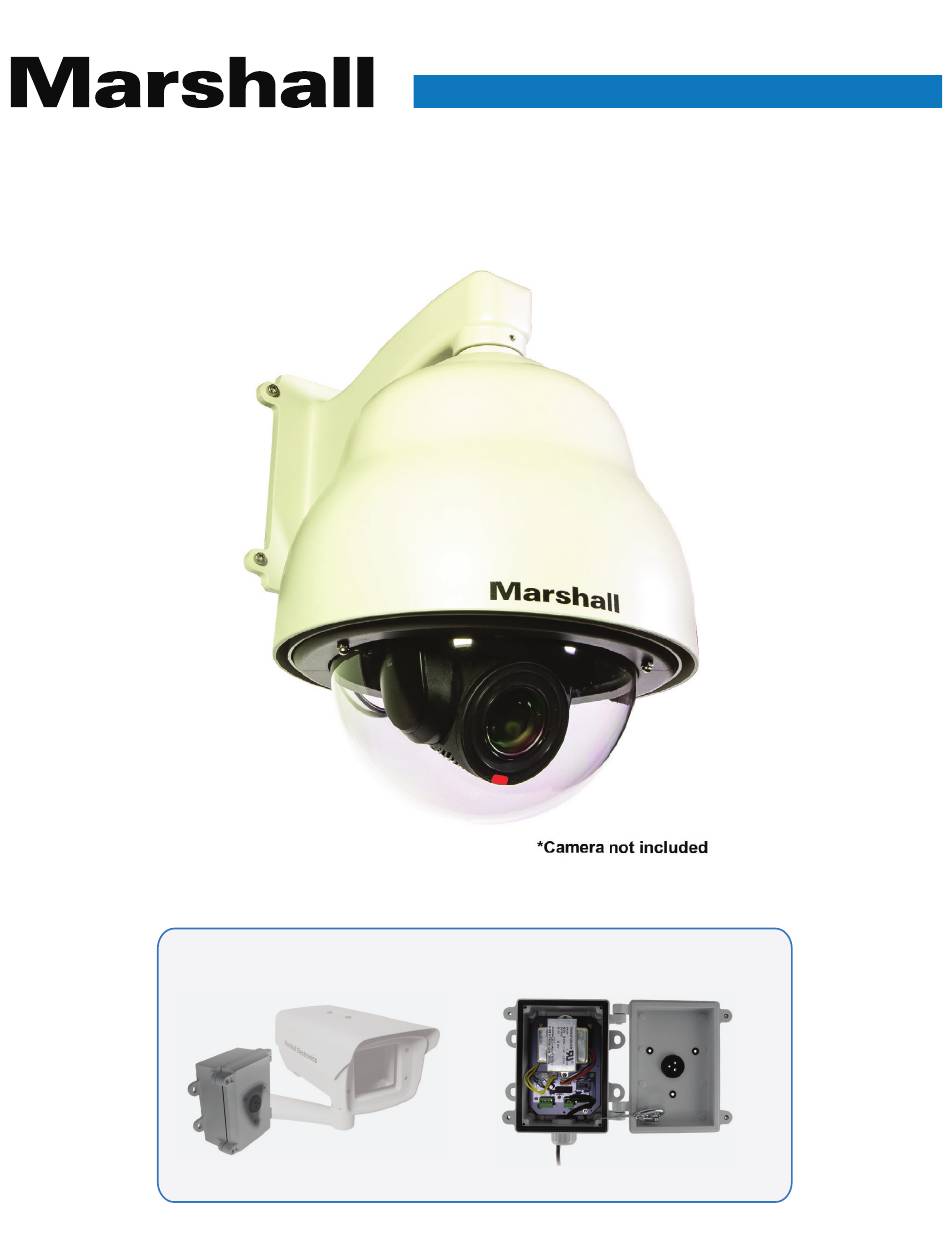

B r o a d c a s t A / V D i v i s i o n CV6XX-DH Outdoor Dome Housing Installation Instructions Optional Weather Power Supply CV-H20-PWR The CV-H20-PWR is highly recommended for use with this product...
Table of Contents 1. Warning 2. Installation Instructions 3. Assembly of Cables 4. Wall Mount Bracket and Dome Housing Installation 5. Appendix Safeguards Warranty...
CV6XX-DH Installation Instructions 1. Warning WARNING WARNING To reduce the risks of an electric shock, do not expose inside of this unit to rain or moisture. Installation on a rainy day may also cause fog around the capsule. Installation Installation should be done by qualified installer only and should conform to all local codes.
2. Installation Instructions Fasten wires tightly WARNING Attention: Please keep loose wires away from the fan or heater Cables L605-1 Power cable to PC board L704P-1.0 Power cable to camera (1.0mm DC Plug) Installation of camera and mounting plate Assembly of the Cables L704P-1.0 AC24V AC24V...
CV6XX-DH Installation Instructions 3. Assembly of Cables 1. DC 12V FAN 2. AC 24V HEATER 3. HEAT SENSOR 4. DC 12V OUT 5. AC 24V OUT 6. AC 24V IN Yellow 115V 50/60hz White 24VAC at 3A Black 115V 50/60hz Yellow Orange Transformer Wiring...
4. Wall Mount Bracket and Dome Housing Installation Insert cables through the bracket. Assemble the dome housing and Fix camera to dome housing and bracket. connect the cables. Use M5 nut to fix cover and dome Attach the power box to the wall or to Connect bracket arm to the power box.
Page 7
CV6XX-DH Installation Instructions 2-9-1 Insert the power cables for the 220~240VAC or 110~120VAC power supply input through the weatherproof cable holes located below the power block unit and connect the power cables for the 220~240VAC or 110~120VAC power supply input to the PS-2430 circuit board to the power block unit.
Page 8
For 110~120 VAC Power Input Connection Part 8 Part 10 2-9-3 For 110~120VAC VAC Power input connection, connect L(Live), N(Neutral), and G(Ground) power wires to corresponding screw terminal of AC115V POWER INPUT (part no. 10) on the PS-2430 circuit board, and turn switch(part no.8) on the PS- 2430 circuit board to AC115V.
CV6XX-DH Installation Instructions 5. Appendix Dimensions 9” housing Wall mount bracket with power box Component Parts for Assembly Hexagonal spacers x 4 M4 x 10 double washer screws Screws Mounting Position Position of screw holes on the camera Position of screw holes on the mounting for fixing hexagonal spacers.
IMPORTANT SAFEGUARDS Installation For 110~120 VAC Power Input 1. Read Instructions – All the safety and operating instructions should be read before operating the unit. Connection Steps 2. Retain Instructions – The safety and operating instructions should be retained for future reference. 3.
Page 11
CV6XX-DH Installation Instructions 5. Appendix IMPORTANT SAFEGUARDS 1. Read Instructions – All the safety and operating instructions should be read before operating the unit. Dimensions 2. Retain Instructions – The safety and operating instructions should be retained for future reference. 3.
Warranty Marshall Electronics warranties to the first consumer that this device will, under normal use, be free from defects in workmanship and materials, when received in its original container, for a period of two years from the purchase date. This warranty is extended to the first consumer only, and proof of purchase is necessary to honor the warranty.
