Summary of Contents for Marshall Amplification CV6XX-HFH

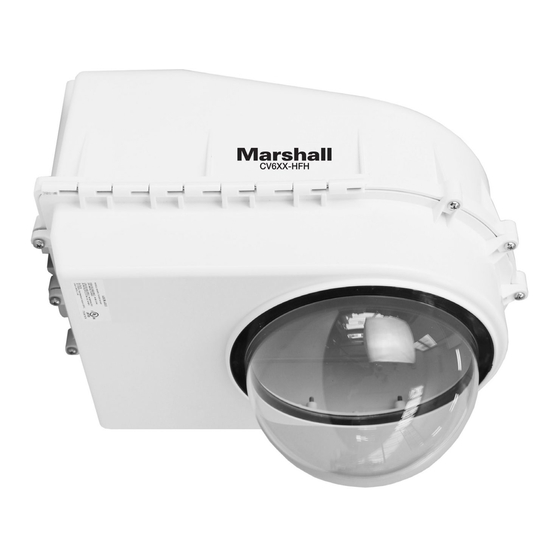

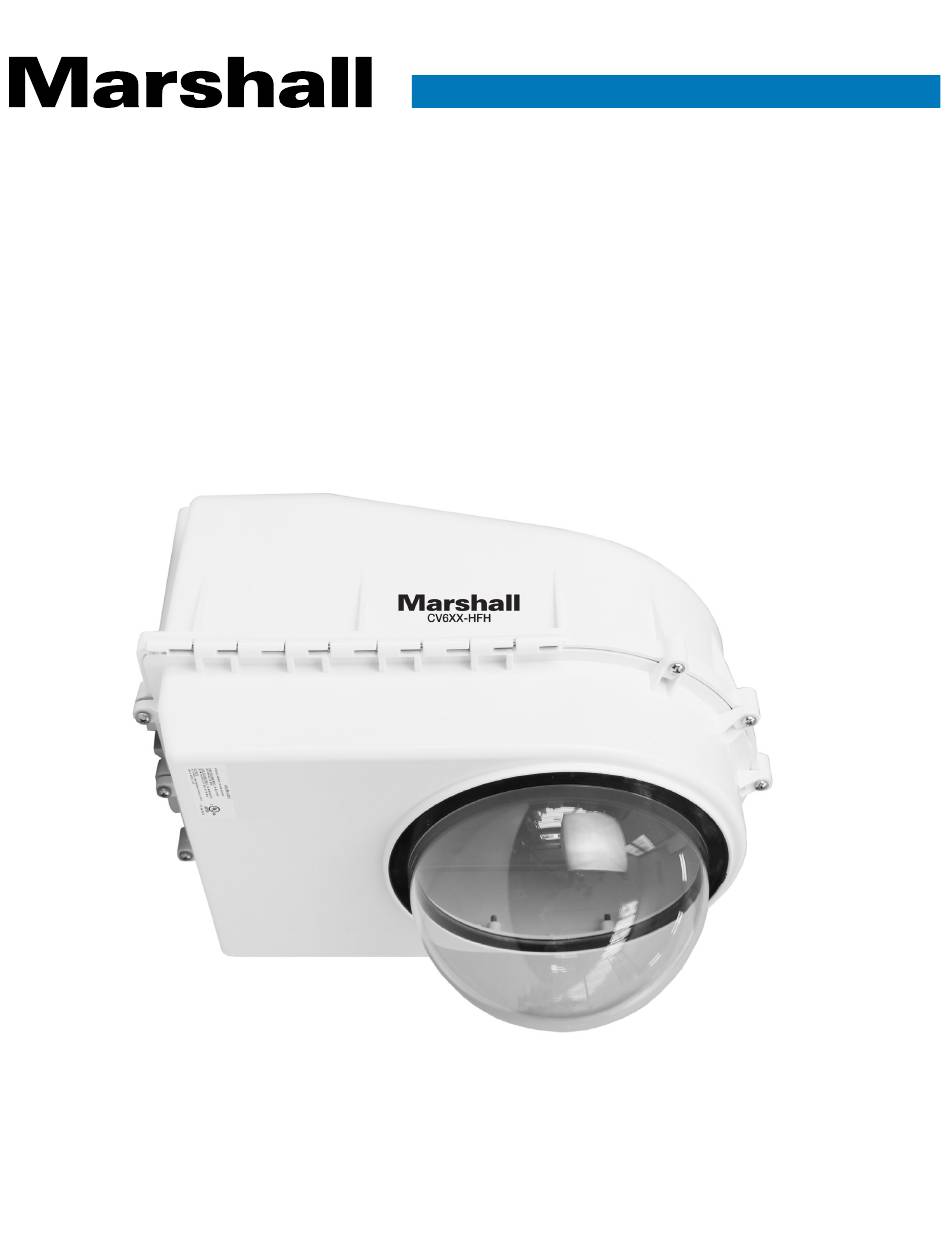

- Page 1 B r o a d c a s t A / V D i v i s i o n CV6XX-HFH Compact Weatherproof Dome Housing for PTZ Cameras User Manual...
- Page 2 The External Nut on All electrical wire feed Glands must be tightened to create a weather tight seal prior to putting CV6XX-HFH in service. Failure to create this seal may result in water incursion into enclosure. This may lead to electrical shock, product failure and damage to electrical systems installed within enclosure, including but not limited to damage to camera, heater and blower circuitry, cooling circuitry and other systems installed in unit.
- Page 3 Camera mount stand offs can be adjusted to any height from 0” to 3.75” using assembly logic illustrated above right. By utilizing both the camera mounts inside the CV6XX-HFH; the upper mounts, and the lower mounts around the lens on hinged lower of CV6XX-HFH, virtually any PTZ or Mini- Dome Camera can be mounted into the enclosure at any level.
- Page 4 The MVP comes ready for 110-220VAC Input power To use 24 VAC/VDC you must take a moment to allow input configuration for Low Voltage Input USE Blue24 VAC Bypass Cable to hook up power inside CV6XX-HFH Run 110-220 VAC into CV6XX-HFH and connect wires...
- Page 5 CV6XX-HFH Manual The CV6XX-HFH Enclosure series can accommodate mini-domes and PTZ cameras as tall as 9.375 inches in height. Our standoff combination includes supported heights of 0.50”, 0.74”, 1.00”, 1.25”, 1.50”, 1.75”, 2.00”, 2.25”, 2.50”, 2.75”, 3.00”, and 3.75”. These standoff heights can be applied to upper and lower mount locations based on the height of your camera.
- Page 6 CB-1007 V4 MOUNTING PLATE. CV6XX-HFH This edge nests in arch at front of CV6XX-HFH This edge of the bracket faces back of the CV6XX-HFH enclosure This edge of the bracket faces back of the CV6XX-HFH Enclosure CV6XX-HFH 1. Install the PTZ camera onto the CV6XX-HFH Camera Bracket with (3) m3-.5, (3) m3 external lock washers, and...
- Page 7 CV6XX-HFH Manual For optimal performance, your CV6XX-HFH Enclosure is designed to be air & water tight to eliminate any moisture, dust, and insect damage that can cause performance, reliability and maintenance related issues. Marshall has provided each CV6XX-HFH Conduit Stopper Plugs prevent Humid Air exchange from venting through external conduit into Marshall sealed enclosure, when conduit is used with Marshall enclosures.
-
Page 8: Warranty
CV6XX-HFH Manual Warranty CV6XX-HFH Mounting Detail Marshall Electronics warranties to the first consumer that this device will, under normal use, be free from defects in workmanship and materials, when received in its original container, for a period of two years from the purchase date. This warranty is extended to the first consumer only, and proof of purchase is necessary to honor the warranty.
