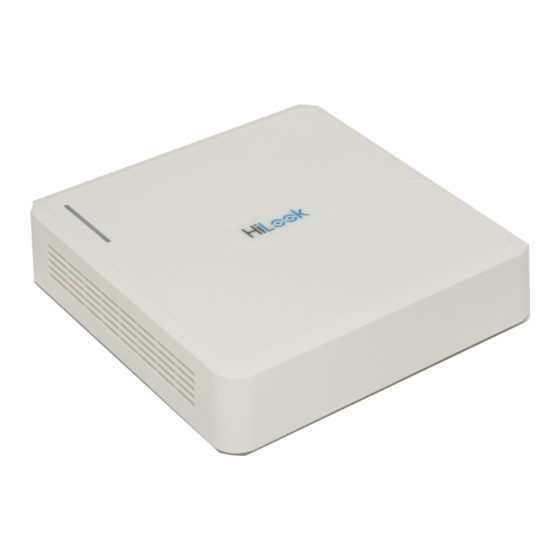

Digital Video Recorder
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DVR-108G-M1 and is the answer not in the manual?

Questions and answers

Mahmoud Nadeem
March 7, 2025

Number of streaming channels exceeded limits

0
1 comments:
Mr. Anderson
March 7, 2025

To resolve the "number of streaming channels exceeded limits" issue on HiLook DVR-108G-M1, follow these steps:

1. Reduce Active Streams – Check and close any unnecessary live view streams on connected devices.
2. Adjust Sub-Stream Settings – Configure sub-stream settings to reduce bandwidth usage by going to *Configuration → Record → Parameter* and adjusting frame rate and resolution.
3. Limit Simultaneous Connections – Ensure that multiple users or devices are not accessing the DVR simultaneously.
4. Check Network Camera Limits – Verify the maximum number of network cameras allowed under *Max. IP Camera Number* in the camera configuration settings.
5. Restart the DVR – Power cycle the DVR to refresh system resources.

If the issue persists, consider upgrading the DVR model to support more channels.

This answer is automatically generated

0
Isaac Sklederoviz
June 18, 2025

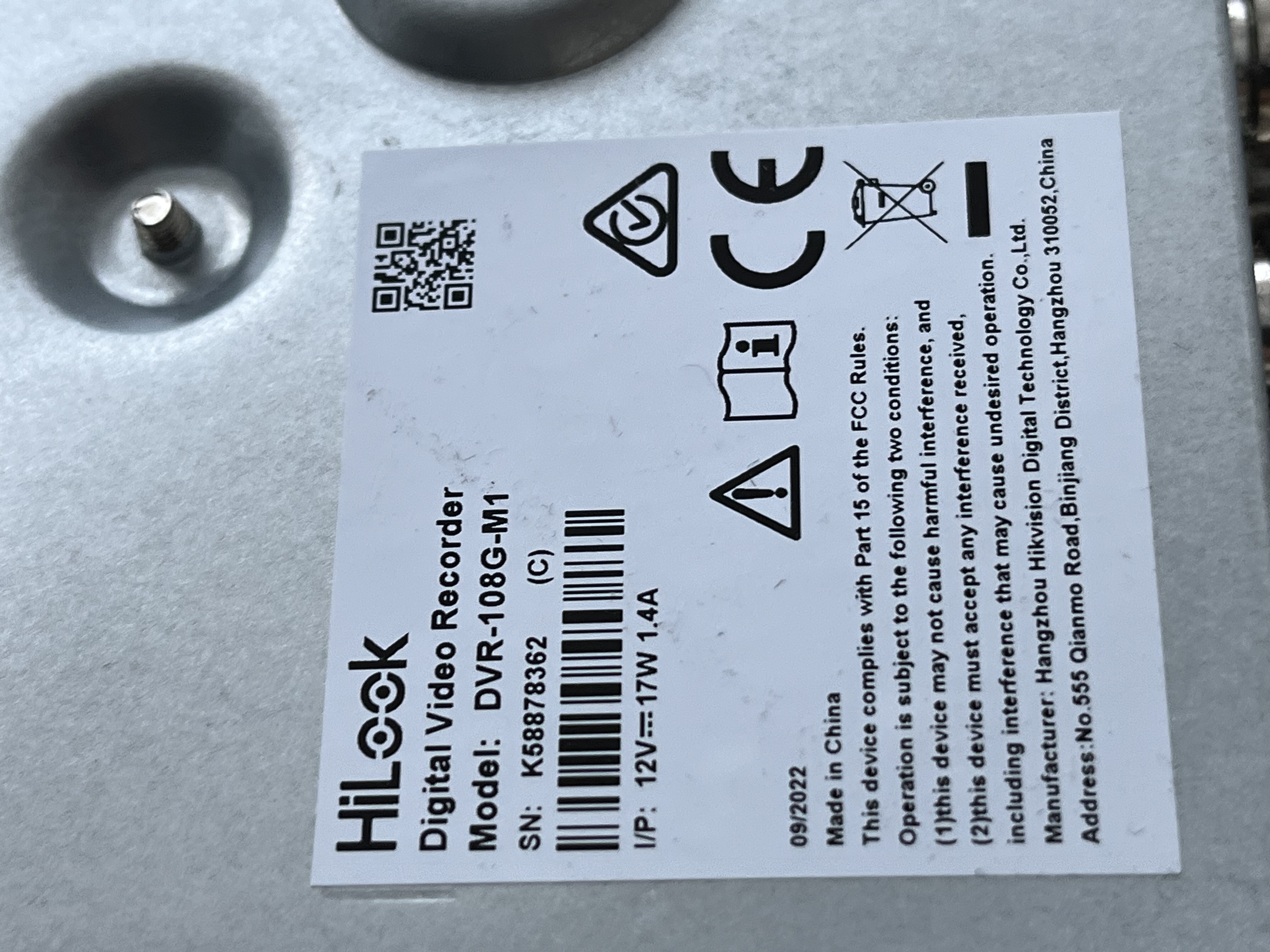

donde esta el codigo de verificacion del DVR-108G-M2

User image 68531a41a1a66
0

Related Manuals for HiLook DVR-108G-M1

Summary of Contents for HiLook DVR-108G-M1

  • Page 1 Digital Video Recorder User Manual...
  • Page 2 Digital Video Recorder User Manual Legal Information ©2023 Hangzhou Hikvision Digital Technology Co., Ltd. About this Manual Pictures, charts, images and all other information hereinafter are for description and explanation only. The information contained in the Manual is subject to change, without notice, due to firmware updates or other reasons.
  • Page 3 Digital Video Recorder User Manual YOU SHALL NOT USE THIS PRODUCT FOR ANY PROHIBITED END-USES, INCLUDING THE DEVELOPMENT OR PRODUCTION OF WEAPONS OF MASS DESTRUCTION, THE DEVELOPMENT OR PRODUCTION OF CHEMICAL OR BIOLOGICAL WEAPONS, ANY ACTIVITIES IN THE CONTEXT RELATED TO ANY NUCLEAR EXPLOSIVE OR UNSAFE NUCLEAR FUEL-CYCLE, OR IN SUPPORT OF HUMAN RIGHTS ABUSES.
  • Page 4 Digital Video Recorder User Manual Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
  • Page 5 Digital Video Recorder User Manual purchase of equivalent new equipment, or dispose of it at designated collection points. For more information see: http://www.recyclethis.info . 2006/66/EC (battery directive): This product contains a battery that cannot be disposed of as unsorted municipal waste in the European Union. See the product documentation for specific battery information.
  • Page 6 Digital Video Recorder User Manual Applicable Model This manual is applicable to the following models. Series Model DVR-E00G-B DVR-E04G-B DVR-E08G-B DVR-E16G-B DVR-E00G-XB DVR-E04G-XB DVR-E08G-XB DVR-E16G-XB DVR-E00G-D DVR-E04G-D DVR-E08G-D DVR-E00G-XD DVR-E04G-XD DVR-E08G-XD DVR-E00G-E DVR-E04G-E DVR-E00G-XE DVR-E04G-XE DVR-E00Q-B DVR-E04Q-B DVR-E08Q-B DVR-E00Q-XB DVR-E04Q-XB DVR-E08Q-XB DVR-E00Q-D DVR-E04Q-D...
  • Page 7 Digital Video Recorder User Manual Series Model DVR-200Q-M2 DVR-216Q-M2 DVR-232Q-M2 DVR-200U-M1 DVR-204U-M1 DVR-208U-M1 DVR-200U-M2 DVR-216U-M2 DVR-100G-K1 DVR-104G-K1 DVR-108G-K1 DVR-116G-K1 DVR-200G-K1 DVR-204G-K1 DVR-208G-K1 DVR-216G-K1 DVR-100G-M1 DVR-104G-M1 DVR-108G-M1 DVR-116G-M1 DVR-200G-M1 DVR-204G-M1 DVR-208G-M1 DVR-216G-M1 DVR-200G-M2 DVR-232G-M2...
  • Page 8 Digital Video Recorder User Manual Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Indicates a hazardous situation which, if not avoided, will or could Danger result in death or serious injury. Indicates a potentially hazardous situation which, if not avoided, could Caution result in equipment damage, data loss, performance degradation, or...
  • Page 9 Digital Video Recorder User Manual Safety Instruction Proper configuration of all passwords and other security settings is the responsibility of the ● installer and/or end-user. In the use of the product, you must be in strict compliance with the electrical safety regulations ●...
  • Page 10 Digital Video Recorder User Manual Preventive and Cautionary Tips Before connecting and operating your device, please be advised of the following tips: The device is designed for indoor use only. Install it in a well-ventilated, dust-free environment ● without liquids. Ensure recorder is properly secured to a rack or shelf.
  • Page 11 Digital Video Recorder User Manual For the device with sticker , pay attention to the following cautions: CAUTION: Hot ● parts! Do not touch. Burned fingers when handling the parts. Wait one-half hour after switching off before handling the parts. If the device needs to be installed on the wall or ceiling, ●...
  • Page 12 Digital Video Recorder User Manual Note Please uninstall the upper layer bracket first before installing HDD on the lower layer bracket. Figure 1-2 Fix HDD 3. Connect the data cable and power cable. Figure 1-3 Connect Cable Note You can repeat the steps above to install other HDDs. 4.
  • Page 13 Digital Video Recorder User Manual Figure 1-4 Fix Mounting Ears to HDD 2. Unlock the front panel with the attached key, and press the buttons on both sides of the front panel to open it. Figure 1-5 Open Front Panel 3.
  • Page 14 Digital Video Recorder User Manual Figure 1-6 Insert HDD 4. Optional: Repeat the steps above to install other HDDs. 5. Close the front panel and lock it with key. Fix-on-Bottom Installation Fix-on-bottom installation is applicable when you need to install and fix the HDD on the device bottom.
  • Page 15 Digital Video Recorder User Manual 2) Connect the other end of data cable to HDD. 3) Connect one end of power cable to HDD. 4) Connect the other end of power cable to the device motherboard. Figure 1-8 Connect Cables 3.
  • Page 16 Digital Video Recorder User Manual Coin/Button Cell Battery Replacement The coin/button cell battery should be replaced when the device has been powered off or placed for a long time, and the system time is incorrect. Before You Start Power off your device. Steps 1.
  • Page 17 Digital Video Recorder User Manual Figure 1-11 Replace Battery 5. Reinstall the device chassis cover. What to do next If the system time is incorrect, please go to configure the time.

  • Page 18: Table Of Contents

    Digital Video Recorder User Manual Contents Chapter 1 Startup ........................1 1.1 Activate Your Device ......................1 1.2 Login ............................2 1.2.1 Log in via Unlock Pattern ....................2 1.2.2 Log in via Password ....................... 3 Chapter 2 Live View ........................4 2.1 GUI Introduction ........................
  • Page 19 Digital Video Recorder User Manual 5.1.3 Exception ........................15 5.2 Network Configuration ......................16 5.2.1 General ........................16 5.2.2 Email ........................... 17 5.2.3 HiLookVision ....................... 18 5.3 Camera Management ......................19 5.3.1 Network Camera ......................19 5.3.2 Motion ........................21 5.3.3 OSD Settings ........................
  • Page 20 Digital Video Recorder User Manual 6.2.8 Ports (More Settings) ....................41 6.2.9 HiLookVision ....................... 43 6.2.10 Email ......................... 43 6.3 Camera Management ......................43 6.3.1 Configure Signal Input ....................43 6.3.2 Network Camera ......................44 6.3.3 Display Settings ......................48 6.3.4 Privacy Mask .......................
  • Page 21 Digital Video Recorder User Manual 7.6 Upgrade ..........................75 7.6.1 Local Upgrade ......................75 7.6.2 Online Upgrade ......................76 Chapter 8 Alarm ........................77 8.1 Set Event Hint ........................77 8.2 View Alarm in Alarm Center ....................77 Chapter 9 Web Operation ......................78 9.1 Introduction .........................

  • Page 22: Chapter 1 Startup

    Digital Video Recorder User Manual Chapter 1 Startup 1.1 Activate Your Device For the first-time access, you need to activate the video recorder by setting an admin password. No operation is allowed before activation. You can also activate the video recorder via web browser, SADP or client software.

  • Page 23: Login

    Digital Video Recorder User Manual Note The pattern shall have 4 dots at least. ● Each dot can be connected for once only. ● 3) Draw the same pattern again to confirm it. When the two patterns match, the pattern is configured successfully.

  • Page 24: Log In Via Password

    Digital Video Recorder User Manual Note If you have forgotten your pattern, you click Forgot My Pattern or Switch User to log in via ● password. If you have drawn the wrong pattern for more than 5 times, the system will switch to the ●...

  • Page 25: Chapter 2 Live View

    Digital Video Recorder User Manual Chapter 2 Live View 2.1 GUI Introduction Click Target Detection at the upper-left corner, and select to display the specified live ● target detection results. For result details, click View More. Note Target Detection is only available for certain models. ○...

  • Page 26: Ptz Control

    Digital Video Recorder User Manual Table 2-2 Live View Icon Description Icon Description Alarming (normal event and smart event). Recording. Right click your mouse to display the shortcut menu. ● 2.2 PTZ Control 2.2.1 Configure PTZ Parameter You shall configure PTZ parameters before controlling a PTZ camera. Steps 1.
  • Page 27 Digital Video Recorder User Manual Figure 2-3 PTZ Settings 2. Click 3. Set the PTZ camera parameters. Note All parameters should be the same as the PTZ camera. 4. Click OK.

  • Page 28: Ptz Control Panel Introduction

    Digital Video Recorder User Manual 2.2.2 PTZ Control Panel Introduction Table 2-3 PTZ Panel Description Icon Description Direction buttons, and the auto-cycle button. The speed of the PTZ movement. Zoom -/+. Focus -/+. Iris -/+. 2.2.3 Customize Preset Set a preset location where the PTZ camera would point to when an event occurs. Steps 1.

  • Page 29: Customize Pattern

    Digital Video Recorder User Manual 2. Click Patrol. 3. Click of a desired patrol. 4. Click 5. Configure key point parameters, such as the key point No., duration of staying for one key point and speed of patrol. The key point is corresponding to the preset. The preset number determines the order at which the PTZ will follow while cycling through the patrol.

  • Page 30: Chapter 3 Playback

    Digital Video Recorder User Manual Chapter 3 Playback 3.1 GUI Introduction Go to Playback . Table 3-1 Playback Interface Description Button Operation Button Operation 30 s reverse. 30 s forward. Full screen. Start playback. Speed down. Speed up. Speed. Figure 3-1 Timeline Position the cursor on the timeline, drag the timeline to position to a certain time.

  • Page 31: Event Playback

    Digital Video Recorder User Manual Figure 3-2 Control Bar Table 3-2 Button Description Button Description Button Description Adjust definition. Zoom in/out playback image. Turn on/​ o ff audio. Add tag. Lock/unlock video. Clip video. 3.3 Event Playback When you select the event playback mode, the system will analyze and mark videos that contain the motion detection, line crossing detection, or intrusion detection information, .

  • Page 32: Back Up Clip

    Digital Video Recorder User Manual 6. Click to search videos. Videos meet the detection rule requirement will be marked in red. 7. Click to configure the play strategy. Skip Normal Videos If it is enabled, videos without smart information will not be played. Normal Video Set normal video playback speed.

  • Page 33: Chapter 4 Search File

    Digital Video Recorder User Manual Chapter 4 Search File Steps 1. Go to Search. 2. Select a search type (video, picture, event, etc.). 3. Set search conditions. 4. Optional: Click Quick Backup to quickly export videos to the device. Note Quick backup is available for video and event search.

  • Page 34: Quick Backup

    Digital Video Recorder User Manual 4.2 Quick Backup Before You Start Connect a backup device to your video recorder. Steps 1. Go to Search . 2. Set search conditions. 3. Click Quick Export. 4. Select backup device and path. 5. Click OK to start exporting.

  • Page 35: Chapter 5 Configuration (Easy Mode)

    Digital Video Recorder User Manual Chapter 5 Configuration (Easy Mode) Easy mode contains basic configurations. Go to Configuration , and click Easy Mode. 5.1 System Configuration 5.1.1 General You can configure the output resolution, system time, etc. Steps 1. Go to Configuration → System → General . 2.

  • Page 36: Exception

    Digital Video Recorder User Manual 3. Enter user name. 4. Enter the same password in Create Password and Confirm. Warning We highly recommend you create a strong password of your own choosing (Using a minimum of 8 characters, including at least two of the following categories: digits, upper-case letters, lower- case letters, and special characters.) in order to increase the security of your product.

  • Page 37: Network Configuration

    Digital Video Recorder User Manual 2) Click at the upper-right corner of local menu to enter alarm center. 3) Select an event type. 4) Click Set to select events to hint. 3. Set Exception Type 4. Select Normal Linkage and Trigger Alarm Output type for exception linkage actions. Figure 5-2 Exceptions 5.

  • Page 38: Email

    Digital Video Recorder User Manual Figure 5-3 Network 2. Set network parameters. DHCP If the DHCP server is available, you can enable DHCP to automatically obtain an IP address and other network settings from that server. Auto Obtain DNS If DHCP is enabled. You can enable Auto Obtain DNS to automatically obtain Preferred DNS Server and Alternate DNS Server.

  • Page 39: Hilookvision

    Digital Video Recorder User Manual The user account of email sender for SMTP server authentication. Password The password of email sender for SMTP server authentication. SMTP Server/SMTP Port After selecting the SMTP Sever, its address and port will be showed automatically. You can also edit them according to actual needs.

  • Page 40: Camera Management

    Digital Video Recorder User Manual 2) Check I have read and agree to Service Terms and Privacy Statement. if you agree the service terms and privacy statement.. 3) Click OK. 4. Optional: Check Stream Encryption. It requires to enter verification code in remote access and live view after this function is enabled.
  • Page 41 Digital Video Recorder User Manual Steps 1. Go to Configuration → Camera → Analog → Analog . 2. Select signal input type as HD/CVBS or IP for each channel. HD/CVBS Four types of analog signal inputs including Turbo HD, AHD, HDCVI, and CVBS can be connected randomly for the channel.

  • Page 42: Motion

    Digital Video Recorder User Manual Add Network Camera Manually Before You Start Ensure your network camera is on the same network segment with that of your video recorder. ● Ensure the network connection is valid and correct. ● Ensure the network camera is activated. ●...

  • Page 43: Osd Settings

    Digital Video Recorder User Manual Note The operation may differ according to different models. 5. Adjust Sensitivity. Sensitivity allows you to calibrate how readily movement triggers the alarm. A higher value results in the more readily to triggers motion. 6. Set analysis mode as AI or PIR. The motion event will be analyzed by your device.

  • Page 44: Configure Alarm Linkage Action

    Digital Video Recorder User Manual 5.4 Configure Alarm Linkage Action Alarm linkage actions will be activated when an alarm or exception occurs. Steps 1. Click Linkage Action. Figure 5-9 Linkage Actions 2. Set normal linkage actions, alarm output linkage actions, trigger channel, etc. Alarm Pop-up Window The local monitor will pop up the alarming channel image when an alarm is triggered.

  • Page 45: Configure Arming Schedule

    Digital Video Recorder User Manual Note Ensure your camera supports audio and light alarm linkage. ● Ensure the audio output and volume are properly configured. ● If you require to set audio and light parameters, please log into the network camera via ●...
  • Page 46 Digital Video Recorder User Manual Before You Start Install at least an HDD to your video recorder. For detailed steps, refer to Quick Start Guide. Steps 1. Go to Configuration → Record → Storage . 2. Select an HDD. 3. Click Init. Repair Database Repair an HDD that with error in database.

  • Page 47: Configure Recording Schedule

    Digital Video Recorder User Manual Figure 5-11 Add NetHDD 7. Select NAS disk from the list, or manually enter the directory in NetHDD Directory. 8. Click OK. The added NetHDD will be displayed in the storage device list. 5.6.2 Configure Recording Schedule Video recorder will automatically start/stop recording according to the configured schedule.
  • Page 48 Digital Video Recorder User Manual Steps 1. Go to Configuration → Event . 2. Configure the event detection and select the channels to trigger the recording when an event occurs. 3. Go to Configuration → Record → Parameter . 4. Set the continuous main stream/sub-stream recording parameters for the camera. Refer to Configure Recording Parameter for details.

  • Page 49: Configure Recording Parameter

    Digital Video Recorder User Manual d. To set other schedules, uncheck All Day, and set Start/End Time and schedule type. Note Up to 8 periods can be configured for each day. And the time periods cannot be overlapped with each other. e.
  • Page 50 Digital Video Recorder User Manual Note Higher resolution, frame rate, and bitrate provide you better video quality, but it also requires more internet bandwidth and uses more storage space on the hard disk drive. 3. Click Apply.

  • Page 51: Chapter 6 Configuration (Expert Mode)

    Digital Video Recorder User Manual Chapter 6 Configuration (Expert Mode) Go to Configuration , and click Expert Mode at the lower-left corner. 6.1 System Configuration 6.1.1 General Configure Basic Settings You can configure the language, system time, output resolution, mouse pointer speed, lock screen password, etc.

  • Page 52: Live View

    Digital Video Recorder User Manual Configure More Settings You can configure your device name, lock screen time, output mode, etc. Go to Configuration → System → General → More Settings , configure the parameters as your desire, and click Apply. Device Name Edit the video recorder name.
  • Page 53 Digital Video Recorder User Manual Figure 6-1 Live View-General 2. Configure the Live View parameters. Window Division Select the live view window division. Auto Switch Interval The time to dwell in a camera before switching to next camera when auto-switch in live view is enabled.

  • Page 54: User

    Digital Video Recorder User Manual 3. Select a window, and double click a camera the list you would like to display. means no camera is displayed on the window. 4. Optional: Click to start or stop live view of all cameras. 5.
  • Page 55 Digital Video Recorder User Manual Steps 1. Go to Configuration → Network → General → TCP/IP . 2. Configure network parameters. Working Mode Multi-address Mode The parameters of the two NIC cards can be configured independently. You can select LAN1 or LAN2 in the NIC type field for parameter settings. You can select one NIC card as default route.

  • Page 56: Ddns

    Digital Video Recorder User Manual 6.2.2 DDNS Dynamic domain name server (DDNS) maps dynamic user IP addresses to a fixed domain name server. Before You Start Register DynDNS, PeanutHull and NO-IP services with your ISP. Steps 1. Go to Configuration → Network → General → DDNS . Figure 6-3 DDNS 2.

  • Page 57: Nat

    Digital Video Recorder User Manual Steps 1. Go to Network → General → PPPOE . 2. Turn on Enable. 3. Enter user name and password. 4. Click Save. What to do next If you can get the dynamic IP, the PPPOE status is normal. 6.2.4 NAT Two ways are provided for port mapping to realize the remote access via the cross-segment network, UPnP™...

  • Page 58: Wi-Fi

    Digital Video Recorder User Manual The value of the RTSP port No. should be 554 or between 1024 and 65535, while the value of the other ports should be between 1 and 65535 and the value must be different from each other. If multiple devices are configured for the UPnP™ settings under the same router, the value of the port No.

  • Page 59: Ntp

    Digital Video Recorder User Manual After connecting to an available wireless network, you can view the connection result in Connection Status. 3. Go to Configuration → Network → General → TCP/IP . 4. Set Select NIC and Default Route as WLAN0. 5.
  • Page 60 Digital Video Recorder User Manual Figure 6-6 Log Server Settings 2. Turn on Enable 3. Set Upload Time Interval, Server IP Address, and Port. 4. Optional: Click Test to test if parameters are valid. 5. Click Apply. One-Way Authentication You can install a CA certificate (from the server) to your device to authorize the server via web browser.
  • Page 61 Digital Video Recorder User Manual Figure 6-7 One-Way Authentication 2. Install the CA certificate in CA Certificate. 3. Optional: Click Test to test if the connection is valid. 4. Click Save. Two-Way Authentication You can install a CA certificate (from the server) to your device to authorize the server, and create a certificate (from your device) to authorize your device by the server.

  • Page 62: Ports (More Settings)

    Digital Video Recorder User Manual Figure 6-8 Two-Way Authentication 2. Install the CA certificate in CA Certificate. 3. Click Create in Client Certificate, and follow the pop-up to create the certificate. 4. Click Download to download the certificate file to a desired location. 5.
  • Page 63 Digital Video Recorder User Manual Alarm Host IP refers to the IP address of the remote PC on which the CMS software (e.g., iVMS-4200) is installed, and the Alarm Host Port (7200 by default) must be the same as the alarm monitoring port configured in the software.

  • Page 64: Hilookvision

    Digital Video Recorder User Manual Figure 6-9 Port Settings 6.2.9 HiLookVision Go to Configuration → Network → Platform Access . Refer to HiLookVision for details. 6.2.10 Email Go to Configuration → Network → Email . Refer to Email for details. 6.3 Camera Management 6.3.1 Configure Signal Input For certain digital video recorder models, you can configure the analog and IP signal input types.

  • Page 65: Network Camera

    Digital Video Recorder User Manual Four types of analog signal inputs including Turbo HD, AHD, HDCVI, and CVBS can be connected randomly for the channel. Network camera can be connected for the channel. Figure 6-10 Signal Input Type 3. Click Apply. You can view the maximum network camera accessible number in Max. IP Camera Number.
  • Page 66 Digital Video Recorder User Manual Add Network Camera Manually Add the network cameras to your video recorder. Before You Start Ensure your network camera is on the same network segment with that of your video recorder. ● Ensure the network connection is valid and correct. ●...
  • Page 67 Digital Video Recorder User Manual Add Network Camera Through Plug-and-Play If an inactive network camera or third party ONVIF camera is connected to your network, the video recorder may automatically detect and add the camera, or notify you to manually add it. Steps 1.
  • Page 68 Digital Video Recorder User Manual Before You Start Ensure you have inserted the USB flash drive to the device, and it contains the network camera ● upgrade firmware. Ensure your network camera is on the same network segment with your video recorder. ●...

  • Page 69: Display Settings

    Digital Video Recorder User Manual What to do next After the importing process is completed, you must restart the video recorder. Advanced Settings Steps 1. Go to Configuration → Camera → Camera . 2. Click More. 3. Configure the parameters as your desire. H.265 Auto Switch Configuration If you enable the option, the device will automatically switch to H.265 stream for the network camera (which supports H.265 video format) for the initial access.

  • Page 70: Privacy Mask

    Digital Video Recorder User Manual Steps 1. Go to Configuration → Camera → Display . 2. Set Camera. 3. Configure parameters as your desire. OSD Settings Configure the OSD (On-screen Display) settings for the camera, including date, time, camera name, etc. Image Settings Customize the image parameters including the brightness, contrast, and saturation for the live view and recording effect.

  • Page 71: Event Configuration

    Digital Video Recorder User Manual Figure 6-16 Privacy Mask 4. Drag to draw an area on the window. The frames of the areas will be marked with different colors. Note Up to 4 privacy mask areas can be configured. The size of each area can be adjusted. 5.
  • Page 72 Digital Video Recorder User Manual Video Tampering Trigger alarm when the lens is covered and take alarm response actions. Steps 1. Go to Configuration → Event → Normal Event → Video Tampering . Figure 6-17 Video Tampering 2. Set Camera. 3.
  • Page 73 Digital Video Recorder User Manual 3. Turn on Enable. 4. Set the arming schedule. Refer to Configure Arming Schedule for details. 5. Set the linkage actions. Refer to Configure Alarm Linkage Action for details. 6. Click Apply. Alarm Input Set linkage actions for an external sensor alarm. Steps 1.
  • Page 74 Digital Video Recorder User Manual Alarm Output Trigger an alarm output when an alarm is triggered. Steps 1. Go to Configuration → Event → Normal Event → Alarm Output . Figure 6-20 Alarm Output 2. Click of a desired alarm output. 3.

  • Page 75: Perimeter Protection

    Digital Video Recorder User Manual Steps 1. Go to Configuration → Event → Normal Event → Exception . 2. Configure event hint. When the set events occur, you will receive hints in alarm center. 1) Enable Event Hint. 2) Select events to hint. Choose from: Click of Event Hint Configuration to select events.
  • Page 76 Digital Video Recorder User Manual Line Crossing Detection Line crossing detection detects people, vehicles, and objects crossing a set virtual line. The detection direction can be set as bidirectional, from left to right or from right to left. Steps 1. Go to Configuration → Event → Perimeter Protection → Line Crossing . 2.
  • Page 77 Digital Video Recorder User Manual Steps 1. Go to Configuration → Event → Perimeter Protection → Intrusion . 2. Select Camera to configure. 3. Turn on Enable. 4. Set the detection rules and detection areas. 1) Select Arming Area. 2) Adjust Time Threshold and Sensitivity. Sensitivity The size of the object that can trigger the alarm.
  • Page 78 Digital Video Recorder User Manual 2) Adjust Sensitivity. Sensitivity: Range [0-100]. The higher the value is, the more easily the detection alarm can be triggered. 3) Optional: Set Target Detection as Human or Vehicle to discard alarms which are not triggered by human body or vehicle.

  • Page 79: Face Recognition

    Digital Video Recorder User Manual 6.4.3 Face Recognition Face recognition is the function that compares a captured face (in image or video stream) with those in face picture libraries and returns its identity information if the face is recognized. Based on facial feature of human being, face recognition first checks if human face exists in the input image or video stream.
  • Page 80 Digital Video Recorder User Manual Steps 1. Go to Configuration → Face Picture Library . 2. Enter the admin password for authorization. 3. Click Add. 4. Enter the face picture library name. 5. Click Add. Note You can also go to Search → Human to add the search results to the Face Picture Library. What to do next After a face picture library is added, you can edit its name, delete it, or upload face pictures to it.

  • Page 81: Configure Arming Schedule

    Digital Video Recorder User Manual Before You Start Ensure you have created at least one face picture library, and face pictures are added to the library. Refer to Face Picture Library Management for operation details. Steps 1. Go to Configuration → Face Recognition → Face Picture Comparison . 2.

  • Page 82: Configure Alarm Linkage Action

    Digital Video Recorder User Manual Figure 6-25 Set Arming Schedule 3. Click Apply. 6.4.5 Configure Alarm Linkage Action Configure Alarm Pop-up Window When an alarm is triggered, the local monitor displays in full screen the video image from the alarming channel configured for full screen monitoring. And when the alarm is triggered simultaneously in several channels, you must configure the auto-switch dwell time.
  • Page 83 Digital Video Recorder User Manual Configure Buzzer Alarm The audio warning enables the video recorder to trigger an audible beep when an alarm is detected. Steps 1. Go to Configuration → System → Live View → General . 2. Turn on Audio, and set Volume. 3.

  • Page 84: Recording Management

    Digital Video Recorder User Manual 4. Go to Configuration → Event → Normal Event → Alarm Output . 5. Select an alarm output item from the list. Refer to Alarm Output for details. Configure PTZ Linkage Video recorder can trigger the PTZ actions (e.g., call preset/patrol/pattern) when the alarm event, or VCA detection events occur.
  • Page 85 Digital Video Recorder User Manual Configure Continuous Recording Steps 1. Go to Configuration → Record → Parameter . 2. Set the continuous main stream/sub-stream recording parameters for the camera. 3. Go to Configuration → Record → Schedule . 4. Select recording type as Continuous. Configure Event Recording You can configure the recording triggered by the line crossing detection, intrusion detection, etc..
  • Page 86 Digital Video Recorder User Manual Figure 6-27 Recording Schedule Continuous Continuous recording. Event Recording triggered by all event triggered alarms. 2. Select a camera in Camera No. 3. Turn on Enable. 4. Configure the recording schedule. 1) Click Edit. 2) Select a day to configure in Weekday. 3) To set an all-day recording schedule, check All Day and select schedule Type.

  • Page 87: Configure Recording Parameter

    Digital Video Recorder User Manual The time you set to record before the scheduled time or event. For example, when an alarm triggers the recording at 10:00, and if you set the pre-record time as 5 seconds, the camera records at 9:59:55. Post-Record The time you set to record after the event or the scheduled time.
  • Page 88 Digital Video Recorder User Manual Main stream refers to the primary stream that affects data recorded to the hard disk drive and will directly determine your video quality and image size. Comparing with the sub- stream, the main stream provides a higher quality video with higher resolution and frame rate.

  • Page 89: Storage Device

    Digital Video Recorder User Manual 6.5.3 Storage Device Initialize HDD If it is the first time you use your HDD, please initialize it after it is installed. Before You Start Install at least an HDD to your video recorder. Steps 1.

  • Page 90: Configure Storage Mode

    Digital Video Recorder User Manual Figure 6-29 Add NetHDD 7. Select NAS disk from the list, or manually enter the directory in NetHDD Directory. 8. Click OK. Note Up to 8 TB storage capacity is allowed for each network disk. Result The added network disks will be displayed in the storage device list.
  • Page 91 Digital Video Recorder User Manual 2. Select Mode as Group. 3. Select a group number. 4. Select IP cameras to record on the HDD group. Figure 6-30 Group 5. Click Apply. 6. Restart the video recorder to activate the new storage mode settings. 7.

  • Page 92: Advanced Settings

    Digital Video Recorder User Manual Figure 6-31 Quota Note When the quota capacity is set to 0, all cameras will use the total capacity of HDD for videos and pictures. 5. Click Apply. 6. Restart the video recorder to activate the new settings. 6.5.5 Advanced Settings Steps 1.
  • Page 93 Digital Video Recorder User Manual Picture Storage When the HDD free space is not enough, you can disable it to save space, but your device will stop storing pictures.

  • Page 94: Chapter 7 Maintenance

    Digital Video Recorder User Manual Chapter 7 Maintenance 7.1 Restore Default Steps 1. Click at the upper-right corner. 2. Select the restoring type. Simple Restore Restore all parameters, except the network (including IP address, subnet mask, gateway, MTU, NIC working mode, default route, server port, etc.) and user account parameters, to the factory default settings.

  • Page 95: Buzzer Switch

    Digital Video Recorder User Manual You can specifically secure the stream data of live view by setting the RTSP authentication. RTSP Authentication Two authentication types are selectable, if you select digest, only the request with digest authentication can access the video stream by the RTSP protocol via the IP address. For security reasons, it is recommended to select digest as the authentication type.

  • Page 96: Device Status

    Digital Video Recorder User Manual Steps 1. Click at the upper-right corner. 2. Click More. 3. Go to Device Maintenance → Enable Schedule Reboot . 4. Turn on Enable. 5. Set the reboot schedule. 6. Click Apply. 7.5.2 Device Status You can mute the selected channel(s).

  • Page 97: Online Upgrade

    Digital Video Recorder User Manual 7.6.2 Online Upgrade Upgrade the device with the latest online firmware. Before You Start Ensure HiLookVision is enabled and properly configured. Refer to HiLookVision for details. Steps 1. Click at the upper-right corner. 2. Click 3.

  • Page 98: Chapter 8 Alarm

    Digital Video Recorder User Manual Chapter 8 Alarm When events occur, you can view their details in alarm center. 8.1 Set Event Hint Select the events to hint in alarm center. Steps 1. Click at the upper-right corner. 2. Set Exception, Basic Event, or Smart Event as your desire. Figure 8-1 Alarm Center 3.

  • Page 99: Chapter 9 Web Operation

    Digital Video Recorder User Manual Chapter 9 Web Operation 9.1 Introduction You can get access to the video recorder via web browser. You may use one of the following listed web browsers: Internet Explorer 11.0, Apple Safari, Mozilla Firefox, and Google Chrome. The supported resolutions include 1024×768 and above. For certain models, you will have to download a web component plug-in, and install it.

  • Page 100: Live View

    Digital Video Recorder User Manual 9.3 Live View After login, live view interface shows. Figure 9-2 Live View 9.4 Playback Click Playback to enter playback interface. Figure 9-3 Playback 9.5 Configuration Click Configuration to enter configuration interface.

  • Page 101: Log

    Digital Video Recorder User Manual 9.6 Log Steps 1. Go to Maintenance → System → Maintenance → Log . 2. Set the search conditions. 3. Click Search.

  • Page 102: Chapter 10 Appendix

    Digital Video Recorder User Manual Chapter 10 Appendix 10.1 Glossary Dual-Stream Dual-stream is a technology used to record high resolution video locally while transmitting a lower resolution stream over the network. The two streams are generated by the DVR, with the main stream having a maximum resolution of 1080P and the sub-stream having a maximum resolution of CIF.
  • Page 103 Digital Video Recorder User Manual NTSC Acronym for National Television System Committee. NTSC is an analog television standard used in such countries as the United States and Japan. Each frame of an NTSC signal contains 525 scan lines at 60Hz. Acronym for Network Video Recorder.
  • Page 104 UD36566B...
