English Français Español Deutsch Meet PHILIPS at the internet http://www.audio.philips.com CLASS 1 LASER PRODUCT 3140 115 2866.1 Printed in Hong Kong Cmm/RB/0149...
Page 3

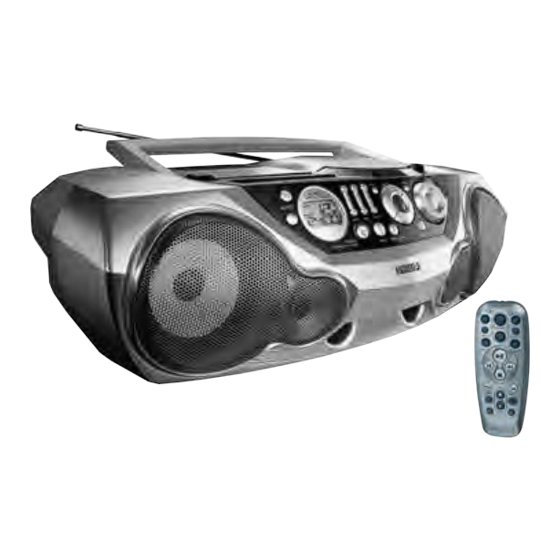

& 6 x R20 • UM-1 • D-CELLS Remote control ¡ for AZ2045 model only See A...
English TOP AND FRONT PANELS (See 1) 1SOURCE – selects CD/ TUNER / TAPE function 2y – power on/ off switch 3Display – shows the status of the set 4Cassette recorder keys RECORD 0 – starts recording PLAY 2 – starts playback SEARCH 5/6 –...
BASIC FUNCTIONS Batteries (not included) • Insert 6 batteries, type R-20, UM-1 or D-cells, (preferably alkaline) with the correct polarity. Remote control (for AZ2045 only /See A) • Insert 2 batteries, type AAA, R03 or UM4 (preferably alkaline). Incorrect use of batteries can cause electrolyte leakage and will corrode the compartment or cause the batteries to burst.
DIGITAL TUNER 3 Press and hold ∞ or § until the frequency in the display starts running. ™ The radio automatically tunes to a station of sufficient reception. Display shows during automatic tuning. ™ If a FM station is received in stereo, shown.
3 Press 2; to start playback. ™ if your CD contains non-audio files 4 To pause playback press 2;. Press 2; again to resume play. 5 To stop CD playback, press 9. Note: CD play will also stop when: – the CD door is opened –...
CASSETTE RECORDER GENERAL INFORMATION ON RECORDING • Recording is permissible insofar as copyright or. other rights of third parties are not infringed. • For recording, use only NORMAL type cassettes (IEC type I) on which the tabs have not yet been broken.
TROUBLESHOOTING WARNING Do not open the set as there is a risk of electric shock! Under no circumstances should you try to repair the set yourself, as this will invalidate the guarantee. If a fault occurs, first check the points listed below before taking the set for repair. If you are unable to remedy a problem by following these hints, consult your dealer or service centre.
Page 11
Fitting a mains plug (U.K. only) This apparatus is fitted with an approved 13 Amp plug. To change a fuse in this type of plug proceed as follows: • Remove fuse cover and fuse. • Fix new fuse which should be a BS1362 5A, A.S.T.A. or BSI approved type. •...
