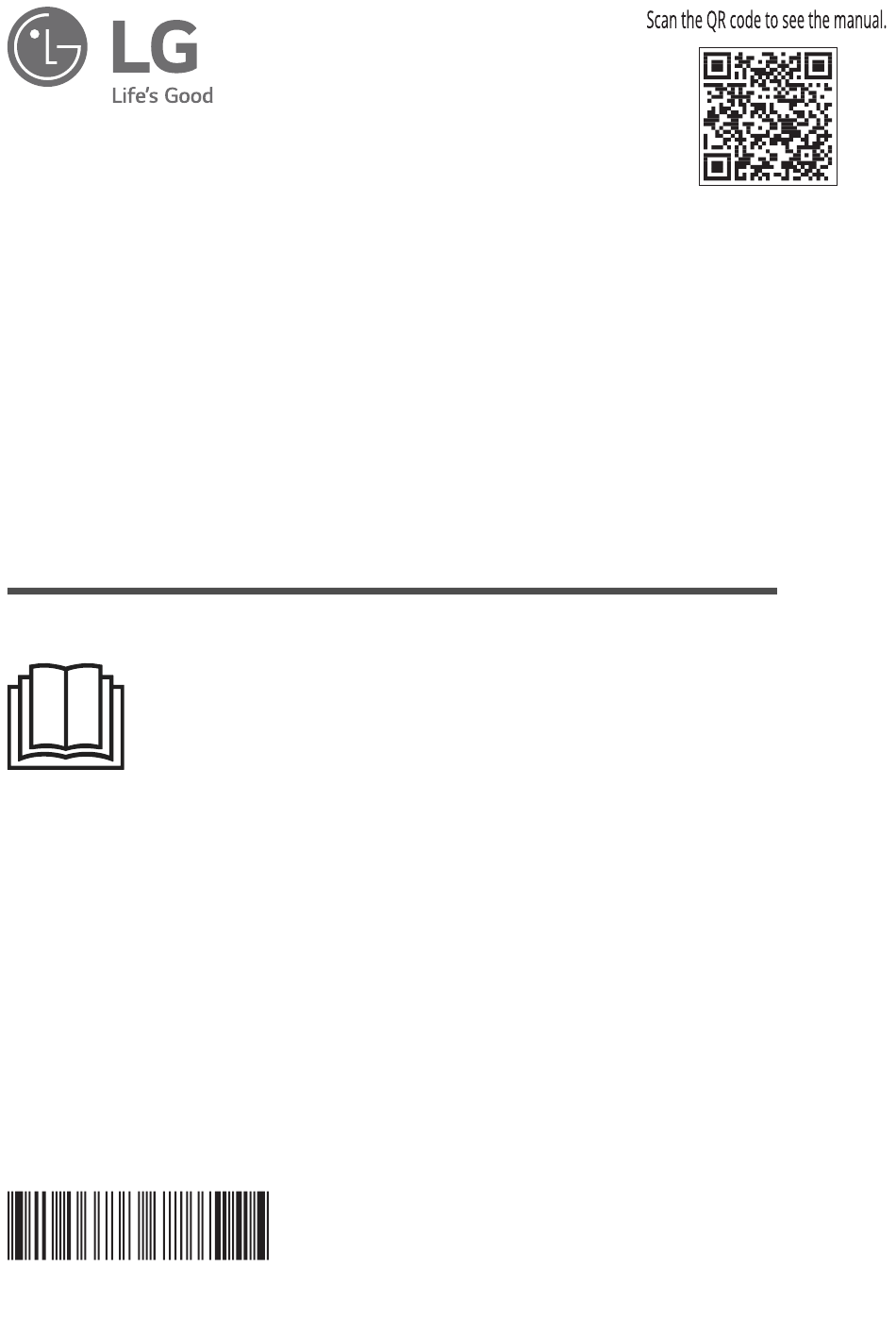

OWNER'S MANUAL
WASHING MACHINE
Before beginning installation, read these instructions
carefully. This will simplify installation and ensure that the
product is installed correctly and safely. Leave these
instructions near the product after installation for future
reference.
ENGLISH
F2Y1TYP6J
MFL72097542
Rev.00_011624
Copyright © 2024 LG Electronics Inc. All Rights Reserved.
www.lg.com
Advertisement
Table of Contents
Related Manuals for LG F2Y1TYP6J
Summary of Contents for LG F2Y1TYP6J
- Page 1 This will simplify installation and ensure that the product is installed correctly and safely. Leave these instructions near the product after installation for future reference. ENGLISH F2Y1TYP6J www.lg.com MFL72097542 Rev.00_011624 Copyright © 2024 LG Electronics Inc. All Rights Reserved.
-
Page 2: Table Of Contents
Control Panel ....................20 Preparing the Wash Load ................22 Adding Detergents and Softeners ..............23 Programme Table ....................25 Extra Options and Functions ................28 SMART FUNCTIONS LG ThinQ Application ..................30 Smart Diagnosis ....................30 MAINTENANCE Cleaning After Every Wash................31 Cleaning the Appliance Periodically ..............31 TROUBLESHOOTING... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USE The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the appliance. The guidelines are separated into ‘WARNING’ and ‘CAUTION’ as described below. Safety Messages This symbol is displayed to indicate matters and operations that can cause risk. - Page 4 SAFETY INSTRUCTIONS • Children should be supervised to ensure that they do not play with the appliance. • If the power cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
- Page 5 SAFETY INSTRUCTIONS • This appliance is equipped with a power cord having an equipment- earthing / grounding conductor (earthing pin) and a grounding power plug. The power plug must be plugged into an appropriate outlet socket that is installed and earthed / grounded in accordance with all local codes and ordinances.
- Page 6 • Do not touch the door during a high temperature programme. • In case of a water leak from the appliance or flood, disconnect the power plug and contact the LG Electronics customer information centre. • Turn off water taps to relieve pressure on hoses and valves and to minimize leakage if a break or rupture should occur.
- Page 7 • Only qualified service personnel from LG Electronics service centre should disassemble, repair, or modify the appliance. Contact an LG Electronics customer information centre if you move and install the appliance in a different location.
-
Page 8: Installation Parts And Specifications
INSTALLATION INSTALLATION Parts and Specifications NOTE • Appearance and specifications may change without notice to improve the quality of the appliance. Front View Rear View Control Panel Power Plug Detergent Dispenser Drawer Transit Bolts Drum Drain Hose Door Cover Cap Drain Plug Drain Pump Filter Levelling Feet... - Page 9 INSTALLATION Specifications Model F2Y1TYP6J Power Supply 220‒240 V~, 50 Hz Product Weight 55 kg Dimension(mm) 1030...
- Page 10 INSTALLATION Accessories Cold Supply Hose Anti–slip Sheets*1 Spanner Elbow Bracket for Securing Drain Hose Caps for Covering Transit Bolt Holes Tie Strap*1 *1 The included accessories vary depending on the model you purchased.
-
Page 11: Installation Place Requirements
INSTALLATION Installation Place Index Clearance (mm) Requirements Before installing the appliance, check the following information to make sure that the appliance should be installed in a correct place. WARNING Installation Location • This appliance must only be used for domestic household purposes and should not be used in •... -
Page 12: Unpacking The Appliance
INSTALLATION grounded/earthed in accordance with all local NOTE codes and ordinances. • You can purchase rubber cups (part No. 4620ER4002B) from the LG service centre. Unpacking the Appliance Ventilation Lifting the Appliance Off the Foam Base • Make sure that air circulation around the... -
Page 13: Levelling The Appliance
INSTALLATION Levelling the Appliance Starting with the bottom two transit bolts use the spanner (included) to fully loosen all Checking the Level transit bolts by turning them counterclockwise. When pushing down the edges of the top plate diagonally, the appliance should not move up and down at all (check both directions). - Page 14 • Do not install the washing machine on a plinth, Failure to do so may cause vibration or noise. stand or elevated surface unless it is manufactured by LG Electronics for use with this model. Using Anti-Slip Sheets This feature may vary depending on the model Check if the appliance is perfectly level using a purchased.
-
Page 15: Connecting The Water Supply Hose
• Do not attach the adhesive side of anti- slip sheets to the feet of the appliance. NOTE • Additional anti-slip sheets are available at LG Electronics service centre. Connecting the Hose to the Water Tap Connecting Screw-Type Hose to Tap with Thread... - Page 16 INSTALLATION Connecting Screw-Type Hose to Tap Without Connecting One Touch Type Hose to Tap Thread Without Thread Loosen the 4 fixing screws Unscrew the adapter ring plate and loose the 4 fixing screws. Remove the guide plate if the tap is too large to fit the adapter.
-
Page 17: Installing The Drain Hose
INSTALLATION connector latch plate. Make sure the adapter • Make sure that the hose should not be kinked or locks into place. trapped. Installing the Drain Hose Installing the Drain Hose with the Elbow Bracket The drain hose should not be placed higher than 100 cm above the floor. - Page 18 INSTALLATION • When installing the drain hose to a sink, secure it tightly with string.
-
Page 19: Operation Operation Overview
OPERATION OPERATION Operation Overview Add cleaning products or detergent and softener. Using the Appliance • Add the proper amount of detergent to the detergent dispenser. If desired, add bleach Before the first wash, select the Cotton wash or fabric softener to the appropriate areas of programme and add a half amount of the the dispenser. -
Page 20: Control Panel
OPERATION Control Panel The actual control panel may differ from model to model. Control Panel Features Description Power On/Off Button • Press this button to turn the washing machine on or off. Programme Knob • Programmes are available according to the clothes type. •... - Page 21 OPERATION Time and Status Display Description Estimated Time Remaining • When a washing programme is selected, the default time for that programme is displayed. This time will change as options are selected. • If the display shows , then the time will be displayed after the load sensing has detected the load size.
-
Page 22: Preparing The Wash Load
OPERATION Preparing the Wash Load NOTE Sort the wash load for best washing results, and • The dashes under the symbol give you then prepare the clothes according to the symbols information about the type of fabric and the on their care labels. maximum allowance of mechanical stress. -
Page 23: Adding Detergents And Softeners
OPERATION Adding Detergents and NOTE Softeners • Do not let the detergent harden. Doing so may lead to blockages, poor rinse performance or Detergent Dosage odour. • Full load: According to manufacturer’s • Detergent should be used according to the recommendation. - Page 24 OPERATION • Be careful not to get a hand caught in the Open the door and put detergent tablets into drawer while closing. the drum before loading the clothes. • It is normal for a small amount of water to remain in the dispenser compartments at the end of the cycle.
-
Page 25: Programme Table
OPERATION Programme Table Washing Programme Cotton 40 ℃ ( (Cold) to 95 ℃) Max. Load: Rating Description Washes normally soiled clothes by combining various drum motions. Cotton+ 60 ℃ ( (Cold) to 60 ℃) Max. Load: Rating Description Washes normally soiled clothes by combining various drum motions with less energy consumption than Cotton programme with comparable settings. - Page 26 OPERATION Tub Clean Description This function helps clean the inside of your appliance's tub. Rinse+Spin Max. Load: Rating Description Rinses and spins clothes. Use fabric softener if needed. NOTE • Select the appropriate water temperature for chosen wash programme. Always follow garment manufacturer’s care label or instructions when washing to avoid damage to clothes.
- Page 27 OPERATION Selectable Maximum Spin Speed Spin Speed Programme Default Available Cotton 1200 rpm Cotton+ 1200 rpm Mixed Fabric 1000 rpm Quick 30 800 rpm Allergy Care 1200 rpm Activewear 800 rpm Up to 800 rpm Hand/Wool 800 rpm Up to 800 rpm Delicates 800 rpm Up to 800 rpm...
-
Page 28: Extra Options And Functions
OPERATION Extra Options and Press the Power button. Functions You can use the extra options and functions to Add detergent. customize the programmes. Customizing a Washing Select a washing programme. Programme Each programme has default settings that are Customize the washing programme (Temp., selected automatically. - Page 29 OPERATION Settings Press the Power button. Child Lock Use this option to disable the controls. This Select a washing programme. function can prevent children from changing cycles or operating the appliance. Press and hold the Delay End button for 3 NOTE seconds.
-
Page 30: Smart Functions
SMART FUNCTIONS SMART FUNCTIONS LG ThinQ Application • Launch the LG ThinQ application and select the Smart Diagnosis feature in the menu. Follow the instructions for audible diagnosis provided The LG ThinQ application allows you to in the LG ThinQ application. -
Page 31: Maintenance
MAINTENANCE MAINTENANCE WARNING • Unplug the appliance before cleaning to avoid the risk of electric shock. Failure to follow this warning may result in serious injury, fire, electric shock, or death. • Never use harsh chemicals, abrasive cleaners, or solvents to clean the appliance. They may damage the finish. - Page 32 MAINTENANCE Cleaning the Water Inlet Filter Run this function once a month (or more often if needed) to reduce build-up of detergent and The water inlet filter collects lime or any sediment softener and other residue. that may be in water that is supplied to the •...
- Page 33 MAINTENANCE Allow the water to cool before cleaning the drain Unscrew the drain pump filter slowly to drain pump filter. Open the door in an emergency or the remaining water and then proceed to perform an emergency water evacuation. remove any debris or objects from the filter. Unplug the appliance.
- Page 34 MAINTENANCE check for build-up of cleaning products once or twice a month. Remove the detergent dispenser drawer by pulling the drawer straight out until the drawer stops. • Then gently pull the drawer outward while pressing hard the disengage button. Remove the build-up of detergent and softener.
-
Page 35: Troubleshooting
Operation of your appliance can lead to errors and malfunctions. The following tables contain possible causes and notes for resolving an error message or malfunction. It is recommended to read the tables carefully below in order to save your time and money that may cost for calling to LG Electronics service centre. - Page 36 WATER OUTLET ERROR • Check and clean the drain filter. Door sensor malfunctions. DOOR ERROR • Please call LG service centre. You can find your local LG service centre phone number in the warranty card. This is a control error. CONTROL ERROR •...
- Page 37 TROUBLESHOOTING Symptoms Possible Cause & Solution Vibrating noise The clothes may be unevenly distributed in the drum. • Pause the programme and redistribute the clothes after the door unlocks. Not all levelling feet are resting firmly and evenly on the floor. •...
- Page 38 TROUBLESHOOTING Symptoms Possible Cause & Solution Appliance does not Control needs to be reset. operate. • Press the Power button, then reselect the desired programme and press the Start/Pause button. Start/Pause was not pressed after a programme was set. • Press the Power button, then reselect the desired programme and press the Start/Pause button.
- Page 39 TROUBLESHOOTING Symptoms Possible Cause & Solution Detergent is not Drain Pump Filter may be blocked. dispensed completely • Clean the Drain filter. or not dispensed at all. Cycle time is longer The load is too small. than usual. • Add more items to allow the appliance to balance the loads. Heavy articles are mixed with lighter items.
- Page 40 TROUBLESHOOTING Symptoms Possible Cause & Solution Wrinkling Hot and cold water supply hoses are reversed. • Hot water rinse can set wrinkles in garments. Check the supply hose connections. Spin speed may be too high. • Set the spin speed to suit the garment type. Odour Symptoms Possible Cause &...
- Page 41 Memo...
- Page 42 Memo...
- Page 43 Memo...
