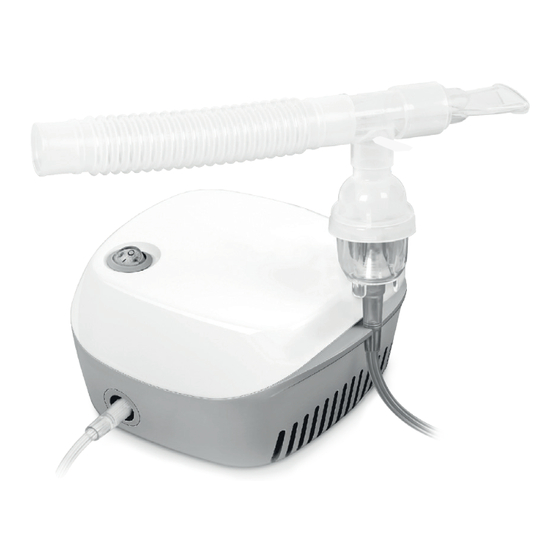

- Page 1 ™ ROSCOE RITE-NEB5 NEBULIZER COMPRESSOR MODELS: RITE-NEB5 RITE-NEB5-REUS RITE-NEB5-REUS-PB Read this instruction manual carefully before use. Save these instructions for future reference.
- Page 2 NEBULIZER COMPRESSOR MODEL: RITE-NEB5 1. Introduction ................. Page 1 2. Specifications ................Page 3 3. Precautions and Warnings ............Page 4 4. Product Identification ..............Page 10 5. Important Safeguards ..............Page 11 6. Operating Your Nebulizer ............Page 12 7.
- Page 3 INDICATIONS FOR USE: It is used to administer various aerosol treatments to adult and pediatric users (2 years and older) in the homecare space. Its use is indicated whenever a physician or healthcare professional administers or prescribes medical aerosol products to a patient using a Small Volume Nebulizer. The intended environment for use of the product is in the patient's home on the order of a physician.
- Page 4 Particle Size: Tubing, Nebulizer Cup, Tee, Mouthpiece, Corrugated Reservoir Tube – Mouthpiece and mask -IP21: this device’s grade of against ingress of solid foreign objects – ≥12.5mm diameter (and the against access to hazardous parts with finger); the grade of waterproof is protected against vertically falling water drops.
- Page 5 3. PRECAUTIONS AND WARNINGS IFU CAUTIONS (to reduce risk of accident) It is important that you read ALL warnings in user manual before use. Use the product only for its intended use as described in the manual. Improper use can result in serious or fatal illness/injury, improper treatment, or property damage DO NOT attempt to operate this product without reading all instructions carefully.
- Page 6 • The compressor motor has a thermal protector, which will shut off the unit before it becomes overheated. When the thermal protector shuts the unit off: A. Switch off the unit B. Unplug the unit from the electrical outlet. C. Wait 30 Minutes for the motor to cool down before starting another treatment.
- Page 7 CLEANING CAUTIONS: • DO NOT immerse the unit in water. It may damage the unit. • Disconnect the unit from the electrical outlet before cleaning. • Clean all necessary parts after each use as instructed in this guidebook. • Disposable nebulizers are NOT dishwasher safe •...
- Page 8 WARNING: To reduce the risk of serious or fatal injury from electrocution: • DO NOT place or store the product where it can fall or be knocked into a bathtub, sink, water, or other liquid. • DO NOT place or drop into water or other liquid. Medical Device •...
- Page 9 • DO NOT open or disassemble the compressor. Refer all servicing to an authorized dealer. • NEVER spray liquids onto the compressor housing. Fluid could cause damage to the electrical and compressor parts, and could lead to a malfunction. In the event that fluids enter the unit, return the product to an authorized medical equipment center for examination and repair.
- Page 10 • Before use, check tubing and accessories for proper assembly. All parts should be seated firmly in place. Use of improperly assembled tubing and accessories could diminish or prevent adequate delivery of medication and the effectiveness of the treatment. WARNING: ALWAYS USE ADULT SUPERVISION WHEN ADMINIS- TERING TREATMENT TO A CHILD.
- Page 11 4. Nebulizer Cap 5. Tee 6. Mouthpiece 7. Corrugated Reservoir Tube Reusable Jet Nebulizer Components (For ages 2 and above) (Included in RITE-NEB5-REUS, RITE-NEB5-REUSPM-PB only) 1. Mouthpiece 2. Cap with Valve 3. Nebulizer Insert 4. Nebulizer Cup 5. Connection Tubing...
- Page 12 CAUTION: Failure to read and observe all precautions could result in personal injury or equipment damage. Product Cautions: Do not immerse the compressor unit in water. It may damage the unit.
- Page 13 6. OPERATING YOUR NEBULIZER 1. Check to ensure the following components of the nebulizer are enclosed: • Compressor unit • Tubing and accessories (see page for illustration of parts) on hand at all times in case original parts become lost, damaged, or soiled.
- Page 14 Disposable Nebulizer Cap Prescribed Medication Figure 3-1 Figure 3-2 Figure 3-3 Mask (optional) Figure 4 8. If using reusable jet nebulizer reference Figure 5 for instructions. Figure 5...
- Page 15 compressor unit. It is important that the tubing be pushed all the way onto the 10. Firmly press the other end of the tubing onto the bottom of the nebulizer cup (Figure 6-2). Nebulizer Air Outlet Figure 6-2 Figure 6-1 11.
- Page 16 OPERATING THE COMPRESSOR NEBULIZER Take the power cord and plug it into an electrical outlet (Figure 7) 120V Figure 7 2. Locate the power switch on the top of the unit. Switch it to the “ON” position as shown below (Fig. 8). Power switch will light up when on. Figure 8 3.
- Page 17 5. Taking deep breaths in, inhale the liquid medication vapor. 6. When liquid medication is depleted, turn the power switch to “OFF” (Fig. 10). Figure 10 CAUTION The compressor is designed for intermittent use only. For optimal performance, operate the unit for 30 minutes on, then leave off for 30 minutes.
- Page 18 Cleaning and disinfection [instructions] for the compressor accessories (including the Compressor, Nebulizer Cup, mouthpiece, mask and connection tubing.) Cleaning the Nebulizer Compressor Accessories After Use Clean the compressor accessories with distilled water. Completely immerse the accessories in 70/30 Isopropyl Alcohol. Soak the accessories in the alcohol for approximately 30 minutes.
- Page 19 LIMITED WARRANTY This warranty is solely for the benefit of the original consumer purchaser. This device was built to exacting standards and carefully inspected prior to shipment. Your Roscoe brand product is warranted to be free of defects in ® materials and workmanship, has a Limited Warranty of 5 years from Particle Size: date of purchase.
- Page 20 Manufactured for Compass Health Brands Corp. 6753 Engle Rd. Middleburg Heights, OH 44130 www.compasshealthbrands.com Phone: 800.376.7263 Made in China 42-RITE-NEB5_04 ©2023...
Need help?
Do you have a question about the RITE-NEB5 and is the answer not in the manual?
Questions and answers
What is the filter cover ?
The filter cover for the Roscoe Medical RITE-NEB5 is a removable part that protects the nebulizer's filter. To change the filter, the cover must be removed, the used filter replaced with a new one, and then the cover reattached.
This answer is automatically generated
@Mr. Anderson Thanks for your response. We assumed the filter belonged somewhere in the attachments, but have discovered one on the bottom of the base unit. Too bad the instructions don't show a filter, or show where it goes
any diagrams? Not sure what a filter cover is
The filter cover for the Roscoe Medical RITE-NEB5 is a component that protects the air filter inside the compressor unit. It must be removed to replace the used filter and then replaced after installing a new one. There are no diagrams available in the provided context.
This answer is automatically generated
Where do you put the filter ? !!
The filter on the Roscoe Medical RITE-NEB5 is located under the filter cover. To replace it, remove the filter cover, replace the used filter with a new one, and then put the filter cover back in place.
This answer is automatically generated
Where does the filter go
The filter on the Roscoe Medical RITE-NEB5 goes inside the filter cover. To replace it, remove the filter cover, replace the used filter with a new one, and then put the filter cover back in place.
