MODEL 50012

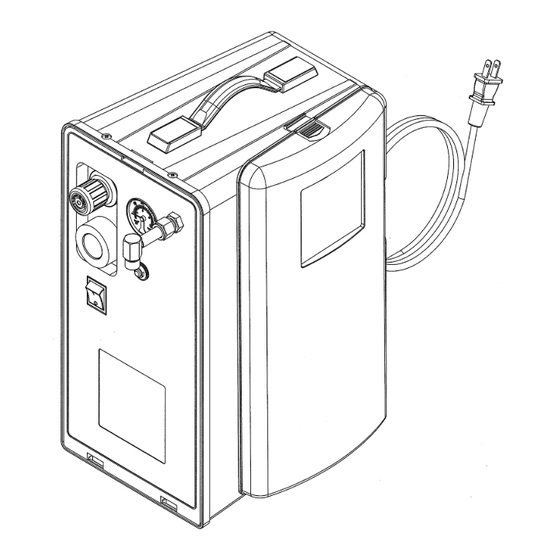

Maverick Heavy Duty Aerosol Compressor
Operator's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 50012 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Roscoe Medical 50012

Summary of Contents for Roscoe Medical 50012

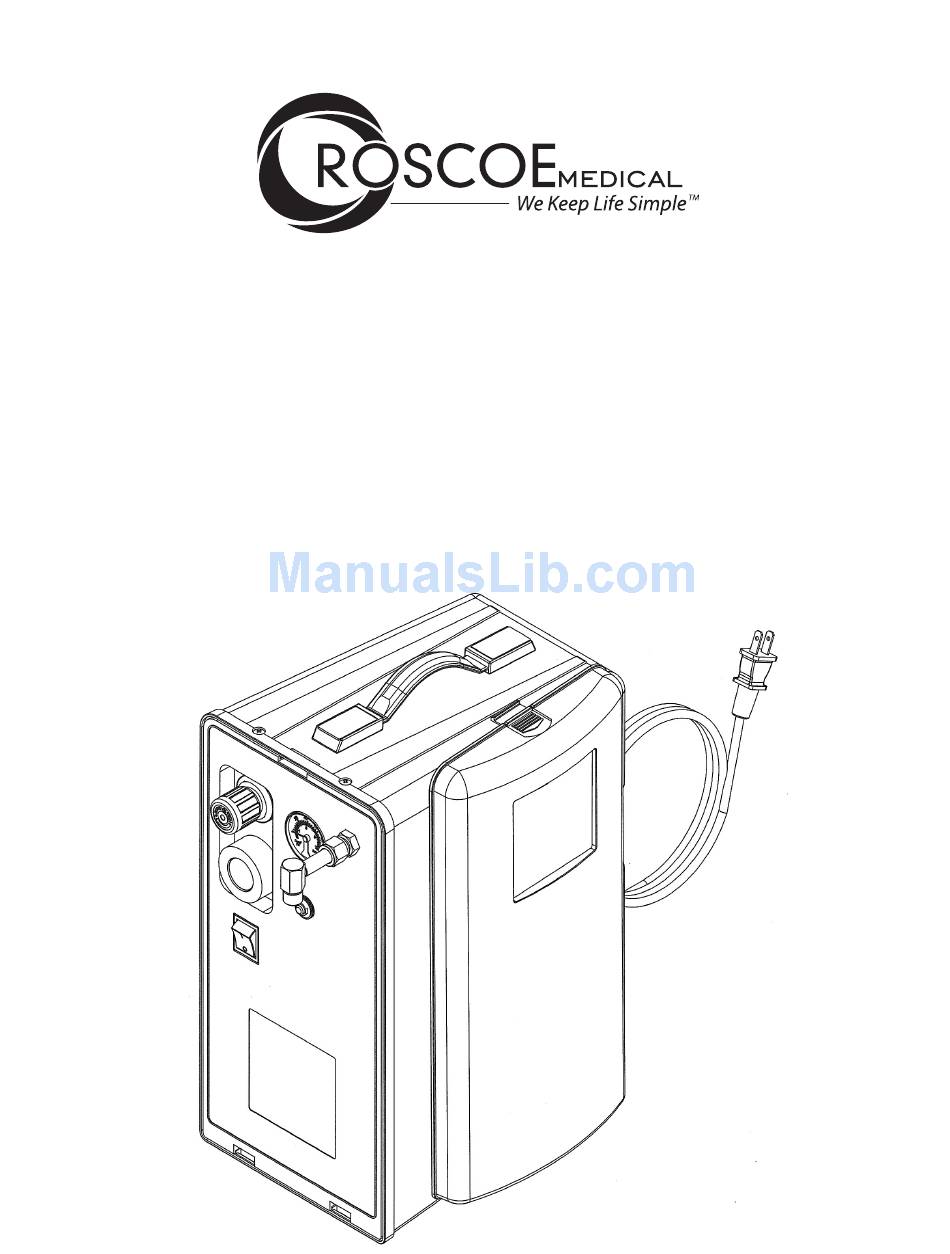

  • Page 1 MODEL 50012 Maverick Heavy Duty Aerosol Compressor Operator’s Manual...
  • Page 2 This page left blank intentionally...

  • Page 3: Table Of Contents

    Inspect. the. unit. thoroughly.. Any. sign. of. damage,.external.or.internal,.should.be.reported.to.your.Homecare.Dealer.immediately. GENERAL INFORMATION This.manual.provides.information.necessary.to.operate.the.Roscoe.Medical.Maverick. Heavy. Duty. Aerosol. Compressor.. This. unit. is. designed. for. efficient,. continuous. high. pressure. performance.. The. Model. 50012. Compressor. provides. high. pressure. which. clinical.studies.have.indicated.are.required.for.optimal.particle.size.(2.microns.or.less)..The. unit.operates.quietly.and.effectively.due.to.the.unique.design.of.the.WOBL.piston..This. unit.operates.using.standard.120.VAC.current,.it.is.easy.to.clean,.very.low.maintenance,. compact,.lightweight,.and.portable..The.unit.is.designed.for.use.with: -.Hand-held.nebulizer.system...

  • Page 4: Safety.precautions

    SAFETY PRECAUTIONS When. using. electrical. products,. especially. when. children. are. present,. basic. safety. precautions. should. always. be. followed.. Read. all. instructions. before. using.. Important. information.is.highlighted.by.these.terms: DANGER Urgent.safety.information.for.hazards.that.will.cause.serious.injury.or.death. WARNING Important.safety.information.for.hazards.that.might.cause.serious.injury. CAUTION Information.for.preventing.damage.to.the.product. NOTE Information.to.which.you.should.pay.special.attention. READ ALL USER’S MANUAL BEFORE USING. SAVE USER’S MANUAL NOTE Connect.power.cord.to.properly.grounded.wall.outlet.or.adapter.

  • Page 5: Basic.operating.components

    BASIC OPERATING COMPONENTS PRESSURE GAUGE (Indicates Pressure) REGULATOR (Determines Pressure Output) INTAKE FILTER OUTLET POWER RESET (Restarts unit POWER CORD after overload) ON/OFF SWITCH (Starts and stops unit) FIGURE 1 “On”.position “Off”.position...

  • Page 6: Operating.instructions

    INITIAL POSITIONING AND INSTALLATION 1.. Select.a.suitable.location.for.the.unit.near.a.120.VAC,15.Ampere,.grounded.power. outlet. 2.. Grasp.handle.on.top.of.cabinet.and.position.the.unit.so.that.operating.controls.are. . accessible.to.the.user.and.back.of.unit.is.away.from.wall. 3.. Make.certain.that.the.power.switch.located.in.the.center.of.the.control.panel.is.in.the. . OFF.position.(Figure.1).and.plug.power.cord.into.grounded.power.outlet.or.grounded. . adapter. 4.. Be.certain.that.all.connections.to.outlet.(i.e..tubing,.nebulizers,.etc.).are.snug.and.not. leaking.aerosol. 5.. When.used.in.conjunction.with.mist.tents,.etc..place.unit.outside.of.tent.and.place. . unit.at.a.level.below.the.discharge.end.of.the.delivery.tubing. OPERATION 1.. Press.Power.On/Off.switch.to.On.position.(Figure.1). 2.. Connect.the.equipment.you.intend.to.use.with.the.Roscoe.Medical.Model.50012. . compressor.and.then.adjust.the.pressure.that.the.unit.is.delivering.by.adjusting.the. regulator.(Figure.1).as.follows: a..Pull.regulator.knob.out.to.unlock.adjustment. b..Turn.dial.of.regulator.to.desired.pressure. . -.clockwise.–.increase.pressure . -.counter.clockwise.–.decrease.pressure c..Push.knob.towards.unit.to.lock.regulator.pressure..-.observe.the.pressure.gauge.-.adjust.up.or.down.to.desired.output.pressure.

  • Page 7: Routine.maintenance

    ROUTINE MAINTENANCE REMOVING AND CLEANING/REPLACING THE FILTERS Pull.air.intake.filter.out.from.front.of.unit.(Figure.2).and.replace.a.new.one.when.dirty..Do. not.wash.it. INTAKE FILTER FIGURE 2...

  • Page 8: Specifications

    SPECIFICATIONS Size.(L).x.(W).x.(H):. 12.2.x.7.7.x.15.3.in..(310.x.196.x.390.mm) Weight:. 17.2.lbs..(7.8.kg) Model 50012 115.VAC Electrical.Requirements .....60.Hz Flowrate.@.Pressure Power.Consumption.(W) @.0.PSI Operating.Temperature.range:. 50º.F.~.104º.F..(10º.~.40º.C) Operating.Relative.Humidity:. ≤95% Storage.&.Transport.Temperature/Relative.Range:..room.condition.preferred Circuit.Breaker:. 5A.125/250.VAC Equipment.Classifications:. With.respect.to.protection.from Electrical.shock.Class.II Electrical.hazard.protection.class:.Type.B Degree.of.protection.against.the.ingress.of.water:.IPX0.-.Protection.is.not.provided. No. AP/APG:. Equipment. not. suitable. for. use. in. presence. of. a. flammable. anaesthetic. mixture.with.air/oxygen.or.nitrous.oxide.

  • Page 9: Troubleshooting

    TROUBLESHOOTING If.the.Roscoe.Medical.Model.50012.Compressor.malfunctions,.refer.to.the.troubleshooting. chart.below.for.probable.cause.and.remedy..If.the.unit.fails.to.operate.correctly.after.using. the.troubleshooting.chart.below,.contact.your.Homecare.Dealer.for.further.assistance. TROUBLESHOOTING CHART PROBABLY. TROUBLE REMEDY CAUSE A..Unit.not.operating 1..Plug.not.firmly.in.wall 1..Check.plug.at.outlet 2..No.power.at.wall.outlet 2..Check.power.source,..fuse.in.house B..Limited.air.flow 1..Faulty.Delivery.Tubing 1..Disconnect.delivery.tubing. . at.outlet..If.proper.flow.is. . restored,.check.equipment. . and.tubing.for.. . obstructions.or.kinks,.. . replace.if.needed 2..Check.fitting.at.outlet.and. 2..Leak . tubing 3..Blocked.intake.filter 3..Replace.air.intake.filter C..All.other.problems 1..Contact.Home.Care.Dealer SYMBOLS UL 60601-1 Table DI, IEC symbols...

  • Page 10: Limited.warranty

    LIMITED WARRANTY The.compressor.portion.of.the.Roscoe.Medical.Model.50012.Compressor.is.warranted. to.be.free.from.defective.workmanship.and.materials.for.a.period.of.18.months.from.date. of.purchase.by.the.dealer,.as.a.result.of.normal.use.and.service.for.purpose.for.which.it. was.intended,.as.determined.by.Roscoe.Medical..Roscoe.Medical.will.replace.the.part. or.parts.so.determined.by.it.to.be.defective.with.new/rebuilt.parts..Any.defective.part(s). will. be. repaired. or. replaced. at. Roscoe. Medical’s. option.. The. Homecare. Dealer. must. obtain.prior.approval.from.Roscoe.Medical.before.returning.the.unit.for.repair. NOTE This.warranty.does.not.cover.providing.a.loaner.unit,.compensating.for.costs.incurred.in. rental.while.said.unit.is.under.repair,.or.costs.for.labor.incurred.in.repairing.or.replacing. defective.part(s). THERE. IS. NO. OTHER. EXPRESS. WARRANTY.. IMPLIED. WARRANTIES,. INCLUDING. THOSE. OF. MERCHANTABILITY. AND. FITNESS. FOR. A. PARTICULAR. PURPOSE,. ARE.
  • Page 11 This page left blank intentionally...
  • Page 12 50012UM...
