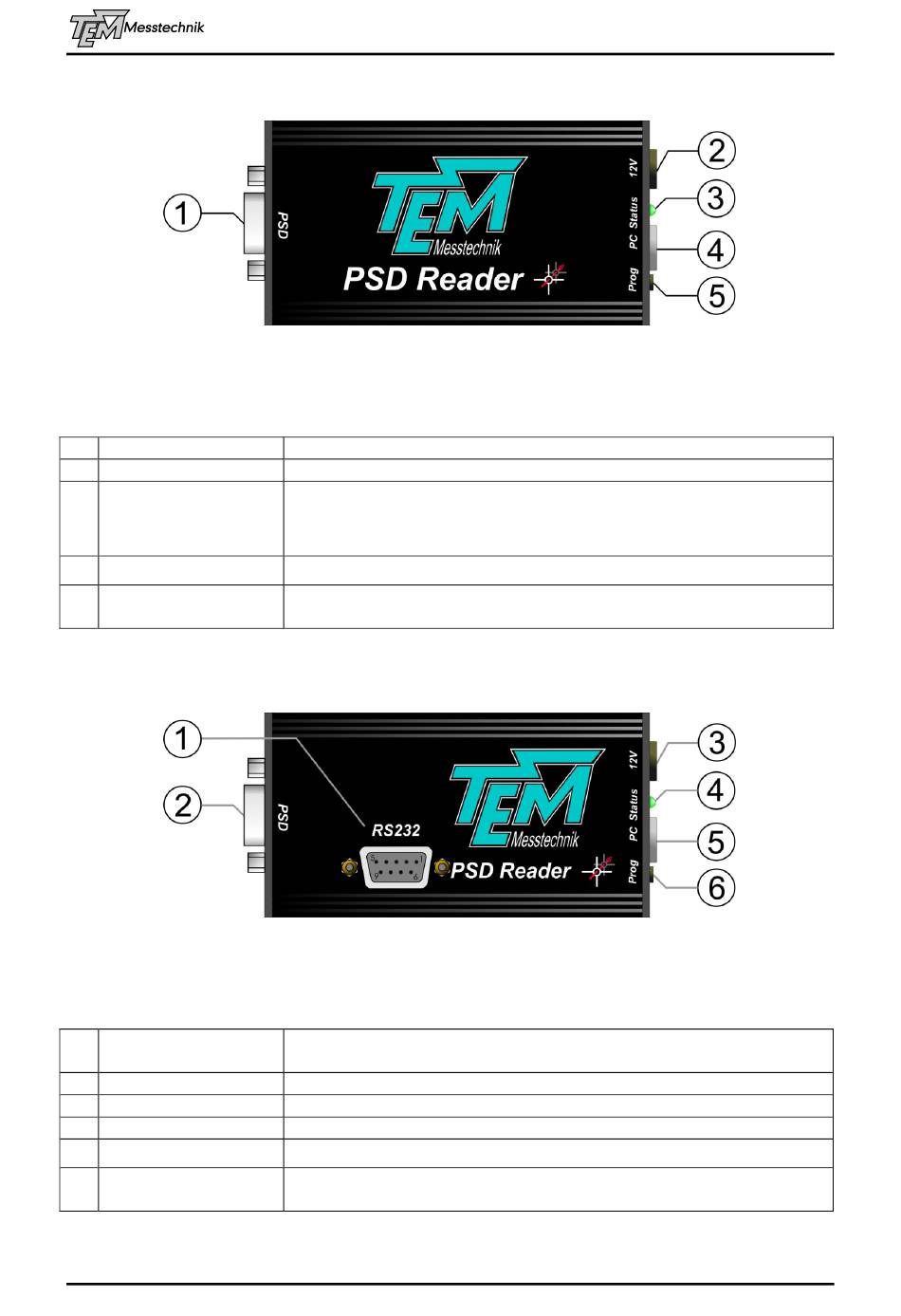

3 Description of the Front Panel Elements

Table 1 Function of the front panel elements
1 PSD input
2 Power plug
3 Status LED
4 USB port
5 Prog Key

3.1 RS232 Version (optional)

Table 2 Function of the front panel elements
1 RS232 port
2 PSD input
3 Power plug
4 Status LED
5 USB port
6 Prog Key
PSD Reader User Manual
Figure 2 Top view of the PSD Reader
HD-15 connector: PSD input, I2C, SPI, supply voltages
Input for coaxial power connector (5,5/2,5 mm)
LED indicator for intensity status:
Slow "breathing": intensity OK
Fast "breathing": intensity too high or too low
USB port for the connection to a PC and the Kangoo software
Hold key and switching on power supply: Enter program mode
In normal use: Perform Autogain
Figure 3 Top view of the PSD Reader
SUB-D 9 Connector for the communication via RS232 to a PC
and the Kangoo software
HD-15 connector: PSD input, I2C, SPI, supply voltages
Input for coaxial power connector (5,5/2,5 mm)
LED indicator for microcontroller activity
USB port for flashing the microcontroller
Hold key and switching on power supply: Enter program mode
In normal use: Perform Autogain
