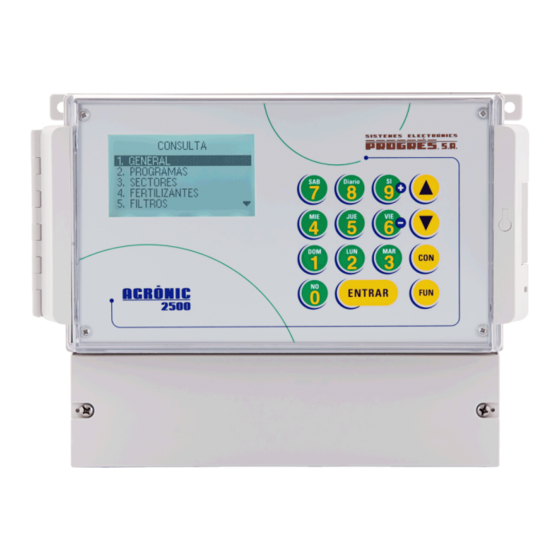

Progres AGRONIC 2500 User Manual
Hide thumbs Also See for AGRONIC 2500:

Advertisement

Quick Links

INSTALLER USER MANUAL
AGRÓNIC 2500
Plus Version
| V3
Sections in the manual:
‒ Functional description
‒ Features
‒ Formats, versions, models and options
‒ Technical specifications
‒ Parameters
‒ Input and output coding
‒ Practical examples
‒ Troubleshooting
‒ Technical support
The Communications Parameters section is detailed in
the Communications Manual.
The sections on Programming, Manual Actions and
Query are detailed in the User Manual.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AGRONIC 2500 and is the answer not in the manual?

Questions and answers

Summary of Contents for Progres AGRONIC 2500

  • Page 1 INSTALLER USER MANUAL AGRÓNIC 2500 Plus Version | V3 Sections in the manual: ‒ Functional description ‒ Features ‒ Formats, versions, models and options ‒ Technical specifications ‒ Parameters ‒ Input and output coding ‒ Practical examples ‒ Troubleshooting ‒ Technical support The Communications Parameters section is detailed in the Communications Manual.
  • Page 2 Welcome to the Agrónic 2500 manual. We are pleased to count on your experience and skills to install the Agrónic 2500. This document will guide you through the process, providing details on the programmer’s features and parameters. Your experience is essential to teach the customer how to effectively use the Agrónic 2500.
  • Page 3: Table Of Contents

    Index Description of basic functions ................4 Features ....................... 5 Formats, versions, models and options ............11 3.1. Formats ....................11 3.3. Versions ....................11 3.2. Models ...................... 11 3.4. Options ..................... 12 Technical specifications ..................13 Parameters ......................14 5.1.
  • Page 4: Description Of Basic Functions

    DESCRIPTION OF BASIC FUNCTIONS The Agrónic 2500 is designed for automating irrigation on small and medium-sized farms (maximum 30 irrigation sectors) where there is a need to open/close sector and master valves, fertilizer control and filters. The farm may have a pressurized water intake or need a drive pump (electric or motor pump).
  • Page 5: Features

    2 FEATURES The Agrónic 2500 is a controller for controlling irrigation, fertilization, pumping and filter cleaning. It detects malfunctions and creates a chronological record of the events. Fully configurable, with multiple possibilities for use, communication and expansion. IRRIGATION Control up to 30 sectors using 50 irrigation programs. Each program can activate 1 to 4 irrigation sectors si- multaneously.
  • Page 6 Description of basic functions FERTILIZATION Configurable from 0 to 4 fertilizers in separate tanks. IRRIGATION Separates pre- and post-irrigation values in each program. FERTILIZER 1 20 L Fertilization units in time (hh:mm or mm:ss) or in FERTILIZER 2 volume (L or L/ha). 30 L Configured to use mixers, with pre-mixing and inter- FERTILIZER 3...
  • Page 7 Description of basic functions FILTER CLEANING Configured for 0 to 9 filters, with selectable cleaning Whether or not the irrigation sectors and fertilizers are times. Programmable pause between filters. stopped while the filters are being cleaned is configu- rable. Washing sequence may be started by the pressure dif- ferential and/or according to the time or volume of the Control over malfunctions due to continuous cleanings.
  • Page 8 Description of basic functions MANUAL Through manual commands, the unit can: • Terminate alarms and malfunctions • start, stop or place a program out of service • Set the sectors to manual, stop or automatic • Suspend a program for a few hours •...
  • Page 9 Description of basic functions READINGS The unit stores all totals in memory that cannot be • Separate history per irrigation sector with the units erased and, optionally, the events history and records in time and the irrigation and fertilizer volumes with the anomalies of the previous days.
  • Page 10 Description of basic functions SUMMARY OF BASIC VERSION FEATURES 2 general pumps or valves, pump 1 can be a generator set or motor Pumping pump Filters 9 filters in a single group Head 4 fertilizers Fertilization Type: series or parallel Units: hh:mm, Liters Sectors Maximum 27 in the base, the rest in AgroBee or AgroBee-L...
  • Page 11: Formats, Versions, Models And Options

    3 FORMATS, VERSIONS, MODELS AND OPTIONS 3.1. FORMATS The Agrónic 2500 has two formats: Formats • box format With plastic box and transparent door Box format to hang on the wall. Built-in format in Agrónic 2509 and 2518 (9 and 18 outputs) •...
  • Page 12: Options

    Formats, versions, models and options | Options 3.4. OPTIONS Options Description Observations The GPRS or WiFi modem option are required. Cloud To use the Agrónic APP or VEGGA, the unit must be registered in “Web platform” License to connect the unit to the (Agrónic APP + cloud.
  • Page 13: Technical Specifications

    4 TECHNICAL SPECIFICATIONS General power supply Voltage 12 Vdc +15% -10% Frequency Power consumption Less than 12.5 W (0.3 W standby) Fuse Input Thermal (PTC) 1.1 Amp. at 25°C, auto-resettable Output power source Voltage From 12 to 24 Vdc or Vac (maximum 30 V) Fuse Input “R+”...
  • Page 14: Parameters

    5 PARAMETERS To install and prepare the unit for operation, enter the ‘Parameters’ section and adapt them to the needs of each installation. To access the menu, press ‘Function’ on the keypad, If a menu has more than 5 lines, the ‘↓’ symbol will be select 4.
  • Page 15 Parameters | Fertilization Fertilizer mixer (yes | no): each fertilizer can be assigned a separate mixer. Indicate which fertilizers have a mixer. Pre-mixing (000 ... 999”): time that the fertilizer will be stirred before starting fertilization. Pre-mixing comes in before the program starts. If it is less than 10 minutes since the last irrigation, do not start the pre-mixing.
  • Page 16 Parameters | Fertilization User Manual | Agrónic 2500...
  • Page 17 Parameters | Fertilization User Manual | Agrónic 2500...
  • Page 18: Filters

    Parameters | Filters 5.2. FILTERS Units between cleanings (0000 ... 9999): the irrigation The Agrónic can control the filter cleaning. Cleaning time or volume that must pass through the filters for can be started manually or automatically. It starts au- automatic cleaning to begin.
  • Page 19: General

    Parameters | General 5.3. GENERAL The pump, fertilizers, filter and diesel outputs are con- figured in this section. The outputs can be from the base of the Agrónic 2500, a Video tutorial recommended option and from external modules such available for as the AgroBee-L, an option not recommended due to this section the activation and deactivation delays they may have.
  • Page 20: Diesel Option

    Parameters | Filters MF: output connected to the pump or general fertilizer. A1, A2, A3, A4: outputs connected to the mixers. Example LF: output connected to the fertilizer cleaning valve. An installation with 4 filters, in which the assigned Filter cleaning. outputs would be: l1 output 10, L2 output 9, L3 output 8 and L4 output 7.
  • Page 21 Parameters | Filters Stop (000 ... 999”): time that the stop output is activated Contact and Preheating outputs. If the Agrónic is dual (Pa) to stop the diesel pump. voltage, these outputs are assigned automatically to the last four of the unit. Pump input (000 ...
  • Page 22: Programs

    Parameters | Programs 5.4. PROGRAMS • mm’ss”: minutes and seconds. The programs are those that manage crop irrigation and fertilization. They control the opening and closing • hh:mm/ha: time per hectare. The expected flow of sectors and fertilization. The Agrónic 2500 has 50 rate and the area of each sector must be config- programs.
  • Page 23 Parameters | Programs Priority (0 ... 9): when a program starts and another is Safety time between starts (00:00 ... 23:59): when the irrigating, the one with the highest priority irrigates program starts due to a determining factor, it cannot and the other is postponed.
  • Page 24: Sectors

    Parameters | Sectors 5.5. SECTORS Output No.: the second question corresponds to the The sectors are the outputs where the irrigation valves auxiliary digital output. It may be common with other are connected. The sectors are related to pumps and sectors.
  • Page 25 Parameters | Sectors sensor to detect the passage of flow. This sensor SECTOR PARAMETERS generates record 60 in the following cases: when Sector 01 the sector is activated and no water passes or when Meter No.: 01 the sector is stopped and water passes. The delay time before registration is configured in the installer Sector 01 parameter.
  • Page 26: Determining Factors

    Parameters | Determining factors 5.6. DETERMINING FACTORS • End due to rain: when it has rained a certain The determining factors are controls that act on ir- amount, irrigation does not start or stops if it is rigation programs and records based on the value of active.
  • Page 27 Parameters | Determining factors Relation between types of determining factors and the origin that can be used: Digital sensor Analog sensor Meter sensor Origin Type Flow error origin origin origin origin Communication ✅ ✅ ✅ ✅ ✅ Definitive stop ✅ ✅...
  • Page 28: Definitive Stop / Temporary Stop

    Parameters | Determining factors 5.6.1 Definitive stop / Temporary stop Definitive stop Origin: flow error Stops associated programs until manually reset. Start-up delay (0000 ... 9999”): when a program starts during this time, the determining factor is not calculated. To reset it, go to ‘Function - 2. Manual - 6. Terminate stops’.
  • Page 29: Conditional Stop

    Parameters | Determining factors 5.6.2 Conditional stop For the associated programs while the determining Origin: communication factor is active. When it becomes inactive, it continues Use the communication status with the AgroBee, the with the program at the point where it was. PC or Cloud.
  • Page 30: Start - Start And Stop

    Parameters | Determining factors 5.6.3 Start – Start and Stop sensor is activated for a period of time. Start Starts the associated programs when the determin- Origin: analog sensor and meter sensor ing factor is activated. This determining factor can be Reference: sensor value from which the determining limited with the program’s active schedule.
  • Page 31: Warning

    Parameters | Determining factors 5.6.4 Warning The Warning does not act on programs. It only makes Origin: flow error a record when it is activated and when it is deactivat- High margin (000 ... 100 %): the determining factor is ed.
  • Page 32: Modify Irrigation - Modify Fertilizer

    Parameters | Determining factors 5.6.5 Modify irrigation – Modify fertilizer Increase or decrease the irrigation or fertilizer units Origin: meter sensor, total depending on the value of the determining factor. The accumulation of a meter sensor can be the rain The modification is made when the program is started.
  • Page 33: End Due To Rain

    Parameters | Determining factors 5.6.6 End due to rain It does not allow irrigation to start, or stops it if it is the number of hours back that should be taken into irrigating, when the rain reaches a certain amount. account.
  • Page 34: Filter Pressure Gage

    Parameters | Determining factors 5.6.7 Filter pressure gage A differential pressure gage is needed to start filter Origin: analog sensor cleaning when the pressure between the input and Reference: sensor value from which the determining output drops. This determining factor assigns the factor is activated or deactivated.
  • Page 35: Diesel Pressure Gage

    Parameters | Determining factors 5.6.8 Diesel pressure gage It is only used if the diesel option is activated. The Detection delay (0000 ... 9999”): the time that the deter- pressure gage is a digital sensor that is activated when mining factor must remain to activate or deactivate the the diesel pump is startning.
  • Page 36: Stop Fertilizer

    Parameters | Determining factors 5.6.9 Stop fertilizer Stops fertilization and associated programs until the Origin: flow error next start, irrigation continues without fertilization. Delay with no pulse (000 ... 255’): time in minutes that The fertilizer units remaining in the program are lost. must transpire without receiving pulses from the meter It can only be activated if there is an associated irri- to activate the determining factor.
  • Page 37: Sensors

    Parameters | Sensors 5.7. SENSORS There are three types of sensors: Analog: current (4-20 mA) or voltage (0-20 V) sensors SENSOR PARAMETERS connected to analog inputs, SDI12 units or AgroBee or 1. Digital AgroBee-L modules. There can be a total of 40. 2.
  • Page 38: Analog Sensors

    Parameters | Sensors 5.7.2 Analog sensors An analog sensor acts by delivering current or a voltage Formats proportional to what it measures. Example: tempera- ANALOG SENSOR PARAMETERS ture, radiation, pressure, wind, humidity, etc. Format: 01 No. of integers: 3 ANALOG SENSOR PARAMETERS No.
  • Page 39 Parameters | Sensors FORMATS – Default configuration Sign Units Description Integers Real Real Real Real Logic Logic Logic Logic Decimals (mV) (mV) (mV) (mV) °C Temperature +/- 3.1 -30.0 4000 +60.0 W/m2 Radiation 4000 2000 Soil moisture cbar 2326 40.2 3422 85.5 4000...
  • Page 40: Meter Sensors

    Parameters | Sensors 5.7.3 Meter sensors A meter sensor receives information about the water Type (Digital | Rain Gauge): volume and flow and rainfall, in the case of rainfall • digital: the meter closes a contact, producing a gages, that passes through the pipe. pulse each time a known volume of water passes.
  • Page 41: Various

    PIN code: 0000 again. If the correct code is not entered three times, the Agrónic is blocked and the deactivation code (PUK) is requested. To get the code, please contact Progres. Screen Even if the Agrónic is blocked, the programs continue Automatic shut-off (Yes ...
  • Page 42: Installer

    Parameters | Installer 5.9. INSTALLER Urgent send (Yes ... No): only used if the GPRS modem is This section shows the least-common parameters to deactivated on a schedule. change once the unit has been installed. • Yes: if the modem is deactivated, it is activated to The input to this section is protected with an access send the SMS and deactivated again.
  • Page 43: Communications

    Parameters | Installer active schedule in ‘Function - 1.Program’. • Pump1-Latch time (93.7 | 125.0 | 156.2 | 187.5 | 218.7 | 250.0 | 281.2 | 312.5 | 343.7 | 375.0 | 406.2 | 437.5 | 468.7 | • Active period (Yes ... No): with ‘Yes’ it will request 500.0): latch trigger time for P1.
  • Page 44: Solar Irrigation

    Parameters | Solar irrigation 5.10. SOLAR IRRIGATION Activated (Yes ... No): Solar irrigation is used when the installation has a hybrid power system: grid power or diesel and solar • Yes: the installation has a hybrid power system. panels. • No: the installation has a single power system.
  • Page 45: Input And Output Coding

    6 INPUT AND OUTPUT CODING The inputs and outputs are coded in a way that makes it easy to indicate where they are located; There are five digits in total. The most significant indicates the unit: base, AgroBee or AgroBee-L, the next two digits for the AgroBee, AgroBee-L module number or internal values and the last two for the input or output number.
  • Page 46 ANALOG INPUTS 0 00 00 Description 01 - 02 4-20 mA inputs. Extension on the base. Option 2 EA 01: internal temperature 0: Base 01 - 03 02: input voltage 03: modem/WiFi RSSI level 01 - 04 4-20 mA inputs. Extension on the base. SDI-12 + 4EA option 01 to 12: depends on the AgroBee model 13: battery voltage 1: AgroBee...
  • Page 47: Practical Examples

    7 PRACTICAL EXAMPLES The examples in the manual are summarized. To see the step-by-step explanation of how to do it, please go to our website. There are many more examples that may be useful to you. Configure the irrigation meter Create an anti-frost program First find out which digital input the meter is connected First find out which analog input the temperature...
  • Page 48: Troubleshooting

    8 TROUBLESHOOTING These are the most common problems and we attempt to provide the solution to facilitate the installation process. An output is not activated An input is not read from the base Go to ‘Consult - 9. Agrónic’ and check that there is Go to ‘Consult - 9.
  • Page 49: Technical Support

    9 TECHNICAL SUPPORT Apart from this manual, the Agrónic 2500 has other manuals, instruction videos, tips and fre- quently asked questions on the Progrés website, Technical Support section. Assembly and Communications connection manual manual r2465 r1850 Intended for those who physically install Intended for installers who configure the Agrónic on the farm or in the electri- communications with the cloud for...
  • Page 50 Pivot manual Solar irrigation manual r2485 r2006 For the installer and end user who uses Intended for the installer and user who the unit for pivot control. uses hybrid solar irrigation systems (panels + generator set). See manual See manual Installing the options Installation Option GPRS Installation Option USB (r1933)
  • Page 51 10 FUNCTION SCREEN FUNCTION 1. PROGRAMS 2. MANUAL 3. READINGS 4. PARAMETERS 5. PIVOTS ENTER ENTER ENTER ENTER PROGRAMS MANUAL READINGS PARAMETERS P01 – S03 S04 1 Out of service 1 Totals 1 Fertilization P02 – S05 2 STOP 2 Anomalies 2 Filters P03 –...
  • Page 52: Function Screen

    11 PARAMETERS SCREEN ENTER ENTER ENTER ENTER FILTER PARAMETERS GENERAL PARAMETERS PROGRAM PARAMETERS FERTILIZATION PARAMETERS No. of filters 5 Pump 1: yes Program No. 12 No. fertilizers: 4 Initial wait: 000” Temp. start: 018” Start type: [schedule] General fertilizer: yes Activation time Temp.
  • Page 53: Parameters Screen

    ENTER ENTER SENSOR PARAMETERS VARIOUS PARAMETERS 1 Digital Screen: 2 Analog automatic shut-off: yes 3 Meters Illumination: yes Contrast: 5 Keypad: sound level: 2 PIN Security PIN code: 0000 ENTER ENTER ENTER DIGITAL SENSORS PARA. ANALOG SENSORS PARA. METER SENSORS PARA. 1 Sensors Sensor: 01 Sensor: 01...
  • Page 54 SPACE RESERVED FOR THE USER Use this space to record information such as the parameters entered into the controller, drawings, program information, determining factors, alarms, etc. User Manual | Agrónic 2500...
  • Page 56 Compensation for direct and indirect damage caused by the use of the unit is excluded from the guarantee. Sistemes Electrònics Progrés, S.A. Polígon Industrial, C/ de la Coma, 2 | 25243 El Palau d’Anglesola | Lleida | Spain Tel. 973 32 04 29 | info@progres.es | www.progres.es R-2468...
