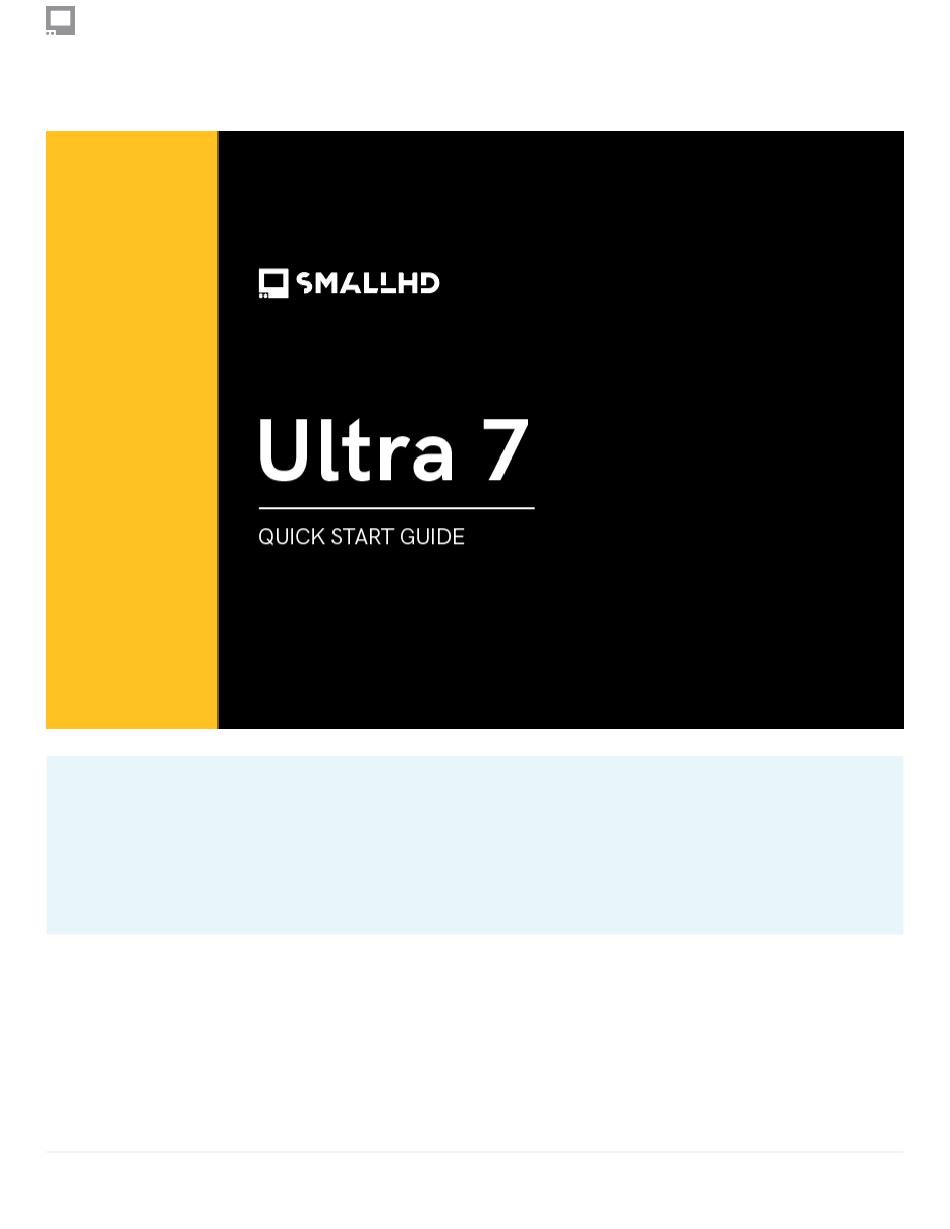

SmallHD User Manual
Ultra 7 Quick Start Guide
Rugged, powerful, and feature-rich, the Ultra 7 offers 2300 nits of brightness, 6G SDI that allows you
to ingest 4K signal, a 2-pin power passthrough for cleaner builds, an Ethernet port for camera
control, plus a joystick and tactile physical buttons for control in any conditions. Utilize all your
favorite PageOS tools, functions, and settings pages on a fully loaded 7-inch touchscreen monitor.
Ultra 7 Quick Start Guide
Page 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Small HD Ultra 7
Summary of Contents for Small HD Ultra 7
- Page 1 SmallHD User Manual Ultra 7 Quick Start Guide Rugged, powerful, and feature-rich, the Ultra 7 offers 2300 nits of brightness, 6G SDI that allows you to ingest 4K signal, a 2-pin power passthrough for cleaner builds, an Ethernet port for camera control, plus a joystick and tactile physical buttons for control in any conditions.
-
Page 2: Table Of Contents
SmallHD User Manual TABLE OF CONTENTS ACTIVATE WARRANTY ..........................3 PHYSICAL PROPERTIES ..........................3 POWER AND CONNECT ..........................4 PAIRING PAGEOS OVERVIEW ............................ 6 • General Layout ............................6 • Basic Navigation ........................... 7 • Input and Output ..........................11 •... -
Page 3: Activate Warranty
(you may need to remove your battery to see it). You will also want to have a copy of your invoice from your purchase to confirm the purchase date. PHYSICAL PROPERTIES Ultra 7 Quick Start Guide Page 3... -
Page 4: Power And Connect
1. Connect power to the monitor using a 2-pin Locking Connector to D-Tap or Wooden Camera Micro Battery Plate. 2. Press the power button. SIGNAL • Video signals via HDMI up to 4Kp30 • 6G SDI In/Out up to 4Kp30 for 4K workflows • Screen resolution at 1920x1200 Ultra 7 Quick Start Guide Page 4... - Page 5 PAIRING ULTRA 7 TX/RX Ultra 7 transmitters and receivers can be paired with each other, or with Teradek's Bolt 6 Monitor TX and RX Modules using either the Ultra 7's UI or Bolt App. Pairing/Unpairing via Ultra 7 Monitor TO PAIR: 1.
-
Page 6: Pageos Overview
The PageOS interface allows users to configure and assign specific image-analyzing tools and/or features to up to eight customizable pages. Users can access those tools by navigating to the corresponding page on the monitor, instead of enabling or disabling features individually. General Layout Ultra 7 Quick Start Guide Page 6... -
Page 7: Basic Navigation
The Dashboard provides access to the most commonly used settings such as Input, Volume, and Backlight. The Dashboard can be disabled via Full Settings > Dashboard. Basic Navigation Touch Screen PageOS has an easy-to-navigate touchscreen that works just like your smartphone. Ultra 7 Quick Start Guide Page 7... - Page 8 To enable EL Zone, make sure you create a color pipe in your monitor's settings menu. You will need to send the monitor a LOG signal and select the log signal that you will be sending it. NOTE: Make sure you select "Do Not Convert" in the Color pipe options. Ultra 7 Quick Start Guide Page 8...
- Page 9 Ultra 7 Quick Start Guide Page 9...
- Page 10 EI, ND, FPS, WB, and SHUTTER can be changed by interacting with the corresponding overlay from the camera. If you tap one of these fields, the monitor will display a drop-down list to change it to a different value Ultra 7 Quick Start Guide Page 10...
-
Page 11: Input And Output
Select a backlight level that suits your viewing environment to maximize contrast and viewability. Calibration Calibration ensures chrominance and luminance accuracy that can be relied upon for critical color decisions. Appearance Apply sharpening to the video data, if desired Ultra 7 Quick Start Guide Page 11... -
Page 12: Controls
Adjust the audio output level for the headphone jack and/or monitor speaker. Image Rotate Image Rotate options enable upside-down mounting - or enable Mirroring for when the monitor must face the subject. Interlace These options control how interlaced footage is displayed. Ultra 7 Quick Start Guide Page 12... -
Page 13: Capture
UI Lock Once enabled, pressing and holding on the touchscreen for five seconds will lock the UI. Repeating the process will unlock the UI. Language Change the language of the internal menu system. Ultra 7 Quick Start Guide Page 13... -
Page 14: User
Set a custom name for your monitor, to make it more easily recognizable. Profiles Save or load the entire monitor’s configuration to an SD card, great for keeping consistent settings across several monitors. Ultra 7 Quick Start Guide Page 14... -
Page 15: System
Reset the monitor settings to their original factory settings, with the option to clear registration and calibration. Licenses Follow the on-screen prompts to install your purchased license keys (for example, Control for KOMODO). Compliance CE, FCC, UKCA Ultra 7 Quick Start Guide Page 15... -
Page 16: Additional Resources And Fcc Rules/Regulations
SmallHD User Manual ADDITIONAL RESOURCES AND FCC RULES/REGULATIONS Ultra 7 Quick Start Guide Page 16...
