Ronix RP-4100 Manual

Multi-functional cleaning equipment
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
MULTI-FUNCTIONAL CLEANING EQUIPMENT
RP-4100

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RP-4100 and is the answer not in the manual?

Questions and answers

Related Manuals for Ronix RP-4100

Summary of Contents for Ronix RP-4100

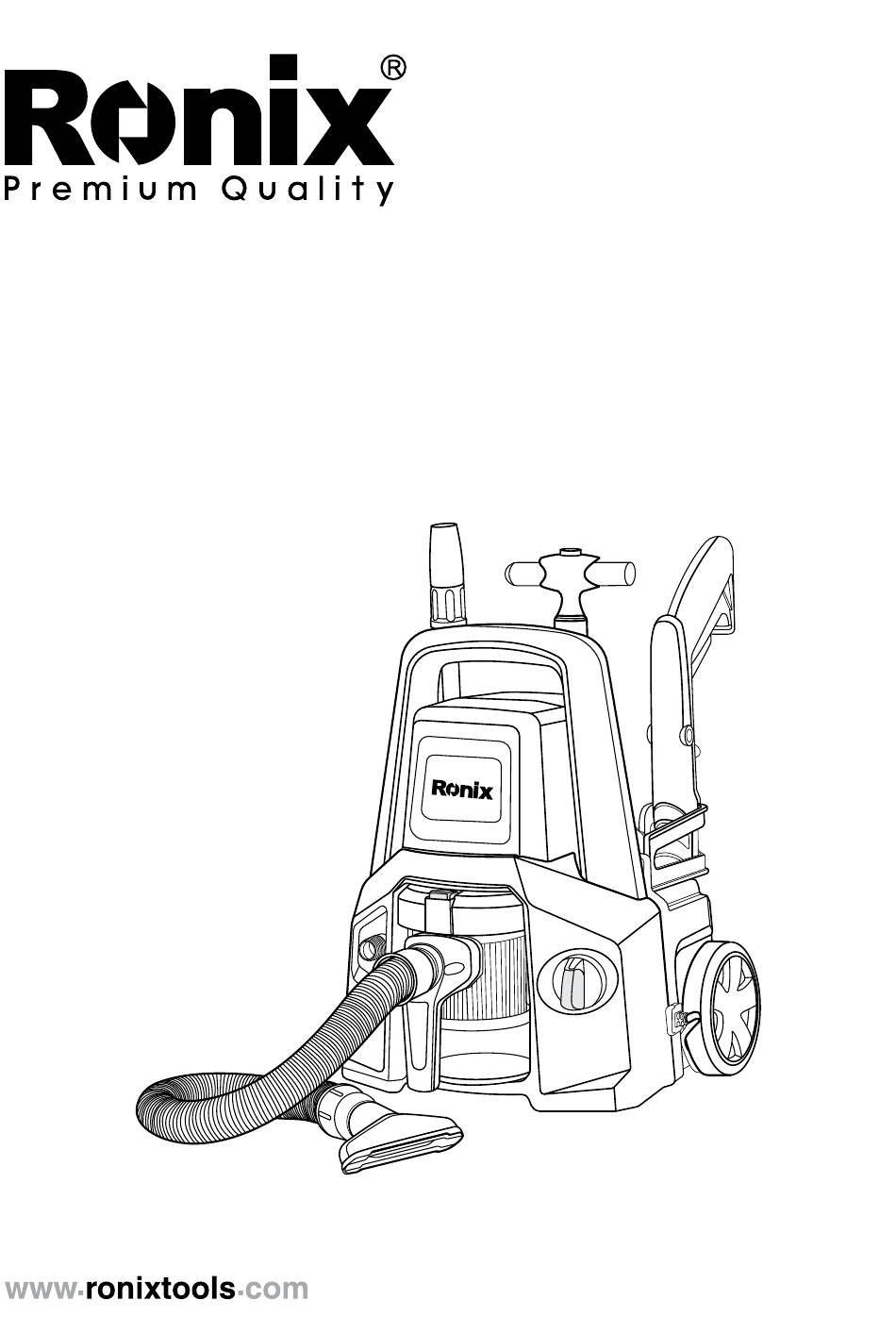

  • Page 1 MULTI-FUNCTIONAL CLEANING EQUIPMENT RP-4100...

  • Page 3: Product Specifications

    Max Air Flow 1.4m³/min Vacuum cleaner power 800W Max Blowing 16KPa Supplied In Ronix color box Quick connector Water inlet Turbo nozzle Adjustable nozzle 5m PVC Includes hose Detergent bottle Gun sofa Brush Flat nozzle soft hose middle lance USER MANUAL...

  • Page 4: Parts List

    PARTS LIST High-pressure Hose Telescopic Handle Fan Nozzle Vacuum Hose Nozzle Holder Air Inlet Water Outlet Dust Tank Wheel Power Cord Spray Wand Turbo Nozzle Blow air outlet All purpose brush Dusting Brush Water Inlet IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS Please read and comply with these original instructions prior to the initial operation of your appliance and store them for later use or subsequent owners.

  • Page 5: Electric Components

    injuries or death. WARNING Pointer to a possibly dangerous situation, if not avoided, which can lead to severe injuries or death. CAUTION Pointer to a possibly dangerous situation, if not avoided, which can lead to minor injuries. ATTENTION Pointer to a possibly dangerous situation, which can lead to property damage. ELECTRIC COMPONENTS DANGER Risk of electric shock.

  • Page 6: Safe Handling

    WARNING An unsuitable electrical extension cable can be hazardous. Only use an electrical extension cable which has been approved and labeled for this purpose and has an adequate cable cross-section outdoors: 1 - 10 m: 1.5 mm ;10 - 30 m: 2.5 mm Always fully unreel the extension cable from the cable drum.
  • Page 7 WARNING The appliance must not be operated by children or untrained personnel. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capacities, or lack of experience and knowledge. Children must not play with this appliance. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

  • Page 8: Other Risks

    Do not use without dust bag and/or filters in place. OTHER RISKS DANGER The appliance may not be operating in explosive atmospheres. Risk of explosion - Do not spray flammable liquids. Never draw in fluids containing solvents or undiluted acids and solvents! This includes petrol, paint thinner and heating oil.

  • Page 9: Residual Risks

    and during transport to prevent accidents or injuries. Several hours of continuous use of the appliance can lead to numbness in the hands in rare cases. - Wear gloves. - Keep hands warm. - Take breaks at regular intervals. Working with detergent WARNING The improper use of detergents can cause severe injuries or oxidation.

  • Page 10: Pressure Switch

    POWER SWITCH The appliance switch prevents unintentional operation of the appliance. LOCK TRIGGER GUN This lock locks the lever of the trigger gun and prevents the inadvertent start of the appliance. Overflow valve with. Water that has flowed through backflow preventers is considered to be non-potable.
  • Page 11 This high-pressure cleaner is designated with a rated input current. The intended use of this product covers the cleaning of vehicles, buildings, terraces, facades and garden equipment using clean water and biodegradable chemical detergents. Likewise, the product can be used to clean paving slabs or rain gutters.
  • Page 12 3. INSTALLING THE DUST COMPARTMENT INTO POSITION 4. INSTALLING THE SPRAY WAND TO TRIGGER GUN. - Fit the spray wand into the gun and rotate it until the two parts are completely locked. 5. CONNECT THE HIGH-PRESSURE HOSE TO THE TRIGGER GUN - Connect the sliver end of the high-pressure hose to the trigger gun and twist the nut as indicated to secure the connection.
  • Page 13 7. CONNECT THE GARDEN HOSE TO THE WATER INLET Connect the garden hose adaptor(female coupler) to the water inlet of the pressure washer, then thread your garden hose(male end) into the garden hose adaptor. START UP Park the appliance on an even surface. Insert the mains plug into the socket.

  • Page 14: Operation

    Bleed the device as follows prior to operation: - Turn on the appliance power switch. - Unlock the lever of the trigger gun. - Push the lever of the trigger gun, the device will switch on. - Let the device run (max. 2 minutes) until the water exits the trigger gun without bubbles.
  • Page 15 Connect the product to power and water supply as described. - Open the water supply - Hold the spray gun with both hands. - Direct the nozzle of the chosen accessory away from you towards the surface to be cleaned. - Unlock the trigger and press it until a constant amount of water flows through the nozzle, to allow air trapped in the hose to escape.

  • Page 16: Vacuum Cleaner Operation

    AFTER OPERATION WITH DETERGENT - Remove the hose clean detergent bottle from the intake and close it with the lid. - For storage, put the detergent bottle into the retainer with the cap pointing up. VACUUM CLEANER OPERATION CAUTION Make sure the on/off switch is set to “OFF” and insert the plug into a properly installed socket.
  • Page 17 Only separate the high-pressure hose from the trigger gun or the device when there is no pressure in the system. TURN OFF TAP - Pressure the lever of the trigger gun to release any remaining pressure in the system. - Release the lever of the trigger gun. - Lock the lever of the trigger gun.

  • Page 18: Frost Protection

    STORAGE CAUTION Risk of personal injury or damage! Consider the weight of the appliance when storing it. STORING THE APPLIANCE - Park the machine on an even surface. - Detach spray lance from the trigger gun. - Push the disconnect button on the trigger gun and pull the high- pressure hose out of the trigger gun.

  • Page 19: Care And Maintenance

    - Turn on the appliance power switch - Push the lever of the trigger gun until no more water is escaping . - Release the lever of the trigger gun. - Lock the lever of the trigger gun. - Turn off the appliance power switch. - Store the appliance and the entire accessories in a frost free room.

  • Page 20: Troubleshooting

    ATTENTION - The sieve must not be damaged. - Pull the sieve out using flat pliers. - Clean the sieve under running water. - Reinsert the sieve into the water connection. CLEAN THE DUST BAG pressure the locking block, then push front to open the dust compartment. Take up the dust compartment.
  • Page 21 Symptom Cause Recommended action Machine not plugged Plug in machine in Defective socket Try another socket. Machine refuses Fuse has blown Replace fuse. Switch off other to start Defective extension machines. cord Try without the extension cord. Check that hoses and connections Pump sucking air are airtight.
