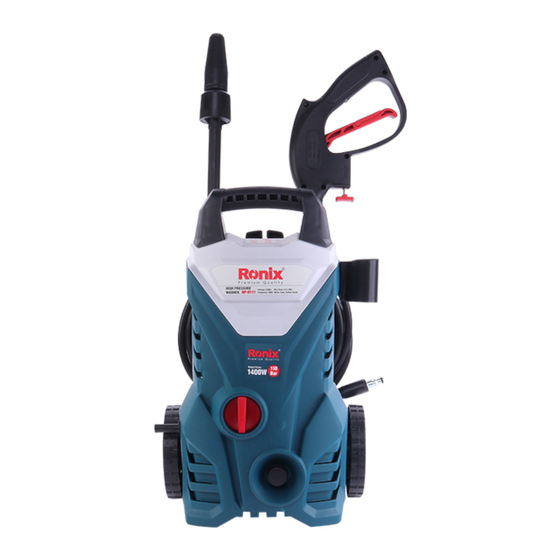

- Page 1 HIGH PRESSURE WASHER RP-U111...
-
Page 2: Specifications
SPECIFICATIONS Model RP-U111 Power 1400W Voltage 230V Frequency 50Hz Degree of Protection IPX5 Max. Pressure 110 Bar Max. Flow 5.0 L/MIN ≤40°C Water Temperature Rate Max. inlet Pressure 4bar Sound Pressure Level / Uncertainty 87±3 dB(A) Sound power level 93±3dB(A) Vibration Value 2.6±1.5 m/s... -
Page 3: Areas Of Application
PURPOSE - The high pressure cleaner is designed to clean vehicles, machines, buildings, facades, etc. - In the private sector. AREAS OF APPLICATION - Never use the machine in potentially explosive areas under any circumstances. - The operating temperature must be between 0 and +40°c - The machine consists of an assembly with a pump, which is encased in a shock absorbing housing. - Page 4 ESPECIALLY CHECK The insulation of the power cord should be faultless and without any cracks. If the power cord is damaged, an authorized distributor should replace it. WARNING! - Do not use this appliance without reading this instruction sheets. - The electric supply connection shall be made by a qualified electrician and comply with IEC60364-1.
- Page 5 WARNING! Water that has flown through backflow preventers is considered to be non-potable. WARNING! The machine shall be disconnected from its power source during cleaning or maintenance and when replacing parts for mains operated machines by removing the plug from the socket-outlet. WARNING! High pressure hoses, fittings and couplings are important for safety of the appliance.
- Page 6 his service agent or similarly qualified person in order to avoid a hazard. - Keep the machine on a stable and flat surface during operation, handling, transportation and strong. sudden overturn of machine will cause injury to body. In the event of accident or breakdown, switch off the machine immediately. (e.g.
- Page 7 ASSEMBLY -Position the washer as NEAR as possible to the water supply. The washer must be used standing on a secure, stable, positioned as shown. - Fit the lance into the gun and rotate it until the two parts are completely locked.
-
Page 8: Operation
the water inlet of the washer. The supply hose must have an internal diameter of at least 13mm (1/2 in) and must be reinforced. the water supply must be at least equal to the washer delivery capacity. OPERATION - Turn on the water supply tap fully. - Release the safety lock then press the trigger for a few seconds to allow air to escape and discharge residual pressure in the hose. -
Page 9: Maintenance
STORAGE - Switch off the washer. - Turn off the water supply tap. - After use, the detergent residuals should be removed from the tank. - Discharge residual pressure by pressing the trigger until no more water comes out of the lance nozzle. - Engage the gun safety lock. - Page 10 Disconnect from the electrical power supply before carrying out user maintenance or checking is correct functioning. To avoid unnecessary disappointments, you should check the following before contacting the service organization. Symptom Cause Recommended Action Machine not plugged in Plug in machine try another socket Machine defective socket fuse replace fuse.
