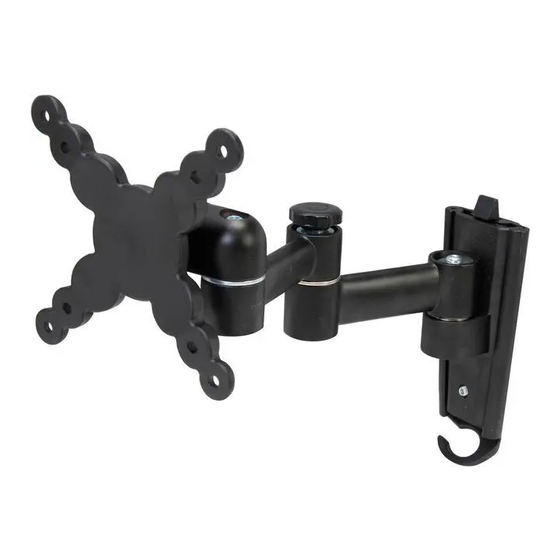

Rosewill RMS-MA2740 User Manual

RMS-MA2740
User Manual

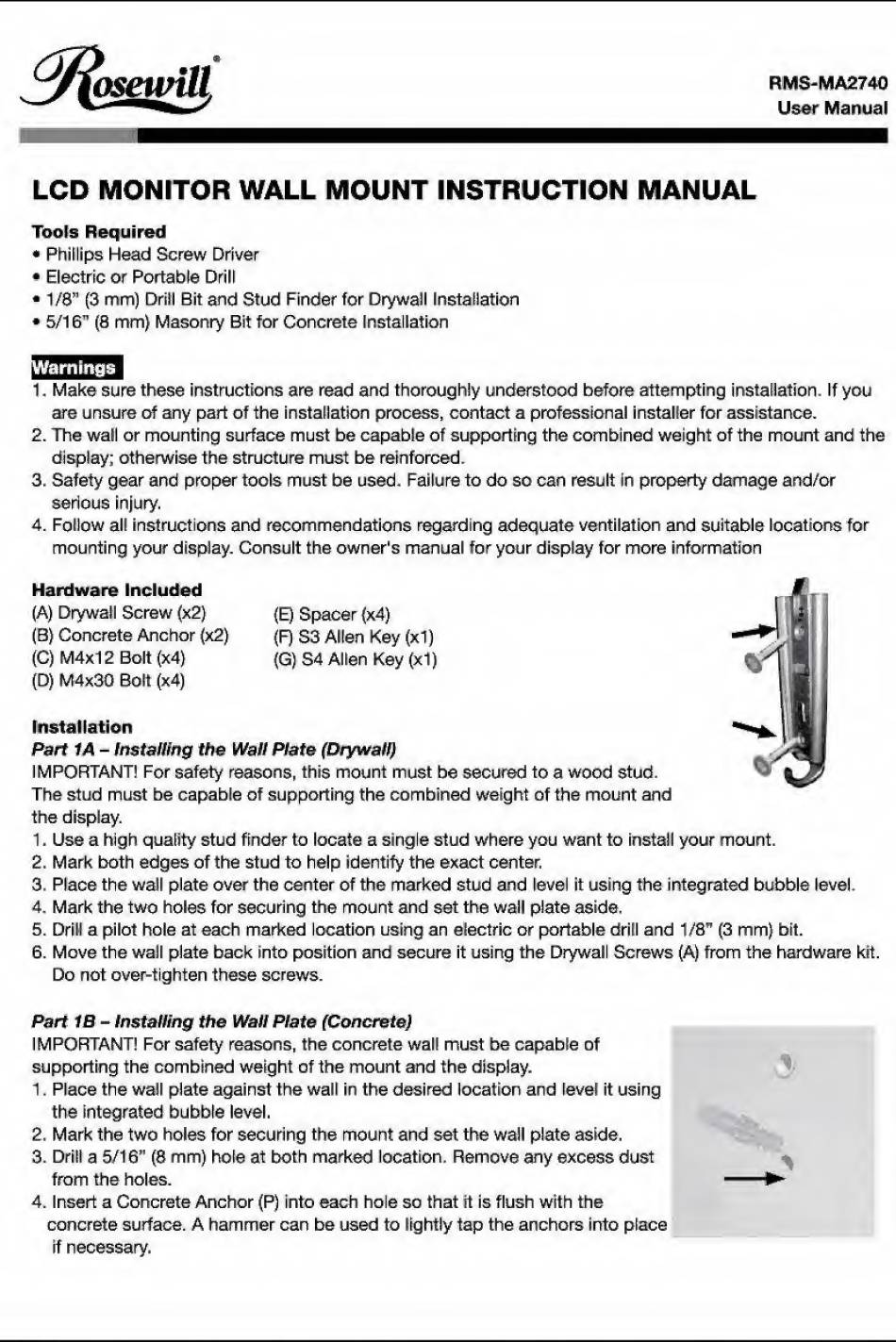

LCD MONITOR WALL MOUNT INSTRUCTION MANUAL
Tools Required
• Phillips Head Screw Driver
• Electric or Portable Drill
• 1/8" (3 mm) Drill Bit and Stud Finder for Drywail Installation
• 5/16" (8 mm} Masonry Bit for Concrete Installation
1. Make sure these instructions are read and thoroughly understood before attempting installation. If you
are unsure of any part of the installation process, contact a professional installer for assistance,
2. The wall or mounting surface must be capable of supporting the combined weight of the mount and the
display; otherwise the structure must be reinforced.
3. Safety gear and proper tools must be used. Failure to do so can result in property damage and/or
serious injury,
4. Follow all instructions and recommendations regarding adequate ventilation and suitable locations for
mounting your display. Consult the owner's manual for your display for more information
Hardware Included
(A) Drywail Screw (x2) (E) Spacer (x4)
(B) Concrete Anchor (x2) (F) S3 Allen Key (xl)
(C) M4x12 Bolt (x4) (G) S4 Allen Key (xl)
(D) M4x3G Bolt (x4)
Installation
Part 1A - Installing the Wall Plate (Drywail)
IMPORTANT! For safety reasons, this mount must be secured to a wood stud.
The stud must be capable of supporting the combined weight of the mount and
the display.
1. Use a high quality stud finder to locate a single stud where you want to install your mount.
2. Mark both edges of the stud to help identify the exact center.
3. Place the wall plate over the center of the marked stud and level it using the integrated bubble level.
4. Mark the two holes for securing the mount and set the wall plate aside.
5. Drill a pilot hole at each marked location using an electric or portable drill and 1/8" (3 mm) bit.
6. Move the wail plate back Into position and secure it using the Drywail Screws (A) from the hardware kit.
Do not over-tighten these screws.
Part IB - Installing the Wall Plate (Concrete)
JMPORTAMT! For safety reasons, the concrete wall must be capable of
supporting the combined weight of the mount and the display.
1. Place the wall plate against the wall in the desired location and level it using
the integrated bubble level,
2. Mark the two holes for securing the mount and set the wall plate aside,
3. Drill a 5/16" (8 mm) hole at both marked location. Remove any excess dust
from the holes,
4. Insert a Concrete Anchor (P) into each hole so that It is flush with the
concrete surface. A hammer can be used to lightly tap the anchors into place
It necessary.
