- Page 1 SSU5000A Series Mechanical Switch UserManual EN03B...
-
Page 3: Table Of Contents
SSU5000A Series User Manual Category Copyright and statement ..................2 General safety summary ..................3 General Care and Cleaning ................. 4 General inspection ....................5 Preparing for use ....................6 Dimensions ........................6 Connect to DC power supply ..................6 Front panel ........................ -
Page 4: Copyright And Statement
SIGLENT TECHNOLOGIES CO., LTD All Rights Reserved. SIGLENT products are protected by patent law worldwide. SIGLENT reserves the right to modify or change parts of or all the specifications or pricing policies at the company’s sole decision. Information in this publication replaces all previously corresponding material. -
Page 5: General Safety Summary
SSU5000A Series User Manual 2 General safety summary Carefully read the following safety precautions to avoid any personal injury or damage to the instrument and any products connected to it. To avoid potential hazards, please use the instrument as specified: ... -
Page 6: General Care And Cleaning
SSU5000A Series User Manual 3 General Care and Cleaning Care: Do not store or leave the instrument in direct sunshine for extended periods. To avoid damage to the instrument or probes, please do not expose them to fog, liquid, or solvents. -
Page 7: General Inspection
The consigner or carrier will be responsible for damages to the instrument resulting from shipment. SIGLENT will not provide free maintenance or replacement. Inspect the instrument: If the instrument is found to be damaged, defective, or fails in electrical or mechanical tests, please contact SIGLENT. -
Page 8: Preparing For Use
SSU5000A Series User Manual 5 Preparing for use 5.1 Dimensions SSU5264A SSU5266A Front View (unit: mm) Front View (unit: mm) Top View (unit: mm) Top View (unit: mm) 5.2 Connect to DC power supply The equipment accepts 12V, 2A, DC power supply. Please use the power adapter provided in the accessory to connect the instrument to the power source int.siglent.com... -
Page 9: Front Panel

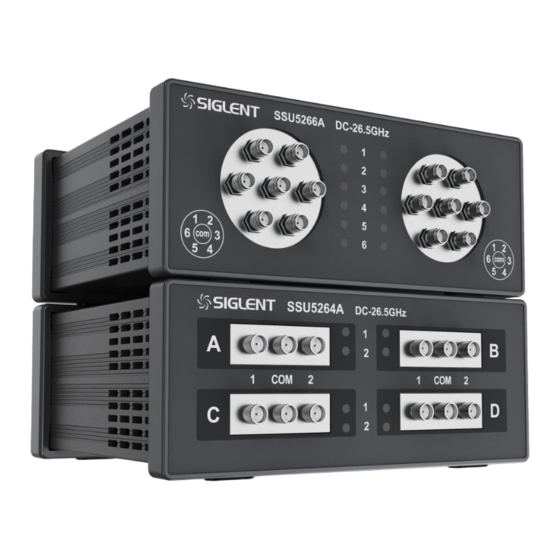

SSU5000A Series User Manual 5.3 Front panel SSU5264A SSU5266A RF connectors. SPDT RF ports and SP6T RF ports. Indicator Lights. Indicate which port the middle port links to. Model name. Model name and operation frequency. Illustration. Illustration of the indicator lights. -
Page 10: Rf Connectors
SSU5000A Series User Manual 5.4 RF connectors Front panel RF connectors (SSU5264A) There are 4 groups of RF connectors. Every group is an independent SPDT. When a SPDT is configurated, the middle connect will be link to left of right connect. And the indicator light will turn green 1 (Left) or green 2 (right). -
Page 11: Rear Panel
SSU5000A Series User Manual 5.5 Rear panel Rear panel Used to cool down internal components of the instrument. DC Power Port 12V DC power supply, 1.25A maxim current The equipment accepts 12V, 2A DC power supply. Please connect the equipment to the DC Power Adapter provided. -
Page 12: Firmware Operation
SSU5000A Series User Manual 6 Firmware operation 6.1 Switch status change Connect the device with a USB cable, click Rescan to get the switch information and connect. SSU5264A SSU5266A Click the switch button to complete the switch state change. SSU5264A... -
Page 13: Firmware Upgrade
Firmware upgrade Follow this procedure to update the instrument firmware: Download the firmware package from official SIGLENT websites only. Connect PC to instrument with USB cable. Run the EasySSU, enter the menu Tool-Upgrade. Click the Browse button to choose the firmware file, then click Begin button to update the system software. -
Page 14: Remote Control
SSU5000A Series User Manual 7 Remote control The mechanical switch supports communication with compatible computers via USB interface. By using this interface, in combination with programming languages and/ or NI-VISA software, users can remotely control the mechanical switch. SCPI Command control... - Page 15 SSU5000A Series User Manual Get Software Version Command Format Instruction Returns the software version of the connected device. Parameter Type None Parameter Range None Return software version Example Return:V1.0.0.0 Set Single Switch State(SSU5264A) Command Format SET[switch_name]=[state] Instruction Sets an individual switch state whilst leaving any other switches unchanged.
- Page 16 SSU5000A Series User Manual Return None Example SETP=14 Bit3 Bit2 Bit1 Bit0(LSB) Switch Value [states] = 1110(binary) = 14(decimal) Get All Switch State(SSU5264A) Command Format SWPORT? Instruction Returns the states of all switches. Parameter Type None Parameter Range None Return...
-
Page 17: Product Certification
SSU5000A Series User Manual 8 Product certification SIGLENT guarantees this product conforms to the national and industrial standards in China as well as the ISO9001: 2008 standard and the ISO14001: 2004 standard. Other international standard conformance certification is in progress. - Page 18 DC power supplies, electronic loads and other general purpose test instrumentation. Since its first oscilloscope was launched in 2005, SIGLENT has become the fastest growing manufacturer of digital oscilloscopes. We firmly believe that today SIGLENT is the best value in electronic test & measurement. Headquarters: SIGLENT Technologies Co., Ltd...
