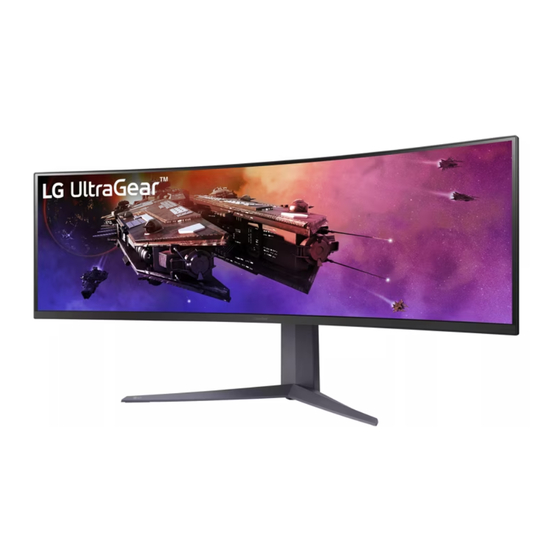

- Page 1 Owner’s Manual (LED Monitor*) * LG LED Monitor applies LCD screen with LED backlights. Please read this manual carefully before operating your set and retain it for future reference. 45GR75DC 45GR65DC www.lg.com Copyright © 2023 LG Electronics Inc. All Rights Reserved.
-
Page 2: Table Of Contents
TABLE OF CONTENTS LICENSE ........3 USING THE MONITOR ....13 TROUBLESHOOTING ....30 - Connecting to a PC...........13 OPEN SOURCE SOFTWARE PRODUCT SPECIFICATION ..33 HDMI Connection NOTICE INFORMATION ....4 - Factory Support Mode..........35 DisplayPort Connection - HDMI Timing (Video) ..........37 USB-C connection ASSEMBLING AND PREPARING 4 - Power LED ..............37... -
Page 3: License
LICENSE Each model has different licenses. Visit www.lg.com for more information on the license. The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. The SuperSpeed USB Trident logo is a registered trademark of USB Implementers Forum, Inc. -
Page 4: Open Source Software Notice Information
• It is recommended that use the supplied components. • If you use generic cables not certified by LG, the screen may not display or there may be image noises. • Illustrations in this document represent typical procedures, so they may look different from the actual product. -
Page 5: Supported Drivers And Software
Supported Drivers and Software Product and Button Description You can download and install the latest version from the LGE website (www.lg.com). Drivers and Software Installation Priority Monitor Driver Recommended OnScreen Control Recommended Dual Controller Optional Joystick Button... -
Page 6: How To Use The Joystick Button
Moving and Lifting the Monitor How to Use the Joystick Button You can easily control the functions of the monitor by pressing the joystick button or When moving or lifting the monitor, follow these instructions to prevent the monitor moving it left/right/up/down with your finger. from being scratched or damaged and to ensure safe transportation, regardless of its shape or size. -
Page 7: Installing On A Table
Installing on a Table CAUTION • Lift the monitor and place it on the table in an upright position. Place the monitor • Avoid touching the monitor screen as much as possible. at least 100 mm (3.94 inches) away from the wall to ensure sufficient ventilation. - This may result in damage to the screen or some of the pixels used to create images. -
Page 8: Adjusting The Stand Height
Adjusting the Stand Height Adjusting the Angle Place the monitor mounted on the stand base in an upright position. Place the monitor mounted on the stand base in an upright position. Handle the monitor with both hands for safety. Adjust the angle of the screen. The angle of the screen can be adjusted forward or backward from -5°... -
Page 9: Using The Kensington Lock
Using the Kensington Lock • Be careful not to touch or press the screen area when adjusting the angle of the monitor. The connector for the Kensington security system is located at the bottom of the monitor. For more information on installation and usage, refer to the Kensington lock owner’s manual or visit the website at http://www.kensington.com. -
Page 10: Installing The Wall Mount Plate
Installing the Wall Mount Plate Installing on the Wall This monitor meets the specifications for the wall mount plate or other compatible Install the monitor at least 100 mm (3.94 inches) away from the wall and leave devices. about 100 mm (3.94 inches) of space at each side of the monitor to ensure sufficient ventilation. - Page 11 The length of the screw may differ for each wall mounting bracket. Be sure to use A non-VESA standard screw may damage the product and cause the monitor the proper length. to fall. LG Electronics is not liable for any accidents relating to the use of non- standard screws. •...
- Page 12 • Use the wall mounting bracket and screws that conform to VESA standards. Damage caused by the use or misuse of inappropriate components will not be covered by the product warranty. • When measured from the back of the monitor, the length of each installed screw must be 8 mm (0.3 inches) or less.
-
Page 13: Using The Monitor
USING THE MONITOR Connecting to a PC • This monitor supports the *Plug and Play feature. • Illustrations in this manual may differ from the actual product. * Plug and Play: A feature that allows you to add a device to your computer without Press the joystick button, go to Settings →... -
Page 14: Displayport Connection
Connecting AV Devices DisplayPort Connection Transmits digital video and audio signals from your PC to the monitor. HDMI Connection NOTE HDMI transmits digital video and audio signals from your AV device to the monitor. • There may be no video or audio output depending on the DP (DisplayPort) version of the PC. -
Page 15: Connecting Peripherals
Connecting Peripherals Connecting Headphones Connect peripherals to the monitor via the headphones port. USB Device connection NOTE The USB port on the product functions as a USB hub. • Peripheral devices are sold separately. To use USB 3.0, connect the A-B type USB 3.0 cable of the product to the PC. •... -
Page 16: User Settings
USER SETTINGS Button Menu Status Description Main menu disabled Enables the main menu. NOTE Enters the Settings feature. (Holding down the button to turn off the monitor. You can • Your monitor’s OSD (On Screen Display) may differ Main menu enabled turn off the monitor this way at any time, including when the slightly from that shown in this manual. -
Page 17: Main Menu Features
Main Menu Features Main Menu Description Power Off Input Sets input mode. Power Off Turns off the monitor. Settings Input Game Mode Settings Configures the screen settings. Game Mode Sets the game mode for gaming. Exit Exit Exits the main menu. -
Page 18: User Settings
User Settings Menu Settings To view the OSD menu, press the joystick button at the bottom of the monitor and then enter the Settings. Configure the options by moving the joystick up/down/left/right. To return to the upper menu or set other menu items, move the joystick to or pressing ( ) it. - Page 19 Game Mode on SDR(Non-HDR)signal. Settings > Game Mode Description Gamer 1 In this mode, users can customize elements including game-related options. Gamer 1 and Gamer 2 picture modes allow you to save two sets of customized display settings, including game-related setup Gamer 2 options.
- Page 20 Game Mode on HDR signal. Settings > Game Mode Description Gamer 1 In this mode, users can customize elements including game-related options. Gamer 1 and Gamer 2 picture modes allow you to save two sets of customized display settings, including game-related setup Gamer 2 options.
- Page 21 Settings > Game Adjust Description Provides seamless and natural images by synchronizing the vertical frequency of the input signal with that of the output signal. CAUTION • Supported Interface: DisplayPort, USB-C (Adaptive-Sync) (Only for 45GR75DC), HDMI (Variable Refresh Rate). • Supported Graphic Card: A graphic card that supports AMD’s FreeSync is necessary.
- Page 22 Sets a response time for displayed pictures based on the speed of the screen. For a normal environment, it is recommended that you use Fast. For a fast-moving picture, it is recommended that you use Faster. Once Faster Mode is selected, Motion Blur may occur depending on the content. Response Time Faster Sets the response time to Faster.
- Page 23 Settings > Picture Adjust Description Brightness Adjusts the brightness of the screen. Contrast Adjusts the contrast of the screen. Sharpness Adjusts the sharpness of the screen. Mode 1, Mode 2, The higher the gamma value, the darker the image becomes. Likewise, the lower the gamma value, the Mode 3 lighter the image becomes.
- Page 24 Maximizes the contrast ratio by making the bright areas of the screen brighter and the dark areas of the screen darker. Turning this option off may increase energy consumption. Faster Sets the local dimming to faster. Local Dimming Fast Sets the local dimming to fast. Normal Sets the local dimming to normal.
- Page 25 Settings > Input Description Input List Selects the input mode. Adjusts the aspect ratio of the screen. Full Wide Displays the video in widescreen, regardless of the video signal input. Original Displays video according to the aspect ratio of the video signal input. Just Scan The aspect ratio is not adjusted from the original.
- Page 26 You can select the various PBP or PIP combination. USB-C combination only for 45GR75DC. Sub Screen PBP / PIP Connection HDMI 1 HDMI 2 USB-C HDMI 1 PBP / PIP HDMI 2 Main Screen Input USB-C PIP Size Sets the size of the PIP Sub window. ([Large] / [Small]) PIP Position Sets the position of the PIP Sub window.
- Page 27 Settings > General Description Language Sets the menu screen to the desired language. USB Selection Select the USB upstream cable connection port to use USB hub of the monitor. (Only for 45GR75DC) USB Switch Switch the USB device connected to the monitor to another input source. (Only for 45GR75DC) Set the USB-C settings to be optimized for screen resolution or USB data rate.
- Page 28 High Saves energy using the high-efficiency SMART ENERGY SAVING feature. SMART ENERGY Saves energy using the low-efficiency SMART ENERGY SAVING feature. SAVING Disables the SMART ENERGY SAVING feature. When Deep sleep mode is enabled, power consumption is minimized while the monitor is in standby mode. Deep Sleep Mode Enables Deep sleep Mode.
- Page 29 This feature disables the configuration and adjustment of menus. Enables OSD Lock. Disables OSD Lock. OSD Lock NOTE General • All features are disabled except Brightness, Contrast in Picture Adjust, Input, OSD Lock and Information in General. Information The display information will be shown the Total Power On Time, Resolution. Do you want to reset your settings? Reset to Initial Cancel the reset.
-
Page 30: Troubleshooting
Have you installed the display driver? • Be sure to install the display driver from our web site: http://www.lg.com. • Make sure to check if the graphics card supports Plug and Play function. Some features are disabled. - Page 31 The screen retains an image. Does image sticking occur even when the • Displaying a still image for a prolonged time may cause damage to the screen, resulting in the retention of the image. monitor is turned off? • To extend the lifetime of the monitor, use a screensaver. Screen display is unstable and shaky.
- Page 32 The display color is abnormal. Does the display appear discolored • Set the color to 24 bit (true color) or higher. In Windows, go to Control Panel > Display > Settings > Color Quality. (The (16 colors)? settings may differ depending on the operating system (OS) you use.) Does the display color appear unstable or •...
-
Page 33: Product Specification
PRODUCT SPECIFICATION LCD Screen Color Depth HDMI 10-bit color is supported. DP (DisplayPort) 10-bit color is supported. USB-C (Only for 45GR75DC) 10-bit color is supported. Resolution Max Resolution 5120 x 1440 @ 200 Hz Recommended Resolution 5120 x 1440 @ 200 Hz Power Sources Power Rating 45GR75DC... - Page 34 Dimensions Monitor Size (Width x Height x Depth) With Stand 1083.7 x 559.4 x 328.3 (mm) 42.6 x 22.0 x 12.9 (inches) Without Stand 1083.7 x 332.6 x 163.8 (mm) 42.6 x 13.0 x 6.4 (inches) Weight (Without Packaging) 45GR75DC With Stand 8.8 kg (19.4 lbs) Without Stand...
-
Page 35: Factory Support Mode
Factory Support Mode DisplayPort/USB-C (Only for 45GR75DC) Resolution Horizontal Frequency (kHz) Vertical Frequency (Hz) Polarity (H/V) Remarks 640 x 480 31.469 59.94 800 x 600 37.879 60.317 1024 x 768 48.363 60.004 1280 x 720 1280 x 1024 79.976 75.025 1920 x 1080 67.5 720 x 480... - Page 36 HDMI Resolution Horizontal Frequency (kHz) Vertical Frequency (Hz) Polarity (H/V) Remarks 640 x 480 31.469 59.94 800 x 600 37.879 60.317 1024 x 768 48.363 60.004 1280 x 720 1280 x 1024 79.976 75.025 1920 x 1080 67.5 720 x 480 61.08 119.999 PIP(480P)
-
Page 37: Hdmi Timing (Video)
HDMI Timing (Video) Preset Mode Horizontal Frequency (kHz) Vertical Frequency (Hz) Remarks 480P 31.5 720P 1080P 67.5 1080P 2160P 2160P Power LED Mode LED Color On Mode Red (For a few seconds) Sleep Mode (Standby Mode) Off Mode... -
Page 38: Beep Guide
Beep Guide 45GR75DC Menu Location Menu Location Menu Location Game Mode Game Adjust - Crosshair - Red Cross 2 4 1 Picture Adjust - Color Temp Game Mode - Gamer 1 Game Adjust - Crosshair - Green Cross 2 4 2 Picture Adjust - Color Temp - Custom 3 5 1 Game Mode - Gamer 2... - Page 39 Menu Location Menu Location Menu Location Picture Adjust - Six Color - Green Hue 3 7 3 3 7 11 1 Input - Aspect Ratio - Cinema 2 4 2 5 Picture Adjust - Six Color - Yellow Hue Slider 3 7 3 1 Input - Auto Input Switch Picture Adjust - Six Color - Green Hue...
- Page 40 Menu Location Menu Location Menu Location General - Language General - USB Selection - DisplayPort - General - User-defined Key 2 - Input 5 6 1 5 2 3 1 USB-B General - User-defined Key 2 - Game General - Language - English 5 1 1 5 6 2 General - USB Selection - DisplayPort -...
- Page 41 Menu Location General - Power LED - On 5 10 1 General - Power LED - Off 5 10 2 General - Automatic Standby 5 11 General - Automatic Standby - 8H 5 11 1 General - Automatic Standby - 6H 5 11 2 General - Automatic Standby - 4H 5 11 3...
- Page 42 45GR65DC Menu Location Menu Location Menu Location Game Mode Game Adjust - Crosshair - Green Cross 2 4 2 Picture Adjust - Color Temp - Warm 3 5 2 Game Mode - Gamer 1 Game Adjust - Crosshair - Red Dot 2 4 3 Picture Adjust - Color Temp - Medium 3 5 3...
- Page 43 Menu Location Menu Location Menu Location Picture Adjust - Six Color - Green Picture Adjust - Six Color - Yellow Input - Auto Input Switch - On 4 3 1 3 7 4 3 7 12 Saturation Saturation Input - Auto Input Switch - Off 4 3 2 Picture Adjust - Six Color - Green 3 7 4 1...
- Page 44 Menu Location Menu Location Menu Location General - Language - French 5 1 3 General - User-defined Key 2 - Input 5 3 1 General - Automatic Standby General - User-defined Key 2 - Game General - Language - Spanish 5 1 4 General - Automatic Standby - 8H 5 8 1...
- Page 45 Supplier’s Declaration of Conformity Trade Name Responsible Party LG Electronics USA, Inc. Address 111 Sylvan Avenue, North Building, Englewood Cliffs, NJ 07632 E-mail lg.environmental@lge.com The model and serial number of the product are located on the back and on one side of the product.
