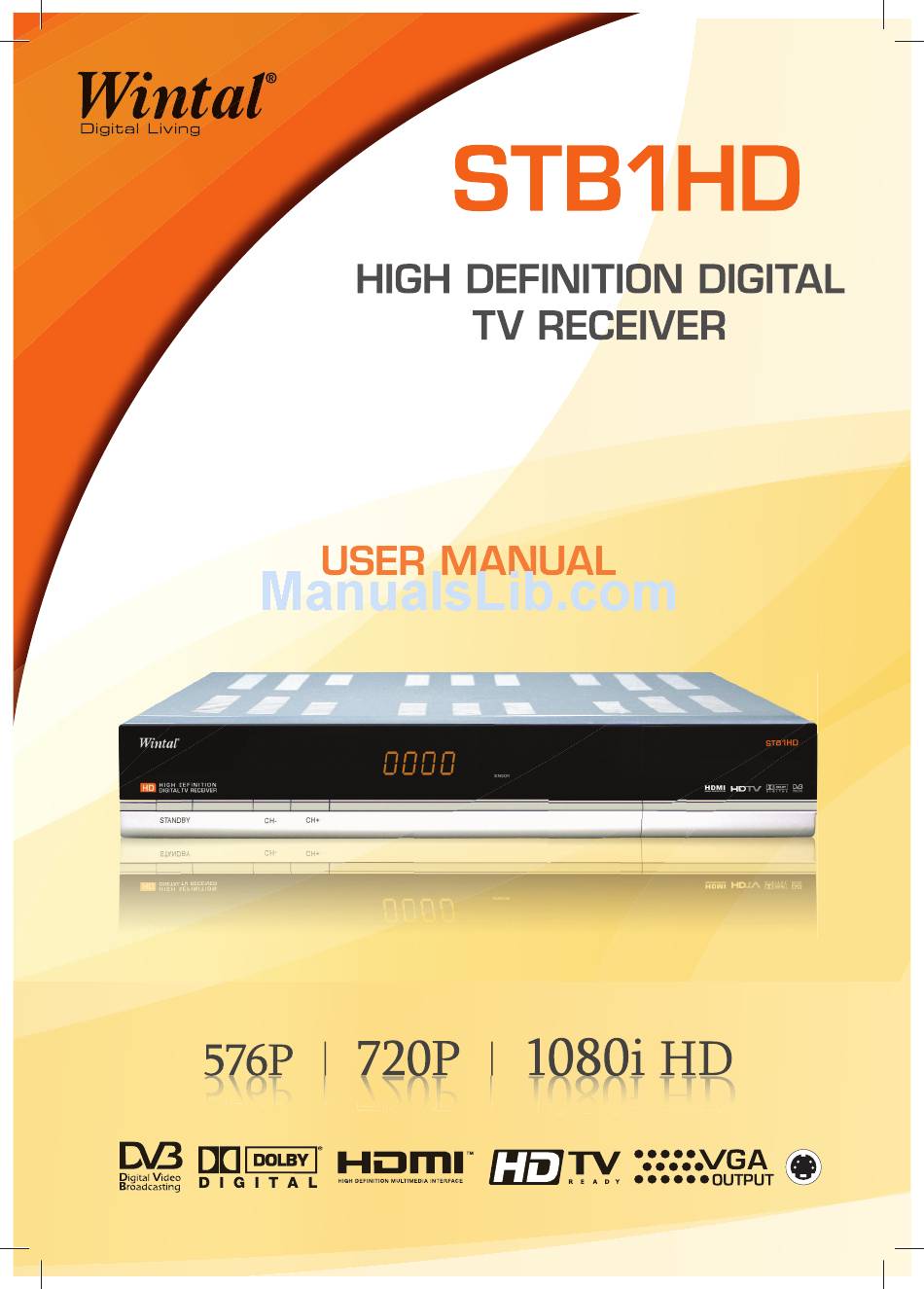

Summary of Contents for Wintal STB1HD
-
Page 2: Table Of Contents
I. General Information... 3 1. Preface ... 3 2. Main Features ... 3 3. For Your Safety ... 4 4. Front Panel... 4 5. Rear Panel ... 5 6. Remote Control Unit... 6 II. Connection and Installation... 9 1. System Connection ... 9 2. - Page 3 4. Program Select ... 17 5. System Setting ... 17 5.1 Common Setup ...17 5.2 Time Zone Adjust ...17 5.3 System Information ...17 6. Shortcut Key Explanation... 18 IV. Technical Specification ... 20 V. Trouble Shooting ... 21...
-
Page 4: General Information
Aspect ratio: 4:3/16:9 Dolby 5.1 channel or PCM digital audio output (Bitstream) Electronic program guide (EPG) Software upgrade via RS232 32 bits true color on screen display (OSD) Channel and Program editor set-top receiver is designed to pick up free-to-air... -
Page 5: For Your Safety
Do not cover the Use a soft cloth and mild washing solution to clean the case Do not connect or modify cables when the receiver is plugged in Do not remove the cover Do not allow the unit to be exposed to extreme heat, cold or humid conditions Never allow liquids, spray or other materials to come into contact with the circuit boards inside. -
Page 6: Rear Panel
5. Rear Panel LOOP OUT: RF output to other tuners, such as your TV’s antenna input ANT IN: Connect to terrestrial antenna HDMI OUT: HDMI audio/video output, connect to TV (recommended if available) S-VIDEO: Standard definition video output, connect to the TV or VCR (low quality, not recommended unless necessary) R-AUDIO/L-AUDIO: stereo audio output, connect to TV or audio amplifier using RCA jack... -
Page 7: Remote Control Unit
6. Remote Control Unit... - Page 8 Keys specification Press to turn the receiver on/off Select a channel or to enter a number in menus Switch back to previous channel. Call the main menu, close current window and return to viewing. Return to the previous menu screen or exit main menu.
- Page 9 Press to display information about current channel Press to switch between teletext / closed caption and normal modes Move up one page within menus Move down one page within menus Confirm / save results in menu / call program list Display the favorites list Pause / unpause picture Switch between audio modes: left, right, mix and stereo...
-
Page 10: Connection And Installation
II. Connection and Installation 1. System Connection Make sure the Power, Terrestrial Antenna, TV and other relevant equipment are connected properly before continuing. There are five different methods to transmit picture from the STB to your TV. You will only need to connect one. It is advised to use the best quality connection that your television supports (best being HDMI) Video methods are listed in order of quality below, with 5 being the highest quality. -
Page 11: Quick Installation
TOSLINK optical audio lead. 2. Quick Installation STEP1: Check connections Prior to powering up the receiver, ensure that all cabling is correctly connected as explained in system connections. STEP2: Adjust TV set Turn on the television and select the appropriate video input mode (AV1, AV2, HDMI etc) on the television. - Page 12 Turn on the receiver using the ON /OFF switch on the back panel of your receiver. Then, press the standby button on the front panel. The startup on-screen display (OSD) will be shown on the TV screen. The startup OSD will remain for several seconds and then disappear.
-
Page 13: Main Menu
III. Main Menu While not already in a menu, pressing MENU will call the Main Menu. This menu consists of five items as shown below. Installation Program Guide Program Manage Program Select System Setting to move up or down from one item to another. Press OK to select a sub-menu To escape the menu system at anytime, press EXIT on the remote. -
Page 14: Manual Search
1.2 Manual Search You can set parameters in Manual Search window if you are familiar with station frequencies. In this mode, channels can be tuned in by hand. Channel No.: Press Frequency: This value will vary according to channel, however, to adjust, use the number keys to enter in a different frequency. -
Page 15: Factory Default
to select appropriate value. Press OK key to confirm and exit from the Add Channel window. If successful, you will find the new channel has been added to end of the list. Note: this function is for advanced users. Delete This command allows you to delete one or more unwanted channels. -
Page 16: Program Guide
2. Program Guide Move the cursor to Program Guide and press OK to enter the Program Guide sub-menu. You can also enter this window by pressing EPG on the REMOTE under non-menu mode. In Program Guide, use future programs (EPG), and cursor to desired EPG and press OK, a text box will appear for a more detailed explanation of the program. -
Page 17: Favorite Edit
Rename Press the blue key on the REMOTE to pop up a keypad window where you can rename the program. In this keypad window, select your required character by using direction key on the REMOTE and press OK. To switch between capitalization and lowercase, please select Caps On and press OK key on the REMOTE. -
Page 18: Program Select
4. Program Select In the Main Menu, use the default mode is “TV” mode. In program list, desired program and press OK to view this channel in full screen. 5. System Setting In the Main Menu, use System Setting menu. 5.1 Common Setup Transparency: Menu transparency ranges from 0% to 20% by step 5%. -
Page 19: Shortcut Key Explanation
6. Shortcut Key Explanation In normal view mode, you can access functions by pressing special keys on the REMOTE. These keys will be explained as follows: 1. Program List Pressing OK or FAV on the REMOTE will display the Program List window. Press FAV again or keys to switch among favorite groups that you have defined (refer to Favorite Edit). - Page 20 6. Audio Press Audio to switch between the Subtitle Language and Audio Language window. Note that the available selections in both audio and subtitle language window depend on the broadcast. Use to select the appropriate language and press OK key to confirm. 7.
-
Page 21: Technical Specification
IV. Technical Specification Tuner Input frequency Input level Input impedance Channel Decoding Standard Demodulation Code rate Demultiplexer Standard Input max.bit stream rate Video Decoding Standard Aspect ratio Video resolution Power Input voltage Power consumption Safety Insulation resistance Withstand Voltage (Hi-Pot) 147 ~ 862MHz UHF&VHF(IEC Female Connector) -80 ~ -20 dBmV 75Ω... -
Page 22: Trouble Shooting
The system is connected but TV is not in correct AV mode. The system is connected using RF leads and the output channel of the receiver interferes with an existing terrestrial channel or Video signal. Battery exhausted. - Page 23 Channels are not available after using “Auto Search” when installing the receiver for the first time. Can not lock signal by using “Manual Search”. Picture seems abnormal, or no picture. Forgot your password Note: If you cannot solve the problem even referring to the above trouble shooting, please contact your local dealer.
