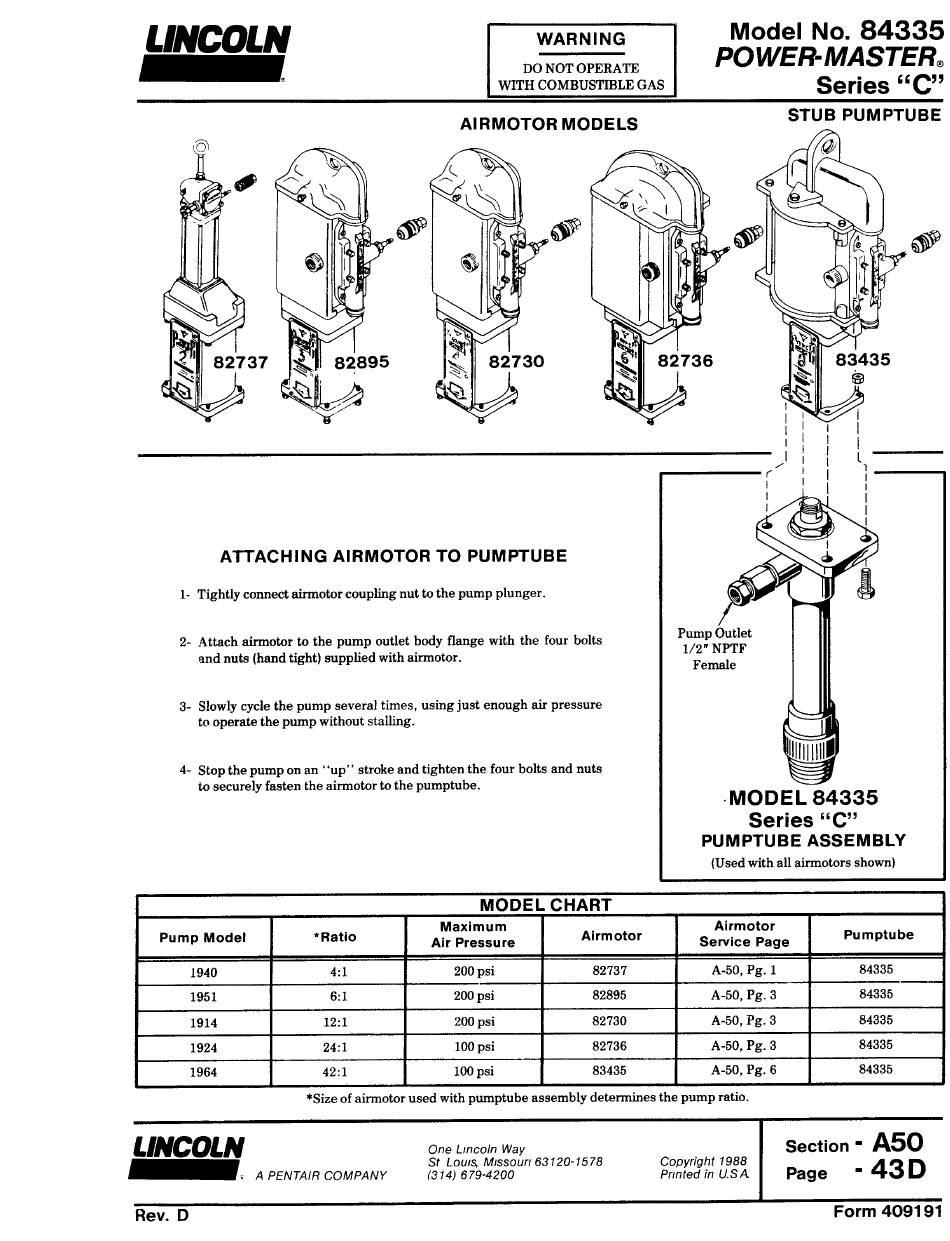

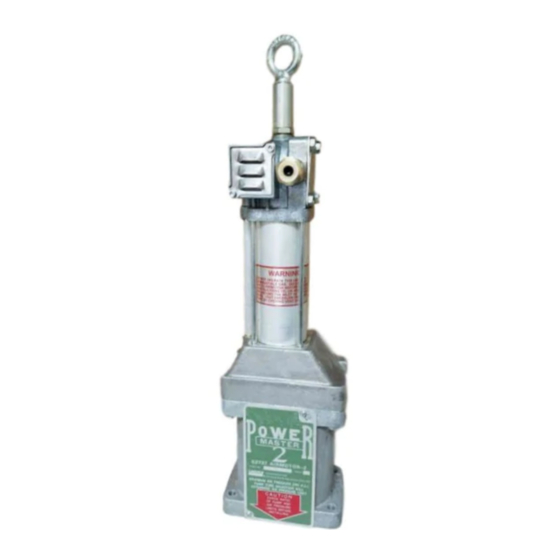

Lincoln POWER-MASTER C Series Manual

LINCOLN
Model No.
84335
WARNING
POWER-MASTER®
DO NOT OPERATE
WITH COMBUSTIBLE GAS
Series
"C"
AIRMOTOR MODELS
STUB PUMPTUBE
ATTACHING AIRMOTOR TO PUMPTUBE
1- Tightly connect airmotor coupling nut to the pump plunger.
2- Attach airmotor to the pump outlet body flange with the four bolts
and nuts (hand tight) supplied with airmotor.
3- Slowly cycle the pump several times, using just enough air pressure
to operate the pump without stalling.
4- Stop the pump on an "up" stroke and tighten the four bolts and nuts
to securely fasten the airmotor to the pumptube.
MODEL 84335
Series "C"
PUMPTUBE ASSEMBLY
(Used with all airmotors shown)
MODEL CHART
Pump Model
Maximum
*Ratio
Airmotor
Air Pressure
Airmotor
Service Page
Pumptube
1940 4:1
200 psi 82737 A-50, Pg. 1
84335
1951 6:1 200 psi 82895 A-50, Pg. 3
84335
1914 12:1
200 psi 82730 A-50, Pg. 3 84335
1924 24:1
100 psi 82736 A-50, Pg. 3 84335
1964 42:1 100 psi 83435 A-50, Pg. 6 84335
*Size of airmotor used with pumptube assembly determines the pump ratio.
Section
- A50
Copyright 1988
Printed in U.S.A.
Page
- 43D
LINCOLN
One Lincoln Way
St Louis, Missouri 63120-1578
A PENTAIR COMPANY (314) 679-4200
Rev. D
Form 409191
